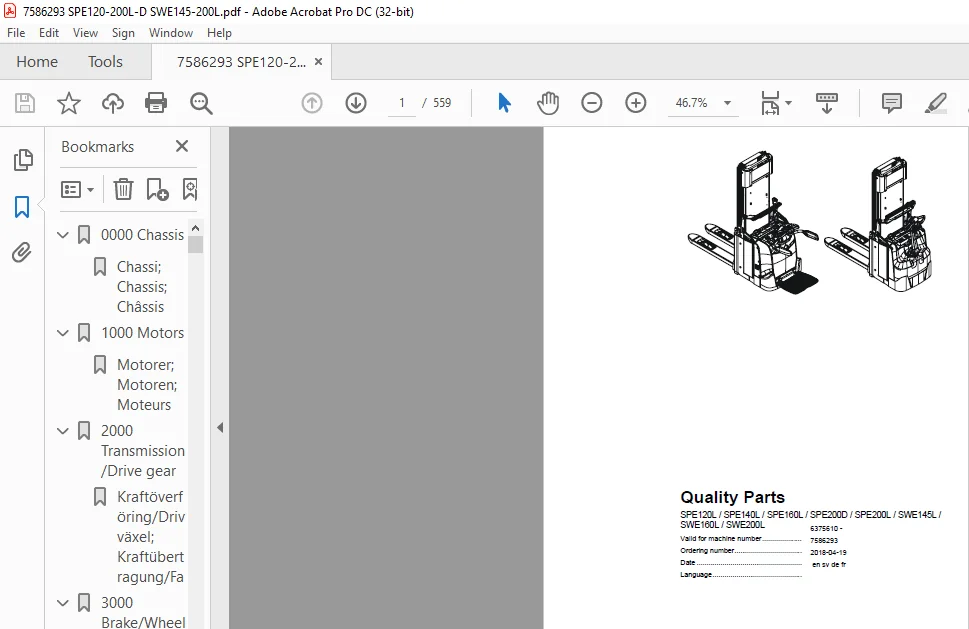

BT SPE120L SPE140L SPE160L SPE200D SPE200L SWE145L SWE160L SWE200L Quality Parts Manual

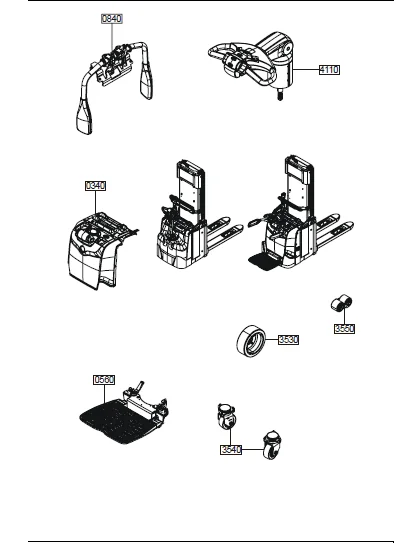

0000 Chassis 4
Chassi; Chassis; Châssis 4
1000 Motors 6
Motorer; Motoren; Moteurs 6
2000 Transmission/Drive gear 7
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 7
3000 Brake/Wheel/Caterpillar system 7
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 7
4000 Steering system 8
Styrsystem; Steuer-/Lenksystem; Système de direction 8
5000 Electrical system 9
Elektriskt system; Elektroanlage; Système électrique 9
6000 Hydraulic/pneumatic system 11
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 11
7000 Work function – lifting masts 13
Arbetsfunktion – lyftstativ; Arbeitsfunktion – Hubgerüste; Fonction de travail – mâts de levage 13
9000 Options/attachments 13
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 13

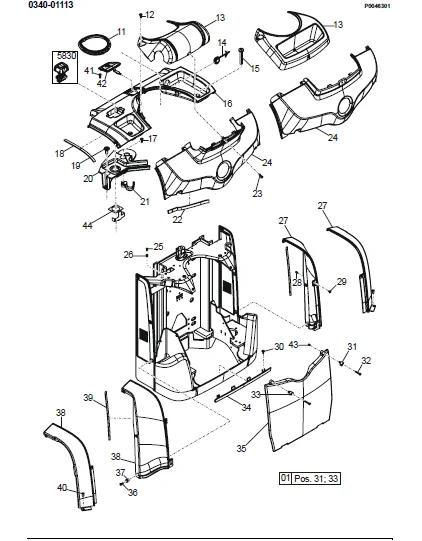

0340-01113 P0046301 18
0340-01113 Inspection covers [2018-02-08] 19
0340-01173 P0046232 22
0340-01173 Inspection covers [2018-04-16] 23
0340-01313 P0049391 26
0340-01313 Inspection covers [2017-02-24] 27
0340-01604 P0055289 28
0340-01604 Inspection covers [2018-04-16] 29
0380-01531 P0049959 32
0380-01531 Fork frame (low lifters) [2015-10-09] 33
0390-01078 P0044923 34
0390-01078 Battery compartment parts [2018-02-08] 35
0390-01104 P0045714 36
0390-01104 Battery compartment parts [2018-02-08] 37
0390-01142 P0046685 38
0390-01142 Battery compartment parts [2018-02-08] 39
0390-01179 P0047903 40
0390-01179 Battery compartment parts [2016-06-27] 41
0390-01187 P0048177 42
0390-01187 Battery compartment parts [2017-04-27] 43
0390-01297 P0051493 44
0390-01297 Battery compartment parts [2017-01-27] 45
0390-01305 P0051976 46
0390-01305 Battery compartment parts [2016-04-13] 47
0390-01325 P0052635 48
0390-01325 Battery compartment parts [2017-11-23] 49
0390-01326 P0052658 50
0390-01326 Battery compartment parts [2017-11-23] 51
0390-01383 P0054933 52
0390-01383 Battery compartment parts [2017-04-04] 53
0390-01391 P0055288 54
0390-01391 Battery compartment parts [2017-03-23] 55
0390-01397 P0055507 56
0390-01397 Battery compartment parts [2017-03-27] 57
0400-00262 P0048930 58
0400-00262 Frame/chassis components [2016-06-01] 59
0400-00281 P0051452 60
0400-00281 Frame/chassis components [2017-08-25] 61
0400-00289 P0051969 62
0400-00289 Frame/chassis components [2016-12-05] 63
0450-00154 P0047406 64
0450-00154 Motor fixing points [2018-02-08] 65
0450-00155 P0047405 68
0450-00155 Motor fixing points [2018-02-08] 69
0450-00171 P0049583 72
0450-00171 Motor fixing points [2017-06-02] 73
0450-00173 P0049445 74
0450-00173 Motor fixing points [2018-02-08] 75
0450-00216 P0055528 76
0450-00216 Motor fixing points [2017-06-02] 77
0450-00229 P0056255 80
0450-00229 Motor fixing points [2017-11-29] 81
0450-00230 P0056256 82
0450-00230 Motor fixing points [2017-06-02] 83
0450-00232 P0056259 84
0450-00232 Motor fixing points [2018-02-08] 85
0560-00313 P0045050 88
0560-00313 Platform incl fixing points [2018-02-08] 89
0560-00317 P0045946 90
0560-00317 Platform incl fixing points [2018-02-08] 91
0560-00331 P0048555 92
0560-00331 Platform incl fixing points [2018-02-08] 93
0560-00332 P0048558 94
0560-00332 Platform incl fixing points [2016-06-29] 95
0560-00343 P0049687 96
0560-00343 Platform incl fixing points [2018-02-08] 97
0560-00353 P0051905 98
0560-00353 Platform incl fixing points [2018-02-08] 99
0560-00354 P0051911 100
0560-00354 Platform incl fixing points [2018-02-08] 101
0560-00367 P0053838 102
0560-00367 Platform incl fixing points [2018-02-08] 103
0810-00487 P0049450 104
0810-00487 Overhead guard/roof [2016-05-03] 105
0810-00501 P0051108 106
0810-00501 Overhead guard/roof [2017-08-25] 107
0810-00549 P0056773 108
0810-00549 Overhead guard/roof [2017-08-25] 109
0820-00526 P0051197 110
0820-00526 Finger/foot guards [2017-10-31] 111
0820-00527 P0048029 114
0820-00527 Finger/foot guards [2016-07-13] 115
0820-00529 P0048030 118
0820-00529 Finger/foot guards [2017-04-26] 119
0820-00549 P0049371 120
0820-00549 Finger/foot guards [2015-09-17] 121
0840-00432 P0045956 122
0840-00432 Driver protection [2018-02-08] 123
0840-00484 P0048021 126
0840-00484 Driver protection [2016-02-04] 127
0840-00511 P0049378 128
0840-00511 Driver protection [2018-02-08] 129
0840-00512 P0049383 130
0840-00512 Driver protection [2018-02-08] 131
0840-00535 P0051086 132
0840-00535 Driver protection [2018-02-08] 133
0840-00556 P0052334 134
0840-00556 Driver protection [2018-02-08] 135
0840-00577 P0053655 136
0840-00577 Driver protection [2018-02-08] 137
0840-00605 P0055538 138
0840-00605 Driver protection [2018-02-08] 139
0840-00614 P0056190 140
0840-00614 Driver protection [2018-02-08] 141
0840-00616 P0056193 144
0840-00616 Driver protection [2018-02-08] 145
0850-00772 P0049214 146
0850-00772 Signs, warnings, decals [2018-02-08] 147
0850-00802 P0053514 148
0850-00802 Signs, warnings, decals [2017-03-23] 149
0850-00858 P0053516 150
0850-00858 Signs, warnings, decals [2016-11-24] 151
1730-00085 P0046682 152
1730-00085 Electric steering motor [2018-02-09] 153
1730-00095 P0049937 154
1730-00095 Electric steering motor [2018-02-09] 155
1730-00096 P0051140 156
1730-00096 Electric steering motor [2018-02-09] 157
1730-00099 P0052624 158
1730-00099 Electric steering motor [2018-02-08] 159
1740-00065 P0044710 160
1740-00065 Electric fan motor, electric fan [2018-02-09] 161
1760-00228 P0046637 162
1760-00228 Electric drive motor [2018-02-09] 163
1760-00229 P0046641 164
1760-00229 Electric drive motor [2018-02-09] 165
2550-00158 P0046668 166
2550-00158 Mechanical drive gear unit [2018-02-09] 167
2550-00164 P0046673 168
2550-00164 Mechanical drive gear unit [2018-02-09] 169
2550-00171 P0048190 170
2550-00171 Mechanical drive gear unit [2015-09-17] 171
2550-00178 P0049698 172
2550-00178 Mechanical drive gear unit [2018-02-09] 173
3370-00062 P0045971 174
3370-00062 Electromagnetic parking brake [2018-02-09] 175
3370-00074 P0049699 176
3370-00074 Electromagnetic parking brake [2017-05-02] 177
3370-00080 P0051472 178
3370-00080 Electromagnetic parking brake [2018-02-09] 179
3370-00094 P0055887 180
3370-00094 Electromagnetic parking brake [2018-02-22] 181
3370-00105 P0058766 182
3370-00105 Electromagnetic parking brake [2018-02-22] 183
3530-00195 P0044670 184
3530-00195 Drive wheel [2016-09-16] 185
3530-00209 P0048709 186
3530-00209 Drive wheel [2016-08-22] 187
3530-00213 P0049827 188
3530-00213 Drive wheel [2018-04-19] 189
3540-00161 P0045388 190
3540-00161 Support/castor wheels [2018-02-09] 191
3540-00162 P0045392 192
3540-00162 Support/castor wheels [2018-02-09] 193
3540-00178 P0048160 194
3540-00178 Support/castor wheels [2018-02-08] 195
3540-00210 P0058058 196
3540-00210 Support/castor wheels [2018-02-08] 197
3550-00878 P0055399 198
3550-00878 Fork/support arm wheels [2017-03-28] 199
4110-00792 P0046255 200
4110-00792 Steering arm/wheel/lever [2018-02-09] 201
4110-00794 P0046258 202
4110-00794 Steering arm/wheel/lever [2018-02-09] 203
4110-00833 P0046250 204
4110-00833 Steering arm/wheel/lever [2018-02-09] 205
4110-00841 P0046630 206
4110-00841 Steering arm/wheel/lever [2018-02-09] 207
4110-00860 P0048495 208
4110-00860 Steering arm/wheel/lever [2018-02-09] 209
4110-00881 P0049240 210
4110-00881 Steering arm/wheel/lever [2017-11-21] 211
4110-00888 P0049436 212
4110-00888 Steering arm/wheel/lever [2018-01-04] 213
4110-00889 P0049440 214
4110-00889 Steering arm/wheel/lever [2018-01-04] 215
4110-00945 P0052269 216
4110-00945 Steering arm/wheel/lever [2018-02-08] 217
4110-00948 P0052326 218
4110-00948 Steering arm/wheel/lever [2018-02-09] 219
4110-00966 P0053590 220
4110-00966 Steering arm/wheel/lever [2017-03-27] 221
4110-00967 P0053701 222
4110-00967 Steering arm/wheel/lever [2018-01-04] 223
4110-00969 P0053596 224
4110-00969 Steering arm/wheel/lever [2017-03-27] 225
4110-00970 P0053600 226
4110-00970 Steering arm/wheel/lever [2017-03-27] 227
4110-00996 P0055521 228
4110-00996 Steering arm/wheel/lever [2017-03-27] 229
4110-00997 P0055522 230
4110-00997 Steering arm/wheel/lever [2017-05-29] 231
4110-00998 P0055523 232
4110-00998 Steering arm/wheel/lever [2017-05-29] 233
4110-01006 P0056197 234
4110-01006 Steering arm/wheel/lever [2017-11-23] 235
4110-01007 P0056198 236
4110-01007 Steering arm/wheel/lever [2017-11-23] 237
4110-01030 P0057438 238
4110-01030 Steering arm/wheel/lever [2018-02-08] 239
4110-01036 P0057821 240
4110-01036 Steering arm/wheel/lever [2018-02-08] 241
4110-01037 P0057820 242
4110-01037 Steering arm/wheel/lever [2018-02-08] 243
4110-01047 P0058130 244
4110-01047 Steering arm/wheel/lever [2018-01-04] 245
4350-00031 P0045382 246
4350-00031 Steering angle sensor [2018-02-09] 247
4350-00033 P0046626 248
4350-00033 Steering angle sensor [2018-02-09] 249
4350-00038 P0048677 250
4350-00038 Steering angle sensor [2017-03-17] 251
4350-00053 P0057893 252
4350-00053 Steering angle sensor [2017-11-24] 253
5160-00199 P0044906 254
5160-00199 General alarm signals (audible/visual) [2018-02-09] 255
5160-00227 P0049085 256
5160-00227 General alarm signals (audible/visual) [2016-09-12] 257
5590-00946 P0048809 258
5590-00946 Work function harnesses/fuse [2016-06-03] 259
5590-00949 P0048810 260
5590-00949 Work function harnesses/fuse [2016-09-09] 261
5590-00950 P0048825 262
5590-00950 Work function harnesses/fuse [2016-09-12] 263
5590-00971 P0049475 264
5590-00971 Work function harnesses/fuse [2016-08-25] 265
5590-00972 P0049476 266
5590-00972 Work function harnesses/fuse [2016-08-25] 267
5590-00973 P0049555 268
5590-00973 Work function harnesses/fuse [2015-09-17] 269
5590-01054 P0052659 270
5590-01054 Work function harnesses/fuse [2016-09-09] 271
5590-01078 P0053542 272
5590-01078 Work function harnesses/fuse [2016-09-09] 273
5590-01079 P0053543 274
5590-01079 Work function harnesses/fuse [2017-11-23] 275
5590-01224 P0057795 276
5590-01224 Work function harnesses/fuse [2017-11-24] 277
5680-00280 P0047354 278
5680-00280 Battery/motor cables, fuse [2018-02-09] 279
5680-00302 P0049485 280
5680-00302 Battery/motor cables, fuse [2016-09-06] 281
5680-00326 P0052643 282
5680-00326 Battery/motor cables, fuse [2016-09-26] 283
5680-00327 P0052661 284
5680-00327 Battery/motor cables, fuse [2016-09-21] 285
5700-00025 P0048707 286
5700-00025 Control/safety electronics [2016-06-16] 287
5700-00028 P0051892 288
5700-00028 Control/safety electronics [2016-09-05] 289
5700-00029 P0053271 290
5700-00029 Control/safety electronics [2016-09-22] 291
5700-00031 P0053608 292
5700-00031 Control/safety electronics [2018-02-07] 293
5820-00685 P0049610 294
5820-00685 Lift/lowering/reach movement probes/sensors [2015-10-09] 295
5820-00731 P0051909 296
5820-00731 Lift/lowering/reach movement probes/sensors [2016-04-11] 297
5820-00732 P0051912 298
5820-00732 Lift/lowering/reach movement probes/sensors [2016-10-27] 299
5820-00733 P0051914 300
5820-00733 Lift/lowering/reach movement probes/sensors [2016-06-23] 301
5820-00734 P0051915 302
5820-00734 Lift/lowering/reach movement probes/sensors [2016-09-12] 303
5820-00735 P0051918 304
5820-00735 Lift/lowering/reach movement probes/sensors [2016-10-27] 305
5820-00736 P0051921 306
5820-00736 Lift/lowering/reach movement probes/sensors [2016-06-07] 307
5820-00737 P0051922 308
5820-00737 Lift/lowering/reach movement probes/sensors [2016-06-07] 309
5820-00738 P0051926 310
5820-00738 Lift/lowering/reach movement probes/sensors [2016-04-11] 311
5820-00739 P0051927 312
5820-00739 Lift/lowering/reach movement probes/sensors [2016-04-11] 313
5820-00740 P0051929 314
5820-00740 Lift/lowering/reach movement probes/sensors [2016-04-11] 315
5820-00741 P0051934 316
5820-00741 Lift/lowering/reach movement probes/sensors [2016-04-11] 317
5820-00742 P0051938 318
5820-00742 Lift/lowering/reach movement probes/sensors [2016-04-15] 319
5820-00754 P0052647 320
5820-00754 Lift/lowering/reach movement probes/sensors [2016-06-02] 321
5820-00775 P0053844 322
5820-00775 Lift/lowering/reach movement probes/sensors [2017-09-21] 323
5820-00776 P0053845 324
5820-00776 Lift/lowering/reach movement probes/sensors [2017-09-21] 325
5820-00851 P0057136 326
5820-00851 Lift/lowering/reach movement probes/sensors [2017-09-21] 327
5830-00292 P0041561 328
5830-00292 Safety probes/sensors [2018-02-09] 329
5830-00328 P0045689 330
5830-00328 Safety probes/sensors [2018-02-09] 331
5830-00330 P0045955 332
5830-00330 Safety probes/sensors [2018-02-09] 333
5830-00355 P0049387 334
5830-00355 Safety probes/sensors [2018-02-09] 335
6100-00432 P0049008 336
6100-00432 Hydraulic unit [2016-09-12] 337
6100-00482 P0055413 338
6100-00482 Hydraulic unit [2018-02-22] 339
6100-00483 P0055416 342
6100-00483 Hydraulic unit [2018-02-22] 343
6100-00485 P0055420 346
6100-00485 Hydraulic unit [2017-03-28] 347
6100-00486 P0055421 350
6100-00486 Hydraulic unit [2017-03-08] 351
6100-00506 P0058761 354
6100-00506 Hydraulic unit [2018-02-22] 355
6100-00507 P0058764 358
6100-00507 Hydraulic unit [2018-02-22] 359
6130-00049 P0048836 362
6130-00049 Filters and housing [2016-09-12] 363
6230-00508 P0047942 364
6230-00508 Hydraulic lines chassis [2017-10-17] 365
6230-00516 P0048700 366
6230-00516 Hydraulic lines chassis [2017-10-31] 367
6320-01318 P0047974 368
6320-01318 Mast hydraulic lines [2015-09-22] 369
6320-01320 P0048110 370
6320-01320 Mast hydraulic lines [2015-09-22] 371
6320-01323 P0048225 374
6320-01323 Mast hydraulic lines [2015-09-22] 375
6320-01324 P0048244 376
6320-01324 Mast hydraulic lines [2015-09-22] 377
6320-01325 P0048310 378
6320-01325 Mast hydraulic lines [2016-11-24] 379
6610-00920 P0047939 380
6610-00920 Main lift cylinders [2017-11-17] 381
6610-00923 P0047963 384
6610-00923 Main lift cylinders [2015-09-22] 385
6610-00927 P0048207 388
6610-00927 Main lift cylinders [2018-01-04] 389
6610-00930 P0048221 390
6610-00930 Main lift cylinders [2017-03-16] 391
6610-00931 P0048256 392
6610-00931 Main lift cylinders [2017-03-27] 393
6610-00936 P0048306 394
6610-00936 Main lift cylinders [2017-03-27] 395
6610-01139 P0053633 396
6610-01139 Main lift cylinders [2017-11-17] 397
6610-01208 P0055517 400
6610-01208 Main lift cylinders [2017-04-10] 401
6610-01209 P0055518 404
6610-01209 Main lift cylinders [2017-03-27] 405
6620-00605 P0047964 406
6620-00605 Free lift cylinders [2015-09-22] 407
6620-00609 P0048250 410
6620-00609 Free lift cylinders [2016-09-15] 411
6620-00610 P0048278 412
6620-00610 Free lift cylinders [2016-09-15] 413
6630-00041 P0049612 414
6630-00041 Support arm/initial lift cylinders [2015-10-09] 415
6680-00057 P0044705 416
6680-00057 Powertrak cylinder [2018-02-08] 417
6680-00063 P0049508 418
6680-00063 Powertrak cylinder [2016-05-25] 419
7100-00282 P0048222 420
7100-00282 Main mast [2016-09-19] 421
7100-00284 P0048251 422
7100-00284 Main mast [2017-03-27] 423
7100-00320 P0055515 424
7100-00320 Main mast [2017-03-27] 425
7120-01279 P0047969 426
7120-01279 Main lift chain system [2017-04-07] 427
7120-01280 P0047970 428
7120-01280 Main lift chain system [2018-01-15] 429
7120-01282 P0048152 430
7120-01282 Main lift chain system [2016-05-09] 431
7120-01286 P0048218 432
7120-01286 Main lift chain system [2016-07-12] 433
7120-01289 P0048246 434
7120-01289 Main lift chain system [2018-01-15] 435
7120-01290 P0048274 436
7120-01290 Main lift chain system [2015-09-22] 437
7130-00575 P0047953 438
7130-00575 Main mast fork carriage [2016-06-07] 439
7130-00581 P0048779 440
7130-00581 Main mast fork carriage [2016-09-19] 441
7130-00657 P0053636 442
7130-00657 Main mast fork carriage [2016-09-19] 443
7150-00072 P0049611 444
7150-00072 Main mast guidance/dampers [2017-11-27] 445
7190-00154 P0049361 446
7190-00154 Main mast suspension [2016-11-23] 447
7410-00699 P0048776 448
7410-00699 Fork, carpet boom, lift hook [2015-09-22] 449
9180-00098 P0049384 450
9180-00098 Fork extensions [2017-05-02] 451
9180-00114 P0055859 452
9180-00114 Fork extensions [2017-05-02] 453
9370-00256 P0047796 454
9370-00256 Extra warning lights/alarm [2017-08-25] 455
9370-00281 P0049677 456
9370-00281 Extra warning lights/alarm [2017-08-25] 457
9370-00441 P0056727 458
9370-00441 Extra warning lights/alarm [2017-08-25] 459
9380-00041 P0046275 460
9380-00041 Charger attachment [2018-03-19] 461
9380-00042 P0046278 462
9380-00042 Charger attachment [2018-03-19] 463
9380-00052 P0055100 464
9380-00052 Charger attachment [2017-02-06] 465
9380-00053 P0055101 466
9380-00053 Charger attachment [2018-03-27] 467
9380-00060 P0057268 468
9380-00060 Charger attachment [2018-02-08] 469
9380-00073 P0059088 470
9380-00073 Charger attachment [2018-03-27] 471
9400-00643 P0049581 472
9400-00643 Extra electrical equipment [2018-02-09] 473
9400-00729 P0047819 474
9400-00729 Extra electrical equipment [2015-09-22] 475
9400-00773 P0049673 476
9400-00773 Extra electrical equipment [2016-02-04] 477
9400-00800 P0050176 478
9400-00800 Extra electrical equipment [2018-02-09] 479
9400-00845 P0051068 480
9400-00845 Extra electrical equipment [2018-02-08] 481
9400-00847 P0051080 482
9400-00847 Extra electrical equipment [2016-02-04] 483
9400-00944 P0054137 484
9400-00944 Extra electrical equipment [2016-11-03] 485
9420-00038 P0016146 486
9420-00038 Truck log device, code locking device [2018-02-09] 487
9420-00213 P0044782 488
9420-00213 Truck log device, code locking device [2018-02-09] 489
9420-00297 P0049696 490
9420-00297 Truck log device, code locking device [2016-04-09] 491
9420-00333 P0051906 492
9420-00333 Truck log device, code locking device [2017-08-25] 493
9420-00335 P0051908 494
9420-00335 Truck log device, code locking device [2017-08-25] 495
9420-00382 P0054432 496
9420-00382 Truck log device, code locking device [2017-03-27] 497
9420-00412 P0055524 498
9420-00412 Truck log device, code locking device [2018-02-08] 499
9420-00428 P0056707 500
9420-00428 Truck log device, code locking device [2017-08-25] 501
9420-00430 P0056709 502
9420-00430 Truck log device, code locking device [2017-08-25] 503
9420-00431 P0056723 504
9420-00431 Truck log device, code locking device [2018-02-12] 505
9500-01074 P0031110 506
9500-01074 Other extra equipment [2015-09-22] 507
9500-01383 P0037268 508
9500-01383 Other extra equipment [2017-11-15] 509
9500-01390 P0037437 510
9500-01390 Other extra equipment [2018-02-09] 511
9500-01514 P0039545 512
9500-01514 Other extra equipment [2017-06-22] 513
9500-01515 P0039549 514
9500-01515 Other extra equipment [2018-02-09] 515
9500-01516 P0039552 516
9500-01516 Other extra equipment [2018-02-09] 517
9500-01517 P0039553 518
9500-01517 Other extra equipment [2017-06-22] 519
9500-01518 P0039554 520
9500-01518 Other extra equipment [2017-09-26] 521
9500-01617 P0047357 522
9500-01617 Other extra equipment [2018-02-09] 523
9500-01948 P0045582 526
9500-01948 Other extra equipment [2018-02-09] 527
9500-02093 P0047784 528
9500-02093 Other extra equipment [2017-03-27] 529
9500-02105 P0047986 530
9500-02105 Other extra equipment [2018-02-09] 531
9500-02157 P0048750 532
9500-02157 Other extra equipment [2017-03-14] 533
9500-02162 P0048862 534
9500-02162 Other extra equipment [2015-09-22] 535
9500-02223 P0049674 536
9500-02223 Other extra equipment [2016-06-28] 537
9500-02508 P0053264 538
9500-02508 Other extra equipment [2017-01-03] 539
9500-02531 P0053647 540
9500-02531 Other extra equipment [2016-09-19] 541
9500-02533 P0053649 542
9500-02533 Other extra equipment [2016-09-19] 543
9500-02534 P0053652 544
9500-02534 Other extra equipment [2016-09-19] 545
9500-02535 P0053653 548
9500-02535 Other extra equipment [2016-09-19] 549
9500-02664 P0055535 552
9500-02664 Other extra equipment [2017-03-27] 553
9500-02831 P0057825 554
9500-02831 Other extra equipment [2018-02-08] 555
9550-00068 P0053696 558
9550-00068 Battery changing equipment [2018-02-08] 559
