BYD ECB16 ECB18 Electric Forklift Parts Manual PDF – PM-ECB202020001-EN

Description

File Details

• Manual type: Illustrated parts manual (parts catalogue)
• Brand: BYD electric forklift
• Models covered: ECB16 and ECB18
• Language: English
• Page count: 163 pages
• File format: PDF
• Document number: PM-ECB202020001-EN
• Document date: 2020-09-30 (footer reference EU-20200930-EN)

How This Parts Catalogue Is Organised

This BYD ECB16 ECB18 electric forklift parts manual is split into lettered subsystems, and every subsystem page carries an exploded illustration with numbered callouts linked to a parts table. Each table row lists the callout code, part name, part number, quantity required, R/C status, note, and the start and end production dates for that part. That means you can confirm not just which component belongs to your machine, but whether the current part is interchangeable with an older one and whether it was still fitted at your truck’s build date.

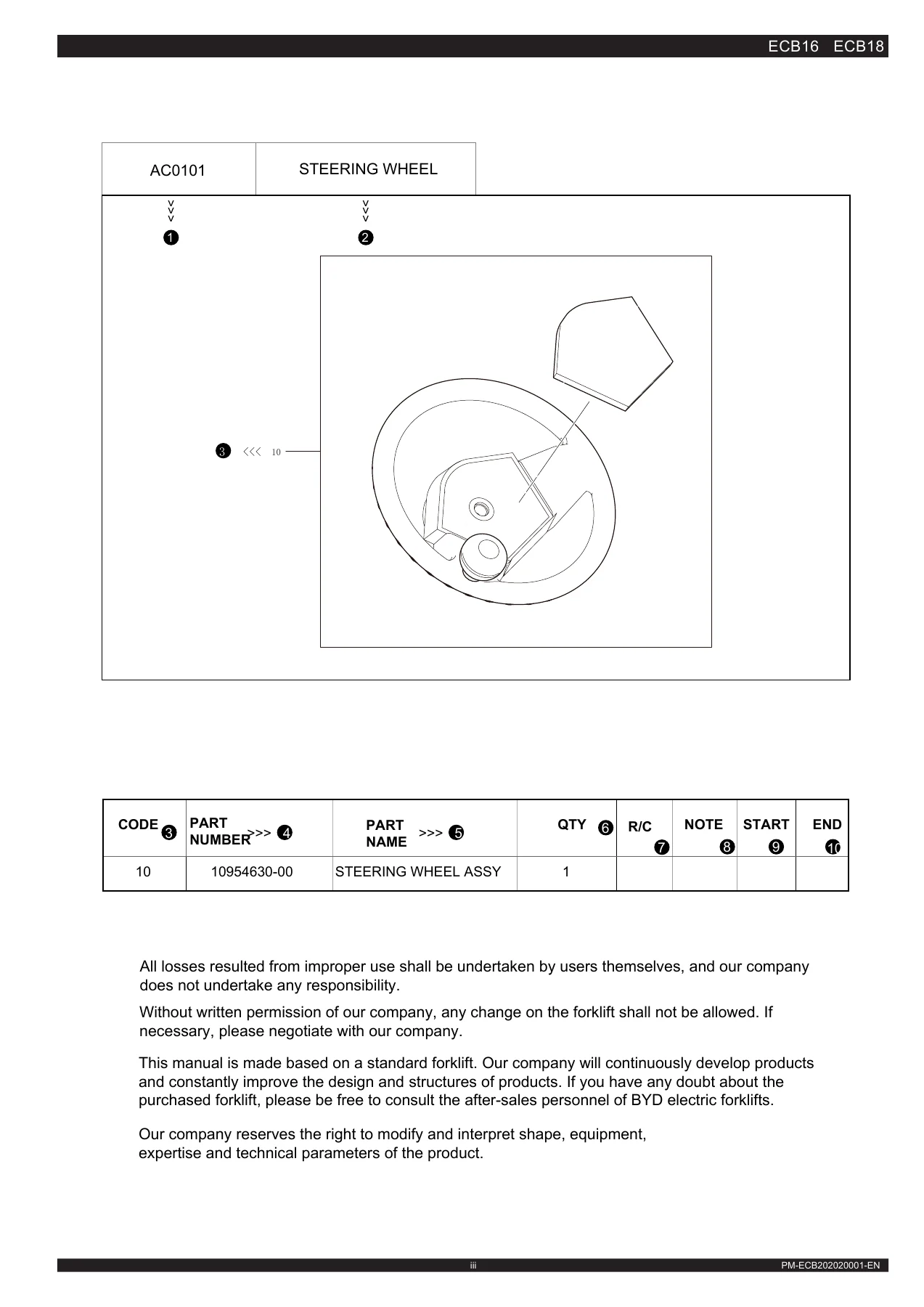

The manual also explains the ordering convention used throughout: send the subsystem code, part name, quantity and part number together, exactly as shown in the example given for the steering wheel assembly. Two configuration labels appear repeatedly in the tables and matter when you order — SINGLE DRIVE versus DUAL DRIVE (one drive axle and motor, or two), and BASIC versus COMFORT (manual valve, basic seat and manual lever, or E-Valve, comfort seat and MFA). Note fields such as 1.6t or 1.8t further narrow which variant a part applies to.

Chapters Covered

• AA – Forklift Body System: Insert Thread; Bracket & Rubber; Side Panel; Floor Pedal; Floor Pedal Assembly; Double Pedal

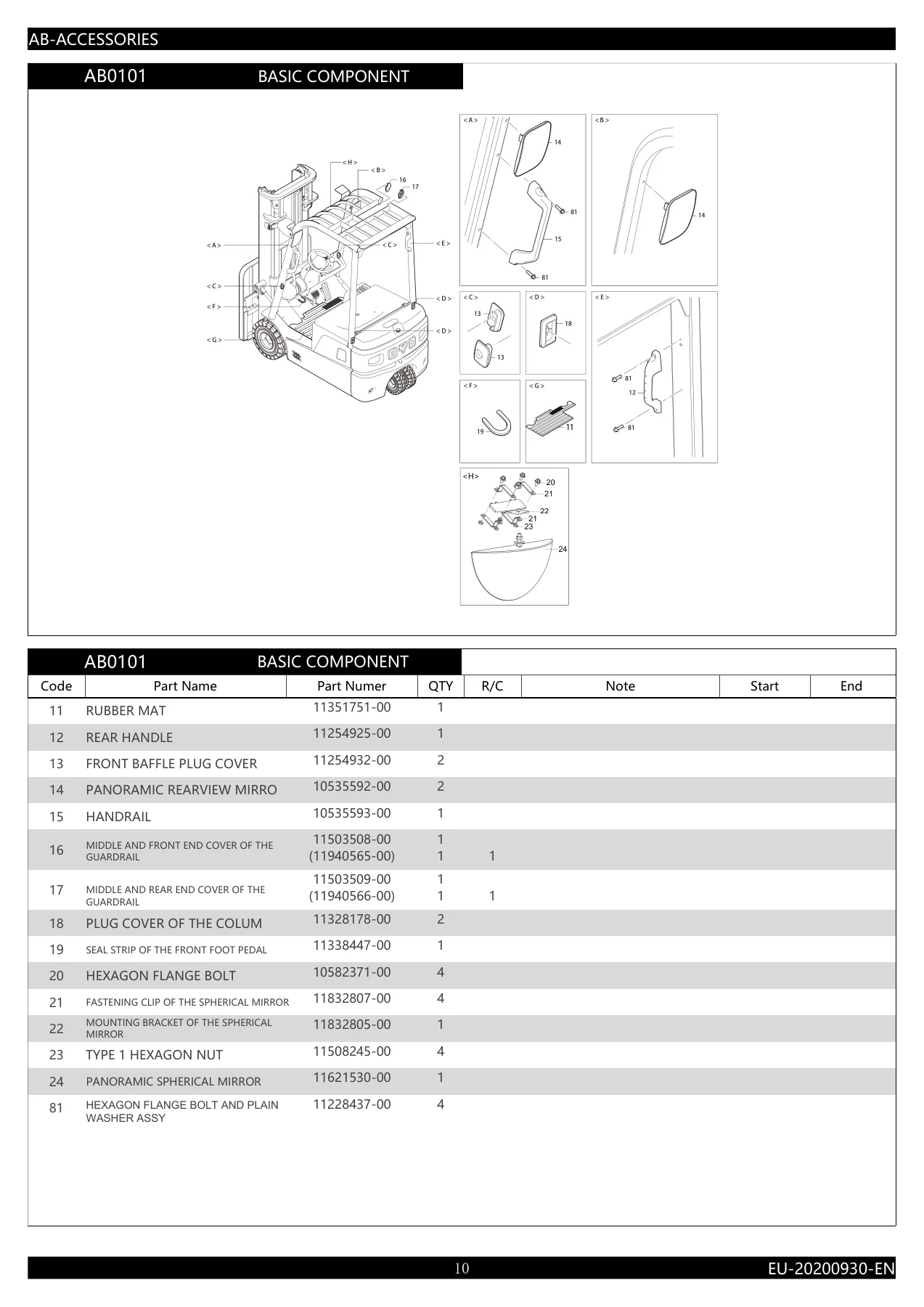

• AB – Accessories: Basic Component; Front Baffle Cover; Lever Cover (Basic); Cover of Multiple Unit Valve (Comfort); Seat; Seat Support Plate; Storage Box; Counterweight 1.6T; Counterweight 1.8T
• AC – Steering System: Steering Wheel; Steering Column Adjuster; Steering Column; Steering Axle 3 Wheel; Steering Axle—HY
• AD – Braking System: Service Brake; Parking Brake (Dual Drive & A Type); Parking Brake (Dual Drive & B Type)

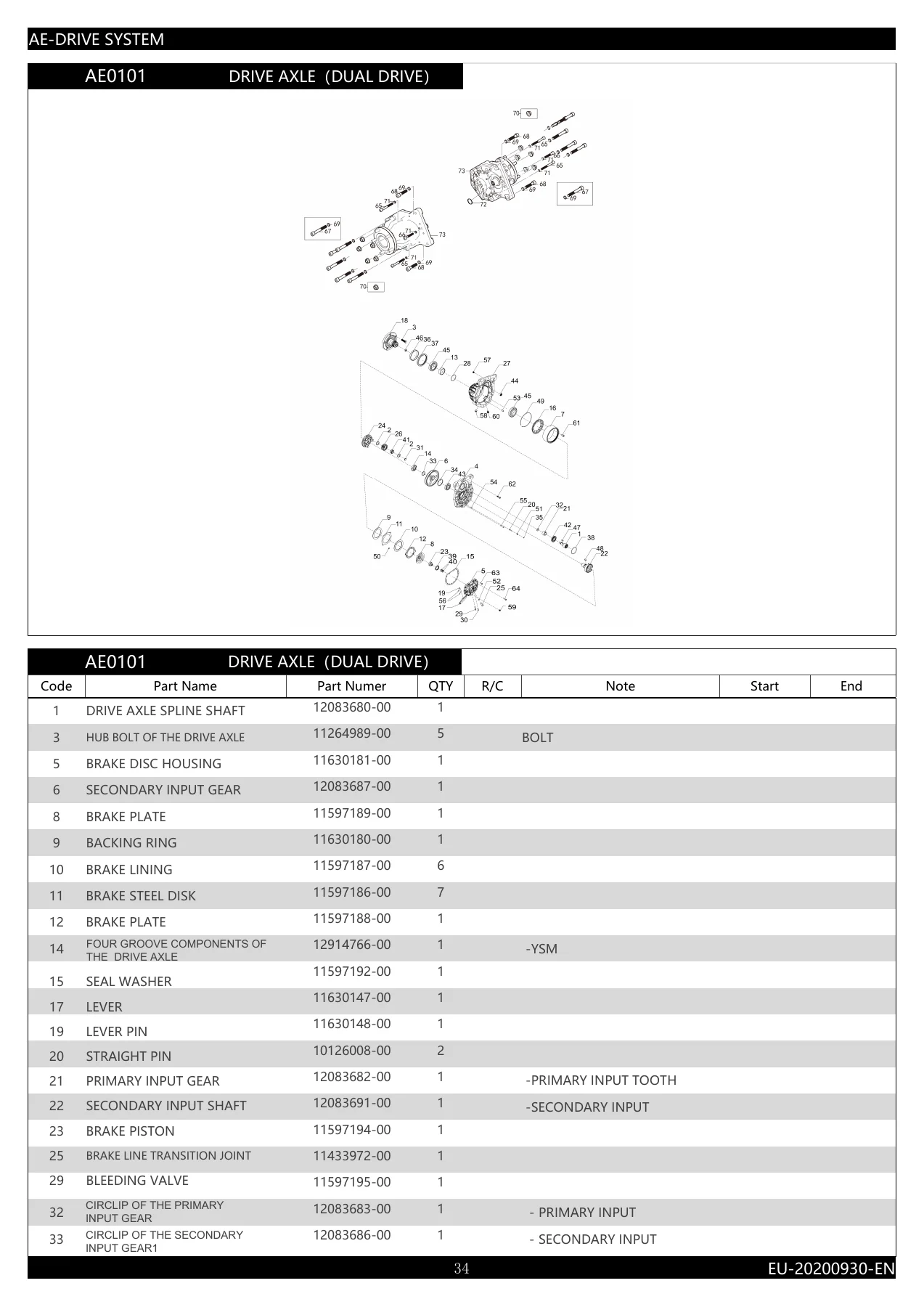

• AE – Drive System: Drive Axle (Dual Drive); Drive Axle Repair Kit; Drive Pedal
• AF – Wheeling System: Front Wheel (Dual Drive); Rear Wheel 3 Wheel
• CC – Additional Items: Nameplate and Decals; Labels
• HA – Mast System: Fork Set 1.6T and 1.8T; Fork Extension Set; Integral Sideshift; Hook-On Sideshifter (KSKT); Carriages for 2-stage, 2-stage free lift and 3-stage masts; Load Backrest; Mast & Mast Roller; Mast Mounting; Lift Chain; Main Lift Cylinder; Free Lift Cylinder; Lift Piping; Buffer Switch; Reserved 3rd & 4th Function Hose
• HB – Hydraulic System: Hydraulic Pump; Steering Control Unit; Manual Multiple Unit Valve; Electric Main Valve (Comfort); Oil Tank (Dual Drive); Tilt Cylinder; Suction Piping; Lift Piping (Basic and Comfort); Steering Piping; Tilt Piping (Basic and Comfort); Manual Control Lever; Lever Assy Four-Way; Master Brake Cylinder and Piping; Mast Hose
• PA – Electrical System: Main Controller (Dual Drive); Hydraulic Motor; Drive Motor (Dual Drive Units); Battery 230Ah (Type A) and 270Ah (Type B); High Voltage Circuit; Charge Port; Low Voltage Circuit (Basic and Comfort); DC/DC Converter; Fuse Box; Sensor and Switch; TFT Display; Front Light; Rear Light; Alarm; Switch Assy; Multifunction Arm/Rest (MFA)

Put together, this is a complete illustrated breakdown of the ECB16 and ECB18, not a scattered selection of pages. The frame, body panels, pedals, seat and counterweight pages cover everything that bolts to the chassis. The steering, braking, drive axle and wheel chapters cover the rolling and steering assemblies. The mast section runs the full length of the lift assembly — forks, sideshifters, carriages, rollers, chains, main and free lift cylinders, lift piping and the pre-installed third and fourth function hoses. The hydraulic chapter handles pump, valves, tank, tilt cylinder and all associated piping, while the electrical chapter runs from the main controller and drive motor through the battery packs, high and low voltage circuits, fuse box, sensors, lights and the multifunction armrest. A technician working from this catalogue can identify a component from the drawing, confirm the correct part number for the exact drive configuration and trim level, check the fitted quantity and, where the R/C and start/end columns allow it, verify whether a later or earlier part will substitute.

What You Can Do With This BYD ECB16 ECB18 Parts Manual

Ordering the right part the first time is the whole point of a catalogue like this. Whether you are replacing a worn side panel, a mast roller, a lift chain, a brake cable, a hydraulic hose, a battery contactor or the combined switch on the steering column, the exploded views let you see how the assembly goes together and which callout number corresponds to the line you need on the parts table. Because quantities are listed per assembly, you can also see at a glance how many fasteners, washers, circlips or bushings a job consumes rather than guessing and re-ordering.

The configuration notes carry real weight here. A parking brake for a dual drive truck is not the same as a single drive truck, an integral sideshift differs from a hook-on sideshifter, and a comfort build uses a different cover, valve and armrest from a basic build. This manual keeps those variants separate, so a wrong-spec order is far less likely. The start and end date columns add a further layer: where a part was superseded, the R/C column tells you whether the current code is interchangeable with the old one.

For workshops maintaining a fleet of ECB16 and ECB18 trucks, having the full parts breakdown in one file also makes quoting and job planning far more accurate — you can pull part numbers straight from the page instead of waiting on a dealer look-up.

Delivery

IMAGES PREVIEW

The manual is delivered as an instant PDF download after checkout. There is no shipping, no waiting on a disc, and no regional restriction — the file opens on any phone, tablet, laptop or workshop computer, and any page or parts table can be printed for the bench when you are working on the truck.
