Case 1021F 1121F Tier 4 Wheel Loader Service Repair Manual (84555573) Case 1021F – PDF DOWNLOAD

Description

Case 1021F 1121F Tier 4 Wheel Loader Service Repair Manual (84555573) Case 1021F

File Details:

Case Wheel Loader 1021F 1121F Tier 4 Service Manual
Size : 97.1 MB
Format : PDF
Language : English
Brand: Case
Type of machine: Case Wheel Loader
Type of document: Service Manual
Model: Case Wheel Loader 1021F 1121F Tier 4
Part No:84555573

CASE 1021F 1121F TIER 4 WHEEL LOADER SERVICE REPAIR MANUAL (84555573) CASE 1021F – PDF DOWNLOAD:

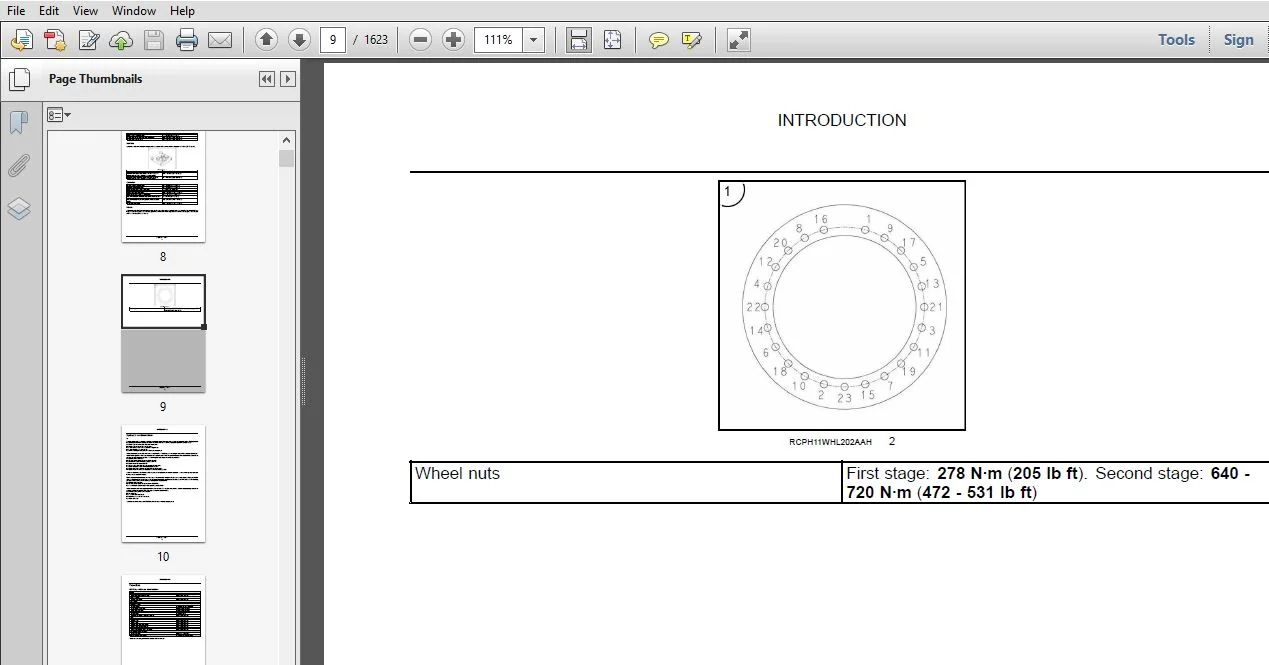

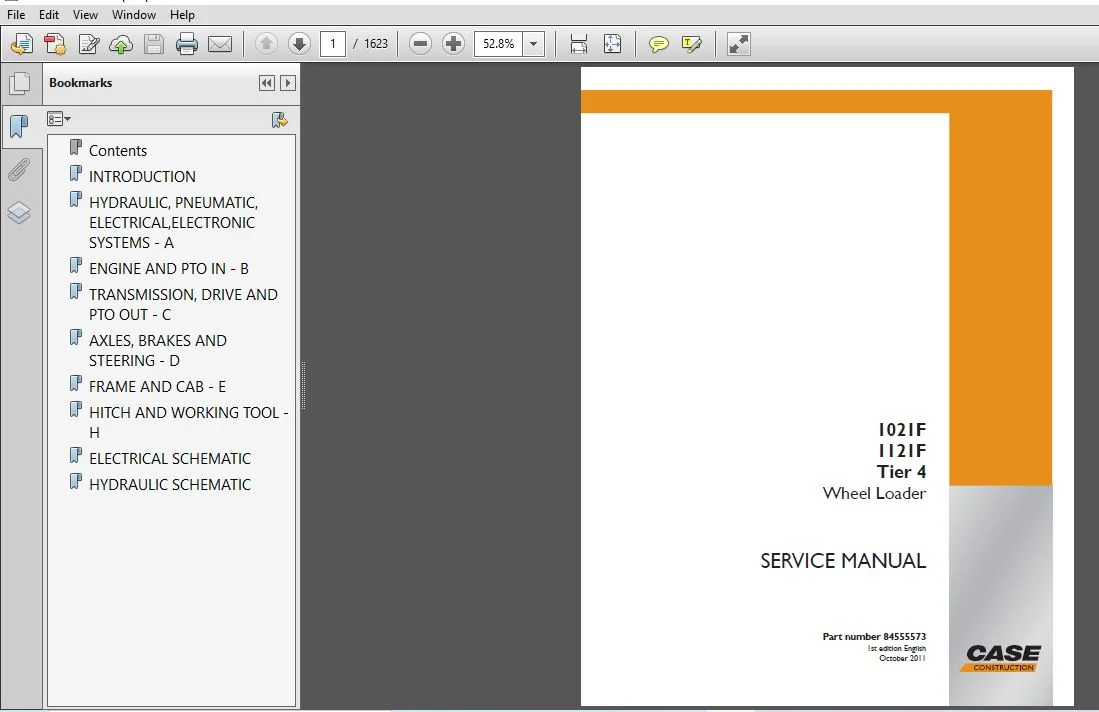

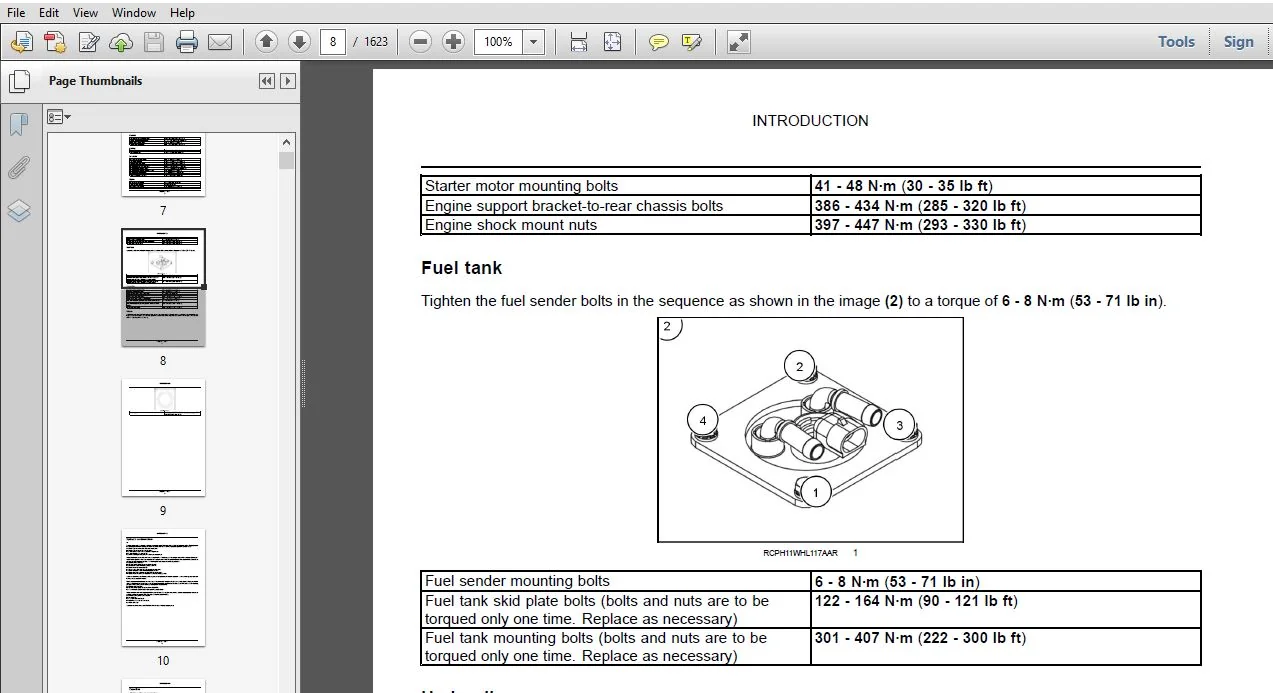

Image Preview:

Sample Page From The Manual:

Case 1021F 1121F Tier 4 Wheel Loader Service Repair Manual (84555573) Case 1021F

• Coolant solution
  Put only ethylene-glycol coolant solution in the cooling system. Use good quality ethylene-glycol that has a high boiling point with no additives to prevent leakage. Do not use non-approved anti-rust additives. Anti-rust additives and ethylene-glycol can mix and work against each other, reducing anti-corrosion protection, forming deposits in the cooling system, and causing damage to the cooling system and radiator. Contact your dealer who can supply you with the suitable coolant solution.
• Anti-freeze/Anti-corrosion
  Use anti-freeze in all seasons to protect the cooling system from corrosion and risk of freezing. For areas where the ambient temperature is over -36 °C (-32.8 °F) use a blend of 50% ethylene-glycol based anti-freeze.
  For areas where the temperature is below -36 °C (-32.8 °F)- it is advisable to use a blend of 40% water and 60% anti-freeze.
• Fuel
  Use diesel fuel suitable for the ambient temperature conditions (ASTM-D-975).
  Use fuel which is to ASTM (American Society for Testing and Materials) D975 standard.
  Use grade No. 2 fuel. The use of other types of fuel can result in a loss of power of the engine and may cause high fuel consumption.
  In very low ambient temperatures, use a mixture of fuels No. 1 and No. 2 as necessary. Consult your fuel supplier for appropriate fuel supply.
  If the temperature falls below the fuel cloud point (point at which wax begins to form) the wax crystals will cause power loss or will prevent the engine from starting.
  In cold weather, fill the fuel tank at the end of the day’s work in order to prevent the formation of condensation.
• Fuel storage
  Prolonged storage of fuel can lead to the accumulation of impurities and condensation in the fuel. Engine trouble can often be traced to the presence of water in the fuel.
  The storage tank must be placed outside and the temperature of the fuel should be kept as low as possible. Drain off water and impurities regularly.
• Hydraulic fluid
  Case Akcela Hy-Tran Ultra hydraulic fluid is specifically designed for high pressure applications and for Case hydraulic systems. Your Case Dealer can provide hydraulic fluid to fulfill different climate/temperature conditions. Refer to the charts at the beginning of this section.
• Transmission component oil
  Extreme pressure oil should be used for enclosed transmission components. Choose an oil that is manufactured for your climate/temperature conditions such as Case Nexplore or CNH F200A. See charts at the beginning of this section.
• Grease
  The type of grease to use depends on ambient temperature such as: Case Akcela Molydisulfide Grease
• Environment
  Before you service this machine and dispose of oil, fluids, and lubricants, obey environmental regulations. Do not drain oil or fluids on to the ground or into containers that leak. Check with your local environmental, recycling center or your dealer for correct disposal information

Tabe of Contents:

Case 1021F 1121F Tier 4 Wheel Loader Service Repair Manual (84555573) Case 1021F

INTRODUCTION
HYDRAULIC, PNEUMATIC, ELECTRICAL, ELECTRONIC SYSTEMS A
PRIMARY HYDRAULIC POWER SYSTEM A10A
ELECTRICAL POWER SYSTEM A30A
LIGHTING SYSTEM A40A
ELECTRONIC SYSTEM A50A
FAULT CODES A50A
ENGINE AND PTO IN B
ENGINE B10A
FUEL AND INJECTION SYSTEM B20A
AIR INTAKE SYSTEM B30A
EXHAUST SYSTEM Emissions control B40B
ENGINE COOLANT SYSTEM B50A
LUBRICATION SYSTEM B60A
STARTING SYSTEM B80A
TRANSMISSION, DRIVE AND PTO OUT C
POWER COUPLING Fixed coupling C10B
TRANSMISSION Powershift C20E
AXLES, BRAKES AND STEERING D
FRONT AXLE D10A
REAR AXLE D12A
STEERING Hydraulic D20C
SERVICE BRAKE Hydraulic D30C
PARKING BRAKE Hydraulic D32C
WHEELS AND TRACKS Wheels D50C
FRAME AND CAB E
SHIELD E20A
USER CONTROLS AND SEAT E32A
USER CONTROLS AND SEAT Operator seat E32C
USER PLATFORM E34A
ENVIRONMENT CONTROL Heating system E40B
ENVIRONMENT CONTROL Air-conditioning system E40C
ENVIRONMENT CONTROL Heating, ventilation and air-conditioning E40D
SAFETY SECURITY ACCESSORIES Safety E50B
HITCH AND WORKING TOOL H
SINGLE ARM Lift H40B

Please Note:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.

• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!

• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
