Case 1150 Crawler Service Repair Manual (9-72483R0) Case 1150 – PDF Download

Description

Case 1150 Crawler Service Repair Manual (9-72483R0) Case 1150

File Details:

Case Crawler 1150 Service Manuals_9-72483R0
Size : 188 MB
Format : PDF
Language : English
Number of Pages : 942 pages
Brand: Case
Type of machine: Crawler
Type of document: Service Manuals
Model: Case Crawler 1150
Part No: 9-72483R0

CASE 1150 CRAWLER SERVICE REPAIR MANUAL (9-72483R0) CASE 1150 – PDF DOWNLOAD:

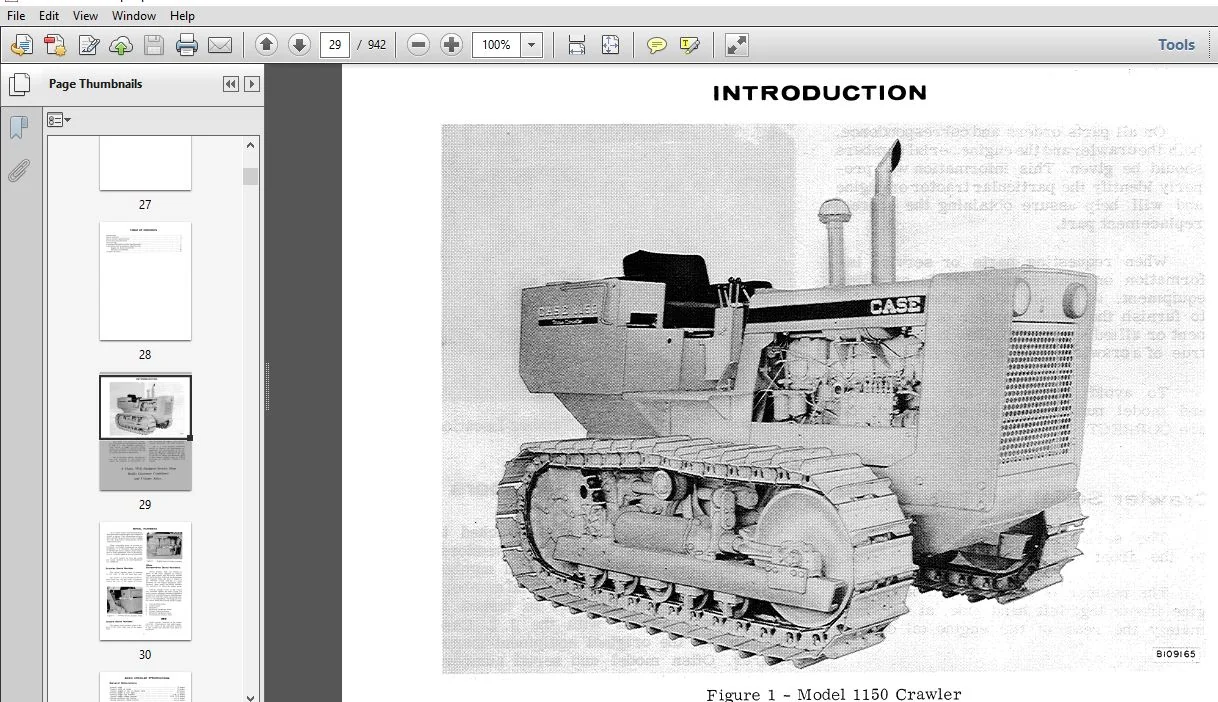

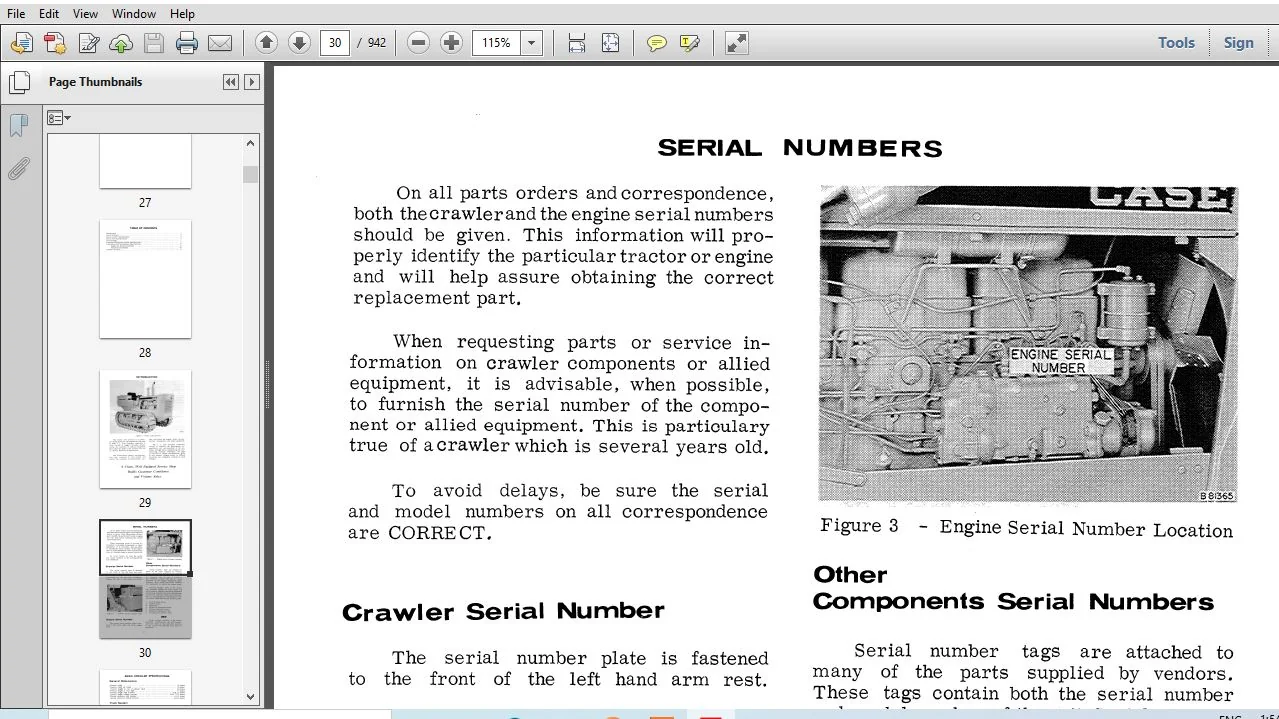

Image Preview:

Description:

Case 1150 Crawler Service Repair Manual (9-72483R0) Case 1150

Run-In-Instructions:

Engine Lubrication
When the engine rebuild is complete, fill the engine crankcase with Case HDM oil and install new
engine oil filters NOTE: If Case HDM oil is not used use only a Series 3 DS or CD Service
Classification oil that has the proper viscosity rating for prevailing air temperature Refer to
vehicle Operators Manual
After the first 20 hours of operation, change the engine all while the engine is hot and replace the
the engine oil filter/s DO NOT DRAIN OIL UNTIL THE ENGINE HAS BEEN OPERATED 20 HOURS
Change the engine oil and filter/s at the recommended intervals thereafter as outlined in the
Operator’sManual
Run-In Procedure (Agricultural Tractors)
For the first 8 hours of field operation stay one gear lower than normal For the next 12 hours
DO NOT “lug” the engine Prevent “lugging” by shifting to a lower gear The engine must not
be “tugged” below its Rated Engine RPM during the early hours of life
Run-In Procedure (Construction Equipment)
For the first 8 hours, operate the engine at full throttle maintaining a normal load DO NOT baby
the engine, but avoid prolonged converter or hydraulic stall Engine must not be “logged” below
its Rated Engine RPM (Do not exceed 10 seconds of stall)
Run-In Procedure (Power Units)
For the first 1/2 hour, operate engine at 2/3 rated RPM with a light load or no load For the next
(1) hour, run engine at 80 to 90% load at rated RPM (but not over 2000 RPM) Then full load and
rated RPM as required in application

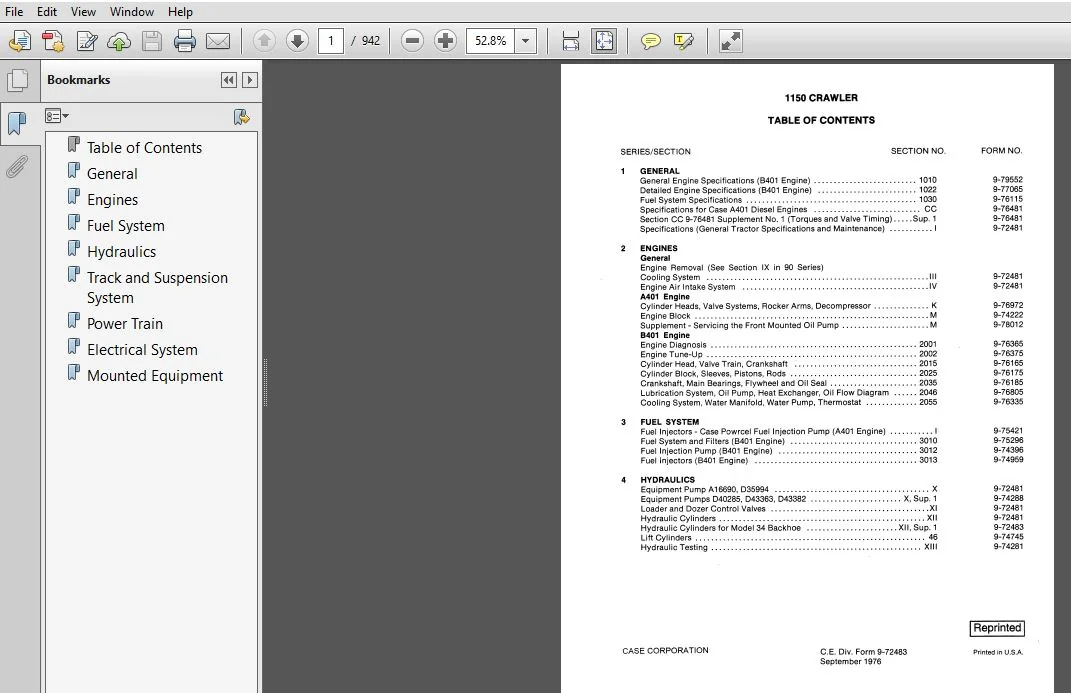

Table of Contents:

Case 1150 Crawler Service Repair Manual (9-72483R0) Case 1150

1 GENERAL
General Engine Specifications (8401 Engine)
Detailed Engine Specifications (8401 Engine)
Fuel System Specifications
Specifications for Case A401 Diesel Engines
Section CC 9-76481 Supplement No 1 (Torques and Valve Timing)
Specifications (General Tractor Specifications and Maintenance)
2 ENGINES
General
Engine Removal (See Section IX in 90 Series)
Cooling System
EnglneAirtntakeSystem
A401 Engine
Cylinder Heads Valve Systems, Rocker Arms, Decompressor
EngineBlock
Supplement – Servicing the Front Mounted Oil Pump
3401 Engine
Engine Diagnosis
EngineTune-Up
CylinderHead VaIveTraln Crankshaft
CylinderBtock Sleeves,Pistons, Rods
Crankshaft Main Bearings Flywheel and Oil Seal
Lubrication System Oil Pump Heat Exchanger Oil Flow Diagram
Cooling System, Water Manifold, Water Pump Thermostat
3 FUEL SYSTEM
Fuel Injectors – Case Powrcel Fuel Injection Pump (A401 Engine)
FuelSystemandFilters(B401 Engine)
FuellniectlonPump(B401Engine)
Fuelin]ectors(B401Engine)
4 HYDRAULICS
EquipmentPumpAtGBQO US$994
Equipment Pumps 040285, 043363 043382 X
LoaderandDozerControlValves
HydraullcCylinders
HydraulicCylindersiorModelS‘tBackhoe XII
ertCyirnders
HydraulicTesting
5 TRACK AND SUSPENSION
TrackandSuspensionSystem
IntertracRollers
6 POWER TRAIN
T593Transrnissionand FinalDrives
Torque Converter Troubleshooting (See Section XII, 40 Series)
8 ELECTRICAL
EIectrical System and Instruments
Electrical System and Instruments (SN 7108999 and After)
8 ELECTRICAL
Electrical System and Instruments
Electrical System and Instruments (SN 7108999 and Alter)
9 MOUNTED EQUIPMENT
MiscellaneousTractor Components
Loader
Dozers
Backhoe(Model 35)
Model 34 Backhoe
Ripper
E-SO-SGWinch

Please Note:

⦁ This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
⦁ This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
⦁ Require some other service manual or have any queries: please WRITE to us at [email protected]
