Case 1840 Skid Steer Service Service Repair Manual (8-11093) Case 1840 PDF

Description

Case 1840 Skid Steer Service Repair Manual (8-11093) Case 1840

CASE 1840 SKID STEER SERVICE REPAIR MANUAL (8-11093) CASE 1840 – PDF DOWNLOAD:

Image Preview:

Description:

Case 1840 Skid Steer Service Repair Manual (8-11093) Case 1840

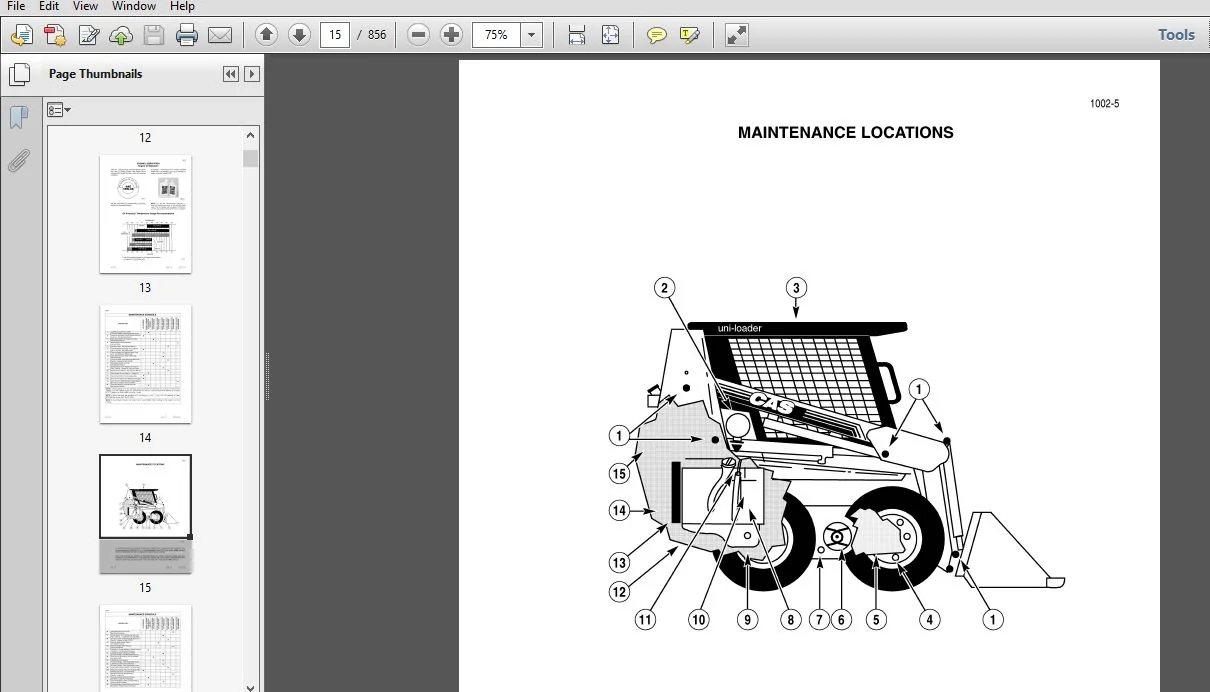

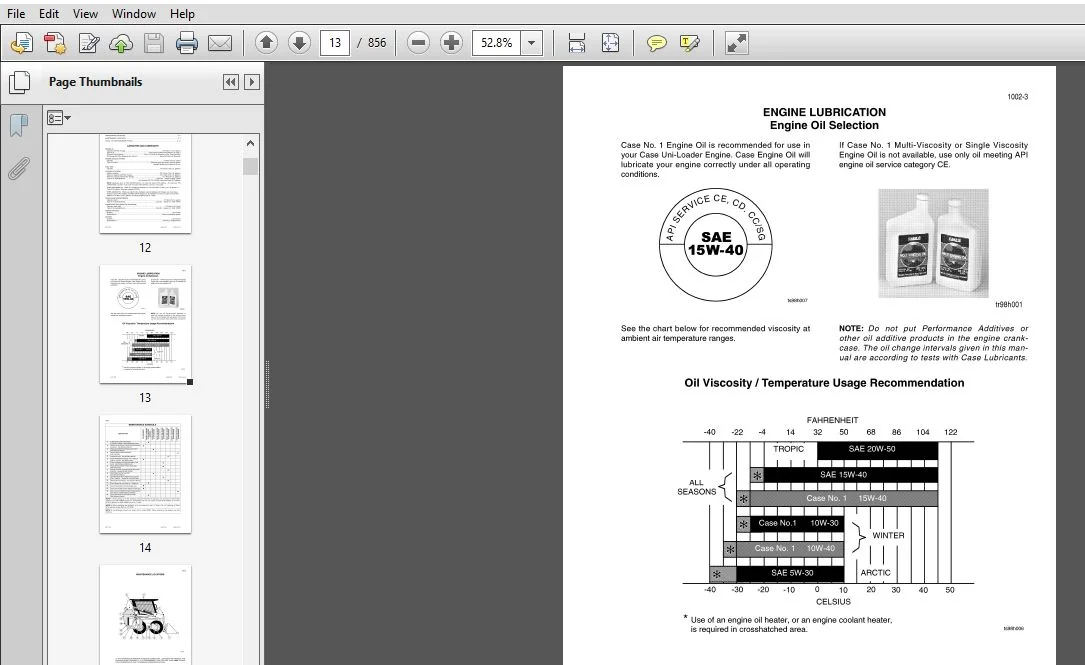

Engine Lubrication
Fill the 4-390 engine crankcase with CC/SF. CD/SF, CEISF or CF-4 service classification oil. Use the correct viscosity rating for the ambient air temperature. Install new oil filters after the engine is rebuilt.
Fill the 4T390 and the 4TA 390 engine crankcase with CE/SF or CF-4 service classification oil. Use the correct viscosity rating for the ambient air temperature. install new oil filters after the engine is rebuilt.
Run-In Procedure for Rebuilt Engine
Step 1 Disconnect the wire to the electric shut-off on the injection pump so that the engine will not start. Crank the engine for 30 seconds until there is oil pressure. then reconnect the wire.
Step 2 Remove the air from the cooling system at the temperature sending unit.
Step 3 Run the engine at 1000 RPM minimum load for 5 minutes and check for oil leaks.
Step 4 During the Run-In, continue to check the oil pressure, coolant level, and coolant temperature.
Run-In Procedure (Agriculture Equipment)
For the first 8 hours of field operation stay one gear lower than normal. For the next 12 hours DO NOT ”lug” the engine.
Prevent “lugging” by moving the lever to a lower gear. The engine must not be ”tugged” below the rated engine RPM
during early hours of life.
Run-ln Procedure (Construction Equipment)
For the first 8 hours. Operate the engine at full throttle maintaining a normal load. Avoid converter or hydraulic stall. The
engine must not be ”tugged” below the Rated Engine RPM (Do not stall the engine more than 10 seconds).

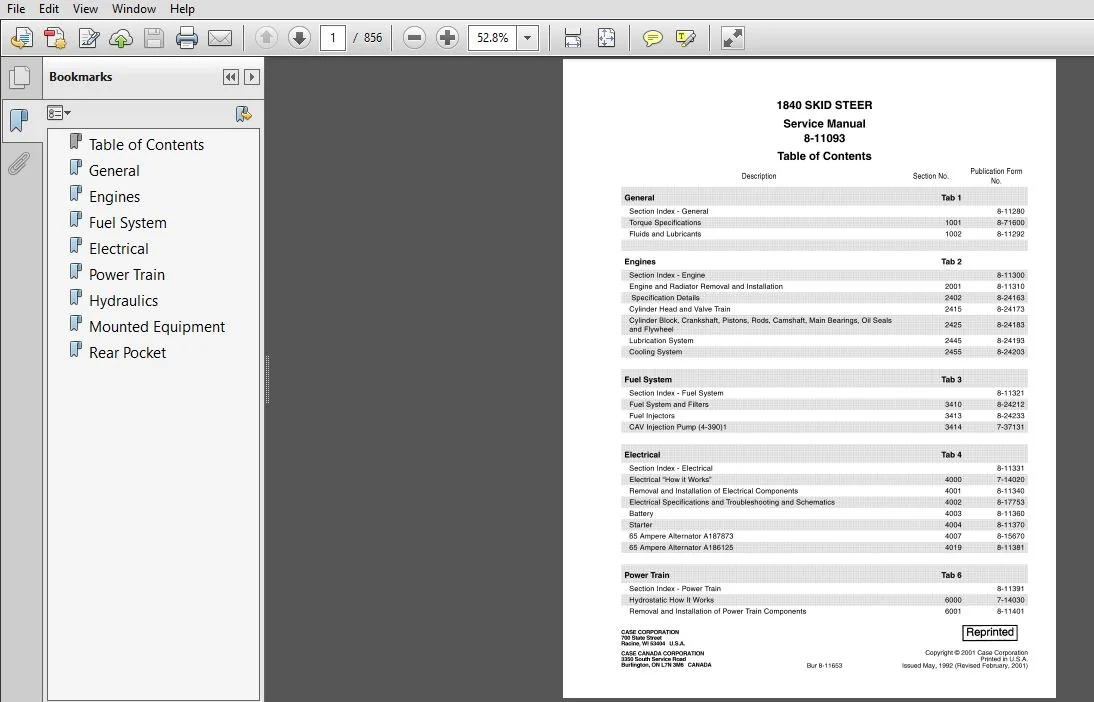

Table of Contents:

Case 1840 Skid Steer Service Repair Manual (8-11093) Case 1840

• General
• Section Index – General
• Torque Specifications
• Fluids and Lubricants
• Engines
• Section index – Engine
• Engine and Radiator Removal and installation
• Specification Details
• Cylinder Head and Valve Train
• Cylinder Block, Crankshaft, Pistons, Rods, Camshaft, Main Bearings, Oil Seals
• and Flywheel
• Lubrication System
• Cooling System
• Fuel System
• Section Index – Fuel System
• Fuel System and Filters
• Fuel Injectors
• CAV Injection Pump (4-390)1
• Electrical
• Section Index – Electrical
• Electrical “How it Works”
• Removal and Installation of Electrical Components
• Electrical Specifications and Troubleshooting and Schematics
• Battery
• Starter
• 65 Ampere Alternator A187873
• 65 Ampere Alternator A186125
• Power Train
• Section Index – Power Train
• Hydrostatic How It Works
• Removal and Installation of Power Train Components
• Hydrostatic Drive System Troubleshooting
• Controls
• Piston Pump
• Motor
• Pump Drive Coupling
• Sprockets, Chains and Axles
• Wheels and Tires
• Hydraulics
• Section index – Hydraulics
• How It Works
• Removal and Installation of Hydraulic Components
• Hydraulic System Specifications and Troubleshooting and Schematics
• Cleaning the Hydraulic System and Hydrostatic System
• Pump
• Loader Control Valve
• Auxiliary Control Valve
• Backhoe Control Valve – D100 Backhoe
• Backhoe Control Valve – D125 Backhoe
• Cylinders
• Mounted Equipment
• Section index – Mounted Equipment
• Control Linkages, Pedals and Levers “How it Works”
• Pedals and Levers
• Loader
• ROPS Canopy, Seat, Seat Belts, and Operators Compartment
• Auxiliary Hydraulic Installation
• Backhoe (0100 Backhoe)
• Backhoe (D125 Backhoe)
• Rear Pocket
• Hydraulic and Electrical Schematic Foldcut
