CASE 310 Crawler Operator’s Manual

DESCRIPTION:

The care you give your Case Utility Crawler will greatly determine the satisfaction and service life you will obtain from it. Use this manual as your guide. By observing the in- structions and suggestions in this manual, your Case Utility Crawler will serve you well for many years. As an Authorized Case Utility Dealer, we stock Genuine Case Parts, which are manufactured with the same precision and skill as the original equipment. Our factory trained staff is kept well informed on the best methods of servicing Case equipment and is ready and able to help you. Should you require additional aid or information, contact us.

1.  “POWER-TORQ” ENGINE. A high-compression, heavy-duty power aplant with an extremely high torque.What’s more it operates on regular grade gasoline.
2.  HEAVY DUTY CLUTCH. New clutch design with 50% more “torque carrying” capacity, smooth, long life operation.
3.  STEERING. Controlled planetary differential with power to both tracks while turning.
4.  BRAKES. Bands on drums in differential for stopping and holding Crawler on grades and for steering.
5.  TRANSMISSION. Three speed sliding gear type transmission.
6.  HYDRAULIC ATTACHMENTS. Several types of hydraulic operated Allied Equipment can be factory installed. It is engineered for the Crawler.
7.  SUSPENSION. Leaf type springs for track oscillation prevent undue shock to the Crawler.
8.  TRACK AND TRACK FRAME. Heavy-duty steel channel, with side frames securely tied together by rigid transverse torque tube, which supports engine, dozer mounting brackets, etc. All track rollers mounted on antifriction bearings. Frame is spring-mounted to absorb shocks, keeps stress from damaging power train.
9.  UNIVERSAL JOINTS. Universal joints provide a flexible connection between transmission and clutch — no rigid cast iron drive housing to crack or break.
10.  SEAT. Stationary-type comfortable back, seat, and arm rests of foam rubber covered with durable imitation leather. Roomy tool chest under the left arm rest.
11.  LIGHTS. Seal-beam headlights recessed in streamlined hood, and recessed tail light.
12.  TRACK PLATES. A large variety of track plates are offered to fit any particular need. Grousers, open mud grouser, ice and snow grousers, and steel ribbed street plates, heat treated or non-heat treated are offered as optional equipment.
13.  MUFFLER. An underhood type muffler is available as optional equipment for installation on the Crawler.
14.  ERR-CLEANER TUBE (OPTIONAL). A pre-cleaner tube,with settling bowl, is available for installation on Crawlers. This tube, which elevates the air intake level several feet above the hood, is recommended for use in dusty operating conditions.

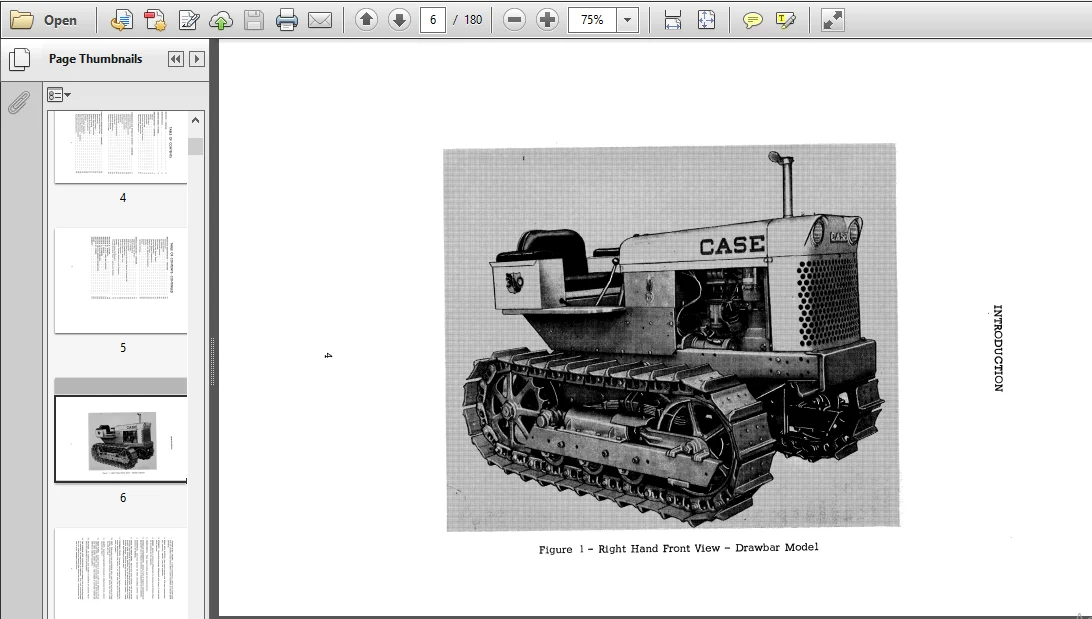

SCREENSHOT OF THE MANUAL:

TABLE OF CONTENTS:

CASE 310 Crawler Operator’s Manual

SECTIONICRAWLER
INTRODUCTION
CRAWLERSERIALNUMBER
SPECIFICATIONS-CRAWLER
Engine
Clutch
Transmission
FuelSystem
CoolingSystem
Electrical and Ignition Systems
Approximate Capacities
PhysicalDimensions
LUBRICATION AND HYDRAULIC SYSTEM —- CRAWLER
LubricationTimes
Recommended Lubricants
PressureFittings
EngineLubrication
AirCleaner
Generator
Distributor
Transmission-Differential
FinalDrives
HydraulicReservoir
ReservoirBreather
HydraulicOilFilter
OPERATING INSTRUCTIONS— CRAWLER
Pre-startingCheckList
Instruments
OperatingControls
EngineStartingProcedure
Stoppinangine
Engine Run—In Procedure
OperatingProcedure
Drawbar
ColdWeatherOperation
HotWeatherOperation
Operating Precautions- General
Personal Safety Precautions
FuelRe
commendations
PREVENTIVE MAINTENANCE— CRAWLER
Lubrication –
CoolingSystem
AirCleaner
CrankcaseBreather
PuelSystem
Governor and Engine Speed
ValveAdjustment
Testing Engine Compression
EngineOi’lPump
Ignition and Electrical Equipment
Clutch
Brakes
Track
CrawlerStorage
SERVICE DIAGNOSIS—CRAWLER
EngineWillNotStar-t
EngineMisfiring
LackofPower
EngineKnocks
Engine Continues to Run After Switch is Turned Off
EngineOverheating
Engine Uses Too MuchPuel
LowOilPressure
Automatic Voltage Regulator and Generator
Battery
Transmission-Differential
Trouble Shooting Chart — Hydraulic System
SECTIONIILOADER
SECTIONIIIBACKHOE
SECTIONIV P T O AND BELT PULLEY
SECTIONVWINCH
SECTIONVISCARIFIER
SECTIONVIIEAGLEHITCHES
SECTION VIII PULL BEHIND HYDRAULICS
SECTIONIXDOZERS
INDEX
