Case 310G-350 Crawler Service Repair Manual (9-99774R0) Case 310G-350 – PDF Download

Description

Case 310G-350 Crawler Service Repair Manual (9-99774R0) Case 310G-350

CASE 310G-350 CRAWLER SERVICE REPAIR MANUAL (9-99774R0) CASE 310G-350 – PDF DOWNLOAD:

Image Preview:

Description:

Case 310G-350 Crawler Service Repair Manual (9-99774R0) Case 310G-350

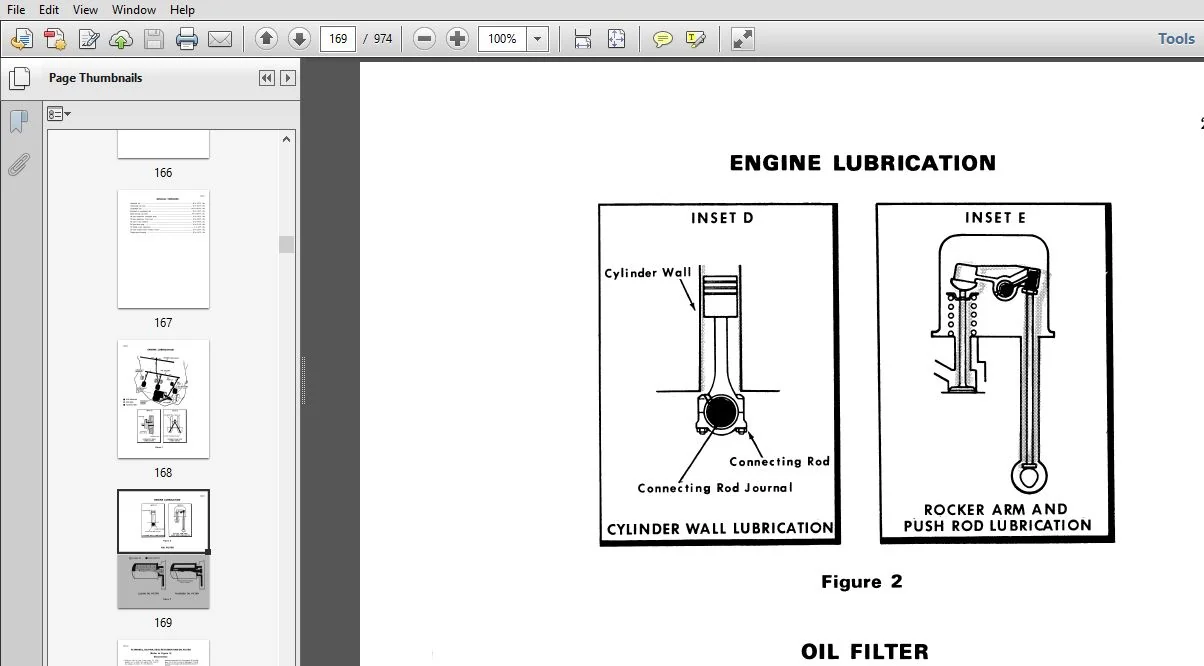

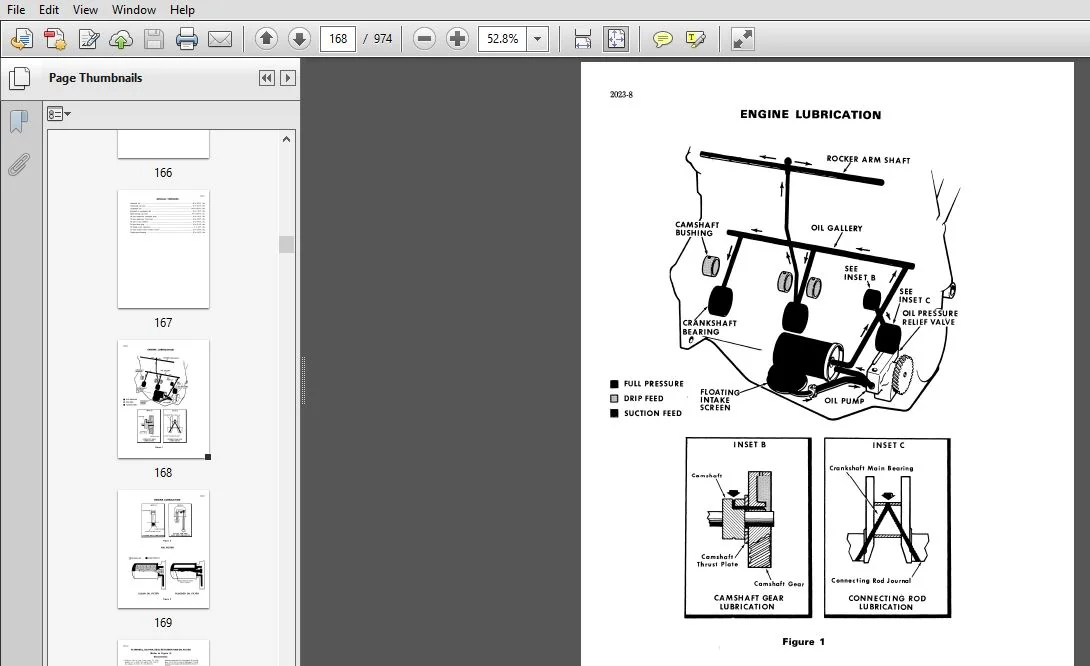

Engine Lubrication
When the engine rebuild is complete, fill the engine crankcase with Case HDM oil and install new engine oil filter. NOTE: If Case HDM oil is not used, use only a Series 3 DS or CD Service Classification oil that has the proper viscosity rating for prevailing air temperature. Refer to vehicle Operators Manual.
After the first 20 hours of operation, change the engine oil while the engine is hot and replace the the engine oil filter. DO NOT DRAIN OIL UNTIL THE ENGINE HAS BEEN OPERATED 20 HOURS. Change the engine oil and filter at the recommended intervals thereafter as outlined in the Operator’s Manual.
Run-In Procedure (Agricultural Tractors)
For the first 8 hours of field operation stay one gear lower than normal. For the next 12 hours DO NOT “lug” the engine. Prevent “lugging” by shifting to a lower gear. The engine must not be “lugged” below its Rated Engine RPM during the early hours of life.
Run-In Procedure (Construction Equipment)
For the first 8 hours, operate the engine at full throttle maintaining a normal load. DO NOT baby the engine, but avoid prolonged converter or hydraulic stall. Engine must not be “lugged” below its Rated Engine RPM (Do not exceed 10 seconds of stall).
Run-In Procedure (Power Units)
For the first 1/2 hour, operate engine at 2/3 rated RPM with a light load or no load. For the next (1) hour, run engine at 80 to 90% load at rated RPM (but not over 2000 RPM). Then full load and rated RPM as required in application.

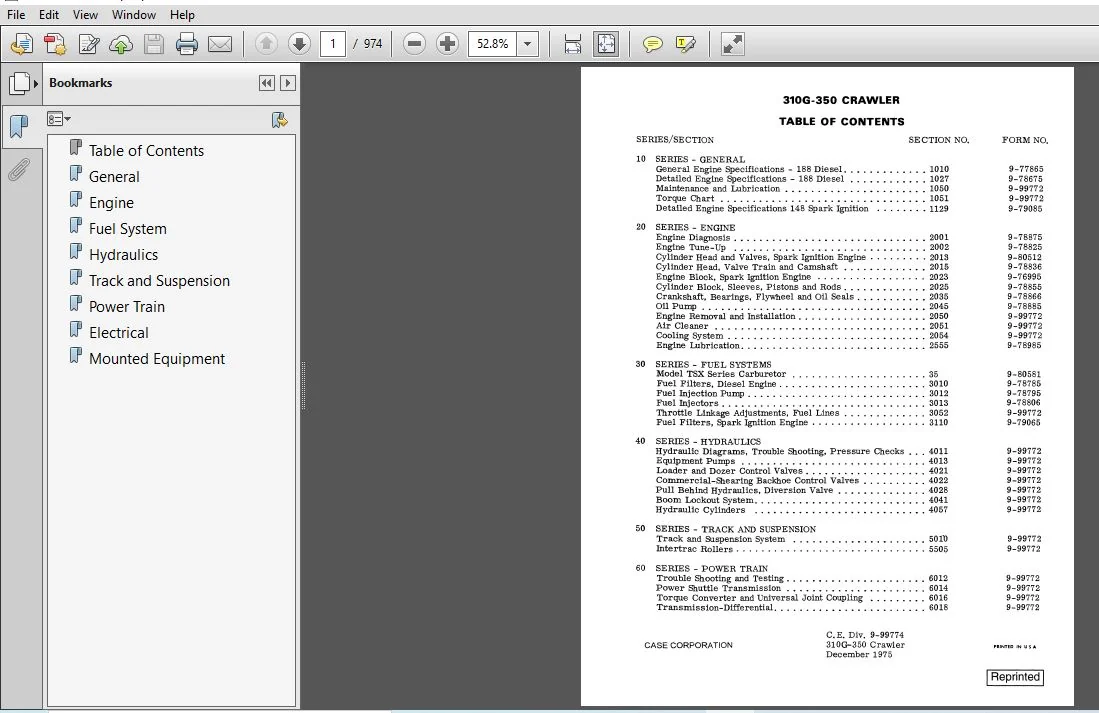

Table of Contents:

Case 310G-350 Crawler Service Repair Manual (9-99774R0) Case 310G-350

10 SERIES — GENERAL
General Engine Specifications – 188 Diesel
Detailed Engine Specifications — 188 Diesel
Maintenance and Lubrication
TorqueChart
Detailed Engine Specifications 148 Spark Ignition
20 SERIES — ENGINE
EngineDiagnosis
EngineTune-Up
Cylinder Head and Valves, Spark Ignition Engine
Cylinder Head, Valve Train and Camshaft
Engine Block, Spark Ignition Engine
Cylinder Block, Sleeves, Pistons and Rods
Crankshaft, Bearings, Flywheel and Oil Seals
Engine Removal and Installation
Air Cleaner
Cooling System
Engine Lubrication
30 SERIES – FUEL SYSTEMS
ModelTSXSeries Carburetor
Fuel Filters,Diese1Engine
Fuel InjectionPump
Fuel Injectors“
Throttle Linkage Adjustments, Fuel Lines
Fuel Filters, Spark Ignition Engine
40 SERIES – HYDRAULICS
Hydraulic Diagrams, Trouble Shooting, Pressure Checks
EquipmentPumps
Loader and Dozer Control Valves
Commercial—Shearing Backhoe Control Valves
Pull Behind Hydraulics, Diversion Valve
BoomLockoutSystem
HydraulicCylinders
50 SERIES – TRACK AND SUSPENSION
Track and Suspension System
IntertracRollers
60 SERIES – POWER TRAIN
Trouble Shooting and Testing
Power Shuttle Transmission
Torque Converter and Universal Joint Coupling
Transmission-Differential
60 SERIES – POWER TRAIN (CONT’D)
Clutch
DriveShaft
FinalDrives
PowerTakeoff
80 SERIES — ELECTRICAL
WiringDiagrams
TroubleShooting
IgnitionSystem
Batteries
Starter and Starter Solenoid
Alternator
Generator and Voltage Regulator
90 SERIES—MOUNTED EQUIPMENT
Loader
Dozers
Winch
Ripper
Three-PointHitch
Roll-Over Protection Structure
Medel 26 and 26C Backhoe
Model 32 Backhoe
Model 33 Backhoe+

Please Note:

⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
