Case 327B 330B Simplemux Articulated Dump Truck Service Repair Manual

Description

Case 327B 330B Simplemux Articulated Dump Truck Service Repair Manual

This Case 327B 330B Simplemux Service Repair Manual (Print No. 84150684, First Edition, issued June 2008) is the complete factory-format workshop reference for the Case 327B and 330B Simplemux articulated dump trucks. It was written for technicians who need correct procedures, torque values, and technical data rather than generalized guidance, and it walks through every major system on these machines from the F3A (Cursor 10) diesel engine to the multiplex electrical architecture.

• Manual type: Repair/Service Manual
• Brand/Model: Case 327B & 330B Simplemux articulated dump trucks
• Language: English
• Page count: 1,400 pages
• File format: PDF
• Publication number: 84150684 EN
• Edition: First Edition
• Issue date: June 2008

Chapters Covered

• Section 1 – General
  • Conditions of Use and Safety Instructions
  • Technical Data (dimensions, weights, performance, main specifications, tightening torques)
  • Fault Codes (multiplex system and engine control fault codes)
• Section 2 – Engines
  • Conditions of Use and Safety Instructions
  • Electronic system control, feeding, air intake, VGT, exhaust, engine brake
  • Cooling and lubrication systems
  • Technical specification, general characteristics, assembly clearance data
  • Tightening torques and tools
  • Troubleshooting by symptoms and maintenance
  • Engine removal-replacement and bench dismantling
  • Cylinder head and rockers
• Section 4 – Electrical
  • Multiplex system overview, CAN line, general diagram
  • Body computer system, EDC engine control unit, transmission control unit (TCU)
  • Relays, fuses, ground points
  • Topographic wiring diagrams (main frame, cab, engine, automatic transmission)
  • Battery service
• Section 5 – Steering
  • Wheels and tyres
  • Steering and dumping system, hydraulic diagram, test procedures
  • Emergency steering system
• Section 6 – Power Train
  • Automatic transmission (6WG260) description, technical data, disassembly/reassembly
  • Front axle description, specifications, tightening torques
• Section 7 – Brakes
  • Braking system (standard and wet-brakes versions)
  • Test procedures and maintenance
• Section 8 – Hydraulics
  • Hydraulic system description and pressure test points
  • Technical data
• Section 9 – Mounted Equipment
  • Suspensions, pneumatic system, grease system

Across these sections, the manual gives a technician everything needed to diagnose, service, and rebuild the 327B and 330B Simplemux from the ground up — from reading multiplex fault codes on the display to setting engine assembly clearances and torquing gearbox-to-engine fasteners in the correct sequence.

Technical Data You’ll Find Inside

The Case 327B 330B Simplemux Service Repair Manual documents the F3A (Cursor 10) six-cylinder turbocharged diesel (125 mm bore, 140 mm stroke, 10,300 cm³ displacement, 235 kW / 315 BHP at 2100 RPM, 1450 Nm maximum torque), paired with the 6WG260 automatic transmission (6 forward, 3 reverse gears, single-stage hydrodynamic torque converter). Full capacity charts cover engine oil, coolant, fuel, transmission, axle, suspension, and hydraulic fluid fill volumes with the exact specification and oil grade for each. Vehicle dimensions, empty and loaded weights, center of gravity data, tyre pressure tables, and complete performance/gradeability tables for every gear are included for both the 327B and 330B variants.

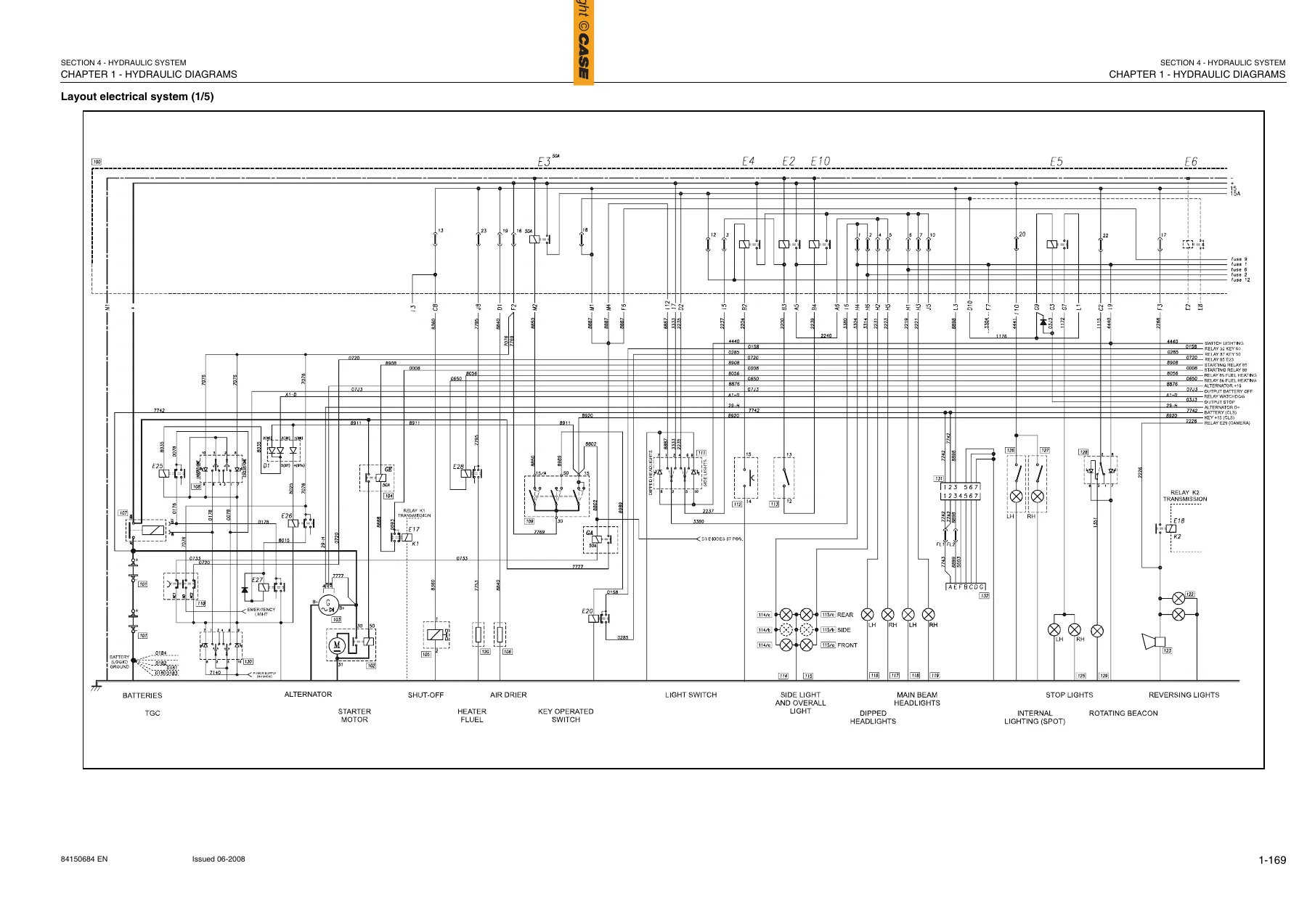

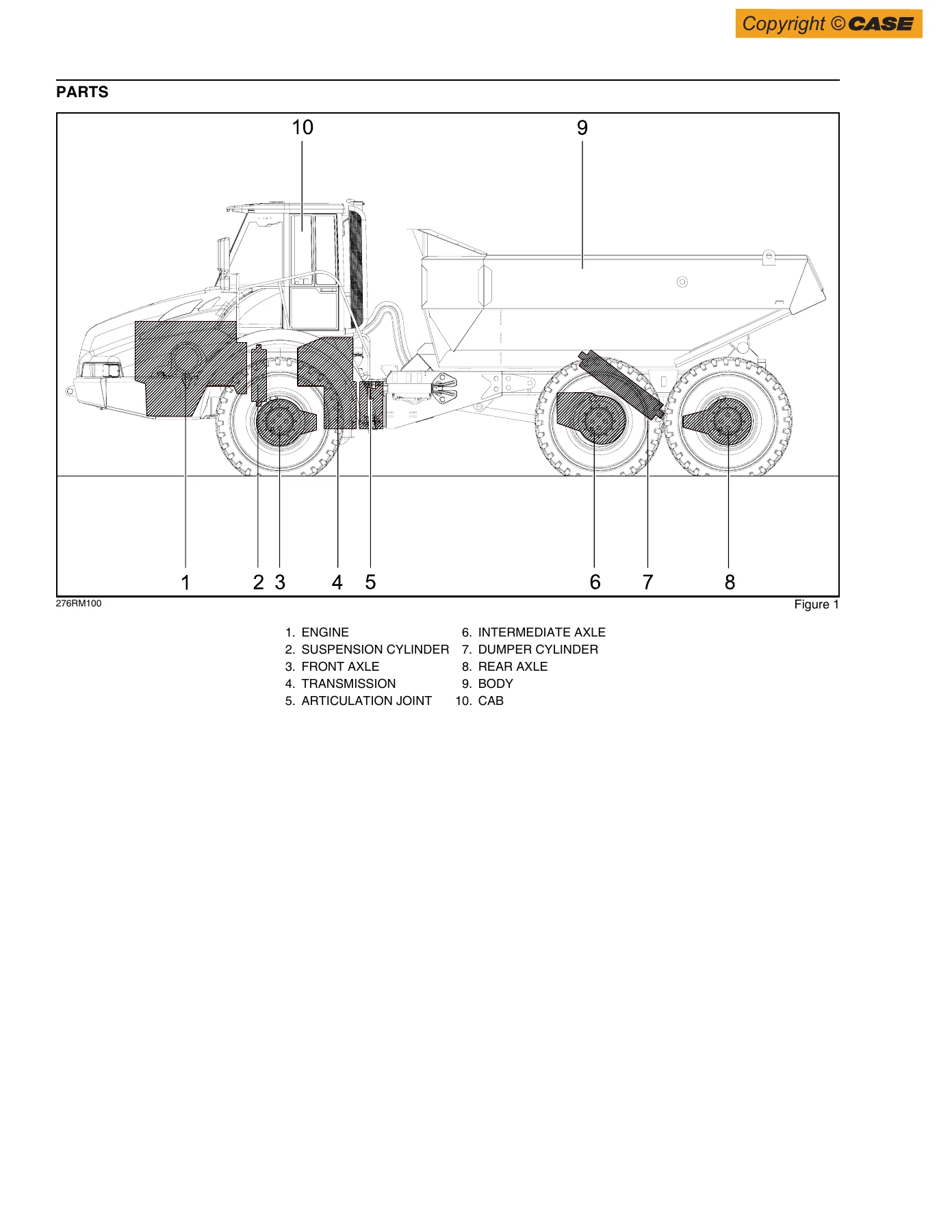

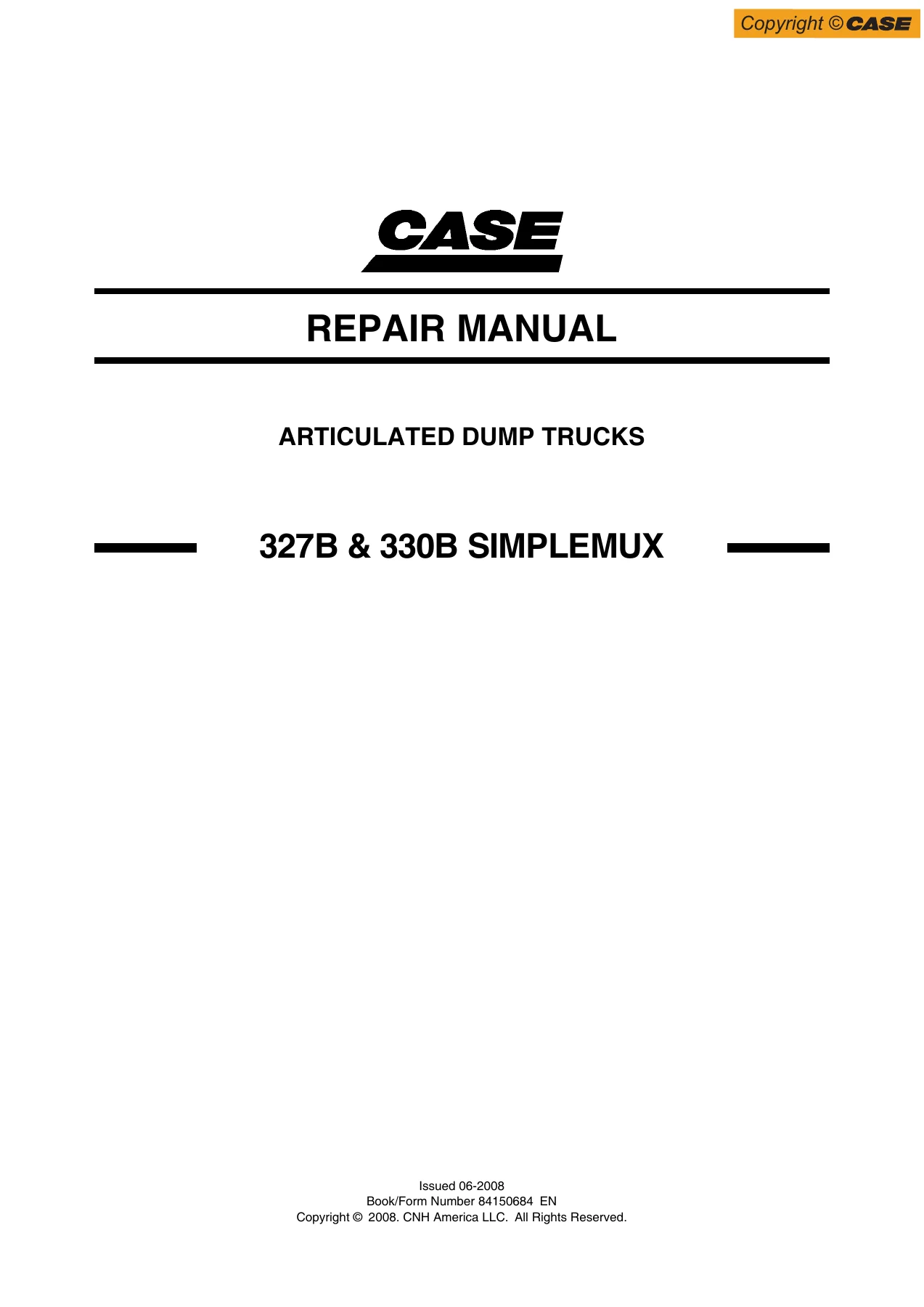

IMAGES PREVIEW

Why This Case 327B 330B Simplemux Manual Matters

Working from correct factory-documented procedures and torque specifications protects the truck’s engine, transmission, and hydraulic systems from the kind of damage that comes from guesswork — over-torqued gearbox fasteners, incorrect assembly clearances, or a misdiagnosed multiplex fault code can turn a routine repair into an expensive one. This Case 327B 330B Simplemux Service Repair Manual gives you the manufacturer’s own reference points so every job on the vehicle is done to spec the first time.

Delivered as an instant PDF download, this Case 327B 330B Simplemux manual is ready to use the moment your payment clears — no shipping, no waiting. Read it on a laptop, tablet, or phone in the shop, or print the pages you need for quick reference at the bench.
