Case 680CK Series C Loader Service Manual 9-72595 – PDF DOWNLOAD

Description

Case 680CK Series C Loader Service Manual

DESCRIPTION:

Case 680CK Series C Loader Service Manual

SAMPLE PAGES:

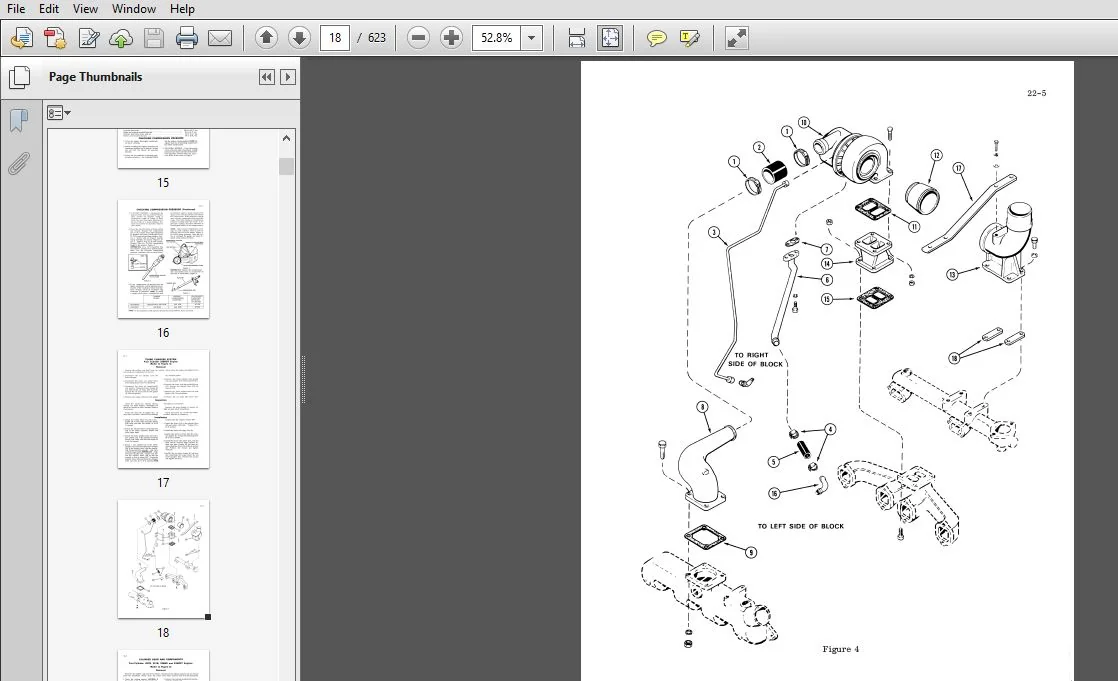

Removal:
1.Disconnect the air cleaner from the turbo—charger.
2.Disconnect the turbo and intake elbow hose clamps (1) and remove with hose(2) .
3.Disconnect the turbo oil supplyline(3) and remove. Discounect hose clamps (4) and remove the oil drain tube hose (5). Remove the oil drain tube (6) with gasket (7). Discard gasket.
4.Remove the intake elbow (8) with gasket
5.Remove the turbo-charger (10), gasket (11) and Coupler (12).Discard gasket (11).
6. Remove the bolts from the manifold brace (17). Remove the exhaust elbow (13) and spacers (18).
7. Remove the turbo adapter base (14) with gasket (15). Discard gasket.
8.Remove the oil drain tube elbow (16).

Inspection

• Clean the intake and exhaust elbows, coupler and turbo adapter thoroughly and check for cracks or other damage. Replace if necessary.
• Flush and clean the oil supply line, oil drain tube and elbow. Check for any damage and replace if necessary.

CASE 680CK SERIES C LOADER SERVICE MANUAL 9-72595 – PDF DOWNLOAD:

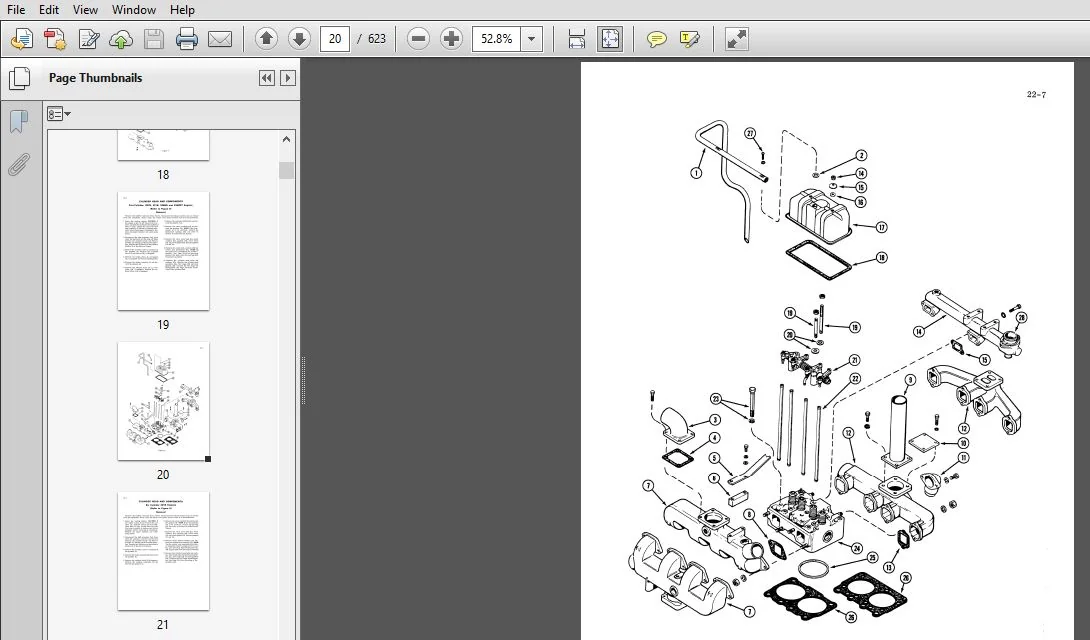

IMAGES PREVIEW OF THE MANUAL:

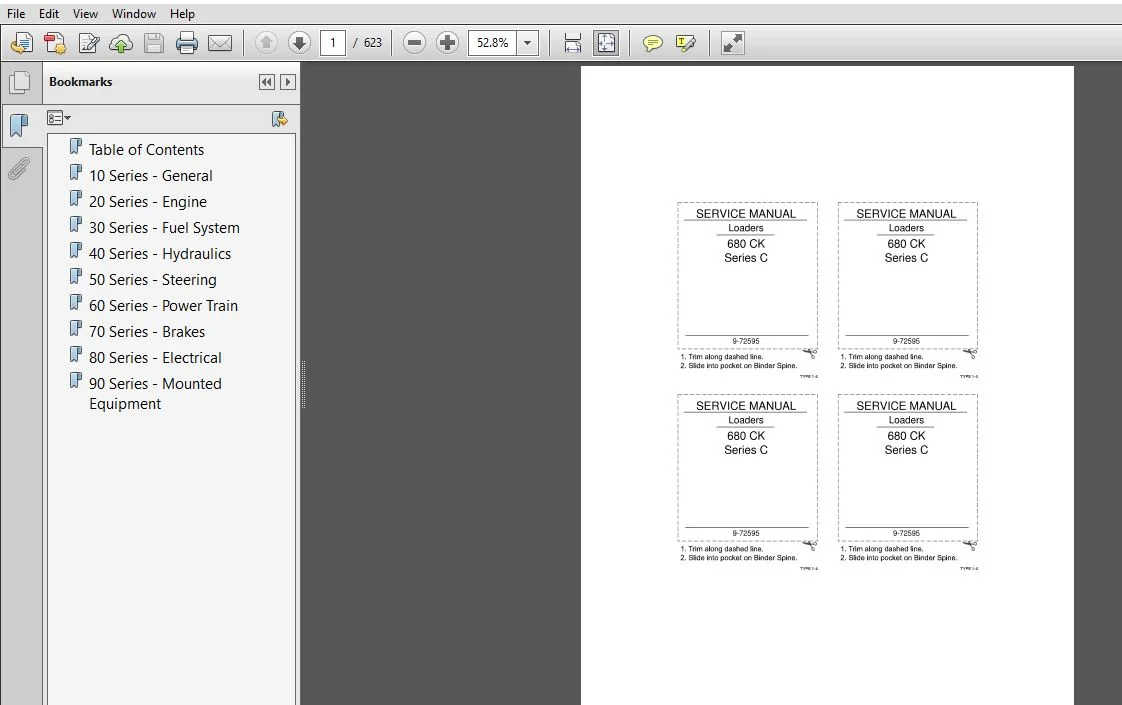

TABLE OF CONTENTS:

Case 680CK Series C Loader Service Manual

• 10 Series – General
• 20 Series – Engine
• 30 Series – Fuel System
• 40 Series – Hydraulics
• 50 Series – Steering
• 60 Series – Power Train
• 70 Series – Brakes
• 80 Series – Electrical
• 90 Series – Mounted Equipment

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
