Case 880C Excavator Service Repair Manual (9-69762) Case 880C PDF Instant Download

Description

Case 880C Excavator Service Repair Manual (9-69762) Case 880C

File Details:

Case Excavator 880C Service Manual_9-69762R0
Size : 227 MB
Format : PDF
Language : English
Number of Pages : 783 pages
Brand: Case
Type of machine: Excavator
Type of document: Service Manual
Model: Case Excavator 880C
Part No: 9-69762R0

CASE 880C EXCAVATOR SERVICE REPAIR MANUAL (9-69762) CASE 880C – PDF DOWNLOAD:

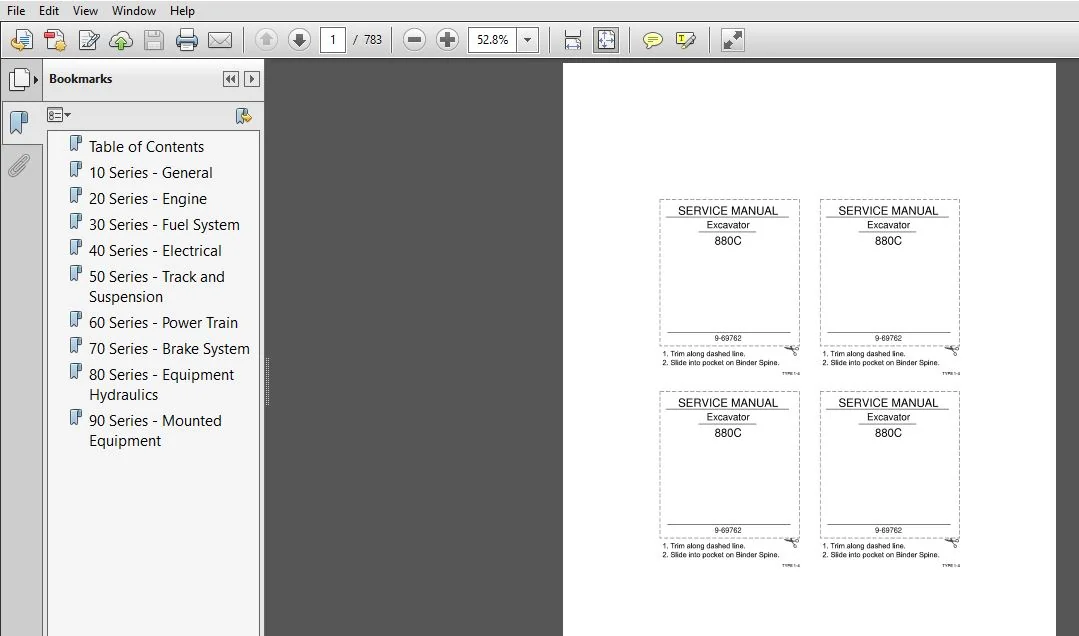

Image Preview:

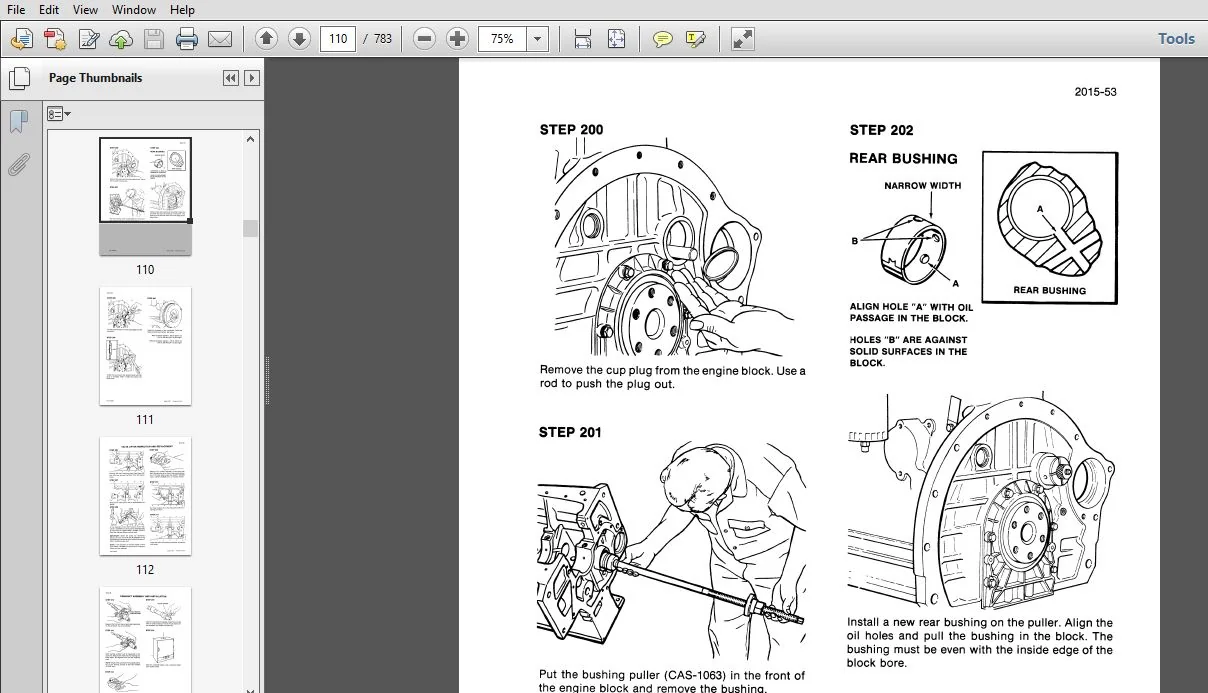

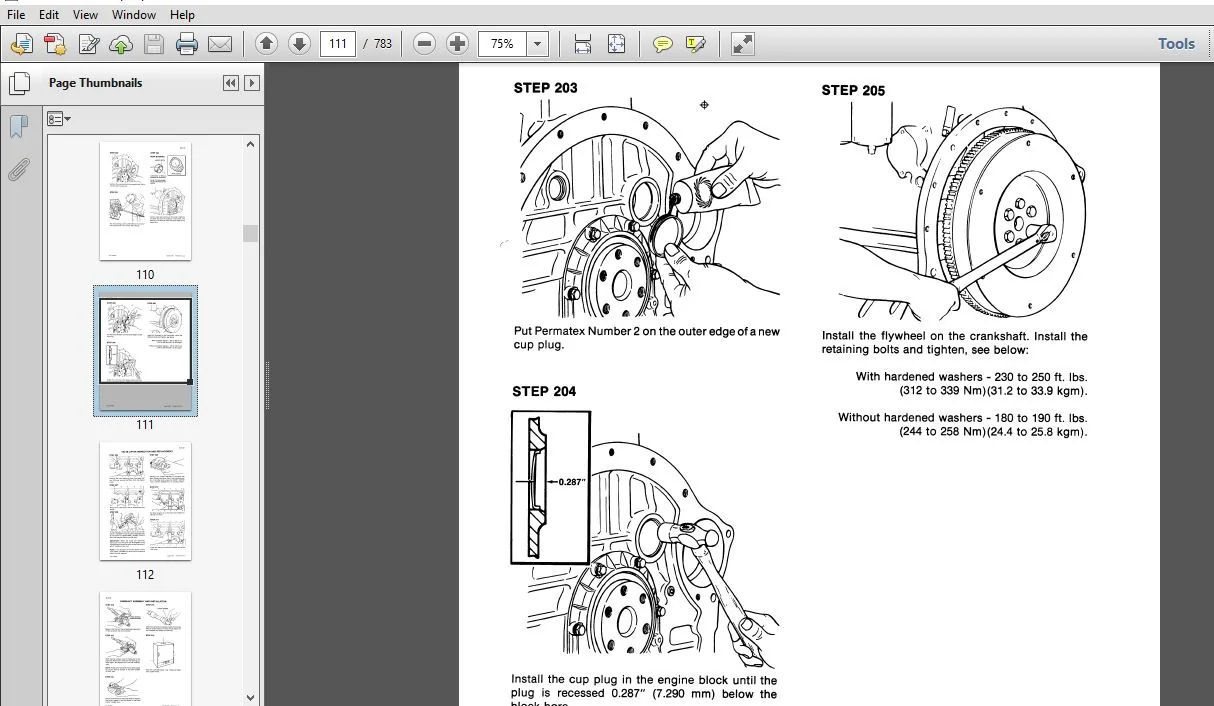

Sample Page From The Manual:

Case 880C Excavator Service Repair Manual (9-69762) Case 880C

Rough Parts
Rough parts such as housings, castings, etc., may be cleaned in hot solution tanks with mild alkali solutions, providing these parts do not have ground or polished surfaces. The parts should remain in the tank long enough to be thoroughly cleaned and heated. This will aid the evaporation of rinse water. The parts should be thoroughly rinsed after cleaning to remove all traces of alkali.
Finished or Machined Parts
Parts having ground or polished surfaces such as gears. bearings, shafts and collars, should be cleaned in non-flammable solvent.
Rubber Parts
Clean rubber parts by washing in clean denatured alcohol. DO NOT use mineral base cleaning solvents such as acetone or paint thinner on any rubber parts. If a mineral base solvent is used, the rubber will start to deteroirate and continue to deteriorate after the part is put back into service. The continued deterioration of the rubber could cause the part to fail.
Drying
All parts cleaned must be thoroughly dried immediately. Use moisture-free compressed air or soft lintleas absorbent wiping rags. The rags should be free of abrasive materials such as metal filings. contaminated oil or lapping compound. Bearings may be dried using compressed air, provided the air is directed across the bearings to avoid spinning. Do not spin bearings when drying. Bearings may be rotated slowly by hand to speed the drying process.
Complete Assemblies
Completely assembled components may be steam cleaned on the outside only, to make for easier removal and disassembly. All openings and breathers must be closed or plugged to prevent possibility of water entering the component.

Table of Contents:

Case 880C Excavator Service Repair Manual (9-69762) Case 880C

Table of Contents
....................  2
10 Series - General
..................  4
20 Series - Engine
................... 36
30 Series - Fuel System
..............276
40 Series - Electrical
...............322
50 Series - Track and Suspension
.....462
60 Series - Power Train
..............510
70 Series - Brake System
 ............550
80 Series - Equipment Hydraulics
 ....562
90 Series - Mounted Equipment
........704

Please Note:

⦁ This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
⦁ This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
⦁ Require some other service manual or have any queries: please WRITE to us at [email protected]
