Case Articulated Truck 327B & 330B Service Manual 87573455A – PDF DOWNLOAD

Description

Case Articulated Truck 327B & 330B Service Manual

FILE DETAILS:

Case Articulated Truck 327B & 330B Service Manual

Size : 165 MB
Format : PDF
Language : English
Number of Pages : 1212 pages
Brand: Case
Type of machine: Articulated Truck
Type of document: Service Manual
Model: Case Articulated Truck 327B & Case Articulated Truck 330B
Part No: 87573455A

DESCRIPTION:

Case Articulated Truck 327B & 330B Service Manual

SAMPLE PAGE  FROM THE MANUAL:

• Handbook is this Use and Maintenance Handbook. Vehicle is the machinery described in this handbook. Manufacturer is the company manufacturing the vehicle. Dealership is the company or organization officially representing the Manufacturer.
• Supplier is any company supplying components and/ or consumable material used by the vehicle. User is the person directly or indirectly involved in using the vehicle.
• This handbook is organized in several sections, which are organized in chapters and, where required, paragraphs to ensure rapid and easy retrieval of information: Conditions of use This section contains information on this USE AND MAINTENANCEHANDBOOK, vehicle use and applications. Safety instructions
• This section contains information on the safety precautions to be adopted for vehicle use and maintenance. Use This section contains information on the controls and instruments, as well as the main instructions for use, which must be respected at all times, especially when the vehicle is new. Maintenance
• This section contains the functional instructions for checking and maintaining the vehicle which must be implemented to ensure satisfying operation, cost—effective running and long life of the vehicle. Technical specifications This section contains the characteristic vehicle data
• Safekeeping of this handbook This handbook must be kept inside the vehicle, in a dry place, and must be readily available for consultation. You are advised to file a copy. Keep the handbook for the entire life of the vehicle, until it is scrapped.
• Users are required to purchase a new copy if the handbook is either lost or damaged. Copies must be exclusively ordered from the manufacturer. Updates to this handbook The information, descriptions and illustrations in this handbook reflect the state of the art at the time of marketing of the vehicle.
• The manufacturer reserves the right to implement changes to vehicles, for technical or marketing reasons, at any time. The manufacturer will not be obliged either to implement such changes in the vehicles marketed before or to consider this handbook obsolete. Any additional information which the manufacturer may deemsuitable to provide at a later time will be kept with the handbook as an integral part of thepublication.
• Units of measure International System (SI) units of measure as used in this handbook. British Units values are expressed in brackets.

CASE ARTICULATED TRUCK 327B & 330B SERVICE MANUAL 87573455A – PDF DOWNLOAD:

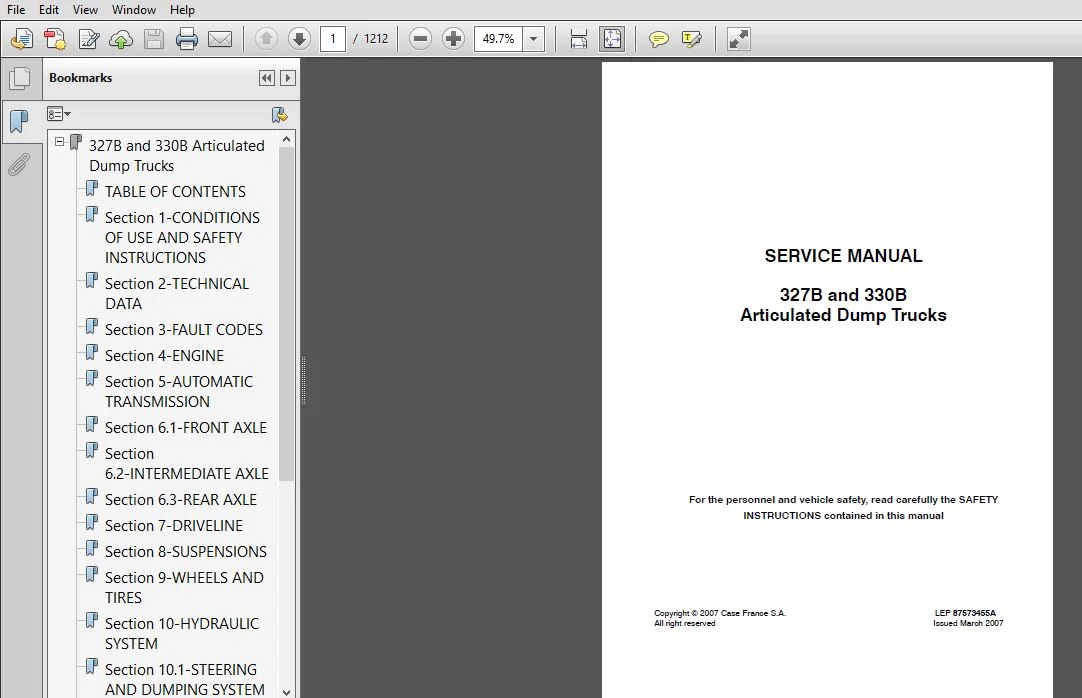

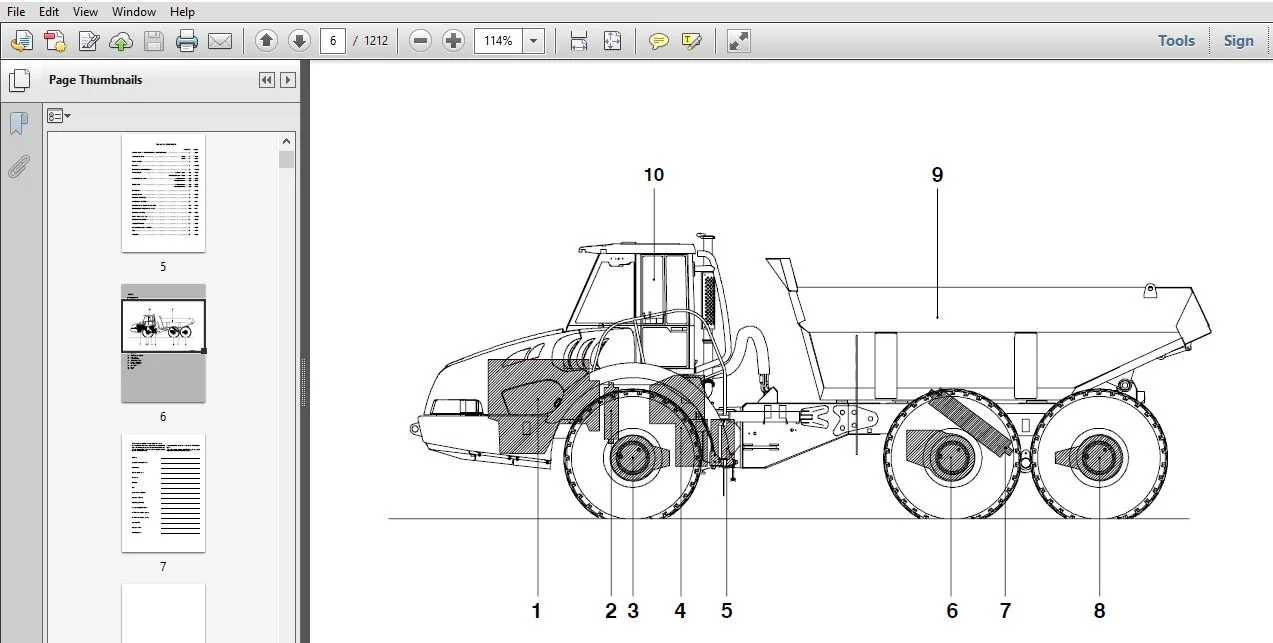

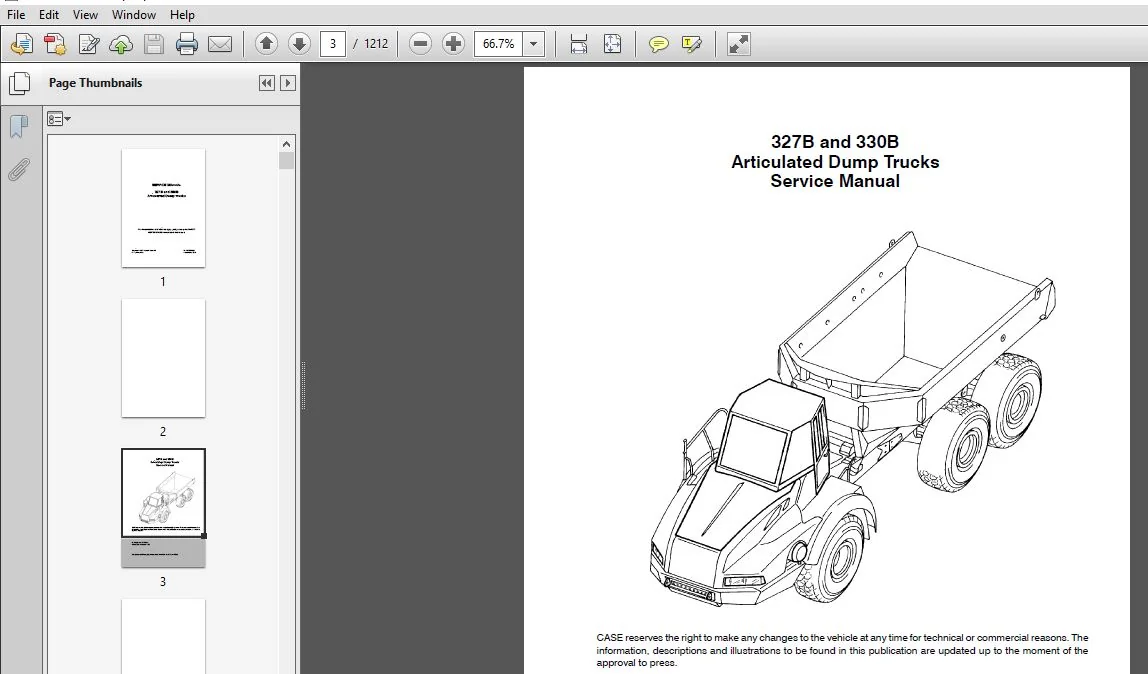

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case Articulated Truck 327B & 330B Service Manual

CONDITIONS OF USE AND SAFETY INSTRUCTIONS 1 1 to 36
TECHNICAL DATA 327B 2 1 to 34
330B 2 1 to 34
FAULT CODES 3 1 to 46
ENGINE 4 1 to 162
AUTOMATIC TRANSMISSION 5 1 to 120
FRONT AXLE Dry Disc Brakes 6 1 1 to 68
Wet Disc Brakes — 330B 6 1 1 to 68
INTERMEDIATE AXLE Dry Disc Brakes 6 2 1 to 68
Wet Disc Brakes 6 2 1 to 70
REAR AXLE Dry Disc Brakes 6 3 1 to 58
Wet Disc Brakes 6 3 1 to 52
DRIVELINE 7 1 to 18
SUSPENSIONS 8 1 to 30
WHEELS AND TIRES 9 1 to 12
HYDRAULIC SYSTEM 10 1 to 6
STEERING AND DUMPING SYSTEM 10 1 1 to 50
EMERGENGY STEERING SYSTEM 10 2 1 to 6
BRAKING SYSTEM 10 3 1 to 24
ELECTRICAL SYSTEM 11 1 to 102
PNEUMATIC SYSTEM 12 1 to 20
GREASE SYSTEM 13 1 to 10
AIR CONDITIONING SYSTEM 14 1 to 16
CAB 15 1 to 24
CHASSIS
