Case Crawler Excavator CX225SR Service Manual

FILE DETAILS:

Case Crawler Excavator CX225SR Service Manual

Size : 92.4 MB
Format : PDF
Language : English
Brand: Case
Type of machine: Crawler Excavator
Type of document: Service Manual
Model: Case Crawler Excavator CX225SR
Part No: 87576806A

DESCRIPTION:

Case Crawler Excavator CX225SR Service Manual

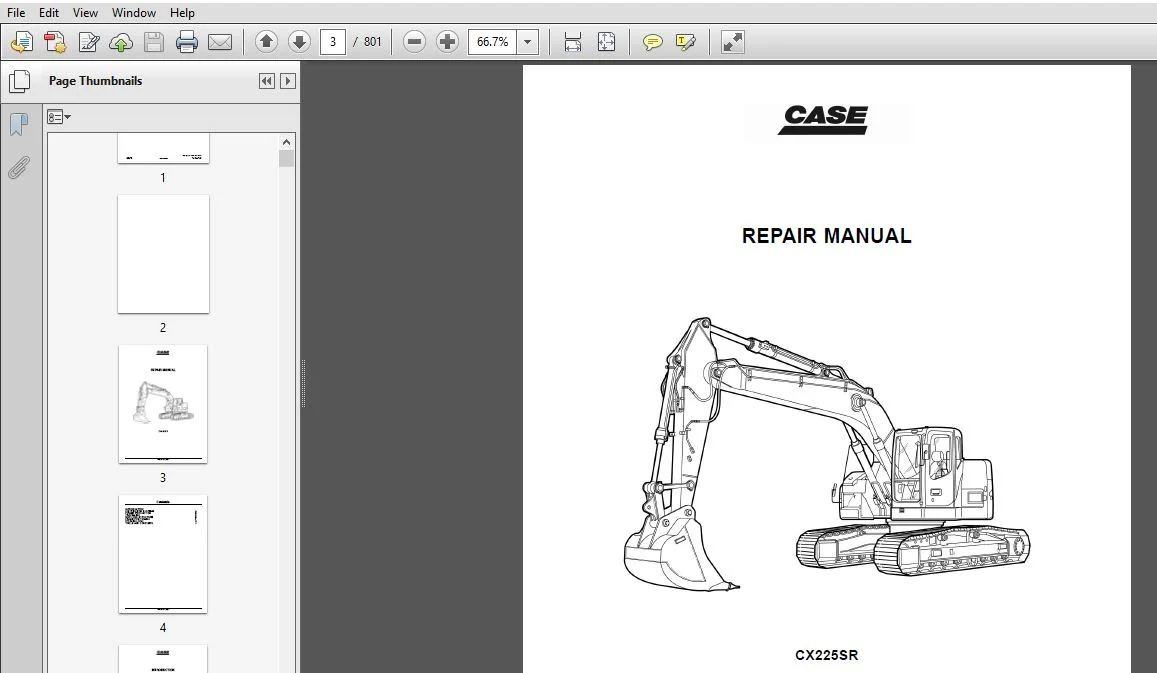

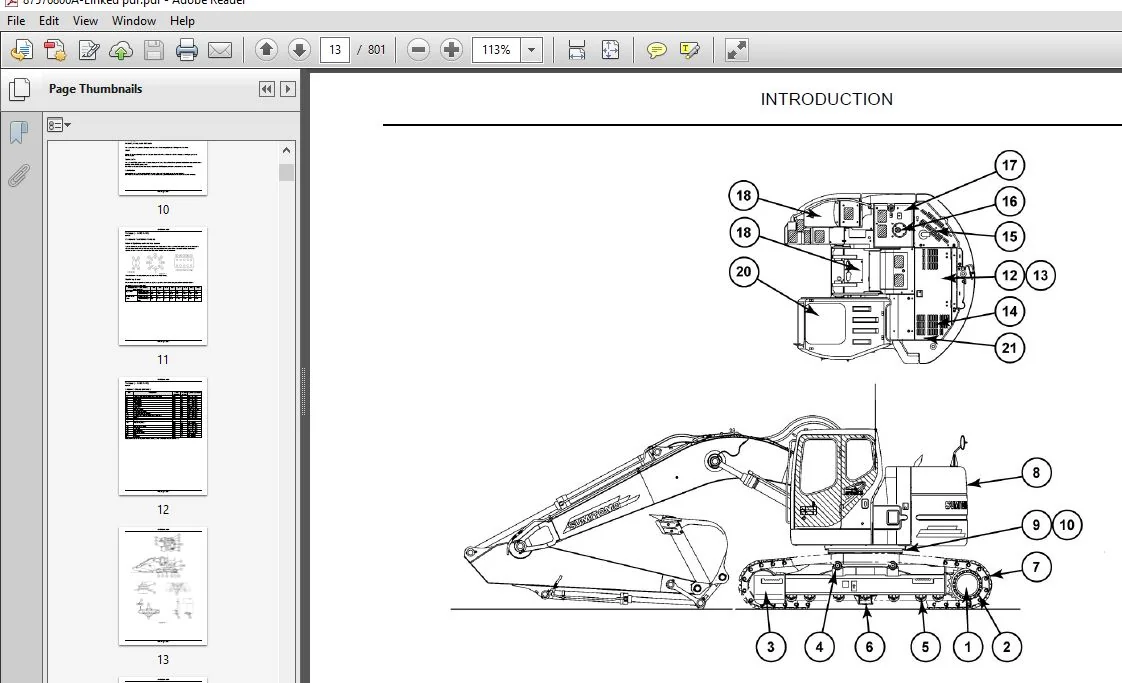

SAMPLE PAGES FROM MANUAL

• Case Crawler Excavator CX225SR Service Manual
• FLUIDS AND LUBRICANTS Lubricants must have the correct properties for each application. ATTENTION: You must respect the operating conditions for the different ingredients. Hydraulic uid CASE AKCELA hydraulic uid is specially designed for high pressure applications and for the CASE hydraulic system. The type of uid to be used depends on the ambient temperature.
• TEMPERATE COUNTRIES – 20 °C to + 40 °C CASE AKCELA HYDRAULIC EXCAVATOR FLUID (MS 1230. ISO VG 46. DIN 51524 PART 2 HV) • HOT COUNTRIES 0 °C to + 60 °C CASE AKCELA HYDRAULIC EXCAVATOR FLUID
• “HOT CLIMATE” (MS 1230. ISO VG 100. DIN 51524 PART 2 HV) • COLD COUNTRIES – 40 °C to + 20 °C CASE AKCELA HYDRAULIC EXCAVATOR FLUID “COLD CLIMATE” (MS 1230. ISO VG 22. DIN 51524 PART 2 HV) • BIODEGRADABLE FLUID – 30 – +40 °C This yellow uid can be mixed with standard uid. If this liquid is used, it is advisable to completely drain the hydraulic circuit . CASE AKCELA HYDRAULIC EXCAVATORS FLUID BIO (MS 1230. ISO VG 46. DIN 51524 PART 2 HV)
• Transmission component oil Extreme pressure oil used in transmission components inside sealed housings. CASE AKCELA 135H EP GEAR LUBE SAE 80W-90 (SAE 80W-90. API GL 5. MIL-L-2105 D. MS 1316. ZF TE-ML 05A) Grease “Extreme Pressure” multi-purpose grease • CASE AKCELA MOLY GREASE 241H EP-M (251H EP-M NLGI2) with lithium and molybdenum bisulphide soap. • CASE AKCELA 251H EP MULTI-PURPOSE GREASE (251H EP. NLGI 2) with lithium and calcium soap. • CASE AKCELA PREMIUM GREASE EP-2 (NLGI 2) with lithium soap. HYDRAULIC HAMMERS Use only CASE AKCELA PREMIUM GREASE EP-2 (NLGI 2) grease with lithium soap.
  Engine oil CASE AKCELA NO. 1 ENGINE OIL is recommended for the engine. This oil provides correct lubrication for your engine in all working conditions. If CASE AKCELA NO. 1 ENGINE OIL Multigrade cannot be obtained, use oil corresponding to one of the following categories: ACEA E5. MS 1121. API CH-4.

CASE CRAWLER EXCAVATOR CX225SR SERVICE MANUAL 87576806A – PDF DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

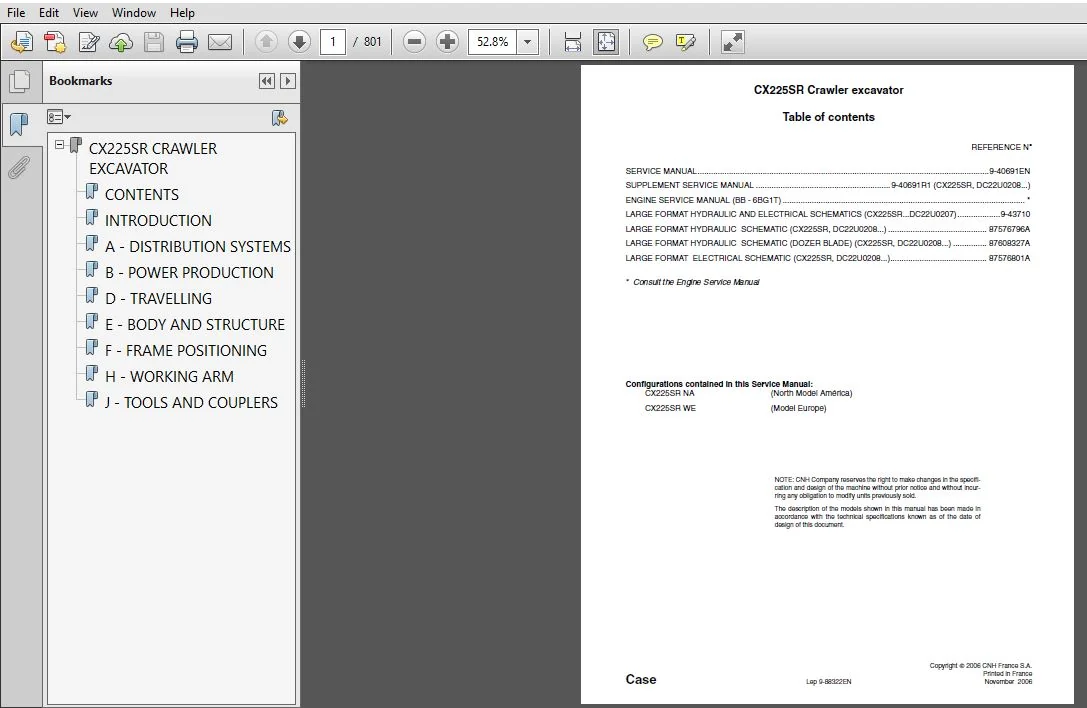

TABLE OF CONTENTS:

Case Crawler Excavator CX225SR Service Manual

SERVICE MANUAL 9-40691EN
SUPPLEMENT SERVICE MANUAL 9-40691R1 (CX225SR, DC22U0208 )
ENGINE SERVICE MANUAL (BB – 6BG1T) *
LARGE FORMAT HYDRAULIC AND ELECTRICAL SCHEMATICS (CX225SR DC22U0207) 9-43710
LARGE FORMAT HYDRAULIC SCHEMATIC (CX225SR, DC22U0208 ) 87576796A
LARGE FORMAT HYDRAULIC SCHEMATIC (DOZER BLADE) (CX225SR, DC22U0208 ) 87608327A
LARGE FORMAT ELECTRICAL SCHEMATIC (CX225SR, DC22U0208 ) 87576801A
