Case Crawler Excavator CX460 Service Manual 9-53600R0 – PDF DOWNLOAD

Description

Case Crawler Excavator CX460 Service Manual

FILE DETAILS:

Case Crawler Excavator CX460 Service Manual

Size : 93.2 MB
Format : PDF
Language : English
Brand: Case
Type of machine: Crawler Excavator
Type of document: Service Manual
Model: Case Crawler Excavator CX460
Part No: 9-53600R0

CASE CRAWLER EXCAVATOR CX460 SERVICE MANUAL 9-53600R0 – PDF DOWNLOAD:

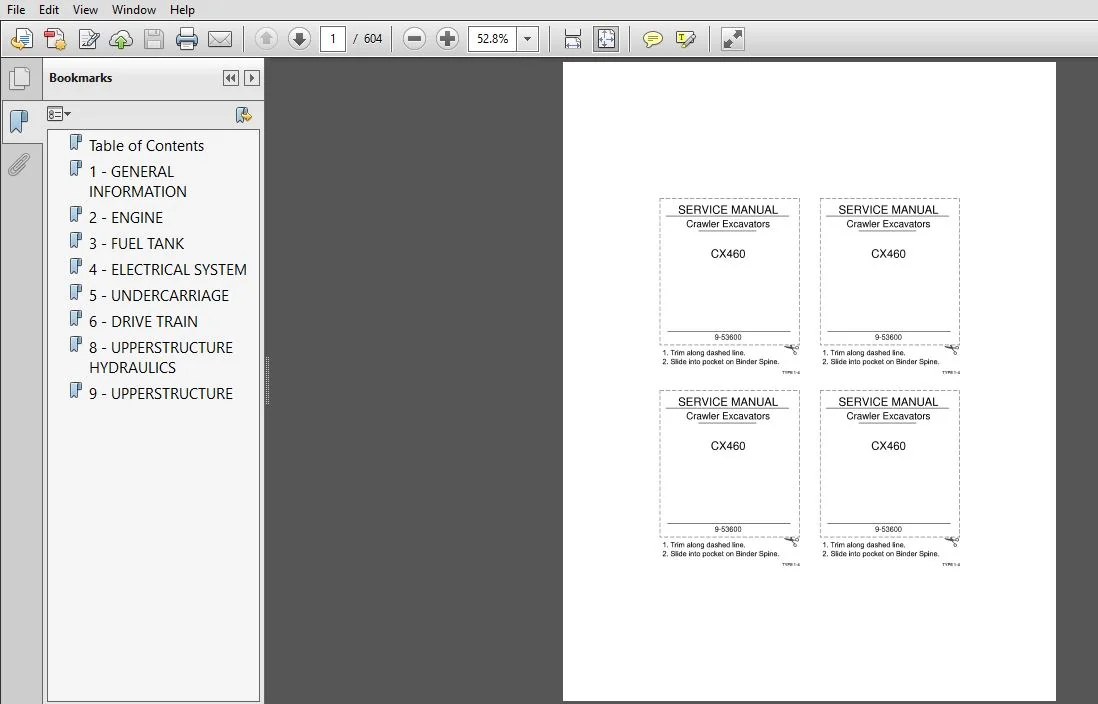

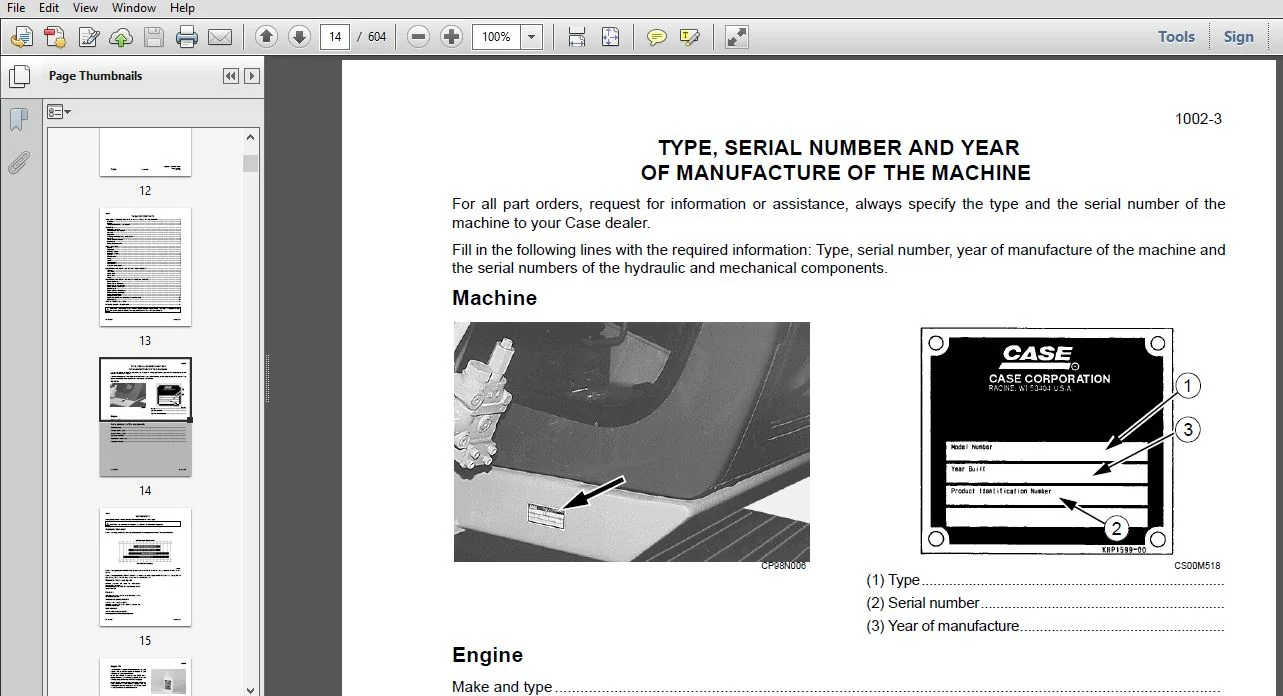

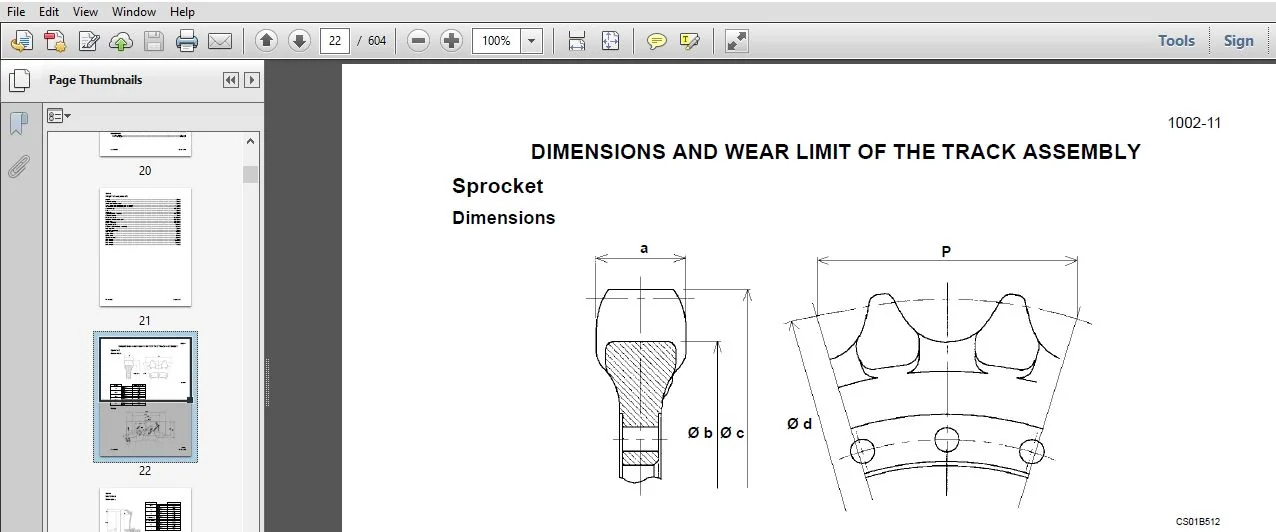

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case Crawler Excavator CX460 Service Manual

GENERAL INFORMATION:

• Cleaning:Clean all metal parts except bearings. In a suitable cleaning solvent or by steam cleaning. Do not use caustic scda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, try the bearings completely and put oil on the bearings.
• Inspection:Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear. pitting and the replacement of parts necessary to prevent early failures. Bearings Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dy. DO NOT DRY BEARINGS WITH COMPRESSED AIR.
• Needle Bearings:Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings Into position put petroleum jelly on the inside and outside cfiameter of the bearings.
• Gears:Check all gears for wear and damage. Replace gears that have wear or damage.
• Oil Seals, O-rings and Gaskets:Always install new oil seals. O-rings and gaskets. Put petroleum jelly on seals and O-rings.
• Shafts:Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
• Service Parts:Always install genuine Case service parts. When ordering refer to the Parts Catalog torthe correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Link- Belt replacement parts are not covered by warranty.
• Lubrication:Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.

TABLE OF CONTENTS:

Case Crawler Excavator CX460 Service Manual

1 GENERAL INFORMATION
Safety, general information and standard torque data 1001 9-53360
General specifications and special torque setting 1002 9-53800
2 ENGINE
Removal and installation of the engine 2000 9-54180GB
Radiator and oil-cooler2001 9-43480GB
Engine specifications *
Disassembly and assembly of the engine *
3 FUEL SYSTEM
Fuel tank 3001 9-43470GB
Fuel engine system *
4 ELECTRICAL SYSTEM
Electrical system, electrical and electronic troubleshooting 4001 9-57920
Inspection and maintenance of batteries and connecting a booster battery 4002 9-43460GB
Main and engine electronic control boxes 4003 9-43450GB
5 UNDERCARRIAGE
Removal and installation of tracks 5001 9-42910GB
Rollers 5003 9-44830GB
Sprocket 5004 9-36890GB
Idler wheel and tension shock absorber 5005 9-44820GB
6 DRIVE TRAIN
Drive motor and final drive transmission removal and installation 6001 9-43140GB
Swing reduction gear, removal and installation 6003 9-44810GB
Swing reduction gear, disassembly and assembly 6004 9-44590GB
Travel reduction gear assembly and disassembly 6005 9-53710GB
7 UNDERCARRIAGE HYDRAULICS
8 UPPER STRUCTURE HYDRAULICS
Depressurising and decontaminating the hydraulic system, use of the
vacuum pump and bleeding the components 8000 9-44560GB
Specifications, troubleshooting, checks and hydraulic pressure settings 8001 9-53810
Hydraulic reservoir removal and installation 8002 9-43230GB
Main and pilot pumps, removal and installation 8003 9-53950GB
Main hydraulic control valve, removal and installation 8004 9-53990GB
Attachment cylinders, removal and installation 8005 9-43250GB
Hydraulic swivel, removal and installation 8006 9-43390GB
Pilot blocs, removal and installation 8007 9-53980GB
Swing motor, removal and installation 8008 9-53970GB
Free swing disassembly and assembly 8009 9-35530
Main hydraulic pump, disassembly and assembly 8010 9-43330GB
Main hydraulic control valve, disassembly and assembly 8011 9-54310GB
Attachment cylinders, disassembly and assembly 8012 9-53690GB
Hand control levers, disassembly and assembly 8013 9-54000GB
Foot control levers, disassembly and assembly 8014 7-28210GB
Six-solenoid valves, disassembly and assembly 8015 9-54050GB
Caution valve, disassembly and assembly 8016 7-27942GB
Anti hose burst valve 8017 9-54100GB
Hydraulic swivel, disassembly and assembly 8018 9-43190GB
Swing motor, disassembly and assembly 8019 9-54140GB
Hydraulic functions 8020 9-42740GB
Travel hydraulic motor, disassembly and assembly 8021 9-43160G
9 UPPER STRUCTURE
Upper structure, turntable and counter weight 9002 9-43410GB
Boom, dipper and bucket 9003 9-53280GB
Seat and seat belt 9004 9-40960GB
Cab and cab equipment 9005 9-53410GB
Air conditioning troubleshooting 9006 7-xxxxxFR
Air conditioning unit disassembly and assembly 9007 7-29910GB
Air conditioning servicing 9008 7-xxxxxFR
Air conditioning components 9009 7-xxxxxFR
Attachment reinforcement procedures 9012 9-43930
Large format hydraulic and electrical schematics Pocket 9-43180

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
