CASE CX130 – CX160 OPERATORS MANUAL

CASE CX130 – CX160 OPERATORS MANUAL – PDF DOWNLOAD:

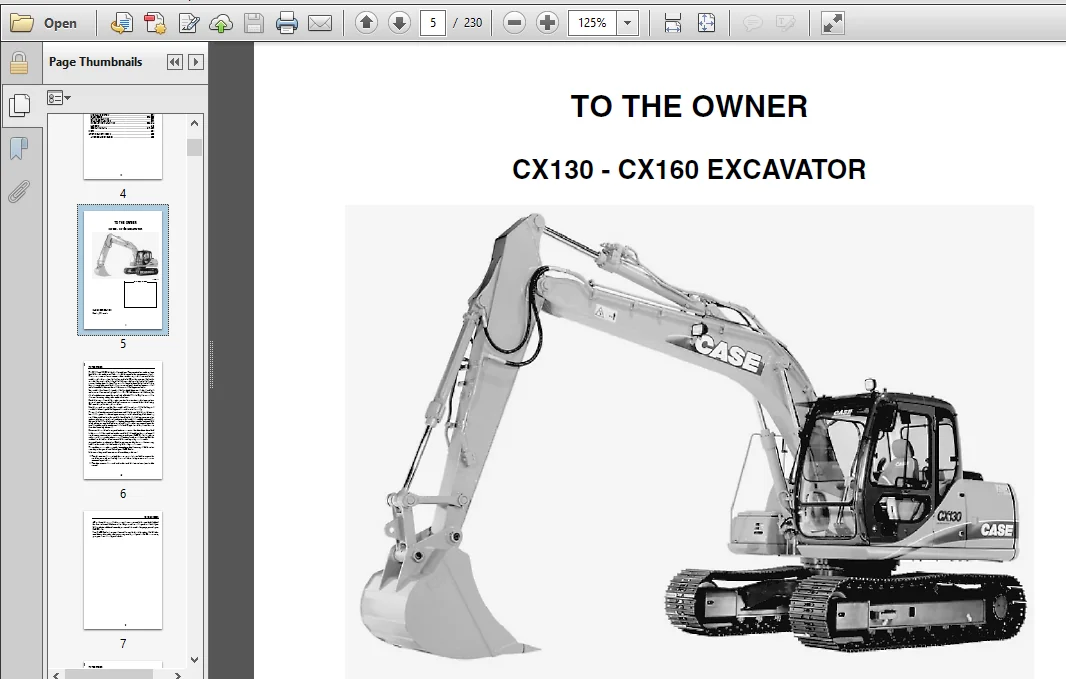

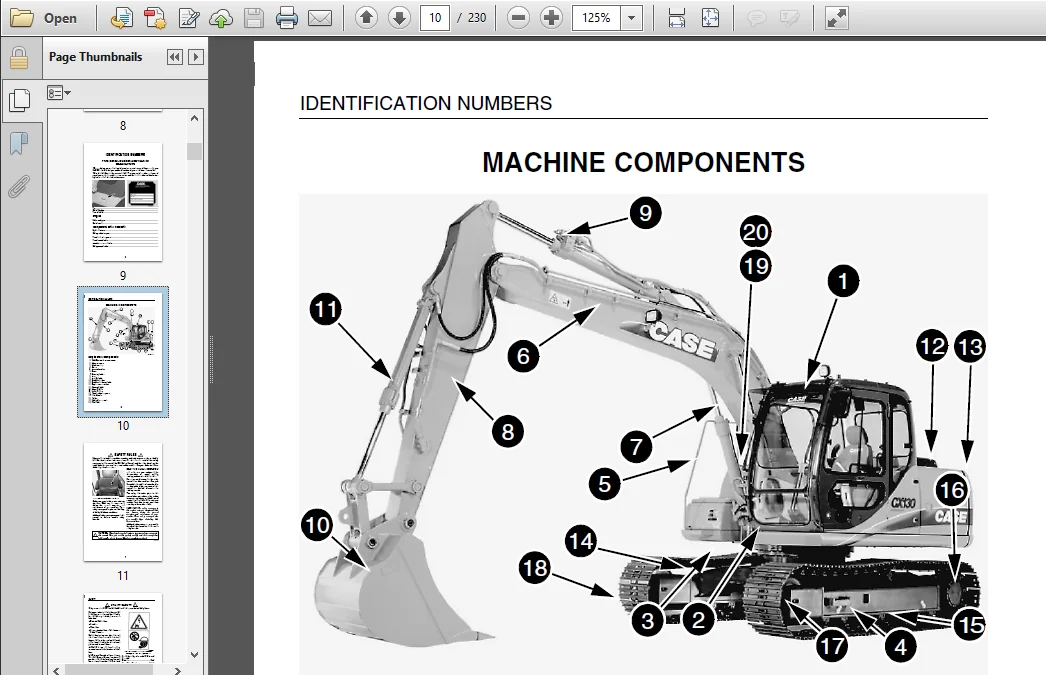

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

• The CX130 and CX160 are hydraulic machines. They consist of an undercarriage fitted with tracks and a turntable bearing which supports the upperstructure frame. The upperstructure frame supports the attachment, at the front end of the machine, plus the engine, hydraulics and cab.
• When the operator works the controls, the engine-driven variable flow pump delivers hydraulic fluid under pressure to the control valves. The control valves distribute the hydraulic fluid to the various cylinders and hydraulic motors employed.
• A cooling system and oil cooler keep the fluid temperature down to normal working temperature. Your machine has been designed and built to the highest standards of quality. It conforms to all current safety regulations. See “Official documents”.
• However, the risk of accidents can never be completely excluded. That is why it is essential to observe elementary safety rules and precautions. Read this manual carefully, paying par ticular attention to the instructions concerning safety, operation and maintenance so as to avoid the risk of injury while operating or servicing the machine.

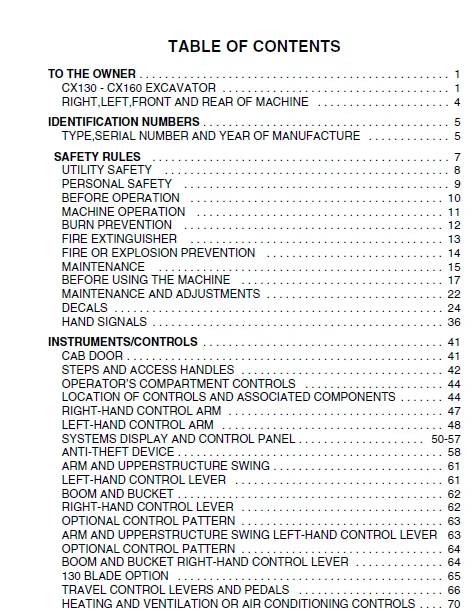

TABLE OF CONTENTS:
