Case CX17B Mini Excavator Service Repair Manual (84345206) Case CX17B Mini – PDF Download

Description

Case CX17B Mini Excavator Service Repair Manual (84345206) Case CX17B Mini

FILE DETAILS:

Case Mini Excavator CX17B Service Manual_84345206
Size : 81.7 MB
Format : PDF
Language : English
Number of Pages : 695 pages
Brand: Case
Type of machine: Mini Excavator
Type of document: Service Manual
Model: Case Mini Excavator CX17B
Part No: 84345206

CASE CX17B MINI EXCAVATOR SERVICE REPAIR MANUAL (84345206) CASE CX17B MINI – PDF DOWNLOAD:

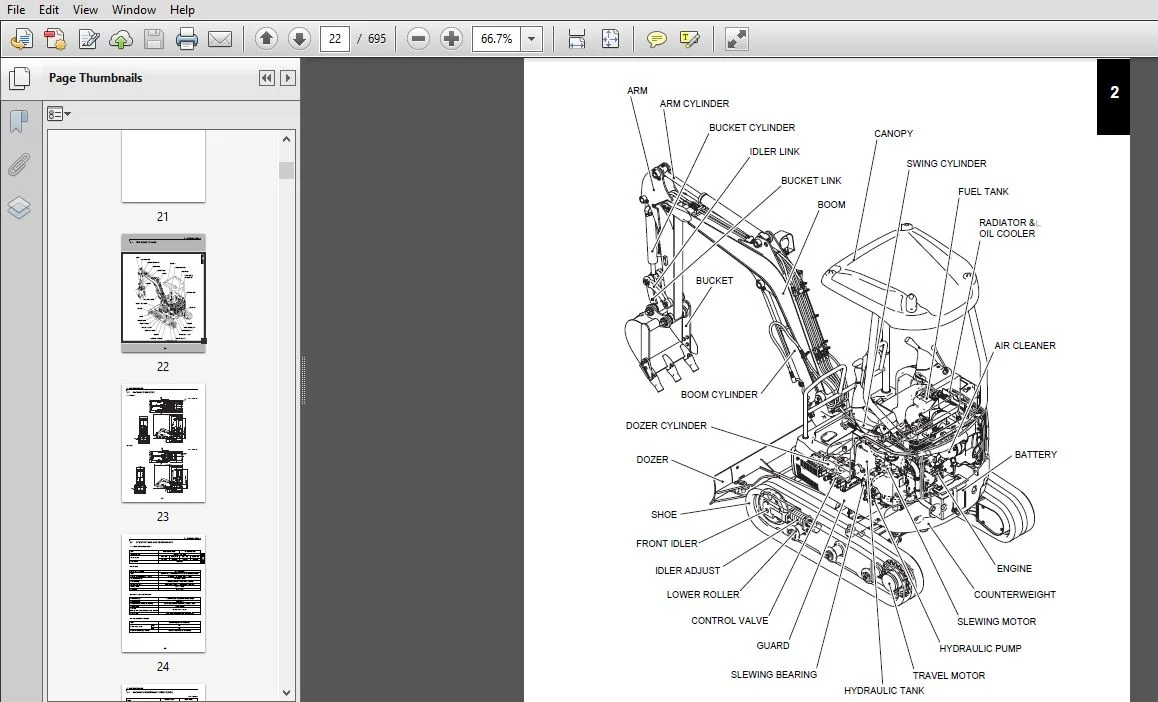

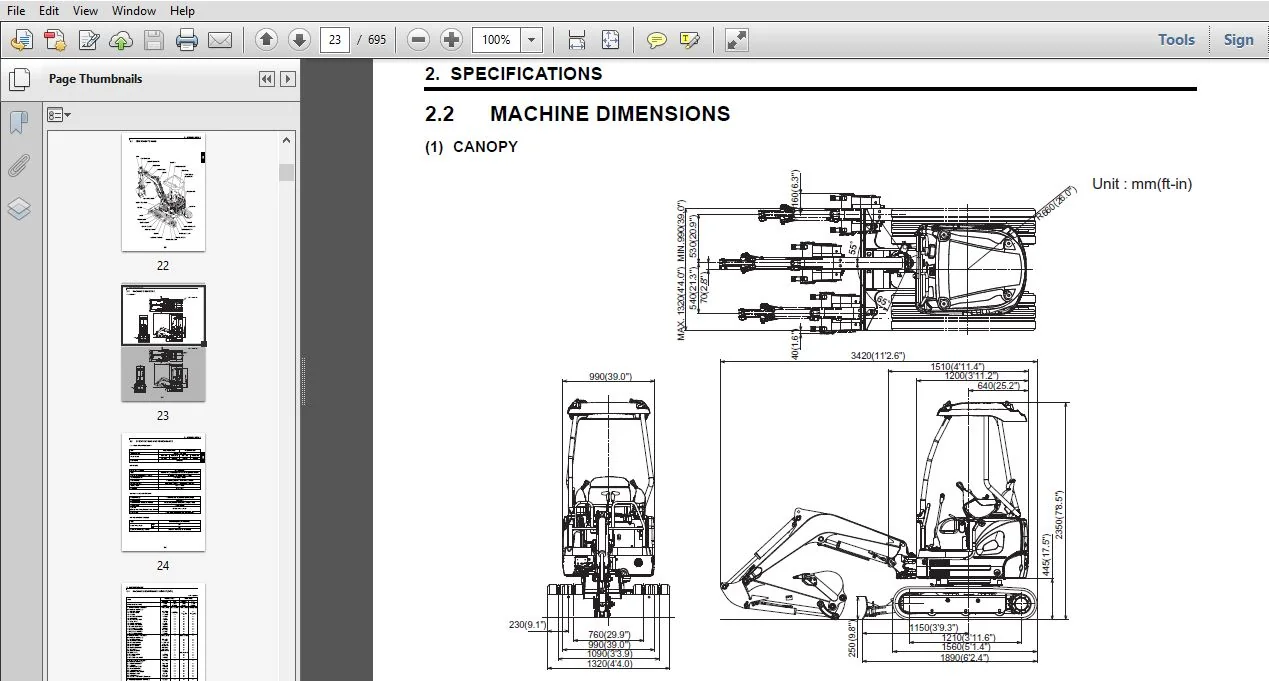

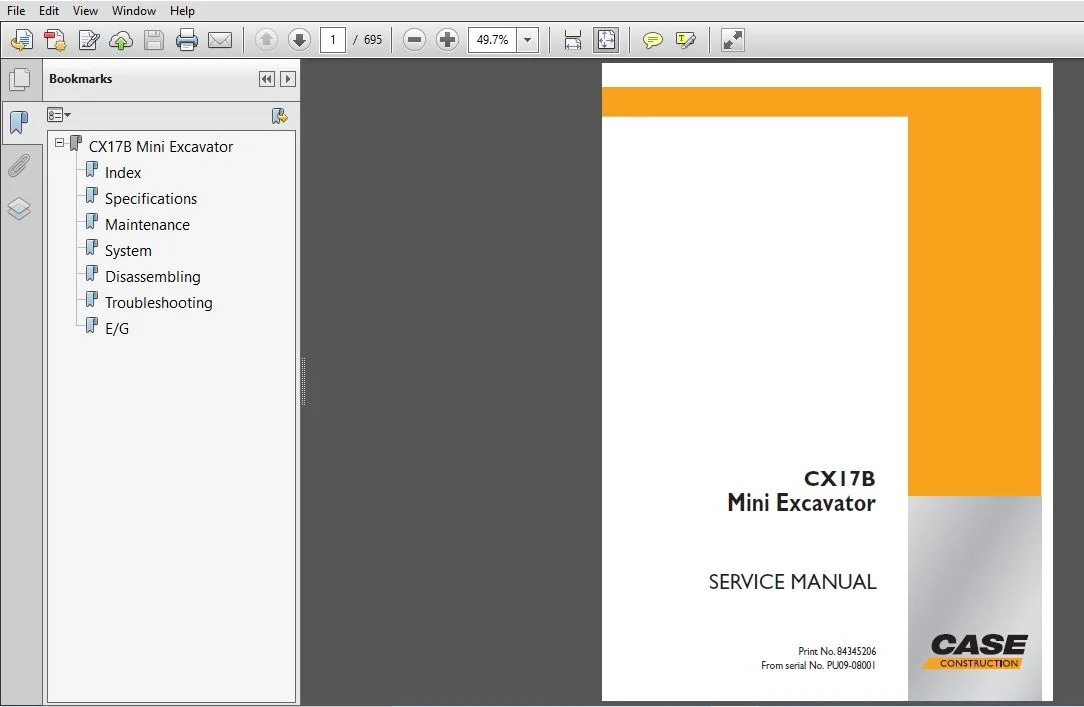

IMAGE PREVIEW:

DESCRIPTION:

Case CX17B Mini Excavator Service Repair Manual (84345206) Case CX17B Mini

• The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section ;
• SPECIFICATIONS.
  The following is a list of basic precautions that must always be observed.
• (1) Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
• (2) Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
• (3) Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
• (4) If possible, make all repairs with the machine parked on a firm level surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
• (5) Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly.

TABLE OF CONTENTS:

Case CX17B Mini Excavator Service Repair Manual (84345206) Case CX17B Mini

OUTLINE
SPECIFICATIONS
ATTACHMENT DIMENSIONS
TOOLS
STANDARD MAINTENANCE
TIME SCHEDULE
MAINTENANCE STANDARD
AND TEST PROCEDURE
HYDRAULIC SYSTEM
ELECTRIC SYSTEM
COMPONENTS SYSTEM
ATTACHMENT
UPPER SLEWING
STRUCTURE
TRAVEL SYSTEM
HYDRAULIC SYSTEM
ELECTRICAL SYSTEM
ENGINE SYSTEM
ENGINE
