Case Engine CNH F5AE F5CE Service Manual 84465357 – PDF DOWNLOAD

Description

Case Engine CNH F5AE F5CE Service Manual

FILE DETAILS:

Case Engine CNH F5AE F5CE Service Manual

Size : 14.7 MB
Format : PDF
Language : English
Number of Pages : 290 pages
Brand: Case
Type of machine: Engine
Type of document: Service Manual
Model: Case Engine F5AE, F5CE
Part No: 84465357

DESCRIPTION:

Case Engine CNH F5AE F5CE Service Manual

FOREWORD:

• This publication contains data, features instructions and methods for performing repair operations on the assembly and its components and is addressed to qualified, specialized personnel. Check to make sure you have the right publication related to the component you are about to work on before you start. Make sure that you have all the necessary safety equipment: safety glasses, helmet, gloves, footwear, etc.
• Check that the working lifting and transport equipment is available and in working order. Make sure that vehicle is secured. Proceed by carefully observing the instructions contained in this publication and use the indicated specific tools to ensure correct repair procedures and safety of operators. NOTE: This manual applies to multiple applications, therefore images may not all be accurate.
• Standard safety precautions Be informed and notify personnel of the laws in force regulating safety, and provide documentation available for consultation. • Keep working areas as clean as possible. Ensure that working areas are provided with emergency boxes. They must be clearly visible and always contain adequate sanitary equipment. Fire extinguishers must be properly identified and always be clear of obstructions. Their efficiency must be checked on a regular basis and personnel must be trained on proper interventions and priorities. • Keep all emergency exits free of obstructions and clearly marked.  Smoking in working areas subject to fire danger must be strictly prohibited. Prevention of injury • Wear suitable work attire and safety glasses with no jewelry such as rings and chains when working close to engines and equipment in motion.  Wear safety gloves and goggles when performing the following operations:  Topping off or changing lubrication oils.  Using compressed air or liquids at a pressure greater than 2 bar (29 psi). • Wear a safety helmet when working close to hanging loads or equipment working at head level.
• Always wear safety shoes and fitting clothes. • Use protection cream for hands. • Change wet clothes as soon as possible. • In the presence of voltages exceeding 48 – 60 V, verify the efficiency of the ground and mass electrical connections. Ensure that hands and feet are dry and use isolating foot boards. Workers should be properly trained to work with electricity.  Do not smoke or start an open flame close to batteries and any fuel material.  Place soiled rags with oil, diesel fuel or solvents in specially provided anti-fire containers Do not use any tool or equipment for any use other than what it was originally intended for. Serious injury may occur.
• If running an engine indoors, make sure there is a sufficient exhaust fan in use to eliminate exhaust fumes. During maintenance  Never open the filler cap of the cooling system when the engine is hot. High temperature liquid at operating pressure could result in serious danger and risk of burn. Wait until the temperature decreases under 50 °C (122 °F).  Never add coolant to an overheated engine and use only appropriate liquids.  Always work when the engine is turned off. Certain circumstances require maintenance on a running engine. Be aware of all the risks involved with such an operation.
• Always use adequate and safe containers for engine fluids and used oil. Keep engine clean of any spilled fluids such as oil, diesel fuel, and or chemical solvents.  Use of solvents or detergents during maintenance may emit toxic vapors. Always keep working areas aerated. Wear a safety mask if necessary.  Do not leave soiled rags that may contain any flammable substances close to the engine. • Always use caution when starting an engine after any work has been performed. Be prepared to cut off intake air in case of engine runaway.  Never disconnect the batteries while the engine is running.

CASE ENGINE CNH F5AE F5CE SERVICE MANUAL 84465357 – PDF DOWNLOAD:OF THE MANUAL:

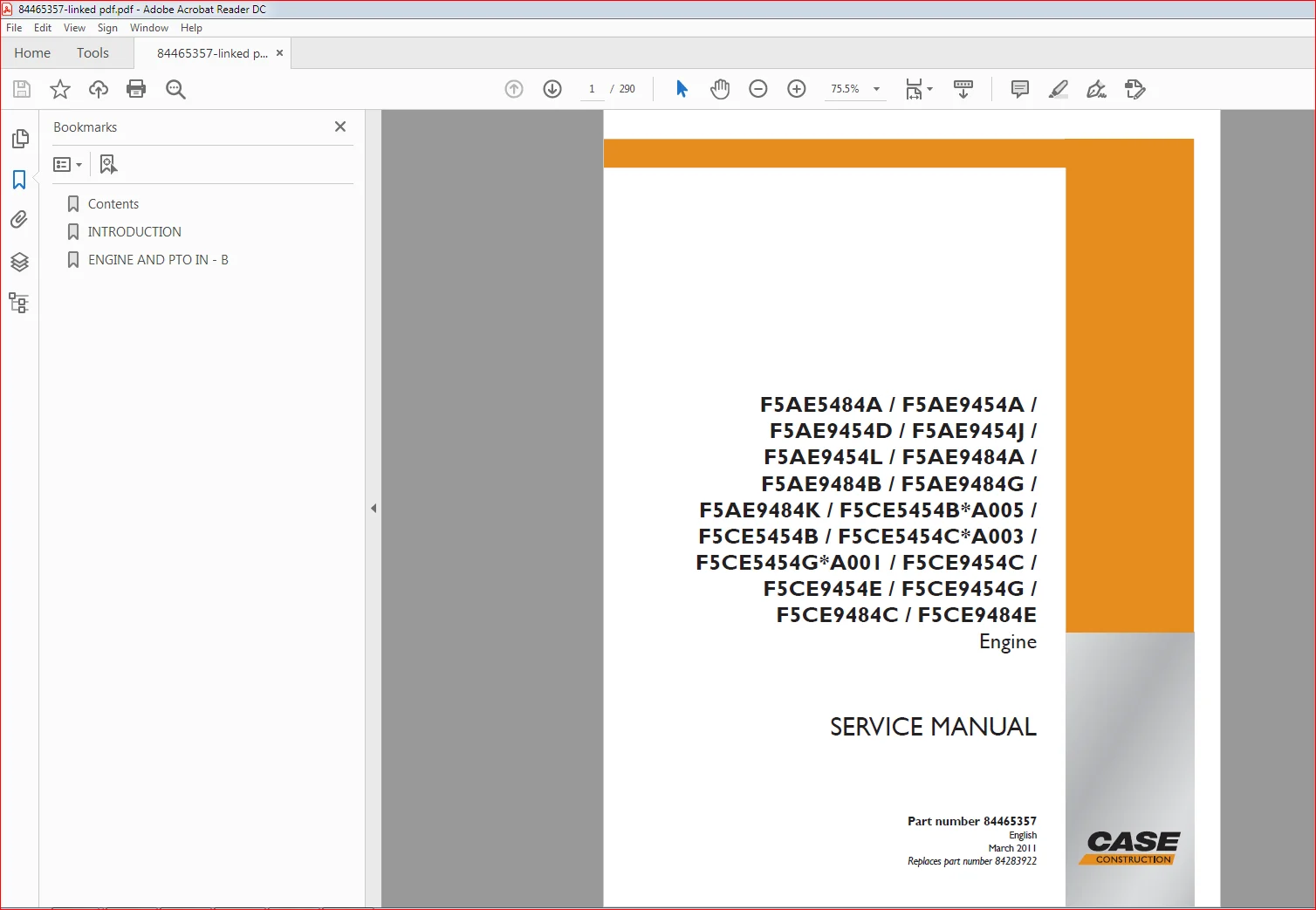

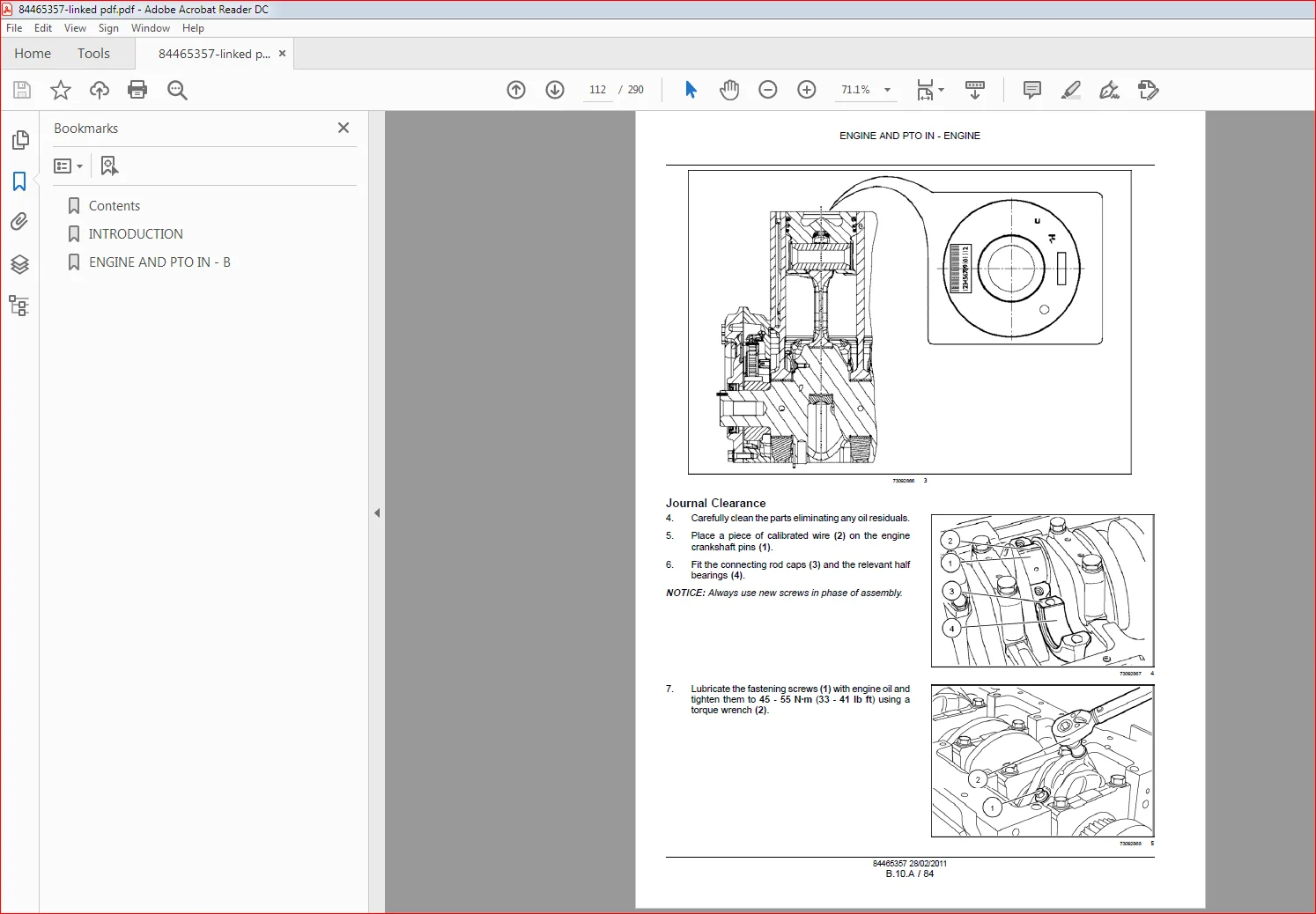

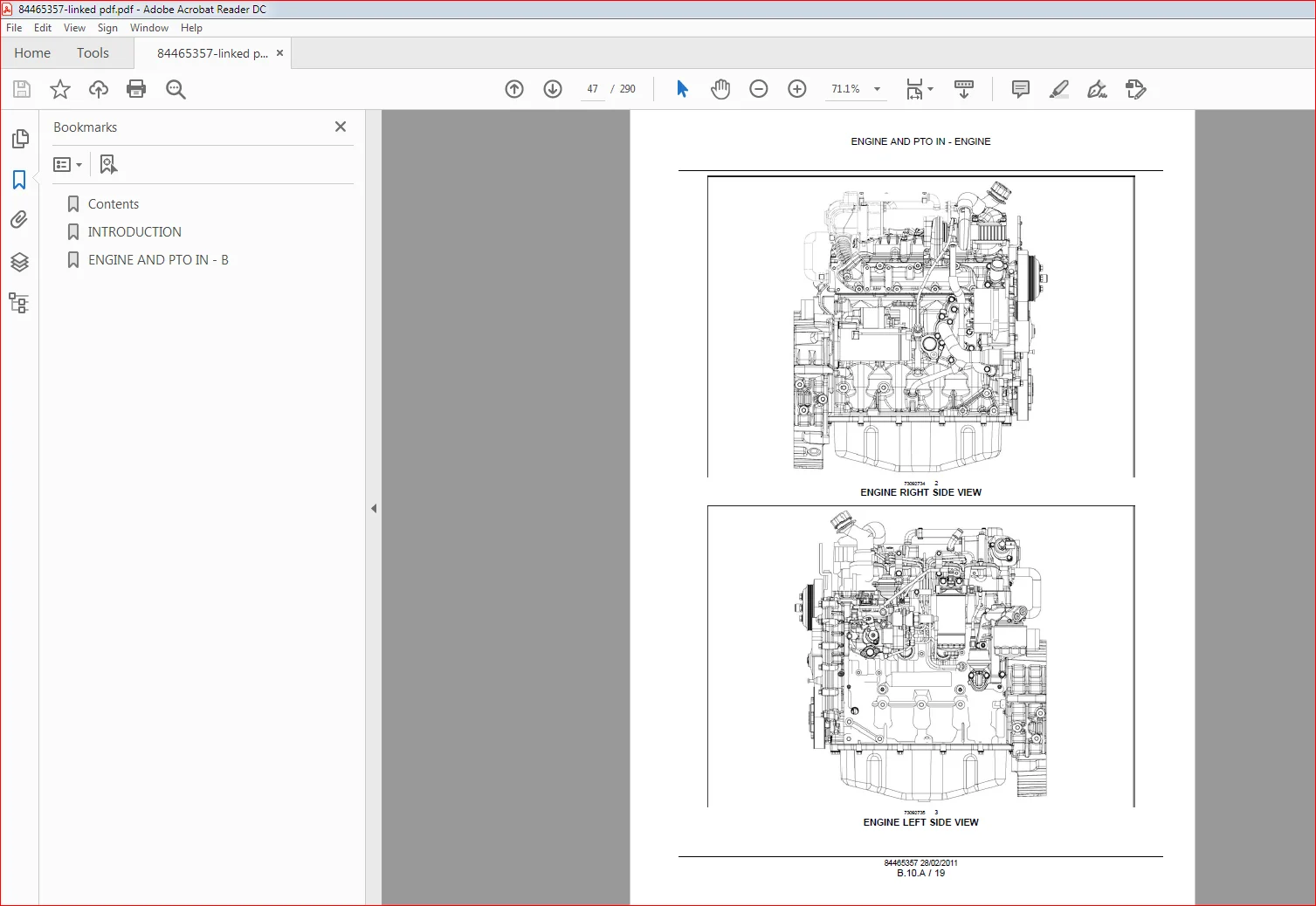

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case Engine CNH F5AE F5CE Service Manual

INTRODUCTION
ENGINE AND PTO IN B
ENGINE B 10 A
FUEL AND INJECTION SYSTEM B 20 A
AIR INTAKE SYSTEM B 30 A
EXHAUST SYSTEM B 40 A
ENGINE COOLANT SYSTEM B 50 A
LUBRICATION SYSTEM B 60 A
STARTING SYSTEM

PLEASE NOTE:

⦁ This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
⦁ Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
