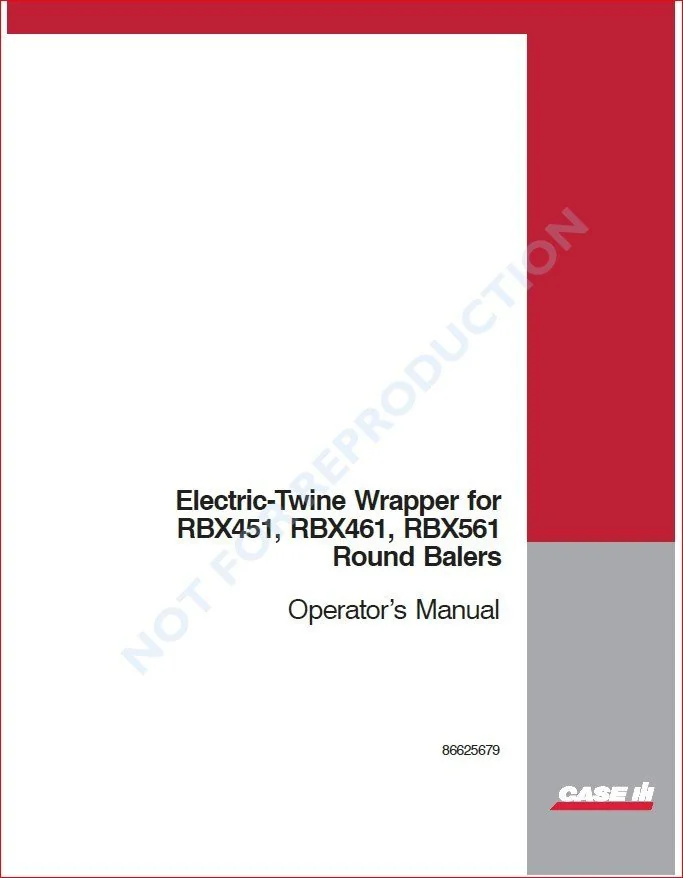

CASE IH ELECTRIC TWINE WRAPPER FOR RBX451 RBX461 ROUND BALER OPERATORS MANUAL – PDF Download

Description

📘 DOCUMENT OVERVIEW

This comprehensive operator’s manual provides detailed instructions and troubleshooting guidance for the Case IH Electric-Twine Wrapper, specifically designed for use with RBX451, RBX461, and RBX561 round balers. It’s your essential guide to understanding and maintaining this crucial piece of farm equipment. Forget confusing guesswork; this manual makes the process straightforward.

🚜 Tractor Integration and Setup: The manual begins by clearly outlining the necessary steps for installing and connecting the electric twine wrapper to your tractor. Detailed diagrams and clear instructions ensure a smooth setup process, minimizing downtime and frustration. 🔧 It covers the power supply harness installation, emphasizing the crucial aspects of correct wiring for a 12-volt negative ground system (with adaptation instructions for 24-volt systems). The operator’s panel installation is equally well-explained, guiding you through connecting the various harnesses and ensuring everything works in harmony.

⚙️ System Components and Operation: The document meticulously details each component of the electric twine wrapper, from the bale shape sensors and the full bale switch to the twine wrapper actuator and its sensor. Clear diagrams help you visualize these parts and their interactions within the system. The operational phase is not left out. The manual walks you through the basic operation and wrap cycle, explaining how to achieve well-shaped bales and optimize your baling process. Step-by-step instructions ensure you understand the sequence of actions, making it easy to follow along.

💻 Operator’s Panel Navigation: A significant portion of the manual is dedicated to explaining the operator’s panel, its keys, and how they function within both automatic and manual modes. This section is extremely helpful in understanding how to select wrap patterns, adjust settings, and troubleshoot any issues you might encounter. ⚠️ The manual also covers the use of the Setup/Diagnostics mode, providing detailed explanations of each of the five setup items, including model size selection and sensor calibration. This level of detail empowers you to fine-tune the system for optimal performance.

🛠️ Maintenance and Troubleshooting: The manual also contains a detailed maintenance section with clear instructions on how to maintain and troubleshoot the various components of the system. The troubleshooting section is particularly useful, guiding you through identifying potential issues and resolving them efficiently. It systematically walks you through possible problems, their causes, and the recommended solutions. Diagrams and clear explanations provide you with the confidence to solve problems quickly and effectively.

In short, this is not just a manual; it’s a comprehensive guide to maximizing the effectiveness and longevity of your Case IH electric twine wrapper. It’s a blend of clear instructions, helpful diagrams, and insightful troubleshooting advice, making it the ultimate resource for both professional mechanics and experienced DIY users.

What type of manual this is: Operator’s Manual

Equipment/models covered: Case IH Electric-Twine Wrapper for RBX451, RBX461, RBX561 Round Balers

Major sections/procedures: Installation, Operation, Maintenance, Troubleshooting

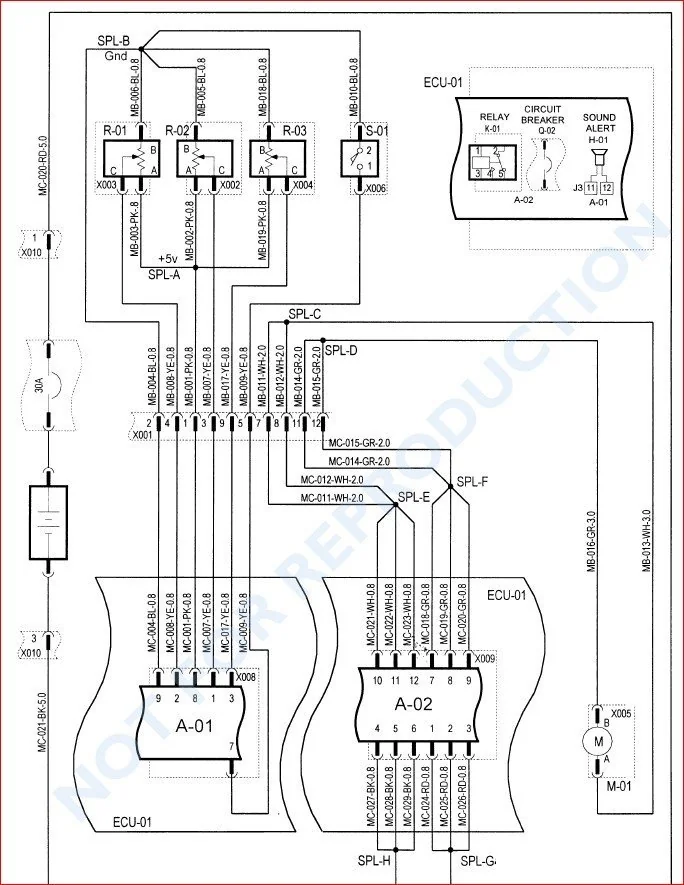

Key technical information: Wiring diagrams, component descriptions, sensor calibration procedures, troubleshooting charts

❌ WHAT’S NOT INCLUDED

• Detailed parts breakdowns.
• Extensive electrical schematics.

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

Q: What models does this manual cover?

A: This manual covers the Case IH Electric-Twine Wrapper specifically designed for use with RBX451, RBX461, and RBX561 round balers.

Q: What type of procedures are included?

A: This manual includes detailed instructions for installation, operation, maintenance, and troubleshooting of the electric twine wrapper on the specified Case IH round baler models.

Q: Is this suitable for DIY mechanics?

A: While the manual provides comprehensive instructions and diagrams, it is best suited for users with prior mechanical experience due to its technical depth. A basic understanding of electrical systems is also helpful.

Q: What format is this manual in?

A: This manual is provided as a downloadable digital PDF document.

Q: Are there any language requirements?

A: The manual is written in English.

Q: What if I encounter a problem not covered in the troubleshooting section?

A: Contact Case IH directly or a qualified heavy equipment technician for further assistance.

Q: Can I use this manual with other Case IH round balers?

A: No, this manual is specifically for the Case IH Electric-Twine Wrapper used with RBX451, RBX461, and RBX561 round balers. Using it with other models may be unsafe and ineffective.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent; comprehensive and well-organized.
• Content Type: Operator’s Manual
• Language: English
• Technical Level: Professional/Intermediate
• Recommended For: Professional mechanics and experienced DIY users working with the specified Case IH equipment.
• Page Count: Approximately 52
• Image Quality: Good; clear diagrams and illustrations are provided throughout the manual.

📋 Original Product Description:

CASE IH ELECTRIC TWINE WRAPPER FOR RBX451 RBX461 ROUND BALER OPERATORS MANUAL – PDF Download

DESCRIPTION:

This manual has been developed to assist you in understanding how to operate and maintain your machine. It contains a list of safety precautions, a discussion of the controls and instruments, procedures for operating the machine or equipment, a maintenance schedule, a brief troubleshooting section, and a specification section.

The Manual can be viewed on any computer, as well as zoomed and printed. Additional Information: PDF documents may require the newest version of Acrobat Reader to display correctly. Should you have any problems reading your document, please initially try upgrading to the latest version of Adobe Acrobat Reader.

IMAGES:

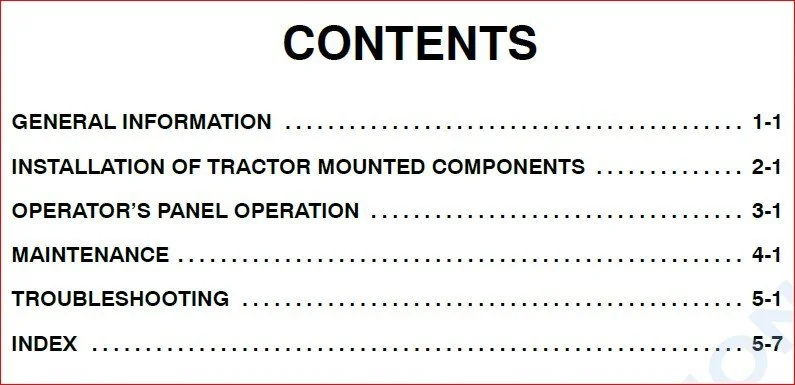

Table of Contents:
