Case IH JX60 JX70 JX80 JX90 JX95 Tractor Service Manual PDF – Print No. 84176554B

Description

Case IH JX60 JX70 JX80 JX90 JX95 Tractor Service Manual — Print No. 84176554B

This is the complete repair manual for the Case IH JX60, JX70, JX80, JX90, and JX95 tractor range. Published as Print No. 84176554B — the second edition, which consolidates the original 84176554A with all subsequent updates (84176554A1, 84176554A2, etc.) into a single reference. The document was produced by CNH Global N.V. and printed March 2008, with individual section pages updated through at least October 2010 (per page footers). Language throughout is English.

File Details

• Manual type: Service / Repair Manual
• Models covered: Case IH JX60, JX70, JX80, JX90, JX95
• Print number: 84176554B
• Edition: 2nd edition (consolidates all updates from 84176554A series)
• Date: March 2008 (with page-level updates through 2010)
• Language: English
• Pages: 687
• File format: PDF

What Two Engine Families Are Covered

The JX Series uses two distinct engine platforms, and this manual addresses both. The smaller models — JX60 and JX70 — run on the F5C engine; the manual directs readers to the F5C-specific repair manual (Print No. 87736548A) for internal engine overhaul, but covers removal, installation, fault diagnosis, and accessory work for these engines in Section 10. The larger models — JX80, JX90, and JX95 — use the NEF inline-4 engine (types F4CE9487MJ for JX90 and F4CE9487NJ for JX95) and receive full in-manual coverage: general specifications, data tables, tightening torques, engine views, lubrication and cooling diagrams, complete disassembly and assembly procedures with measurements, crankshaft seal replacement, valve clearance adjustment, injector and Bosch injection pump work, coolant pump, thermostat, radiator, and belt tension adjustment.

Chapters Covered

• Section 00 — General: General instructions, notes for spare parts and equipment, safety rules, consumables
• Section 10 — Engine: F5C engine (tools, troubleshooting, R&I); NEF engine (general specs, data, tightening torques, tools, engine views, lubrication diagram, cooling diagram, fault diagnosis, full disassembly/assembly, crankshaft seals, valve tappet/rocker adjustment, injector R&I, Bosch injection pump R&I and timing, coolant pump, thermostat, radiator, belt tension)
• Section 18 — Clutch: Specifications, tightening torques, cross-sectional views, troubleshooting, removal/installation, overhaul, refacing limits, adjustments, PTO clutch linkage adjustment
• Section 21 — Gearbox / Transmissions: Three chapters: 12×4 mechanical transmission, 12×12 reverser, 20×12 reverser and creeper unit — each with main data, tightening torques, tools, section views, description and operation, fault diagnosis, removal/refitting
• Section 23 — Drive Lines: Main specification, torque settings, cross-sectional views, transmission shaft assembly/disassembly, drive gear housing removal/installation and disassembly/assembly
• Section 25 — Front Mechanical Transmission: Main data, tightening torques, tools, cross-sectional views, description, complete front axle removal/installation, steering knuckle bearing pin replacement, stub axle adjustment, wheel hub bearing adjustment, bevel drive adjustment, front axle differential overhaul (standard, Lim-Slip, No-Spin variants), toe-in check

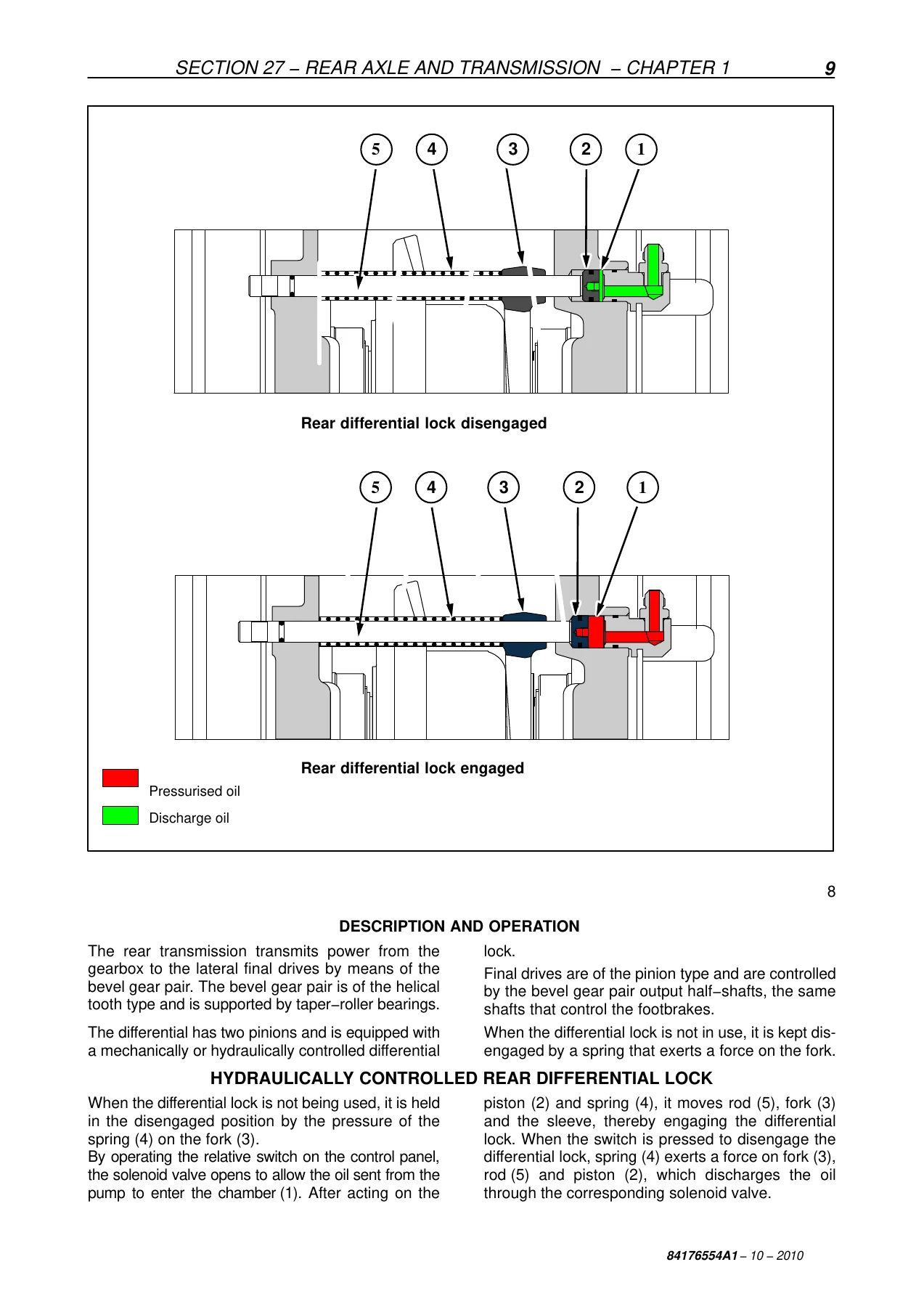

• Section 27 — Rear Axle and Transmission: Main data, tightening torques, special tools, cross-sectional views, description/troubleshooting, transmission-gearbox casing removal/installation, disassembly/overhaul, gearbox driven shaft end float, differential lock sleeve adjustment, bevel pinion positioning, taper roller bearing adjustment, backlash checking, differential pinion and side gear backlash
• Section 31 — Power Take-Off: Main specification (540 rpm single-speed, 540/750 rpm two-speed, 1000 rpm options), tools, torque settings, sectional drawings, description and operation, troubleshooting, removal/refitting, bench overhaul
• Section 33 — Braking System: Main data, tightening torques, cross-sectional views, description and operation, tools/troubleshooting, front brake assembly (JX60/JX70 specific), service brake removal/refitting, front brake pump removal/refitting, air bleeding, pedal travel adjustment, parking brake adjustment

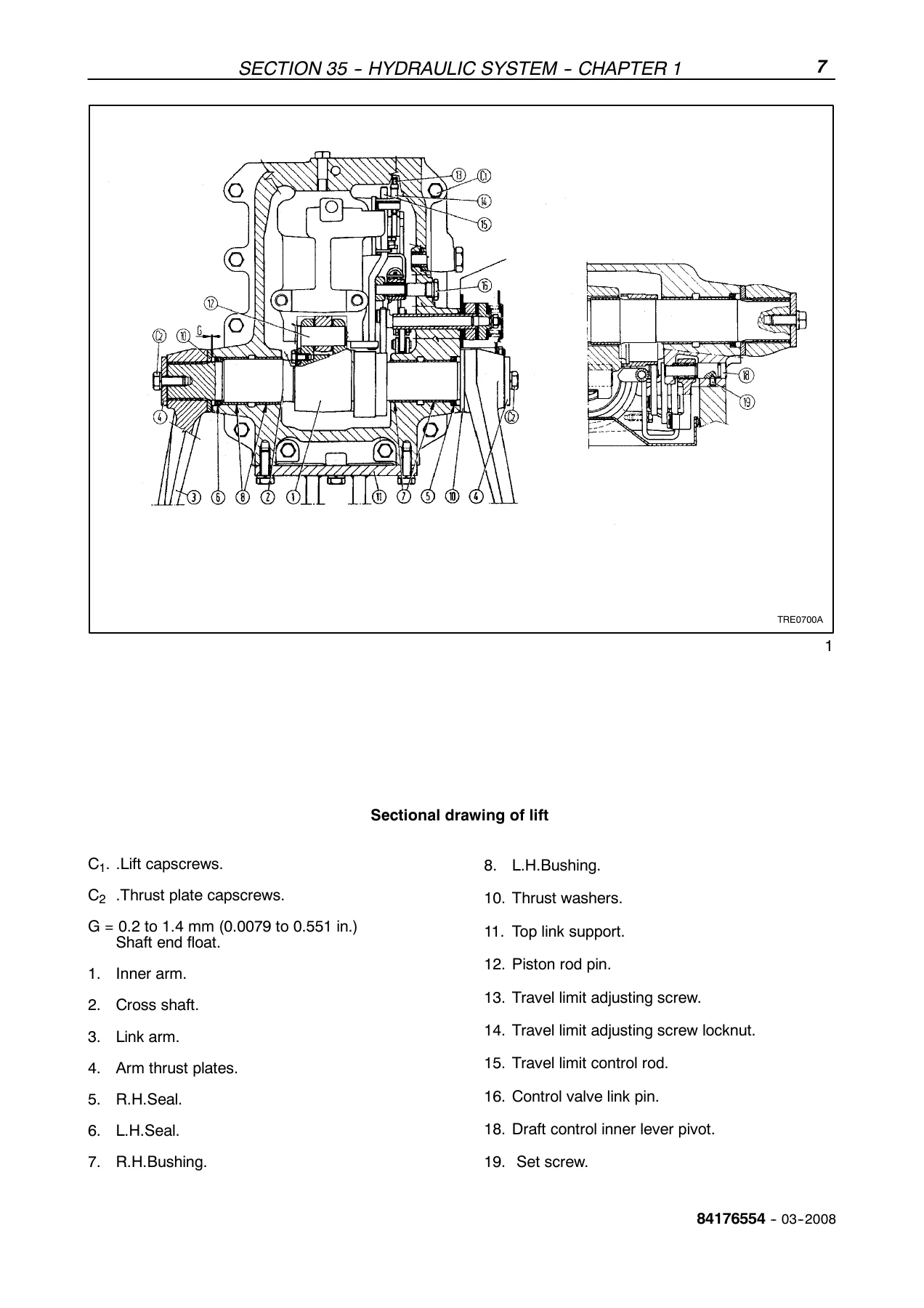

• Section 35 — Hydraulic Systems: Chapter 1: Rear mechanical hydraulic lift (main spec, tightening torques, tools, cross-sectional views, description/operation, hydraulic circuit, lift phases, fault diagnosis, disassembly/reassembly, bench overhaul, adjusting the lift, linkage adjustment, pressure relief valve, lift control valve, lift pump); Chapter 2: Open centre system auxiliary control valves (main data, sectional views, description/operation, assembly/disassembly, spool binding test, spool leakage test, detent release pressure adjustment); Chapter 3: Trailer brake auxiliary control valve
• Section 41 — Steering: Principal data, tightening torques, section views, hydraulic diagram, operation, fault diagnosis, tools, hydrostatic steering control valve removal/installation/disassembly/assembly/bench testing, hydrostatic steering oil pump disassembly/assembly, steering cylinder removal/refitting (2WD and 4WD axles)
• Section 44 — Front Axle and Wheels: Principal data, sectional views, torque settings, fault diagnosis, removal/refitting/overhaul, wheel hub disassembly/assembly, stub axle overhaul, wheel alignment
• Section 50 — Auxiliary Equipment (Air Conditioning): Safety instructions, general characteristics, equipment, operating principles, fault diagnosis, cab controls, use, main A/C system components, refrigerant recovery/recycling/evacuation/charging, functional testing, fault diagnosis and maintenance summary, leak detection, pipe replacement, receiver-drier, condenser, compressor, compressor belt tension
• Section 55 — Electrical System: Chapter 1: Analogue instruments, transmitters/switches; Chapter 2: Components; Chapter 3: Starting system (description/operation, starting circuit, system tests, starter motor R&I, servicing, bench tests); Chapter 4: Charging system (description/operation, testing/troubleshooting, alternator R&I — 45 A or 65 A Magneti Marelli or Bosch); Chapter 5: Battery; Chapter 6: Electrical circuits including full wiring diagrams for cab and non-cab versions, instrument circuits, start-up, direction indicators, hazard warning, wiper/washer, brake lights, heating and A/C, work lamps, side/main/dipped headlights
• Section 90 — Bodywork and Driver Position: Cab disassembly/assembly

Together these sections give a technician end-to-end command of the JX Series: from pulling the engine and splitting the tractor for major gearbox work, to fine adjustments on the hydraulic lift linkage or injector timing. Wiring diagrams cover both cab and non-cab variants across multiple circuit functions. The hydraulic section handles not only the lift but also auxiliary control valves and the trailer brake valve — systems frequently overlooked in partial manuals.

IMAGES PREVIEW

What a Technician Can Accomplish with This Manual

The Case IH JX60 JX70 JX80 JX90 JX95 Service Manual (84176554B) equips a technician to diagnose and overhaul every major system on these tractors: engine removal and full rebuild (NEF series), clutch replacement and adjustment, transmission splitting and gear overhaul, front axle differential work including Lim-Slip and No-Spin variants, rear axle and bevel drive, PTO assembly at the bench, hydraulic lift disassembly and control valve overhaul, hydrostatic steering valve rebuild, brake system bleeding and component replacement, A/C recharge and component swap, starter and alternator bench testing, and full electrical fault-finding using the included wiring diagrams. Every section opens with tightening torques and special tool listings, so work is performed to exact factory specifications rather than guesswork.

The value of a manual like this is precision: a missed torque on main bearing caps, a bevel pinion positioned without the correct shimming method, or a hydraulic pressure relief valve set by feel rather than specification can lead to repeated failures. This document gives the exact values, sequences, and measurement procedures for each operation.

After purchase, the PDF downloads immediately — no shipping, no wait. Open it on a laptop in the workshop, a tablet at the bench, or a phone in the field. Print any section you need to keep at hand while working.
