Case IH Tractor 2394 & 2594 Tractor COMPLETE Service Manual – PDF Download

Description

Case IH Tractor 2394 & 2594 Tractor COMPLETE Service Manual 8-24911R0

DESCRIPTION:

A service man must correctly find the cause of the problem before making any repairs or adjustments on an engine.
A service man must find and remove the cause of the problem. Too many repairs are made without removing the causes that made the repair necessary.
Three conditions are needed for an engine to start and work correctly:
I. FUEL
2. COMPRESSION
3. IGNITION
An engine will not start or operate correctly during the power range if any of these conditions are not present or have restrictions because of mechanical causes.

1. FUEL.

• Problems with the fuel system can be present in:
  A. the fuel tank.
  B. the fuel filters.
  C. the injection pump.
  D. the injectors.
  E. the injection pump timing.

2. COMPRESSION.

• Compression in an engine is the result of increasing the air pressure. Correct engine compression will be changed by:
  A. the condition of the air cleaner.
  B. muffler restriction.
  C. valve condition and operation.
  D. valves not being correctly adjusted.
  E. a defect in the gasket of the cylinder head.
  F. the condition of sleeves. rings, pistons and camshaft.
  G. camshaft timing.

3. IGNITION.

• Ignition is the result of good compression. Compression causes heat. Heat causes the fuel in the cylinders to burn. The fuel injectors atomize the fuel that is being sent to the cylinders in a spray pattern. Timing the fuel injection pump to the engine to an exact degree is necessary for correct ignition.
• The following pages will give the problems and the causes and the adjustments and repairs required to correct the problems. Find your problem in the engine troubleshooting chart and see the pages that are given for the causes and repairs.

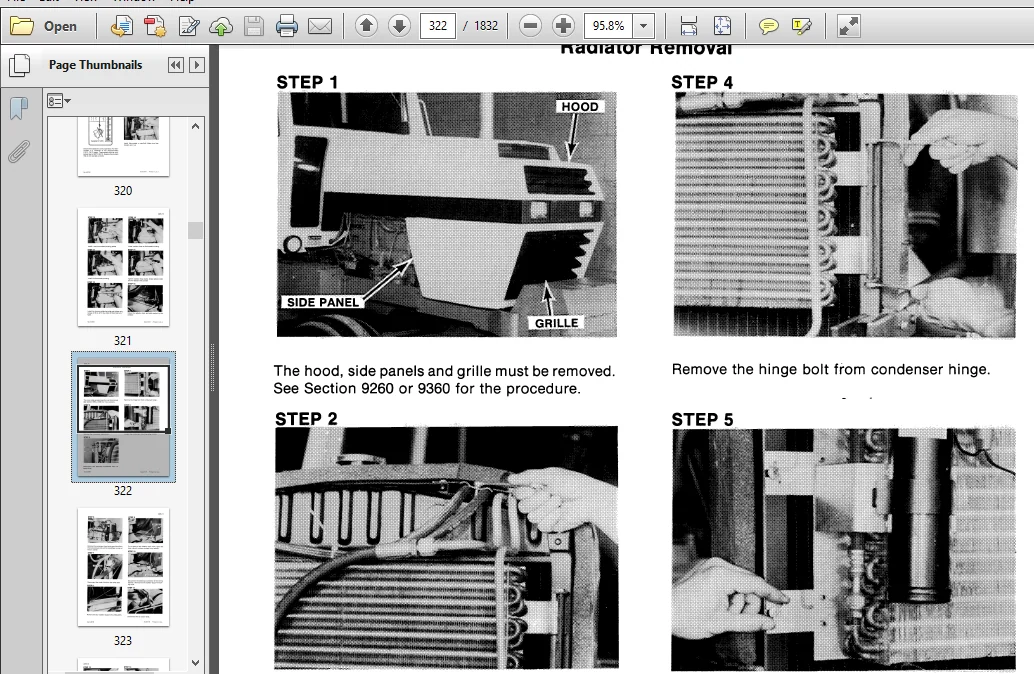

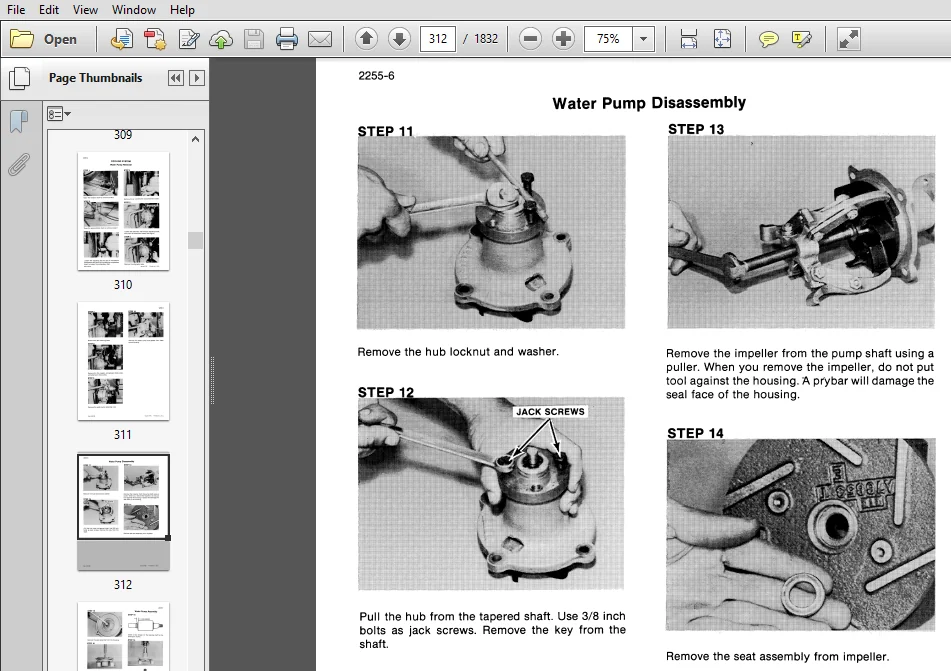

SCREENSHOT OF THE MANUAL:

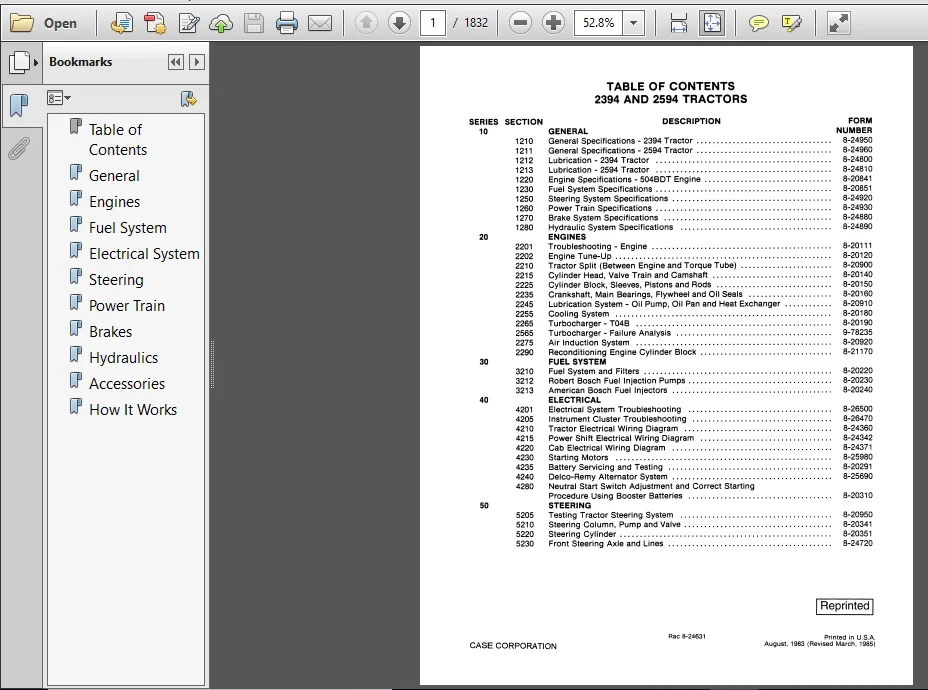

TABLE OF CONTENTS:

• Case IH Tractor 2394 & 2594 Tractor COMPLETE Service Manual (8-24911R0)

GENERAL
General Specifications – 2894 Tractor
General Specifications-2594Tractor
Lubrication-2394Tractor
Lubrication-2594Tractor
Engine Specifications – 50480T Engine
Fuel System Specifications
Steering System Specifications
Power Train Specifications
Brake System Specifications
Hydraulic System Specifications
ENGINES
Troubleshooting-Engine
EngineTune—Up
Tractor Split (Between Engine and Torque Tube)
Cylinder Head Valve Train and Camshaft
Cylinder Block Sleeves Pistons and Rods
Crankshaft, Main Bearings Flywheel and Oil Seals
Lubrication System – Oil Pump Oil Pan and Heat Exchanger
CoolingSystem
Turbocharger-T048
Turbocharger-FailureAnalysis
AirlnductionSystem
Reconditioning Engine Cylinder Block
FUELSYSTEM
FueISystemandI-“Ilters
RobertBoschFuelInjectionPumps
American Bosch Fuellniectors
ELECTRICAL
ElectricalSystemTroubleshooting
Instrument Cluster Troubleshooting
TractorEIectrIcalerIng Diagram
Power Shift Electrical Wiring Diagram
Cab EIectrlcalWirlngDiagram
StartingMotors
BatteryServicing andTesting
Delco—RemyAlternatorSystem
Neutral Start Switch Adjustment and Correct Starting
ProcedureUsing BoosterBatteries
STEERING
TestingTractorSteeringSystem
SteeringColumn PumpandValve
SteeringCyIlnder
Front Steering Axleand Lines
POWERTRAIN
Troubleshooting – Power Shift Transmission
Tractor Split (Between Torque Tube and Transmission)
TorqueLimIterClutch
HydraulicPumpDrive
PowerShift
High/Low Range(24 SpeedTransmissIon)
PowerShiftControlValveandLlnkage
High/Low Range Solenoid (24 Speed Transmission)
FourSpeedTransmlsslon
HydraulicPTO
RearAxlesand Planetarles-2394Tractor
RearAxlesand PIanetaries-2594Tractor
Differentialand Differential Lock
BRAKES
BrakePressure RegulatorVaIve
ParkLockSystem
BrakeCyllnder
BrakeValve
Emergency BrakeSystem
HYDRAULIC
Troubleshooting-Hitch System
TestingTractorHydraulicSystem
HydraulicOil Filter
HydraulicChargingPump
Hydraulic Pump
Remote Hydraulic Valves
DifferentlalLockSolenold
HitchSystem
Break-Away Couplings and Portable Cylinder
ACCESSORIES
Troubleshooting – Air Conditioning System
Gauging and Testing Air Conditioning System
Compressor Isolation Removal Installation and Evacuation –
Discharging, Evacuation and Charging the Air Conditioning System
Servicing Air Conditioner Components
Servicing the Cab Blower
Operator Seat Adiustments-Non Air/Oll
OperatorsSeat-All/Oil
Removal of Hood Grill and Side Panels
Cab Removal
Pedal and Lever Adjustments
Digital lnstrument Cluster
Electrically Actuated and Hydraulic Operated 12 and 24
SpeedPowerShift

CASE IH TRACTOR 2394 & 2594 TRACTOR COMPLETE SERVICE MANUAL – PDF DOWNLOAD:

FILE DETAILS:

Case IH Tractor 2394 & 2594 Tractor COMPLETE Service Manual_8-24911R0
Size : 831 MB
Format : PDF
Language : English
Number of Pages : 1832 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: 2394 & 2594
Part No: 8-24911R0

PLEASE NOTE:

⦁ This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
⦁ This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
⦁ Require some other service manual or have any queries: please WRITE to us at [email protected]
