Case IH Tractor 433 533 633 554 644 744 844 844s Hydrostatic Service Manual 1091129R1

DESCRIPTION:

• Sound engineering, good workmanship and extenslve field tests have made this power steering system a reliable unit. However, functional disturbances may still occur if dirt. the enemy No. 1 of any hydraulic System gets into the cir- culating fluid as for example 1hr0ugh careless maintenance. After years of operation, natural wear”, too, may present service problems. The use of wrong hydraulic fluid, or fluid which has lost much of its lubricating properties through age, is yet another possible cause of trouble.
• Service Dementia! is expected to be quick in spotting the source oi any trouble that might develop and to take reliable corrective measures. This can only be done when the principle of operation is fully understood.
• This manual has been prepared to familiarize Service Personnel with the operating principles and proper servicing techniques of the power steering system
• .The procedures and “Trouble Shooting” techniques are based on the experience of the men responsible for developing and testing the steering system. You, too, can take full edvantage of their experience and offer an efficient service to your customer.

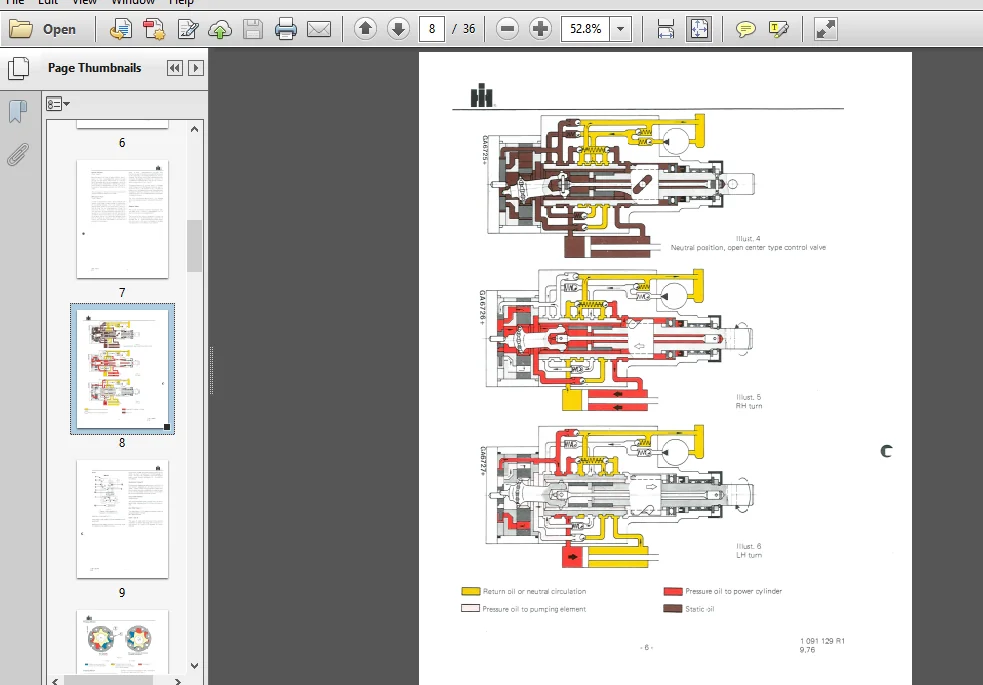

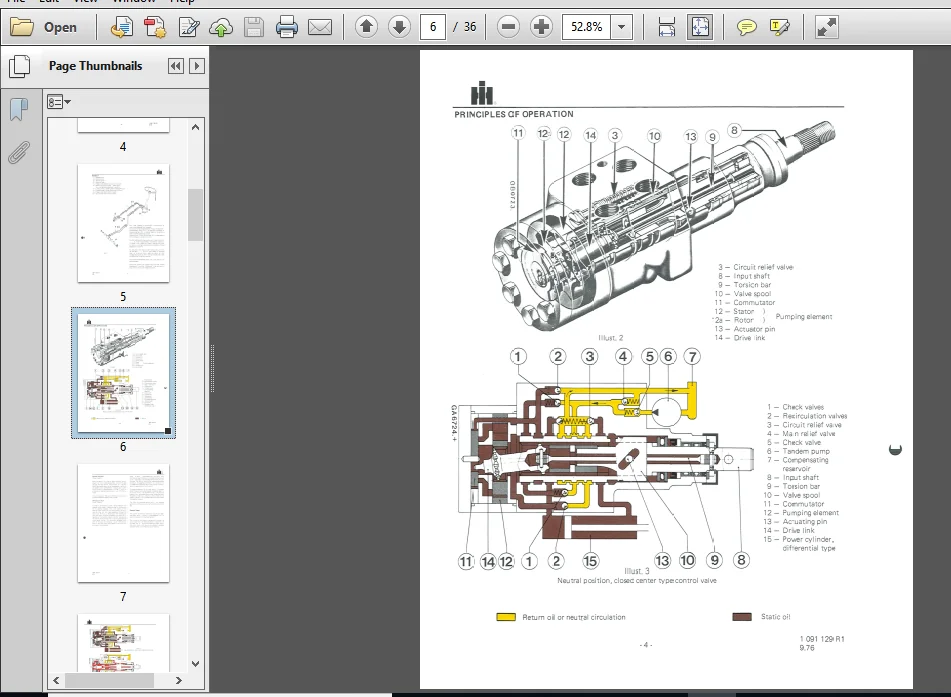

SCREENSHOT OF THE MANUAL:

TABLE OF CONTENTS:

• Case IH Tractor 433 533 633 554 644 744 844 844s Hydrostatic Service Manual

General and Principles of Operatl0n
Checking the System
Venting the System
Repair – General Rules
Servicing Control Valve Unit
Tandem Pump, General and Testing in Position
Tandem Pump, Servicing
Power Steering Cylinder
Trouble Shooting
