Case IH Tractor 540,540C 541,541C Wheel Operator’s Manual

SAMPLE PAGE FROM THE MANUAL:

1. “POWER-TORQ” ENGINE. A high-compression, heavy-duty power 159 cubic inch engine and extremely high torque. Full pressure lubrication with “spin-on” full-flow oil filter.
2. HEAVY-DUTY CLUTCH. New clutch design with 50% more “torque- carrying” capacity. Smooth, long-life operation.
3. SPEED CONTROL. “All-Steel” friction type hand throttle with finger tip, finger-ease control.
4. CAM AND LEVER STEERING. Smooth-as-silk, shock-proof steering for accurate, instant control of front wheels. Power steering attachment available as extra equipment.
5. DIFFERENTIAL BRAKES. High-capacity 6-inch double-disk, velvet touch, brakes. Simple to adjust, a breeze to service
6. HEAVY-DUTY TRANSMISSION. Standard (4) speed transmission provides speeds of 2.7, 4.0, 5.2, 12.9 m.p.h. forward, and a speed of 3.2 m.p.h, in reverse. A special high speed road gear is also available as a factory installed extra.
7. TVVELVE-SPEED “TRIPL-RANGE” DRIVE (EXTRA). This remarkable power train provides forward speeds from 1.6 to 21.5 m.p.h. and reverse speeds from 1.9 to 5.4 m.p.h. (see page 11).
8. DUAL-RANGE SHUTTLE (EXTRA). Provides (8) speeds forward and (8) speeds in reverse. Provides faster working cycles when using a front end loader since reverse speeds are 25 C4 faster than forward, in any gear. (see page 11).

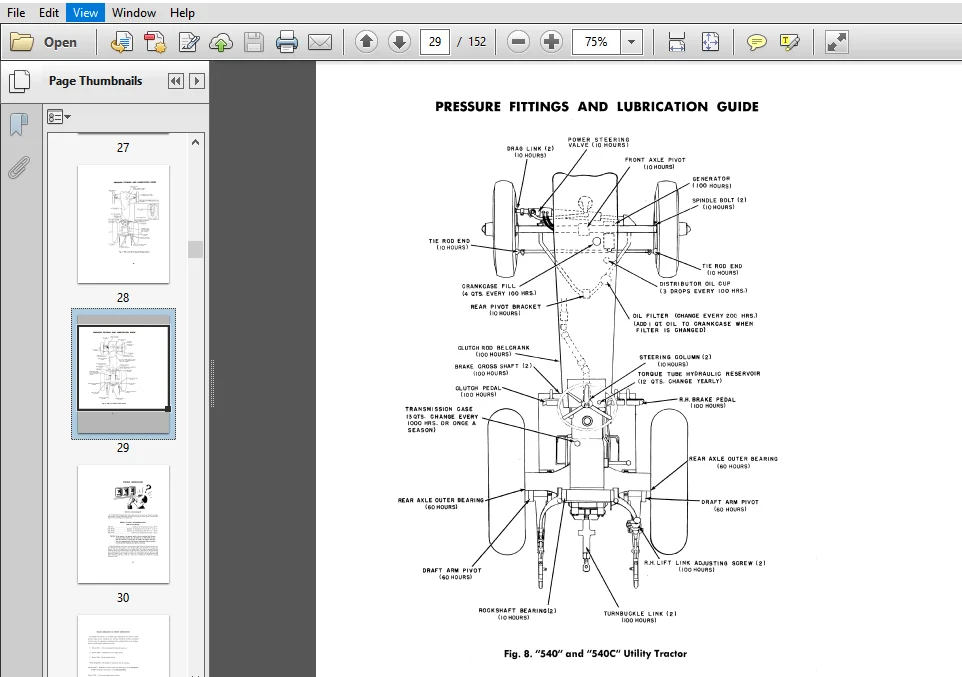

SCREENSHOT OF THE MANUAL:
