Case IH Tractor A8010, A8810 Sugar Cane Harvester Service Manual (48063612) – PDF Download

Description

Case IH Tractor A8010, A8810 Sugar Cane Harvester Service Manual (48063612)

FILE DETAILS:

Case IH Tractor A8010, A8810 Sugar Cane Harvester Service Manual_48063612

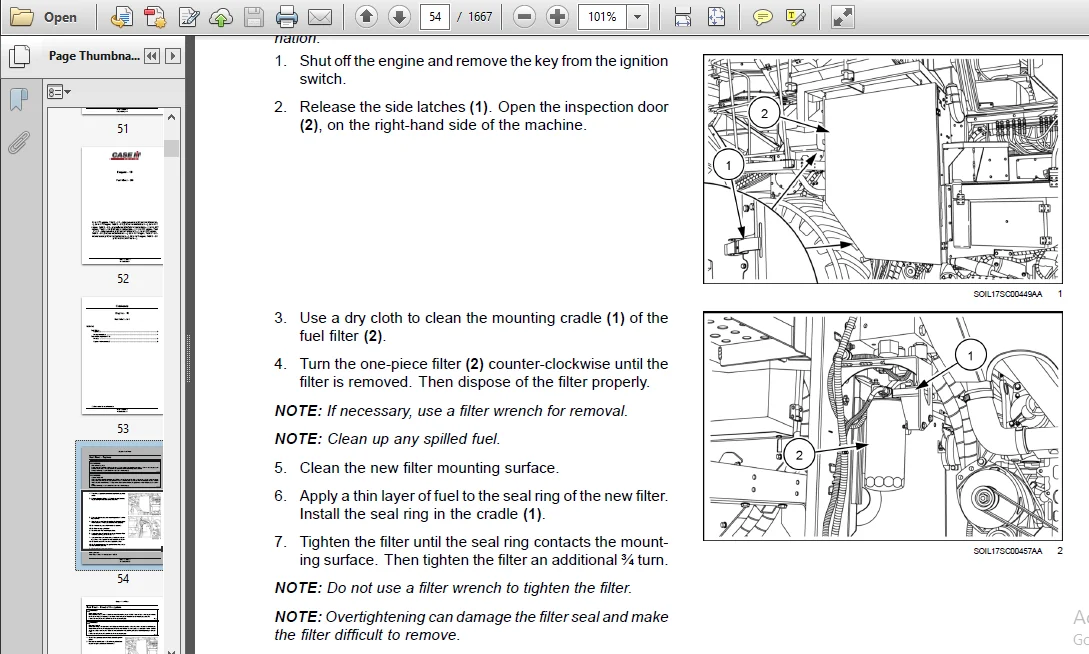

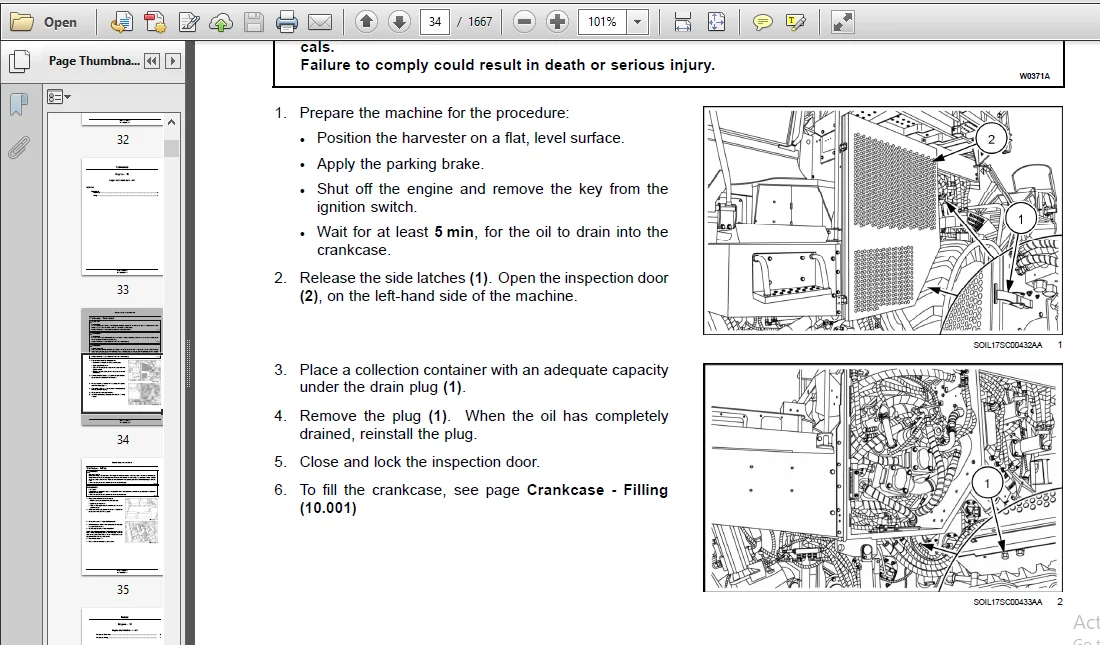

SAMPLE PAGE FROM  THE MANUAL:

General information

• Hydraulic connections require a minimum assembly torque in order to provide zero leakage at rated pressure with adequate fatigue resistance. Over-torquing of a hydraulic connection can also lead to leakage or failure. For some connections, CASE IH requires a different torque value than is listed in the ISO and SAE standards.
• The torque values in this document should be used whenever possible or applicable.

Tolerance

•  The tolerance for all torque values is ± 10%. This tolerance must include all assembly variation, not only the torque wrench repeatability.

Lubrication

Application of grease or other lubricants to hydraulic connectors should be avoided. If clean hydraulic oil is already on the connection, it is not required to remove the oil. Generally, application of grease:

• May cause a significant change in the torque required to properly tighten the connection.
• May reduce the connection’s resistance to vibration.
• Excessive grease may displace an elastomer seal during tightening.
• Grease extrusion when connection is tightened may be mistaken for leakage.

TABLE OF CONTENTS:

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 216] Fuel tanks 10 2
[10 206] Fuel filters 10 3
[10 202] Air cleaners and lines 10 4
[10 400] Engine cooling system 10 5
[10 414] Fan and drive 10 6
[10 310] Aftercooler 10 7
[10 304] Engine lubrication system 10 8
Power coupling 19
[19 121] Pump-drive assembly 19 1
Front axle system 25
[25 400] Non-powered front axle 25 1
Rear axle system 27
[27 120] Planetary and final drives 27 1
Hydrostatic drive 29
[29 100] Transmission and steering hydrostatic control 29 1
[29 218] Pump and motor components 29 2
Brakes and controls 33
[33 202] Hydraulic service brakes 33 1
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 300] Reservoir, cooler, and filters 35 2
[35 104] Fixed displacement pump 35 3
[35 752] Hydraulic fan drive cooling system 35 4
48063612 04/05/2018
[35 965] Chopper control system 35 5
[35 370] Tracks suspension hydraulic system 35 6
[35 670] Topper hydraulic system 35 7
[35 672] Crop divider hydraulic system 35 8
[35 674] Base cutter hydraulic system 35 9
[35 676] Knock-down rollers hydraulic system 35 10
[35 678] Butt lifter roller hydraulic system 35 11
[35 680] Finned roller hydraulic system 35 12
[35 682] Billet elevator hydraulic system 35 13
Steering 41
[41 101] Steering control 41 1
[41 200] Hydraulic control components 41 2
[41 216] Cylinders 41 3
Wheels 44
[44 511] Front wheels 44 1
[44 520] Rear wheels 44 2
Tracks and track suspension 48
[48 130] Track frame and driving wheels 48 1
[48 100] Tracks 48 2
[48 134] Track tension units 48 3
Cab climate control 50
[50 100] Heating 50 1
[50 200] Air conditioning 50 2
Electrical systems 55
[55 100] Harnesses and connectors 55 1
[55 301] Alternator 55 2
[55 302] Battery 55 3
[55 518] Wiper and washer system 55 4
48063612 04/05/2018
[55 404] External lighting 55 5
[55 514] Cab lighting 55 6
[55 DTC] FAULT CODES 55 7
Attachments/Headers 58
[58 130] Attachment/Header frame 58 1
Product feeding 60
[60 370] Basecutter 60 1
[60 390] Conveyor roller train 60 2
Chopping 64
[64 130] Drum gearbox 64 1
[64 160] Crop processor 64 2
Cleaning 74
[74 204] Lower extractors 74 1
Crop storage / Unloading 80
[80 420] Billet elevator 80 1
Platform, cab, bodywork, and decals 90
[90 150] Cab 90 1
[90 151] Cab interior 90 2
