Case IH Tractor Coffee Express 200 Coffee express harvester Service Manual – PDF Download

Description

Case IH Tractor Coffee Express 200 Coffee express harvester Service Manual 48025811A

FILE DETAILS:

Case IH Tractor Coffee Express 200 Coffee express harvester Service Manual_48025811A

DESCRIPTION:

Foreword
Soil, air, and water are vital factors of agriculture and life in general. Where legislation does not yet rule the treatment of some of the substances which are required by advanced technology, common sense should govern the use and disposal of products of a chemical and petrochemical nature.
The following are recommendations which may be of assistance:
• Become acquainted with and ensure that you understand the relative legislation applicable to your country.
• Where no legislation exists, obtain information from suppliers of oils, filters, batteries, fuels, antifreeze, cleaning agents, etc., with regard to their effect on man and nature and how to safety store, use and dispose of these substances. Agricultural consultants will, in many cases, be able to help you as well.

Helpful Hints
• Avoid filling tanks using unsuitable containers or inappropriate pressurized fuel delivery systems that may cause spillages.
• If you are exposed to or come in contact with hazardous chemicals you can be seriously injured. The fluids, lubricants, paints, adhesives, coolants, etc. required for the function of the machine can be hazardous. They may be attractive and harmful to domestic animals as well as humans.
• Dispose of all fluids, filters, and containers in an environmentally safe manner according to local laws and regulations. Check with local environmental and recycling centers or your dealer for correct disposal information. Store fluids and filter in accordance with local laws and regulations. Use only appropriate containers for the storage of chemicals or petrochemical substances.
• Modern oils contain additives. Do not burn contaminated fuels and/or waste oils in ordinary heating systems.
• Avoid spillage when draining off used engine coolant mixtures, engine, gear box and hydraulic oils, brake fluids, etc. Do not mix drained brake fluids or fuels with lubricants. Store them safely until they can be disposed of in a proper way to comply with local legislation and available resources.
• Modern coolant mixtures, i.e., antifreeze and other additives, should be replaced every two years. They should not be allowed to get into the soil but should be collected and disposed of safely.
• The air-conditioning system contains gases that are harmful to the environment when released into the atmosphere. Do not attempt to service or repair the system. Your dealer or air conditioning specialist has a special extractor for this purpose and will be able to recharge the system in any case.
• Repair any leaks or defects in the engine cooling or hydraulic system immediately.
• Do not increase the pressure in a pressurized circuit as this could cause the components to explode.
• Protect hoses during welding as penetrating weld splatter may burn a hole or weaken them, causing the loss of oils, coolant, etc.
• Keep chemicals out of reach of children or other unauthorized persons. Additional precautions are required for applied chemicals. Obtain complete information from the manufacturer or distributor of the chemicals before using them.

TABLE OF CONTENTS:

• Case IH Tractor Coffee Express 200 Coffee express harvester Service Manual 48025811A

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 210] Lift pump and lines 10 2
[10 206] Fuel filters 10 3
[10 202] Air cleaners and lines 10 4
[10 414] Fan and drive 10 5
[10 216] Fuel tanks 10 6
[10 254] Intake and exhaust manifolds and muffler 10 7
[10 400] Engine cooling system 10 8
[10 304] Engine lubrication system 10 9
Rear axle system 27
[27 120] Planetary and final drives 27 1
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 300] Reservoir, cooler, and filters 35 2
[35 105] Charge pump 35 3
Frames and ballasting 39
[39 100] Frame 39 1
Steering 41
[41 216] Cylinders 41 1
[41 200] Hydraulic control components 41 2
Electrical systems 55
[55 100] Harnesses and connectors 55 1
[55 301] Alternator 55 2
[55 302] Battery 55 3
48025811A 11/05/2018
[55 012] Engine cooling system 55 4
[55 520] Cab harvesting controls 55 5
[55 201] Engine starting system 55 6
Cleaning 74
[74 000] Cleaning 74 1
Crop storage / Unloading 80
[80 150] Grain tank 80 1
Platform, cab, bodywork, and decals 90
[90 150] Cab 90 1
[90 110] Operator platform less cab 90 2
[90 118] Protections and footboards 90 3

CASE IH TRACTOR COFFEE EXPRESS 200 COFFEE EXPRESS HARVESTER SERVICE MANUAL – PDF DOWNLOAD:

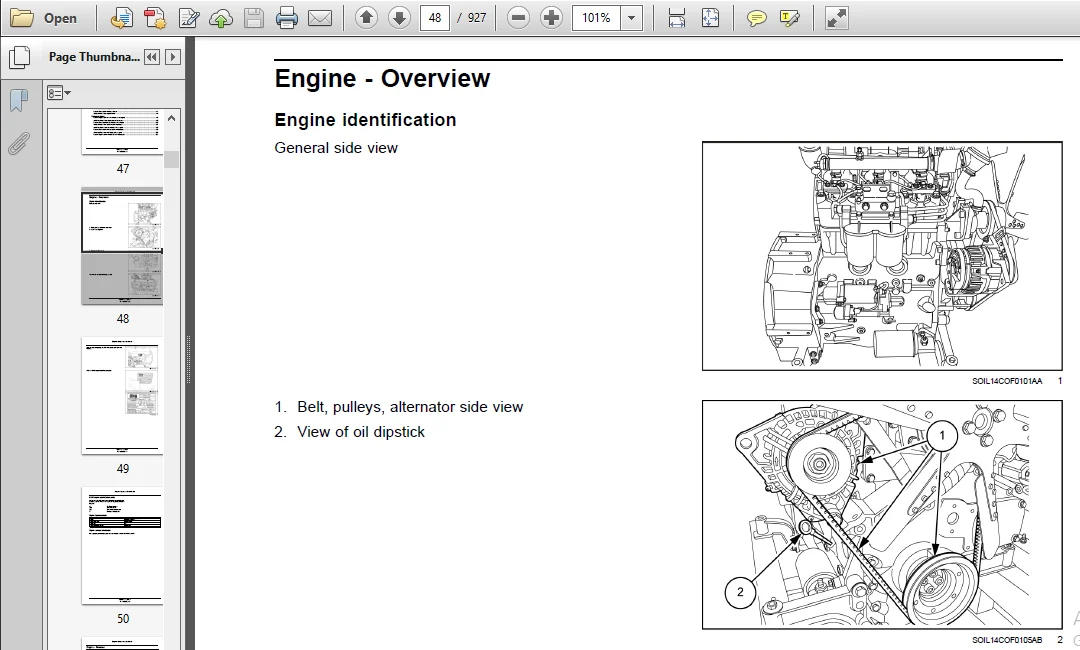

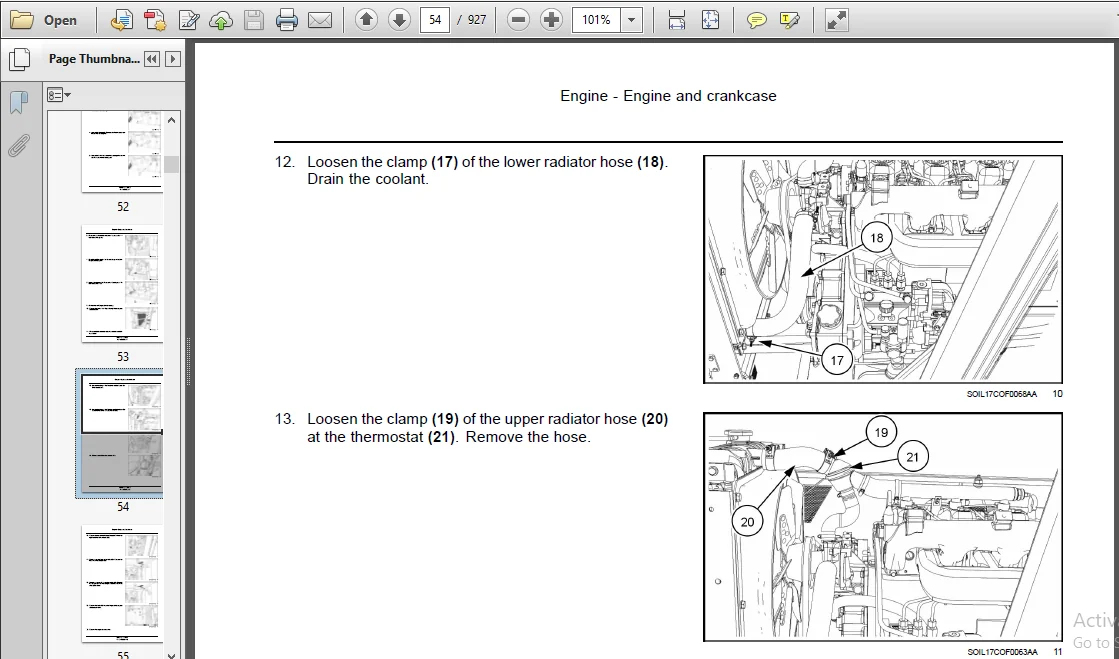

SCREENSHOT OF THE MANUAL:
