Case IH Tractor Differential B 275 Service Manual – PDF DOWNLOAD

Description

Case IH Tractor Differential B 275 Service Manual

FILE DETAILS:

Case IH Tractor Differential B-275 Service Manual_GSS1240
Size : 2.79 MB
Format : PDF
Language : English
Number of Pages: 20 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: Tractor Differential B-275
Part Number: GSS1240

DESCRIPTION:

• The differential is located in the rear frame and is mounted on two tapered roller bearings. The drive bevel gear is bolted to the differential case.
• The outer ends of the bull pinion shafts are mounted on ball bearings carried in cages assembled on the rear frame. Disk brakes are mount- ed on the shafts. See lllust.
•  Shims located between the differential bearing cages and sides of the rear frame determine the backlash between the bevel gear and drive Pinion and the preload on the tapered roller bearings supporting the differential.
• Adjustment of the drive pin- ion and bevel gear tooth contact is deter-— mined by shims between the transmission splined shaft roller bearing retainer and the machined surface of the gear box.
• Incorporated in and running through the right-hand bull pinion shaft is a differen- tial lock which is controlled by a foot pedal assembled to the right-hand disk brake housing. The differential lock connects the driving wheels as if they were mounted on a common shaft and has been introduced to help overcome wheel slippage. See lllust.

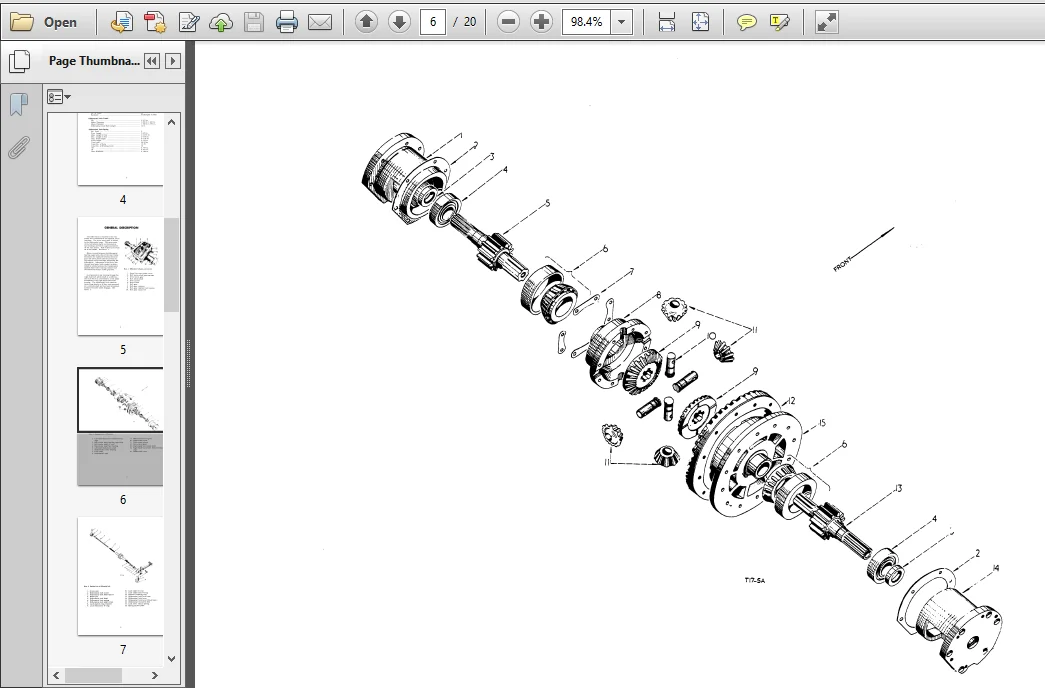

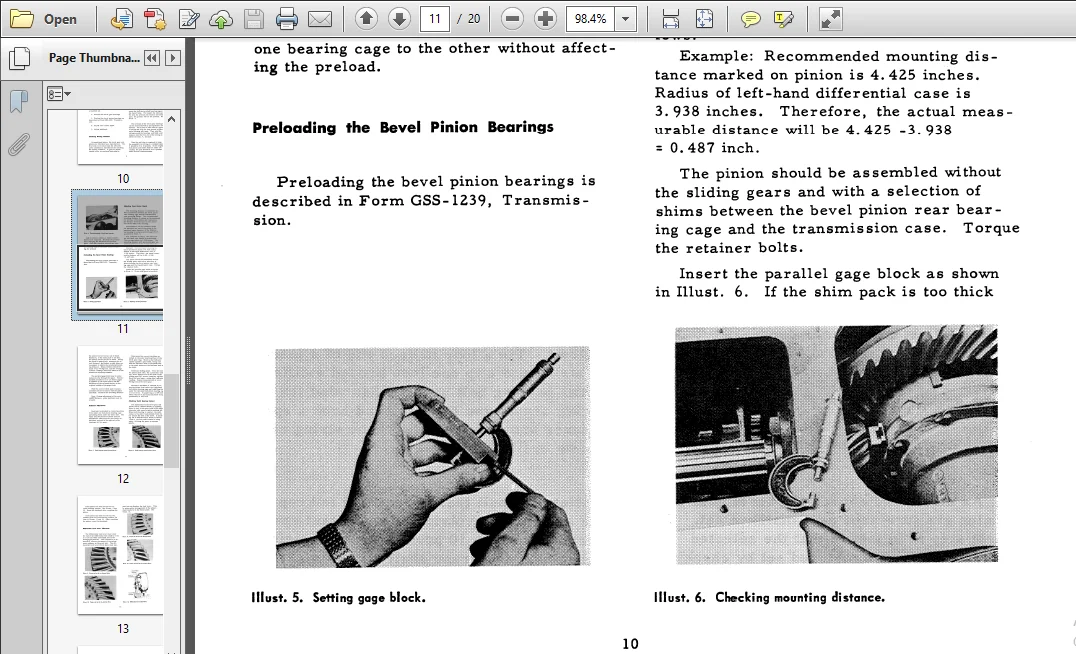

IMAGES:

CASE IH TRACTOR DIFFERENTIAL B 275 SERVICE MANUAL – PDF DOWNLOAD:

TABLE OF CONTENTS:

Case IH Tractor Differential B 275 Service Manual

Specifications
GeneralDescription
Trouble Shooting Chart
Checks and Adjustments
DifferentialService
Removal
Disassembly
Inspection and Repair
Reassembly
Installation

PLEASE NOTE:

⦁ This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
⦁ Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
