Case IH Tractor Magnum 235, 260, 290, 315, 340 Service Manual – PDF DOWNLOAD

Description

Case IH Tractor Magnum 235, 260, 290, 315, 340 Service Manual

FILE DETAILS:

Case IH Tractor Magnum 235, 260, 290, 315, 340 Service Manual_47442317
Size : 333 MB
Format : PDF
Language : English
Number of Pages : 4246 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: Magnum 235, 260, 290, 315, 340
Part No: 47442317

CASE IH TRACTOR MAGNUM 235, 260, 290, 315, 340 SERVICE MANUAL – PDF DOWNLOAD:

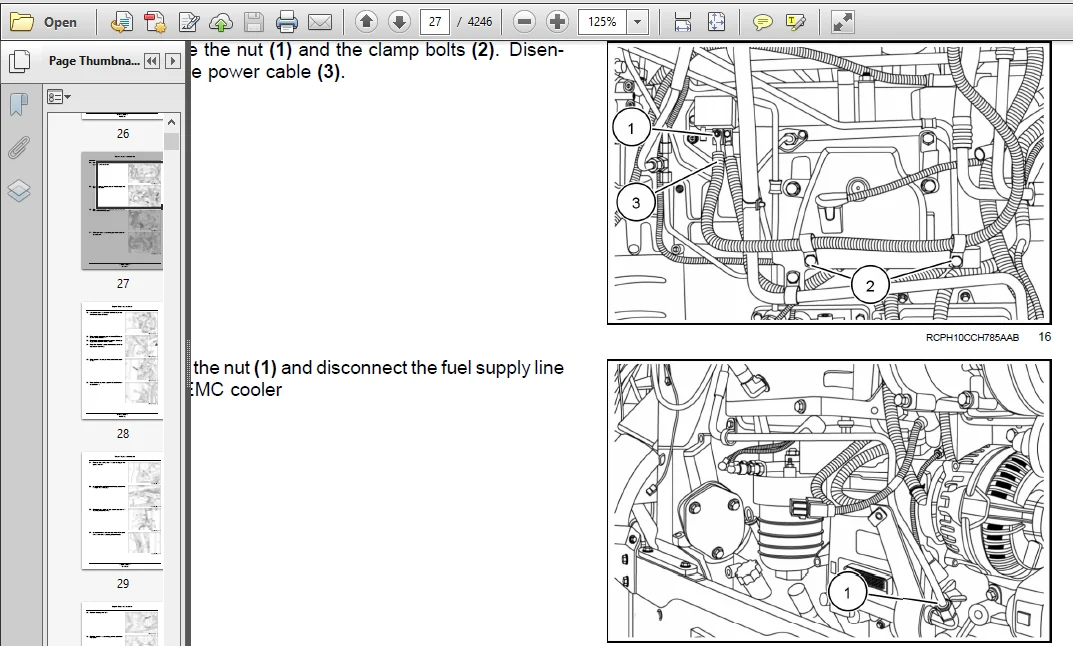

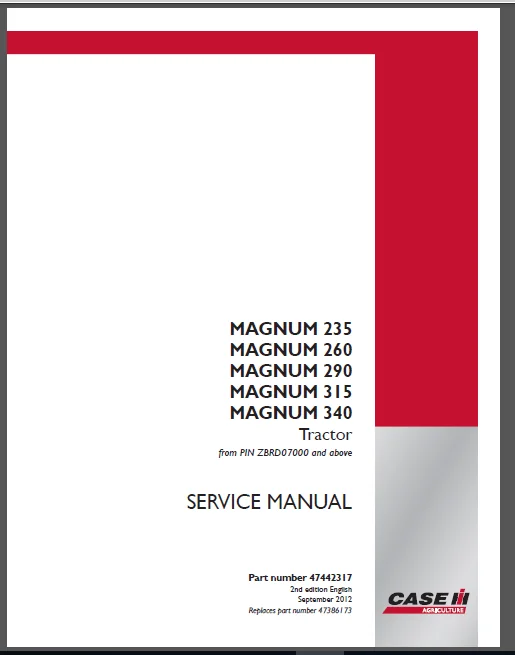

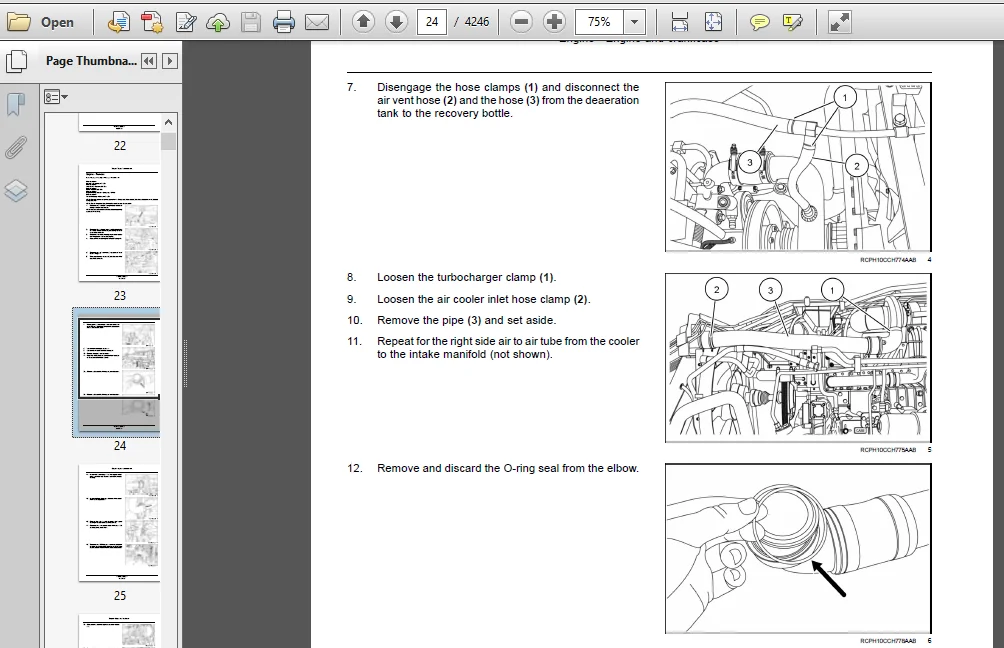

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Standard safety precautions:
Be informed and notify personnel of the laws in force regulating safety, and provide documentation available for consultation.

•  Keep working areas as clean as possible.
•  Ensure that working areas are provided with emergency boxes. They must be clearly visible and always contain adequate sanitary equipment.
•  Fire extinguishers must be properly identified and always be clear of obstructions. Their efficiency must be checked on a regular basis and personnel must be trained on proper interventions and priorities.
•  Keep all emergency exits free of obstructions and clearly marked.
•  Smoking in working areas subject to fire danger must be strictly prohibited.

Prevention of injury:

• Wear suitable work attire and safety glasses with no jewelry such as rings and chains when working close to engines and equipment in motion.
• Wear safety gloves and goggles when performing the following operations:
•  Topping off or changing lubrication oils.
•  Using compressed air or liquids at a pressure greater than 2 bar (29 psi).
•  Wear a safety helmet when working close to hanging loads or equipment working at head level.
•  Always wear safety shoes and fitting clothes.
•  Use protection cream for hands.
•  Change wet clothes as soon as possible.
•  In the presence of voltages exceeding 48 – 60 V, verify the efficiency of the ground and mass electrical connections. Ensure that hands and feet are dry and use isolating foot boards. Workers should be properly trained to work with electricity.
•  Do not smoke or start an open flame close to batteries and any fuel material.
•  Place soiled rags with oil, diesel fuel or solvents in specially provided anti-fire containers.
•  Do not use any tool or equipment for any use other than what it was originally intended for. Serious injury may occur.
•  If running an engine indoors, make sure there is a sufficient exhaust fan in use to eliminate exhaust fumes.

During maintenance:

•  Never open the filler cap of the cooling system when the engine is hot. High temperature liquid at operating pressure could result in serious danger and risk of burn. Wait until the temperature decreases under 50 °C (122 °F).
•  Never add coolant to an overheated engine and use only appropriate liquids.
•  Always work when the engine is turned off. Certain circumstances require maintenance on a running engine. Be aware of all the risks involved with such an operation.
•  Always use adequate and safe containers for engine fluids and used oil.
• •Keep engine clean of any spilled fluids such as oil, diesel fuel, and or chemical solvents.

TABLE OF CONTENTS:

Case IH Tractor Magnum 235, 260, 290, 315, 340 Service Manual

INTRODUCTION
Engine 10
Engine and crankcase 10001
Cylinder heads 10101
Pump drives 10114
Air cleaners and lines 10202
Fuel tanks 10216
Aftercooler 10310
Engine cooling system 10400
Fan and drive10414
Selective Catalytic Reduction (SCR) exhaust treatment 10500
Transmission 21
Powershift transmission lubrication system 21105
Powershift transmission 21113
Powershift transmission external controls 21135
Gearbox internal components 21145
Powershift transmission internal components21155
Drop box 21200
Four-Wheel Drive (4WD) system 23
Electrohydraulic control 23202
Drive shaft23314
Front axle system 25
Powered front axle25100
Front bevel gear set and differential 25102
Final drive hub, steering knuckles, and shafts 25108
Axle suspension control 25122
Rear axle system 27
47386173 15/06/2012
Powered rear axle 27100
Rear bevel gear set and differential 27106
Planetary and final drives 27120
Power Take-Off (PTO) 31
Rear electrohydraulic control 31104
One-speed rear Power Take-Off (PTO)31110
Two-speed rear Power Take-Off (PTO)31114
Front Power Take-Off (PTO) 31146
Brakes and controls 33
Parking brake / Parking lock 33110
Hydraulic service brakes33202
Trailer brake hydraulic control 33220
Trailer brake pneumatic control 33224
Hydraulic systems 35
Hydraulic systems 35000
Pump control valves 35102
Variable displacement pump 35106
Three-point hitch control valve35114
Remote control valves 35204
Reservoir, cooler, and filters35300
Combination pump units35304
Pneumatic system 36
Pneumatic system 36100
Hitches, drawbars, and implement couplings 37
Rear three-point hitch37110
Front hitch37162
Steering 41
Steering control41101
47386173 15/06/2012
Hydraulic control components 41200
Pump 41206
Cab climate control 50
Heating50100
Air conditioning 50200
Cab pressurizing system50300
Electrical systems 55
Engine cooling system 55012
Front axle control system 55045
Rear axle control system55046
Heating, Ventilation, and Air-Conditioning (HVAC) control system55050
Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55051
Harnesses and connectors 55100
Three-point rear hitch electronic control system55130
Engine starting system 55201
Alternator 55301
Battery 55302
External lighting55404
External lighting switches and relays55405
Warning indicators, alarms, and instruments 55408
Cab controls 55512
Cab lighting 55514
Wiper/Washer system55518
Electronic modules55640
Selective Catalytic Reduction (SCR) electrical system 55988
FAULT CODES55DTC
Platform, cab, bodywork, and decals 90
Engine hood and panels90100
Engine shields, hood latches, and trims 90102
47386173 15/06/2012
Protections and footboards 90118
Pneumatically-adjusted operator seat 90124
Cab 90150
Cab interior 90151
47386173 15/
