Case IH Tractor ORB25 Steering Control Unit BC,Couger,Panther & Lion 1000 Service Manual – DOWNLOAD

Description

Case IH Tractor ORB25 Steering Control Unit BC,Couger,Panther & Lion 1000 Service Manual

FILE DETAILS:

Size : 1.1 MB
Format : PDF
Language : English
Number of Pages : 18 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: ORB25-Steering Control Unit BC,Couger,Panther & Lion 1000
Part No: 37-153

CASE IH TRACTOR ORB25 STEERING CONTROL UNIT BC,COUGER,PANTHER & LION 1000 SERVICE MANUAL – DOWNLOAD:

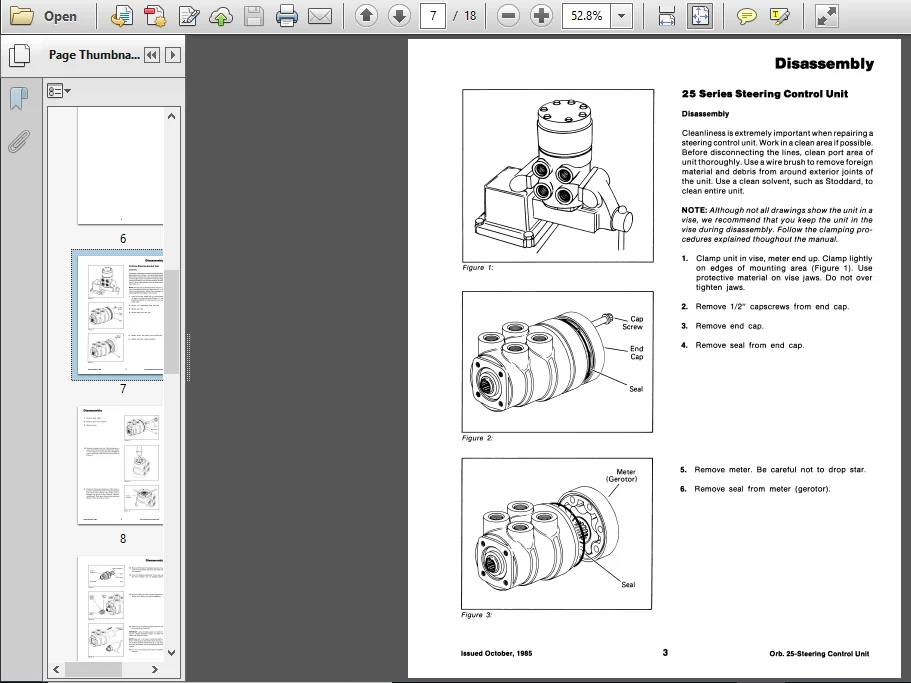

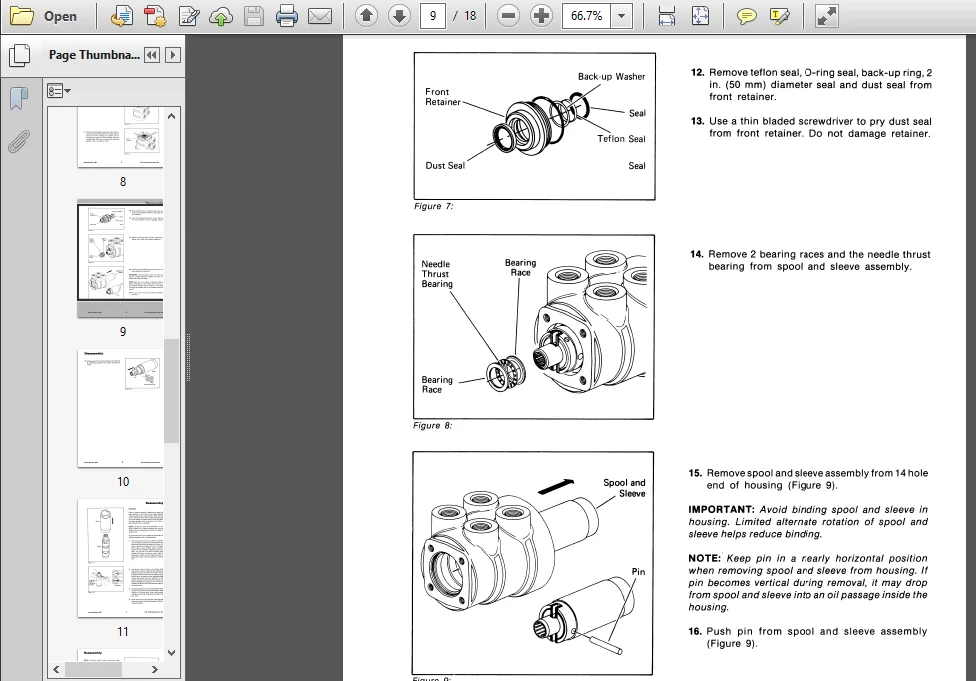

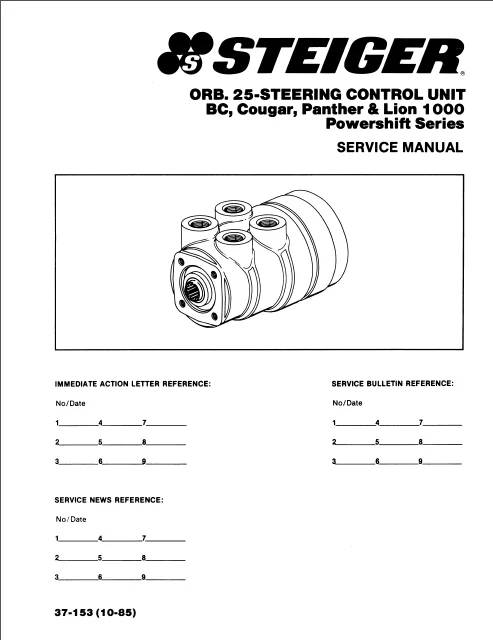

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case IH Tractor ORB25 Steering Control Unit BC,Couger,Panther & Lion 1000 Service Manual

• 25 Series Steering Control Unit Disassembly Cleanliness Is extremely Important when repairing a steering control unit. Work in a clean area if possible. Before disconnecting the lines. clean port area of unit thoroughly. Use a wire brush to remove foreign material and debris from around exterior joints of the unit. Use a clean solvent, such as Stoddard, to clean entire unit.
• Clean all mating surfaces. Replace any parts that have scratches or burrs that could cause leakage. Clean all metal parts in clean solvent. Blow dry with air. Do not wipe dry with cloth or paper towel because Iint or other matter can get into the hydraulic system and cause damage.
• Do not use grit. or try to file or grind steering control unit parts. NOTE: Lubricete all seals (with exception of new quad ring seal) with a clean petroleum jelly, such as Vaseline. Do not use excessive lubricant on seals for meter section. A good service policy is to replace all old seals with new seals whenever unit is disassembled.

1. Insert control and of spool in sleeve. Assemble spool and sleeve carefully so that the centering spring slots line up at the same end (Figure 11). Apply a light film of clean oil to 0.0. of spool. Rotate spool while sliding parts together. Because of close tolerance between spool and sleeve. do not use force when rotating parts together. Be careful not to burr spool. Test for tree rotation. Spool should rotate smoothly in sleeve with finger tip force applied at splined end.

2. Align spring slots of spool and sleeve, then stand parts on bench. Insert spring Installation tool (see tooling information) through spring slots of both parts. Position centering springs (2 sets of 3 each) on bench so that extended edge is down and center section is together. In this position, insert one end of entire spring set into spring installation tool (Figure 12). If no tool is available. see NOTE below for alternate installa- tion Instructions.

TABLE OF CONTENTS:

Case IH Tractor ORB25 Steering Control Unit BC,Couger,Panther & Lion 1000 Service Manual

• Control Unit Exploded View/ Tools Requirements
• Control Unit Disassembly
• Control Unit Reassembly
• Operation Instructions
• Troubleshooting Guide

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
