Case Loader 480 Service Manual 9-72572R0 – PDF DOWNLOAD

Description

Case Loader 480 Service Manual

FILE DETAILS:

Case Loader 480 Service Manual

Size : 97 MB
Format : PDF
Language : English
Brand: Case
Number of page: 535 page
Type of machine: Case Loader
Type of document: Service Manual
Model: Case Loader 480
Part No: 9-72572R0

TABLE OF CONTENTS:

Case Loader 480 Service Manual

• Table of Contents
• General
• Engine
• Fuel System
• Hydraulics
• Steering
• Power Train
• Brakes
• Electrical
• Mounted Equipment
• How It Works

CASE LOADER 480 SERVICE MANUAL 9-72572R0 – PDF DOWNLOAD:

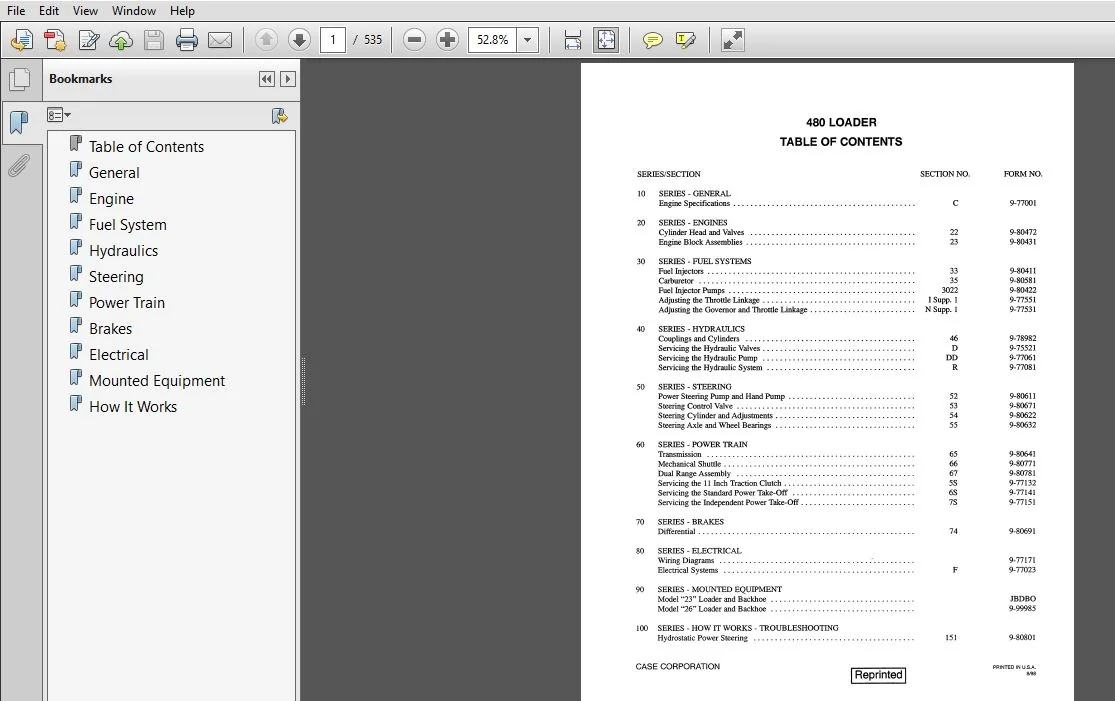

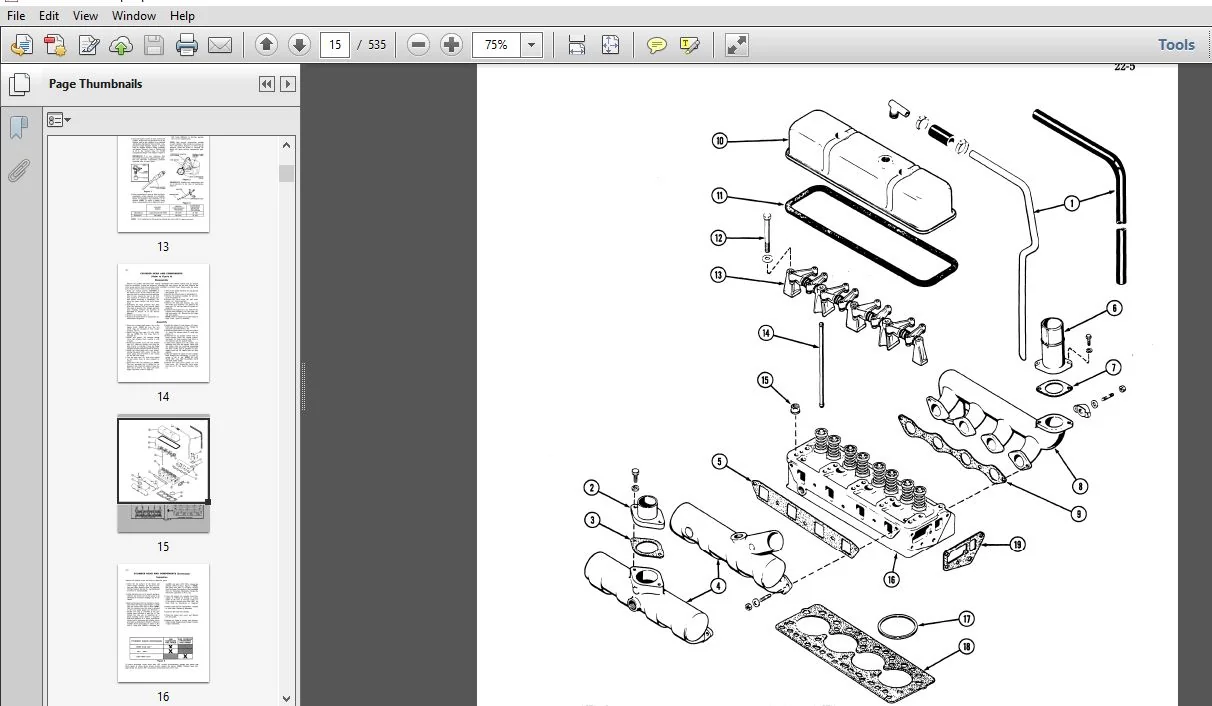

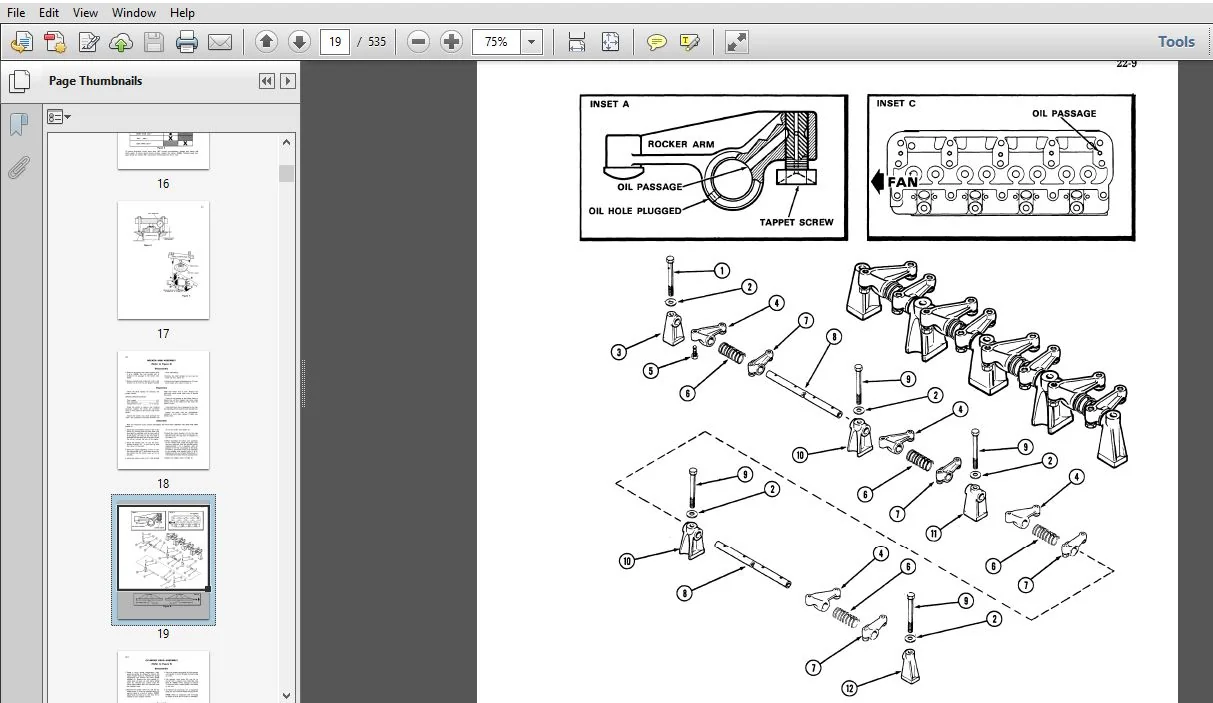

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

SAMPLE PAGE:

Case Loader 480 Service Manual

CHECKING COMPRESSION PRESSURE:

• Clean the engine thoroughly, preferably by steam cleaning.
• Before cranking the engine make sure all operating controls are in neutral. brakes are set and the wheels are securely blocked.
• Thee are two methods of checking com- pression pressure – the cranking method and the engine running method. NOTE: The engine must be at operating temperature for either method used.

A.CRANKING METHOD – Close the needle valve at the fuel tank. Disconnect all high pressure fuel lines and leak-off lines bet- ween injectors. Remove all of the injectors. Refer to the chart on Page 3.

B.RUNNING METHOD – Disconnect the high pressure fuel line and leak-off line from number one injector. Using an appropriate length of tubing or hose. route the fuel from these lines back to the fuel tank or a clean container. Refer to chart below.

4.Clean the injector bores of loose carbon and residue. Replace the compression seal in the injector bore of the cylinder to be checked and install a Bacharach 70-314 (D-558). Com- pression Gauge Adapter, Figure 1. Secure with an original injector clamp assembly and spacer, Figure 1, Inset A. Tighten bolt to 20 ft. lbs. Connect Case No. CD-504 Compression Gauge to the adapter, Figure 2.

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
