CASE SR220 Skid-Steer Loader Parts Catalog – 906-Page PDF Download

This CASE SR220 parts catalog is a detailed illustrated reference for identifying components, assemblies, service parts, kits, hardware and option-specific parts used on the SR220 skid-steer loader. Across 906 pages, the catalog pairs exploded or pictorial illustrations with reference numbers, part numbers, quantities, descriptions, applicability notes and variant information. It is especially useful when you need to identify the correct component before ordering parts, compare assemblies, trace how a system is built up, or distinguish between alternative configurations shown for the machine.

The catalog is organized by machine system rather than as a repair procedure manual. Many assemblies used on the SR220 are shared with related CASE skid-steer and compact track loader models, so individual parts pages may list several compatible models. The SR220 remains the central model in this catalog, while those shared-model notes help show where a component or assembly is common across the range. Date- and configuration-specific entries are also included where the catalog distinguishes earlier and later parts.

File Details

• Manual type: Parts Catalog
• Brand / model: CASE SR220 Skid-Steer Loader
• Language: English
• Page count: 906 pages
• File format: PDF
• Copyright: 2016 CNH Industrial

Parts Identification and Machine-Specific Detail

The CASE SR220 skid-steer loader parts catalog goes far beyond a simple list of part numbers. The introductory catalog key explains figure call-outs, repair-kit symbols, references to related figures, footnotes, variant codes, sequence codes, page revisions, quantities and non-serviced parts. That structure continues throughout the document, allowing a technician or parts buyer to move between an exploded illustration and the corresponding parts list without losing the relationship between components.

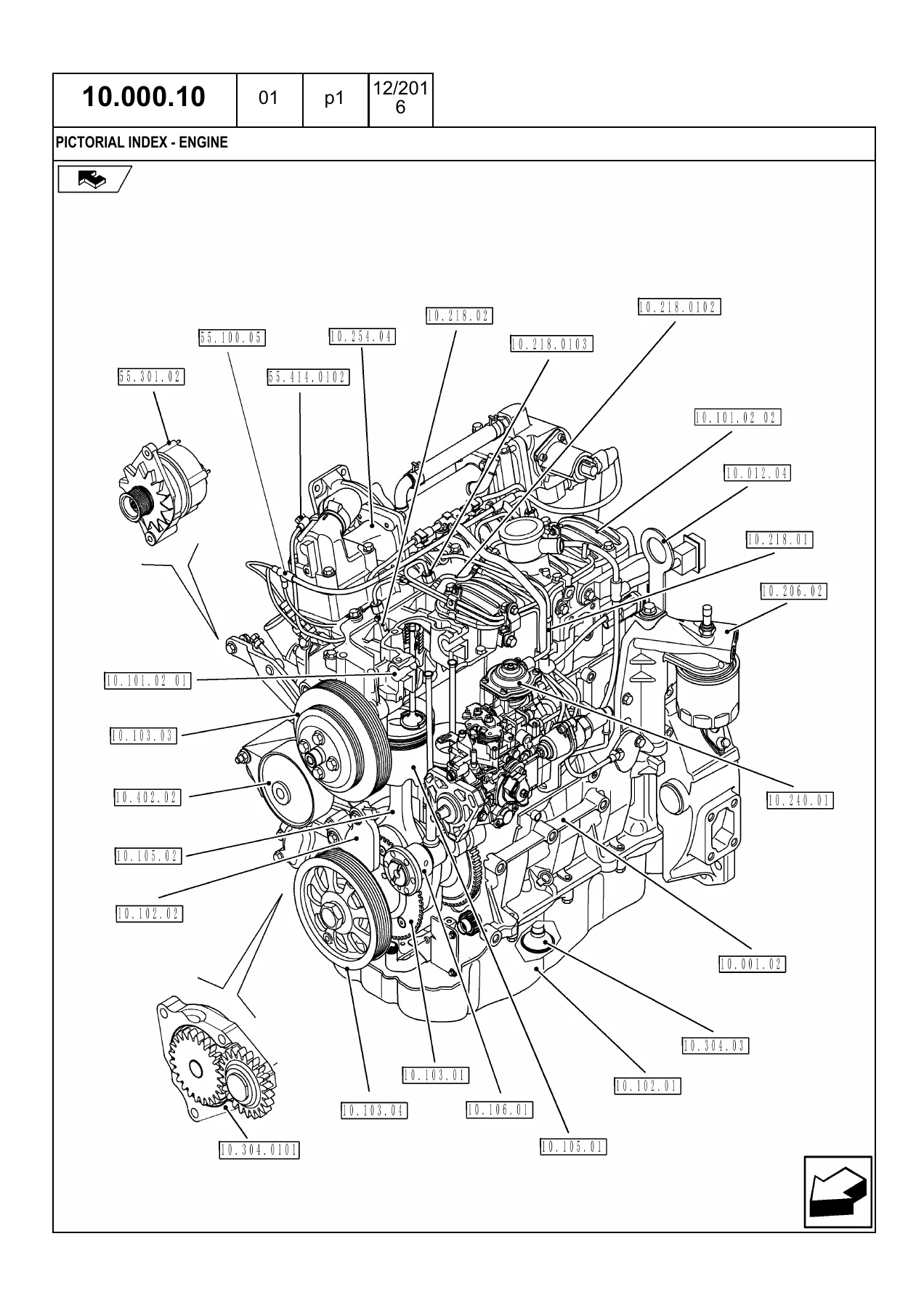

The engine section identifies the SR220 engine assembly as F5CE5454BA005, with a listed 61 kW, 3.2 L, four-cylinder turbocharged engine assembly. The catalog then breaks the engine down into major areas such as the cylinder block, cylinder head, rocker shaft, crankshaft, flywheel, pistons, connecting rods, camshaft and timing control, injection equipment, turbocharger, intake and exhaust systems, lubrication and cooling. This is useful for locating both major assemblies and smaller service items such as gaskets, seals, bearings, plugs, hoses, clamps and mounting hardware.

Service and maintenance pages also identify common filters, belts and fluid capacities for the SR220. The capacity page lists a 20.0 Gal/75.5 L fuel tank, 5.0 Gal/19.0 L coolant capacity, 10.0 Qt/9.5 L engine crankcase capacity with filter change, 11.75 Gal/29.5 L hydraulic system capacity, a 3.96 Gal/15.0 L hydraulic reservoir, and 29.5 Qt/27.9 L for each chain compartment. These entries make the catalog useful not only for component identification but also for checking the parts and fluid references associated with routine service.

IMAGES PREVIEW

Chapters Covered

• Service & Maintenance
  • Initial Stocking List A and B

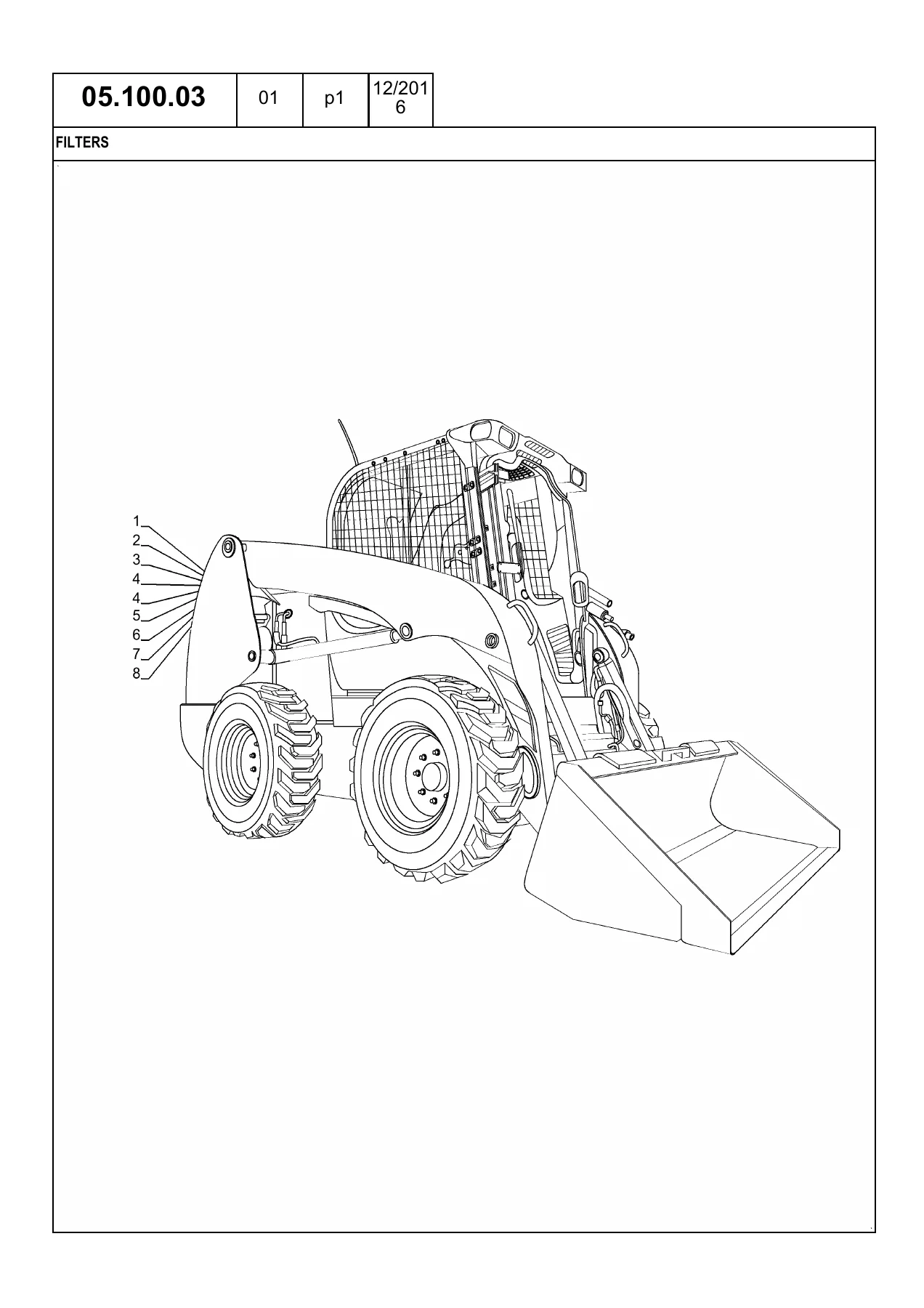

  • Filters
  • Capacities
• Engine
  • Engine assembly, cylinder block and cylinder head components
  • Crankshaft, flywheel, pistons, connecting rods and camshaft/timing
  • Air cleaner, fuel system, injection equipment, turbocharging, intake and exhaust
  • Engine oil system, remote oil lines, cooling system, EGR heat exchanger and fan/belts
• Front Axle System
  • Heavy-duty axle assembly

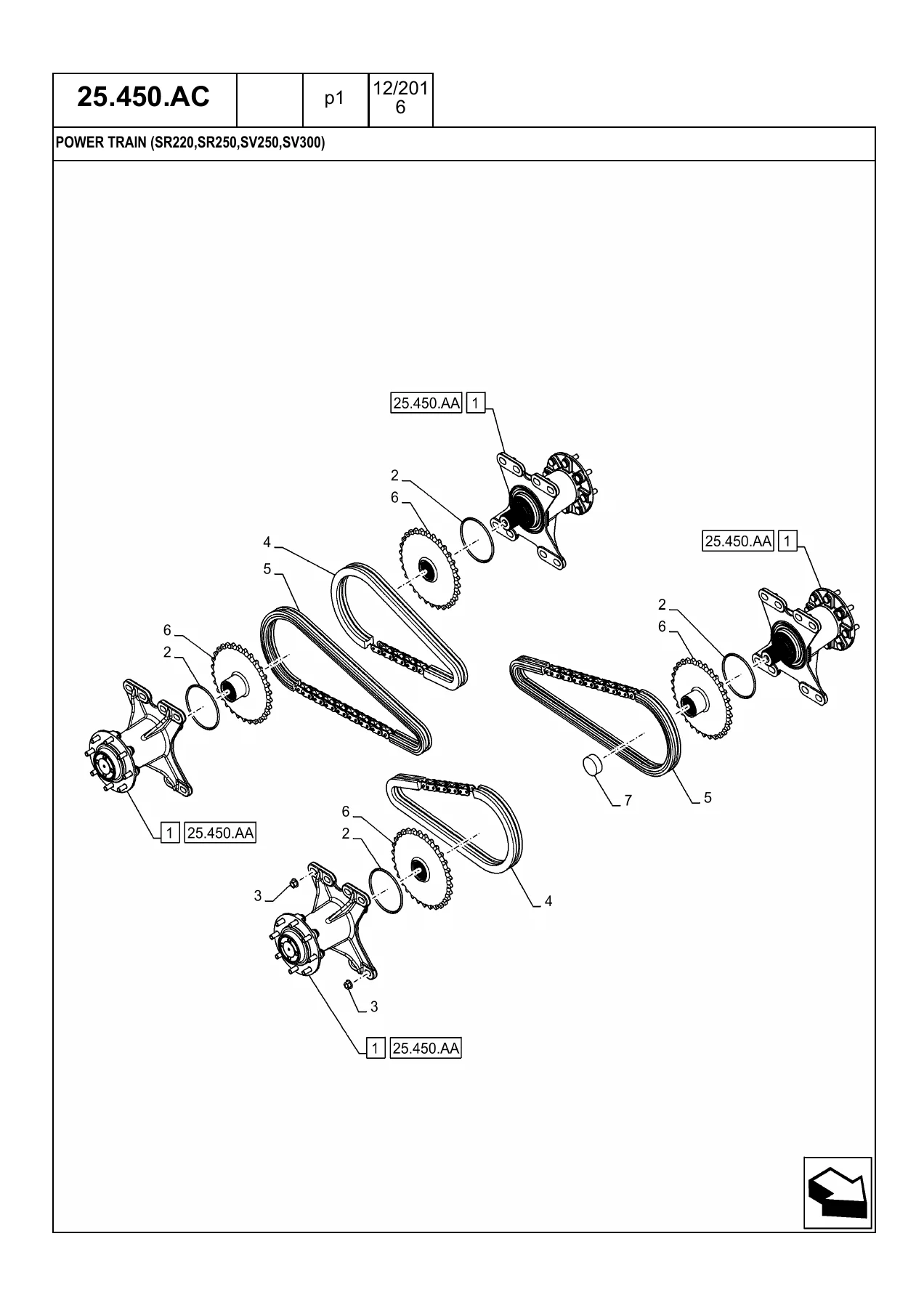

  • Power train
• Hydrostatic Drive
  • Hand controls, dampers and handle mounting
  • Mechanical-control hydrostatic supply and drive lines
  • Electro-hydraulic hydrostatic supply and drive lines
  • 45 cc E-H and 46 cc mechanical tandem hydrostatic pump assemblies
• Hydraulic Systems
  • Hydraulic return and supply plumbing
  • Standard and high-flow auxiliary gear pumps
  • Hydraulic oil filter, tank, brake valves and 1-speed/2-speed travel components
  • Drive motors, control valves, loader hydraulics, lift and bucket cylinders
  • Ride control, hydraulic coupler and auxiliary arm/chassis plumbing
• Frames and Ballasting
  • SR220/SR250 chassis
  • Counterweight components
• Wheels
  • Wheel assemblies and related hardware
• Cab Climate Control
  • Heater and heater plumbing
  • Large-frame HVAC and heater with A/C
  • Air-conditioner compressor, condenser and A/C plumbing
• Electrical Systems
  • Engine electrical, glow-plug/injection connections and fuse boxes
  • Mechanical and electro-hydraulic chassis wiring harnesses
  • Ignition/display, battery, alternator, lighting and worklights
  • Instruments, diagnostic sensor, multifunction electrical and handle controls
  • Washer systems, throttle controls and telematics
• Front Loader & Bucket
  • Loader arm and coupler
  • Manual coupler
  • Extended low-profile, heavy-duty dirt, dirt/foundry, utility/light-material and manure/slurry buckets
  • Bolt-on cutting edges, pallet forks and spill guards
• Accessories
  • Hydraulic coupler, ride control, high-flow auxiliary and second-front-auxiliary kits
  • Counterweight, lift hooks, heat/HVAC, electrical and lighting kits
  • Bucket edges/teeth, pallet-fork, door, window, screen and cab kits
• Platform, Cab, Bodywork and Decals
  • Chassis hoods, covers and rear door
  • SR220 decals and warning decals
  • Cab, seats, seat belts and lap bar
  • Door assemblies, windows, floor mats, control mounts, headliners, trim and sealing
• CE Attachments
  • Adapter, auger drive, auto rake and backhoes
  • Bale handler, bale spear, angle/hopper/pick-up brooms
  • 4 x 1 buckets, power side-discharge buckets and chipper
  • High-flow and standard-flow cold planers, concrete bucket and concrete claw
  • Dozer blades, grader rakes, brush/log/scrap grapples and power box rake
  • Hydraulic hammers, lift boom, load monitors, manure tools and snow pushers

Taken together, these chapters provide a system-by-system map of the CASE SR220. Exploded illustrations make it possible to see how assemblies fit together, while the adjoining lists provide the corresponding identifiers and quantities. The catalog also records option-specific differences such as standard versus high-flow hydraulics, mechanical versus electro-hydraulic controls, one-speed versus two-speed travel arrangements, different cab and door configurations, and dated production changes.

Useful Configuration and Applicability Information

A key strength of this CASE SR220 parts catalog is the amount of applicability detail embedded in individual figures. For example, the engine-oil remote-drain line is divided into configurations before 14/9/2014, between 15/9/2014 and 7/12/2014, and after 8/12/2014. The bodywork section includes hood and access-cover entries around serial number NCM457309, while door and seat sections distinguish several dated configurations. Bucket-cylinder listings also separate earlier and later designs. These notes help prevent a visually similar part from being treated as interchangeable when the catalog itself shows a production break or option difference.

The hydraulic sections are similarly detailed. The catalog covers standard and high-flow auxiliary pumps, hydrostatic pump assemblies, brake and travel-speed valves, one-speed and two-speed drive motors, loader control valves, lift and bucket cylinders, coupler plumbing and related hoses, tubes, fittings and seals. Pressure-relief values are given on applicable valve and pump pages, and the illustrations show the physical relationship between the hydraulic components and their connecting lines.

The electrical and cab sections extend the same parts-identification approach to fuse boxes, harnesses, keyed/keyless display components, battery hardware, lighting, multifunction controls, diagnostic sensors, windshield-washer components, heater and HVAC equipment, seats, belts, doors, windows and trim. For machines fitted with additional equipment, the accessories and CE attachments sections provide substantial coverage of factory and field-installed kits and work tools.

Illustrated Parts Reference for Ordering and Maintenance Planning

This is the type of catalog to keep available when a part has to be identified from its location in an assembly rather than from a known number. A technician can start from the engine, drive, hydraulic, electrical, loader, cab or attachment illustration, follow the reference call-out into the parts list, and then check quantity, description, kit inclusion and applicability notes. It is equally useful when preparing a parts order, comparing old and replacement numbers shown in the catalog, or checking which components are included in an assembly or repair kit.

Because this document is a parts catalog, it focuses on identification and component breakdowns rather than step-by-step disassembly, adjustment or repair procedures. For repair work, use the parts information here together with the appropriate service instructions for the machine.
