Case Tractor 380 Service Manual 9-73727R0 – PDF DOWNLOAD

Description

Case Tractor 380 Service Manual

FILE DETAILS:

Case Tractor 380 Service Manual

Size : 138 MB
Format : PDF
Language : English
Number of Pages : 367 pages
Brand: Case
Type of machine: Tractor
Type of document: Service Manual
Model: Case Tractor 360
Part No: 9-73727R0

CASE TRACTOR 380 SERVICE MANUAL 9-73727R0 – PDF DOWNLOAD:

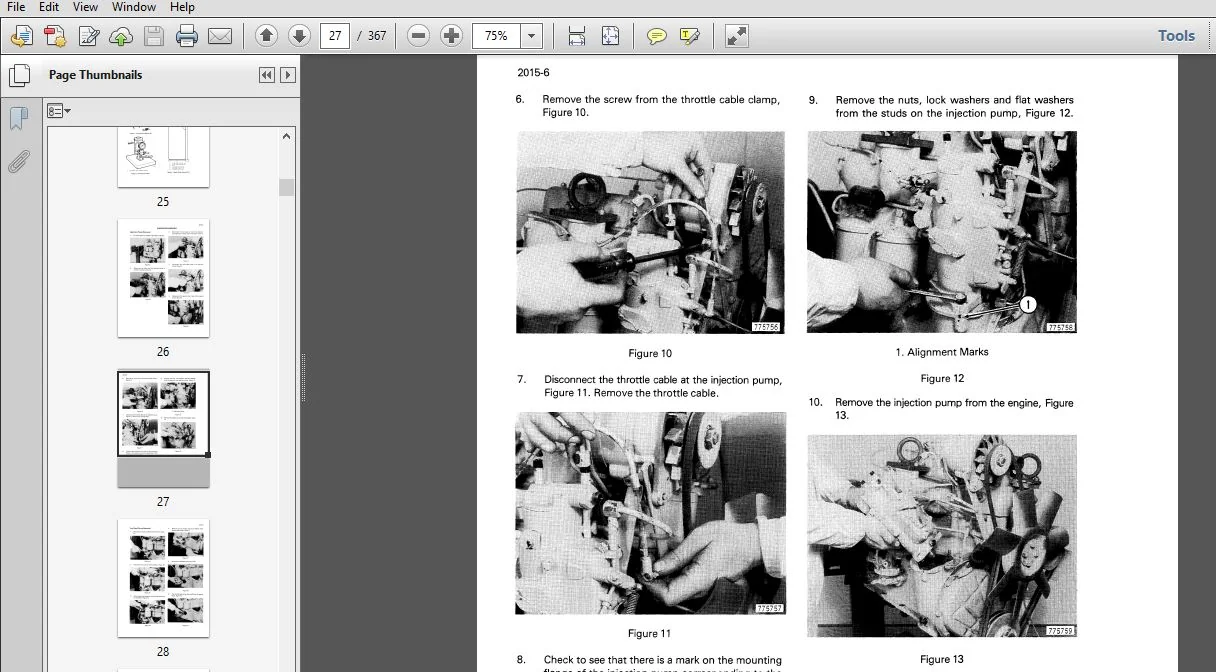

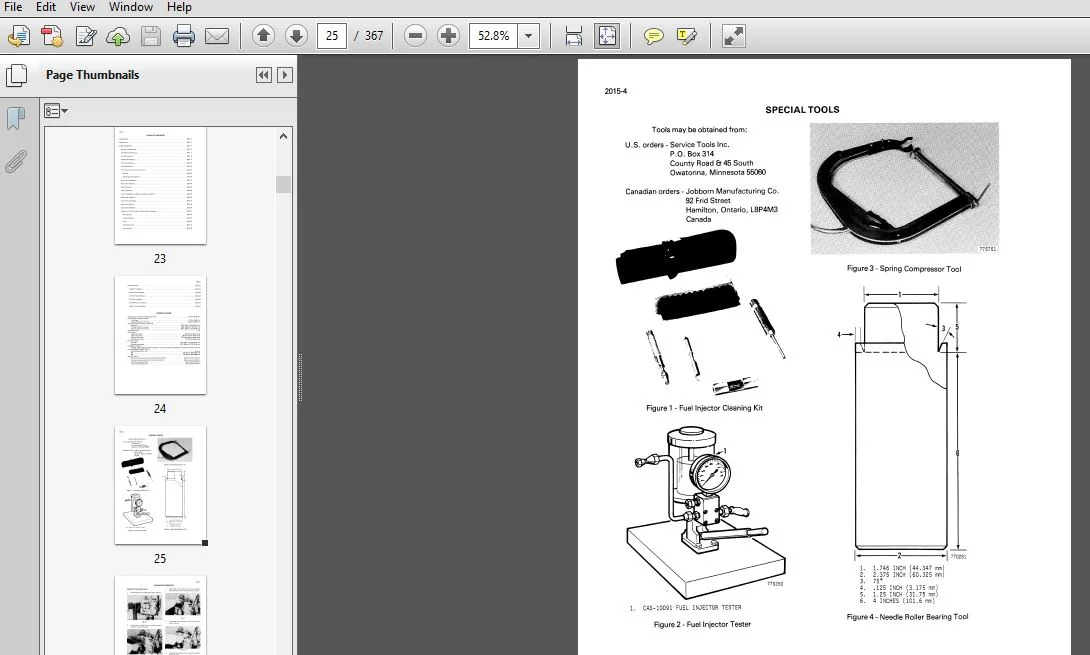

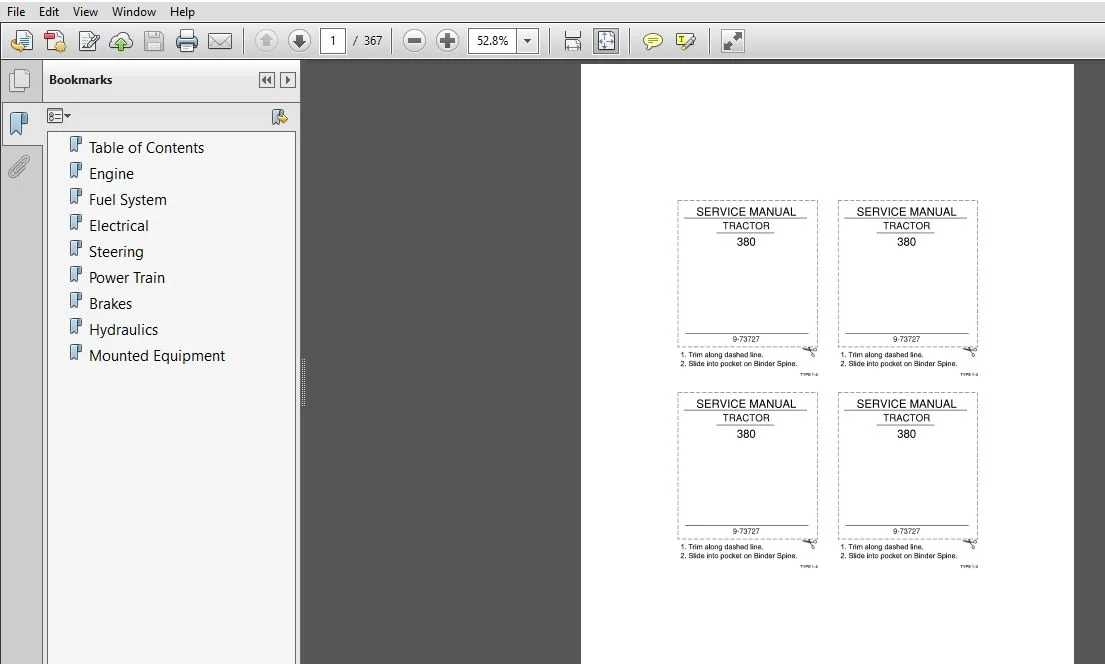

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case Tractor 380 Service Manual

GENERAL INFORMATION:

Before making any repairs or adjustments on an engine, a mechanic or technician must properly diagnose the trouble, Locating the trouble and repairing it is only part of the job, a technician must find and eliminate the cause of the trouble as well. Too many repairs are made with’ no thought to removing the causes that made the repair necessary. For any engine to start or perform properly, three main requirements must be present.

• FUEL
• AIR
• COMPRESSION-IGNITION

When any of these requirements are not present or limited by some mechanical reason the engine will not start or fails to operate properly throughout the power range.

•  FUEL: Fuel system problems can be pre-sent anywhere from the fuel tank. through the filters and injection pump as well as the injec- tors. Correct injection pump timing is important in the overall fuel system performance.
• AIR: Air in an engine is related to the breathing of the engine; the intake of air into the engine and the ex- puision of exhaust. Proper air flow is affected by the air cleaner condition, muffler restriction, valve condition, and adjustment, cylinder head gaskets, condition of cylinder walls, rings, pistons, camshaft and crankshaft timing.
• COMPRESSION–IGNITION : Ignition is the result of adequate compression to develop enough heat in the air charge on the compression stroke to fire the fuel being injected into the engine cylinders. Proper spray pattern and atomization of the fuel by the injector is very important. Timing the fuel injection pump to the engine to a preccise degree BTDC is a vital requirement for proper ignition.

TABLE OF CONTENTS:

Case Tractor 380 Service Manual

• Engine
• Engine Diagnosis
• Cylinder Head and Valves
• Engine Block Assemblies
• Fuel System ‘
• Engine Controls
• Electrical . .. _
• Electrical Equipment—Service information
• Battery
• Starter
• Alternator
• Steering
• Steering and Front Axle
• Steering Control Valve
• Steering column
• Steering Cylinder
• Power Train
• Synchromesh Gear Box
• Clutch
• Final Drives
• PTO
• Brake
• Mechanical Brakes
• Hydraulics
• Selectamatic Hydraulic System
• Mounted Equipment
• Three Point Hitch

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
