Case Uni Loader 1500 Series Service Manual 9-71536R0 – PDF DOWNLOAD

Description

Case Uni Loader 1500 Series Service Manual

FILE DETAILS:

Case Uni Loader 1500 Series Service Manual

Size : 20.8 MB
Format : PDF
Language : English
Brand: Case
Number of page: 226 page
Type of machine: Case Uni-Loader
Type of document: Service Manual
Model: Case Uni-Loader 1500
Part No: 9-71536R0

TABLE OF CONTENTS:

Case Uni Loader 1500 Series Service Manual

• Table of Contents
• General
• Engine
• Fuel Systems
• Hydraulic System
• Power Train
• Brakes
• Electrical System
• Mounted Equipment

CASE UNI LOADER 1500 SERIES SERVICE MANUAL 9-71536R0 – PDF DOWNLOAD:

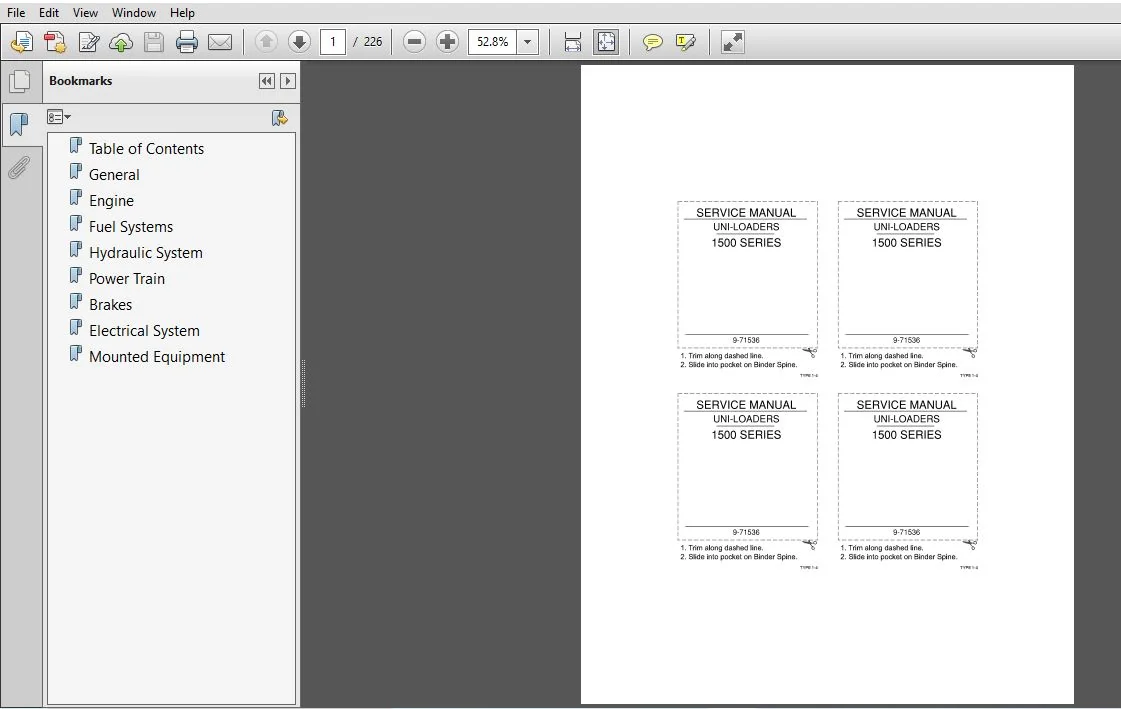

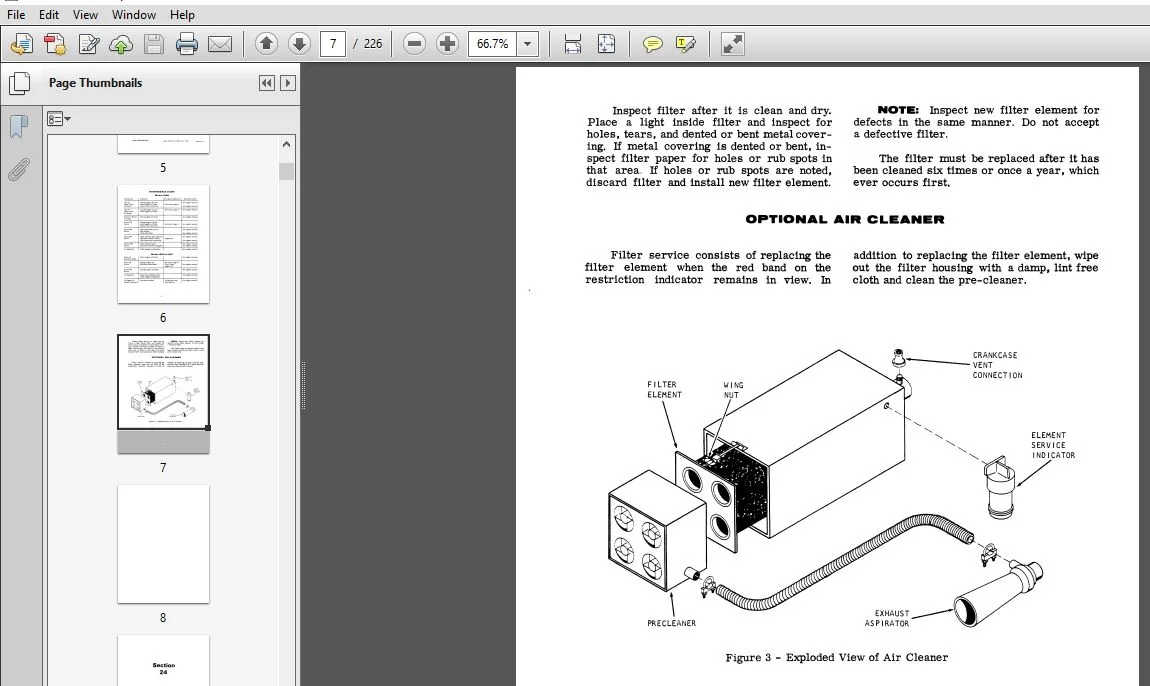

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case Uni Loader 1500 Series Service Manual

SAMPLE PAGE:

Service Interval:

The service interval is self determined, taking into consideration working conditions. It is only natural that the filter element be serviced more often when the machine is operated in a dusty or sandy atmosphere. In addition to element service, the dust cup should be cleaned daily or more often as conditions warrant.

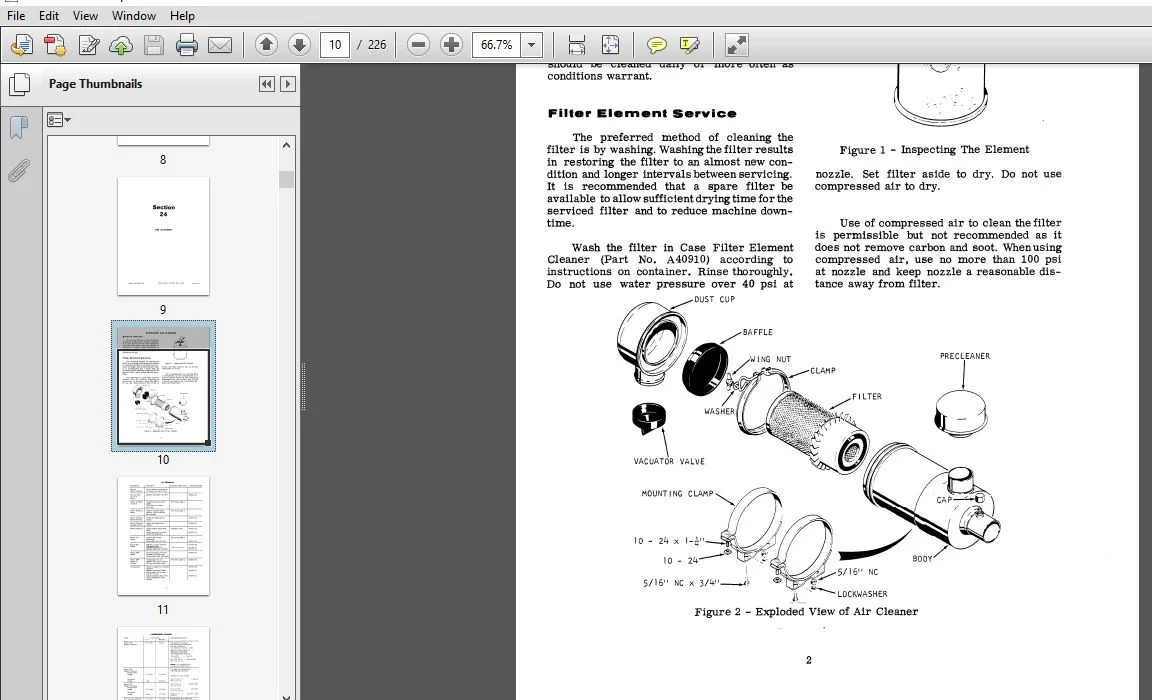

Filter Element Service:

• The preferred method of cleaning the filter is by washing. Washing the filter results in restoring the filter to an almost new con- dition and longer intervals between servicing. It is recommended that a spare filter be available to allow sufficient drying time for the serviced filter and to reduce machine down- time.
• Wash the filter in Case Filter Element Cleaner (Part No. A40910) according to instructions on container. Rinse thoroughly. Do not use water pressure over 40 psi atnozzle. Set filter aside to dry. Do not use compressed air to dry.
• Use of compressed air to clean the filter is permissible but not recommended as it does not remove carbon and soot. Whenusing compressed air, use no more than 100 psi at nozzle and keep nozzle a reasonable dis- tance away from filter.

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
