Case W24 Articulated Loader Service Repair Manual (9-99737)

CASE W24 ARTICULATED LOADER SERVICE REPAIR MANUAL (9-99737) – PDF DOWNLOAD:

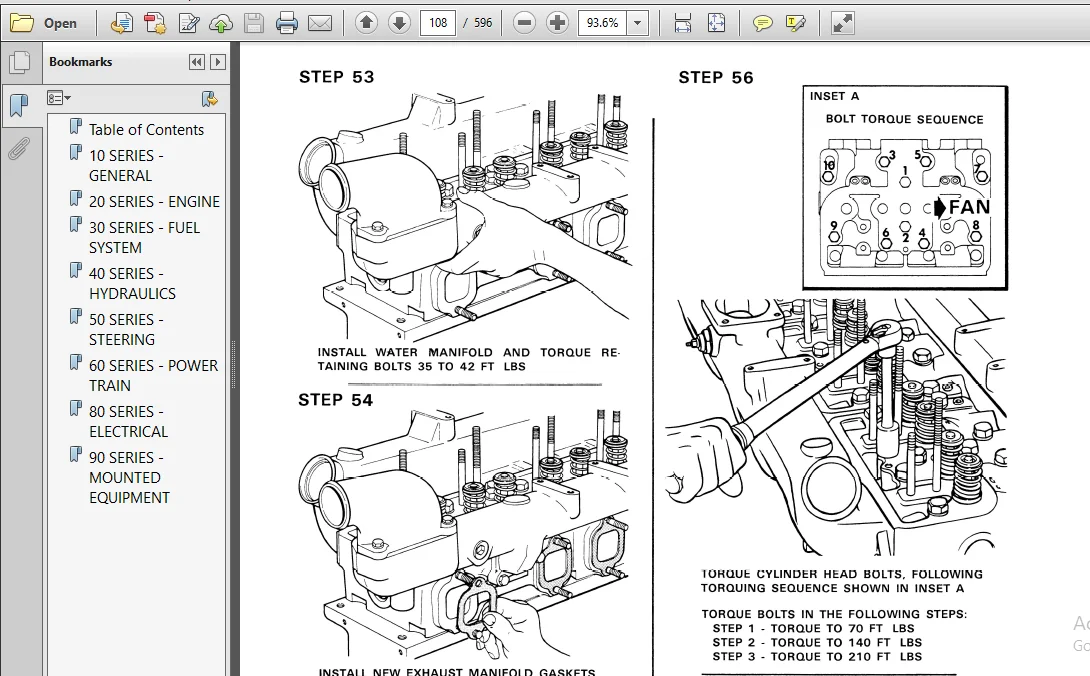

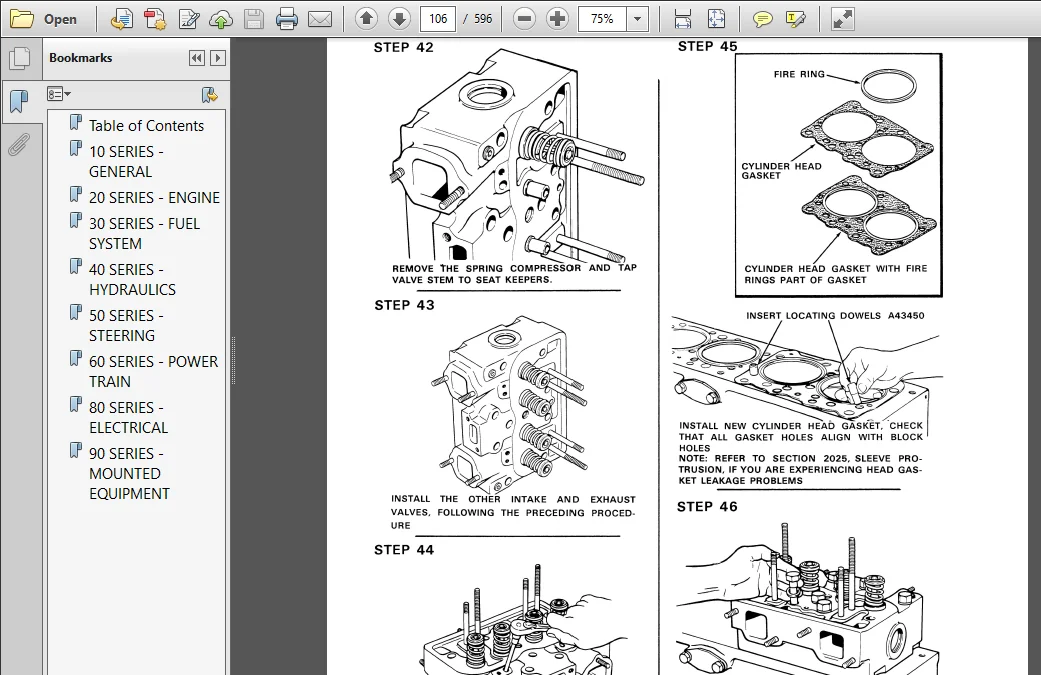

IMAGE PREVIEW:

GENERAL INFORMATION:

Case W24 Articulated Loader Service Repair Manual (9-99737)

• Before making any repairs or adjustments on an engine, a mechanic or technician must properly diagnose the trouble.
• Locating the trouble and repairing it is only part of the job, a technician must find and eliminate the cause of the trouble as well. Too many repairs are made with- no thought to removing the causes that made the repair necessary.
• For any engine to start or perform properly, three main requirements must be present.
  1. FUEL
  2. COMPRESSION
  3. IGNITION
• When any of these requirements are not present or limited by Some mechanical reason the engine will not start or fails to operate properly throughout the power range.
• 1. FUEL. Fuel system problems can be present anywhere from the fuel tank, through the filters and injection pump as well as the injectors. Correct injection pump timing is important in the overall fuel system performance.
• 2. COMPRESSION. Compression on an engine is related to the “breathing function”. Proper compression is affected by the air cleaner condition, muffler restriction, valve condition and operation including proper valve adjustment, cylinder head gaskets condition of sleeves, rings, pistons, camshaft, and camshaft timing.
• 3. IGNITION. Ignition is the result of adequate compression to develop enough heat in the air charge on the compression stroke to fire the fuel being injected into the engine cylinders. Proper spray pattern and atomization of the fuel by the injector is very important. Timing the fuel injection pump to the engine to a precise degree BTDC is a vital requirement for proper ignition.
  The engine diagnosis contained in the following pages covers many tJouble symptoms, the causes, and what will be necessary to repair or eliminate the problem. Under each symptom are listed the most common and reoccuring problems progressively to the not so common problems. Locate your problem symptom in the diagnosis chart and refer to the pages listed for the probable causes and remedies.

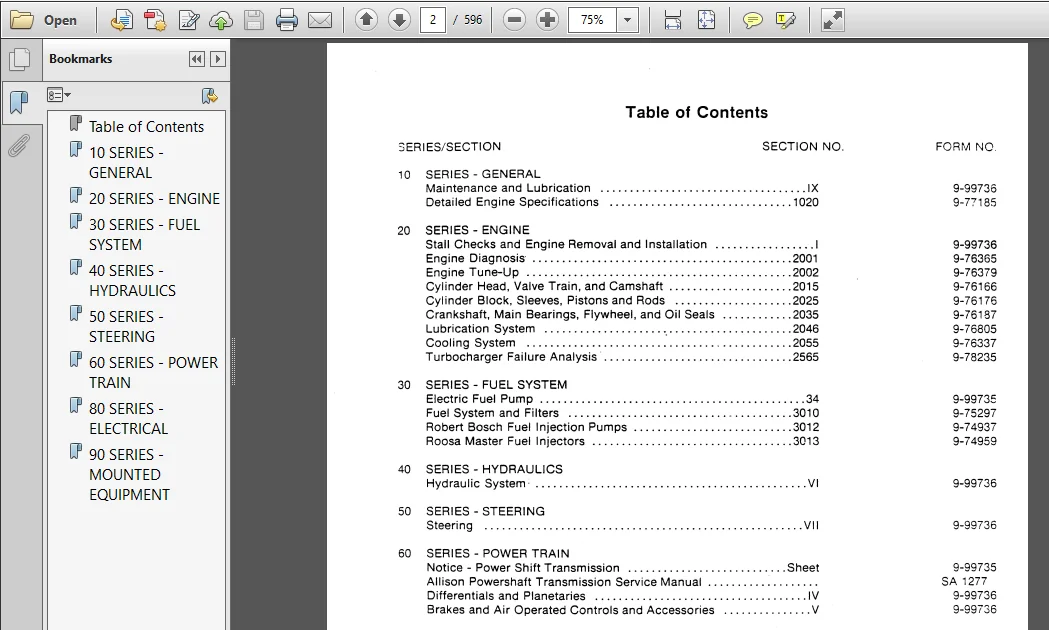

TABLE OF CONTENTS:

Case W24 Articulated Loader Service Repair Manual (9-99737)

10 SERIES – GENERAL
Maintenance and Lubrication IX
Detailed Engine Specifications 1020
20 SERIES – ENGINE
Stall Checks and Engine Removal and Installation 1
Engine Diagnosis 2001
Engine Tune-Up 2002
Cylinder Head, Valve Train, and Camshaft , 2015
Cylinder Block, Sleeves, Pistons and Rods 2025
Crankshaft, Main Bearings, Flywheel, and Oil Seals 2035
Lubrication System , 2046
Cooling System 2055
Turbocharger Failure Analysis ‘ 2565
30 SERIES – FUEL SYSTEM
Electric Fuel Pump 34
Fuel System and Filters 3010
Robert Bosch Fuel Injection Pumps 3012
Roosa Master Fuel Injectors 3013
40 SERIES – HYDRAULICS
Hydraulic System’ VI
50 SERIES – STEERING
Steering VII
60 SERIES – POWER TRAIN
Notice – Power Shift Transmission Sheet
Allison Powershaft Transmission Service Manual
Differentials and Planetaries , IV
Brakes and Air Operated Controls and Accessories V
80 SERIES – ELECTRICAL
Electrical System II
90 SERIES – MOUNTED EQUIPMENT
Loader VIII
