Case W8C,W9C,W10C Loaders Service Manual(9-99825R0) Case W8C,W9C,W10C Loaders – PDF Download

Description

Case W8C,W9C,W10C Loaders Service Manual(9-99825R0) Case W8C,W9C,W10C Loaders

CASE W8C,W9C,W10C LOADERS SERVICE MANUAL(9-99825R0) CASE W8C,W9C,W10C LOADERS – PDF DOWNLOAD:

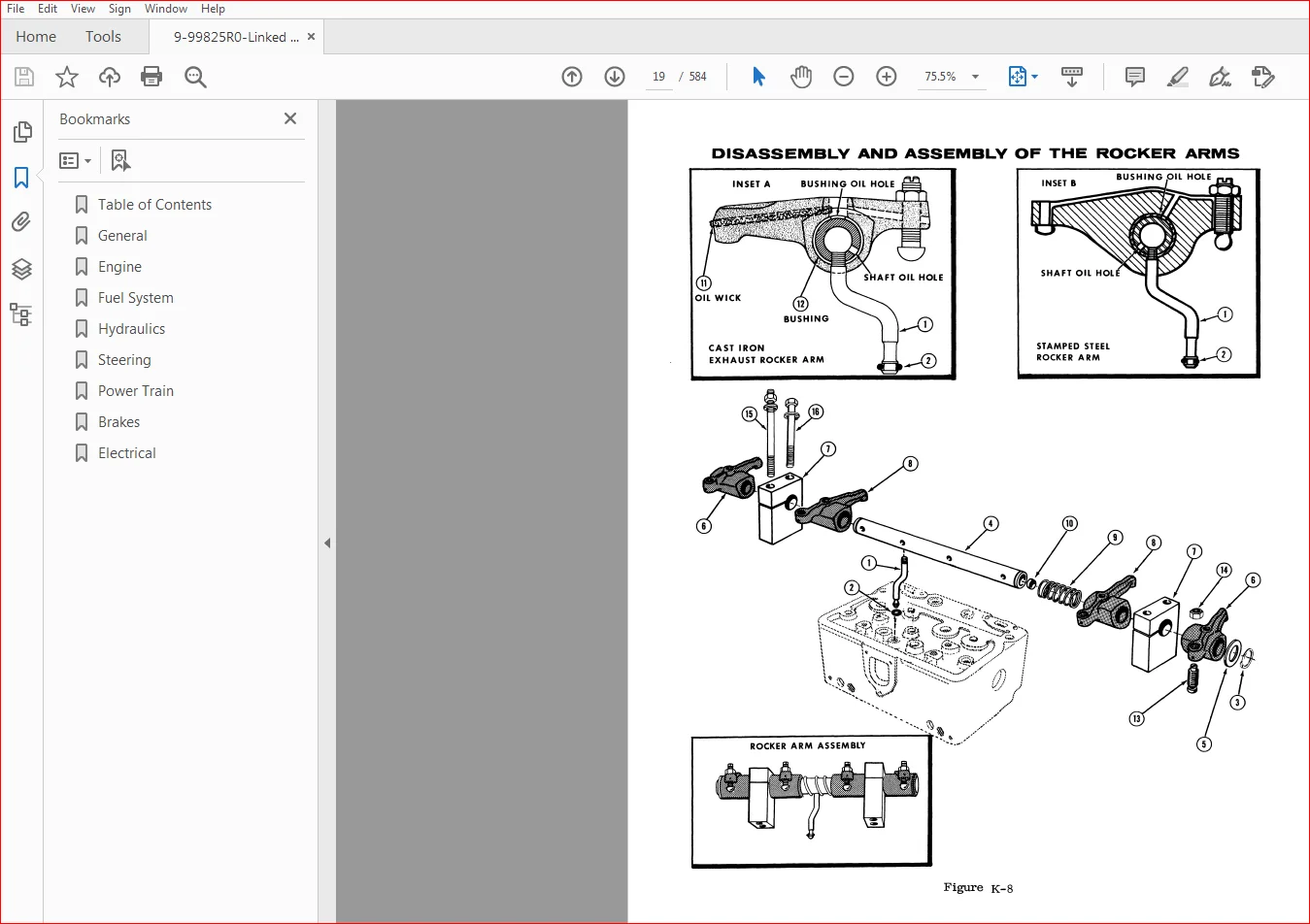

IMAGE PREVIEW:

SAMPLE PAGE OF THE MANUAL:

Case W8C,W9C,W10C Loaders Service Manual(9-99825R0) Case W8C,W9C,W10C Loaders

• Valve springs should be checked for flat squared ends, broken or cracked coils and correct springpressure.Use :1 Valve Spring Tension Tester. Refer to the “Specification” Section. Valve guides can be checked for wear by using a bore gauge and micrometer (Referto Figure K-lll’l‘he valve guide shouldbe check- ed at the top, middle and bottom of the bore iorwear.
• The inside dia- metor wear limits of the valve guide should not exceed the specification given in the “Spec- ification” Section, at any point along the bore of the guide. Replace guide if it does.
• Check the new valve guides after installation to make sure that the bore is not less than the inside diameter given in the “Specification”Seciion. Using an Arbor equal to the inside diameter of the valve guide will keep the guide from collapsing when pressed in place.
• Clean the valves with a power driven fine wire brush, being very careful not to scratch the valve stems.
• Reference is made to the dif- ferent parts of the valve (Refer to Figure K-lz.) Inspect the valves for excessive wear or necked stems (Refer to Figure K-13) . This can be caused by lack of lubrication, plugged or dirty water passages or operating the engine under continuous overload at excessive engine RPM. Valves should be replaced.

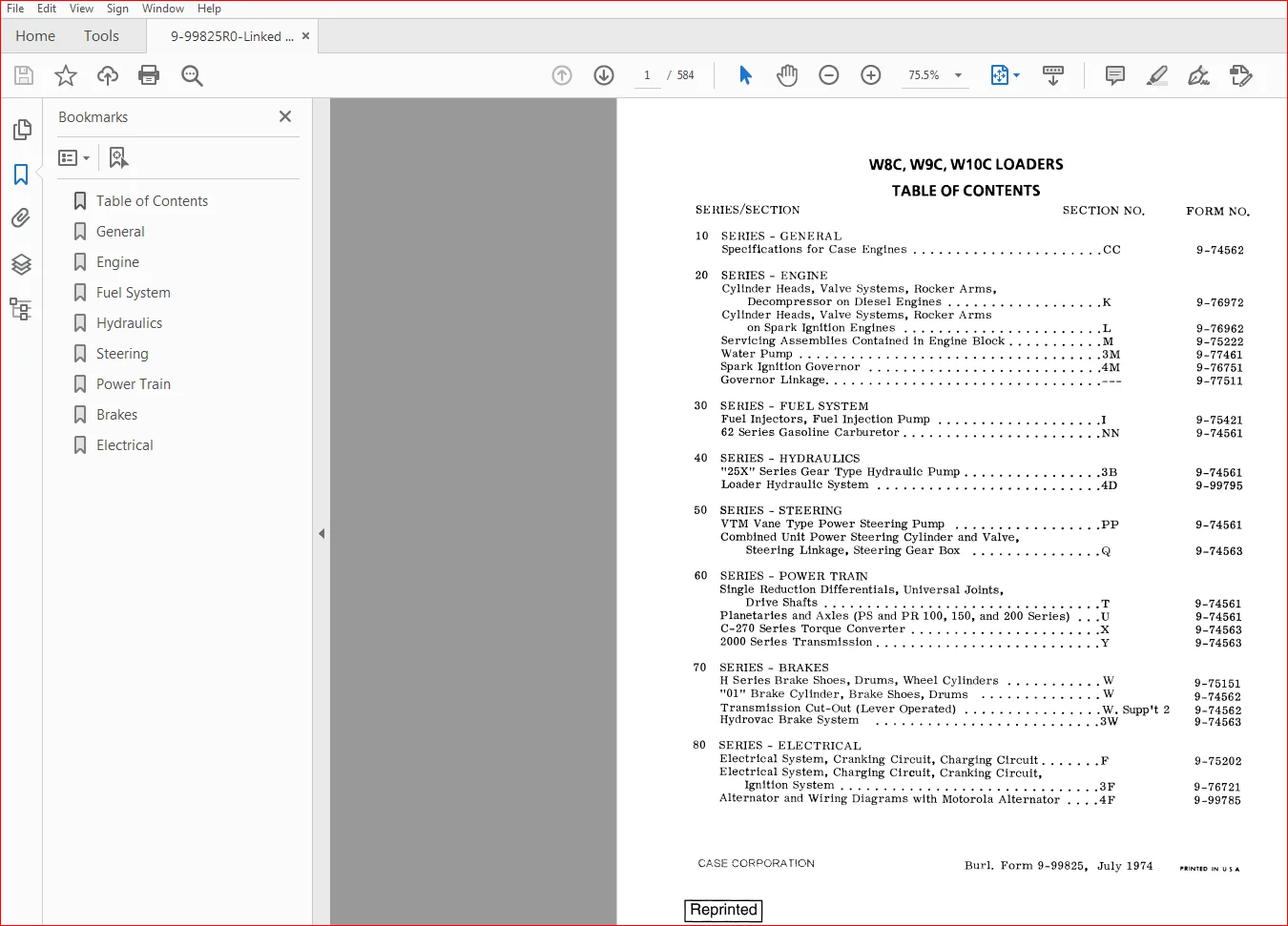

TABLE OF CONTENTS:

Case W8C,W9C,W10C Loaders Service Manual(9-99825R0) Case W8C,W9C,W10C Loaders

10 SERIES – GENERAL

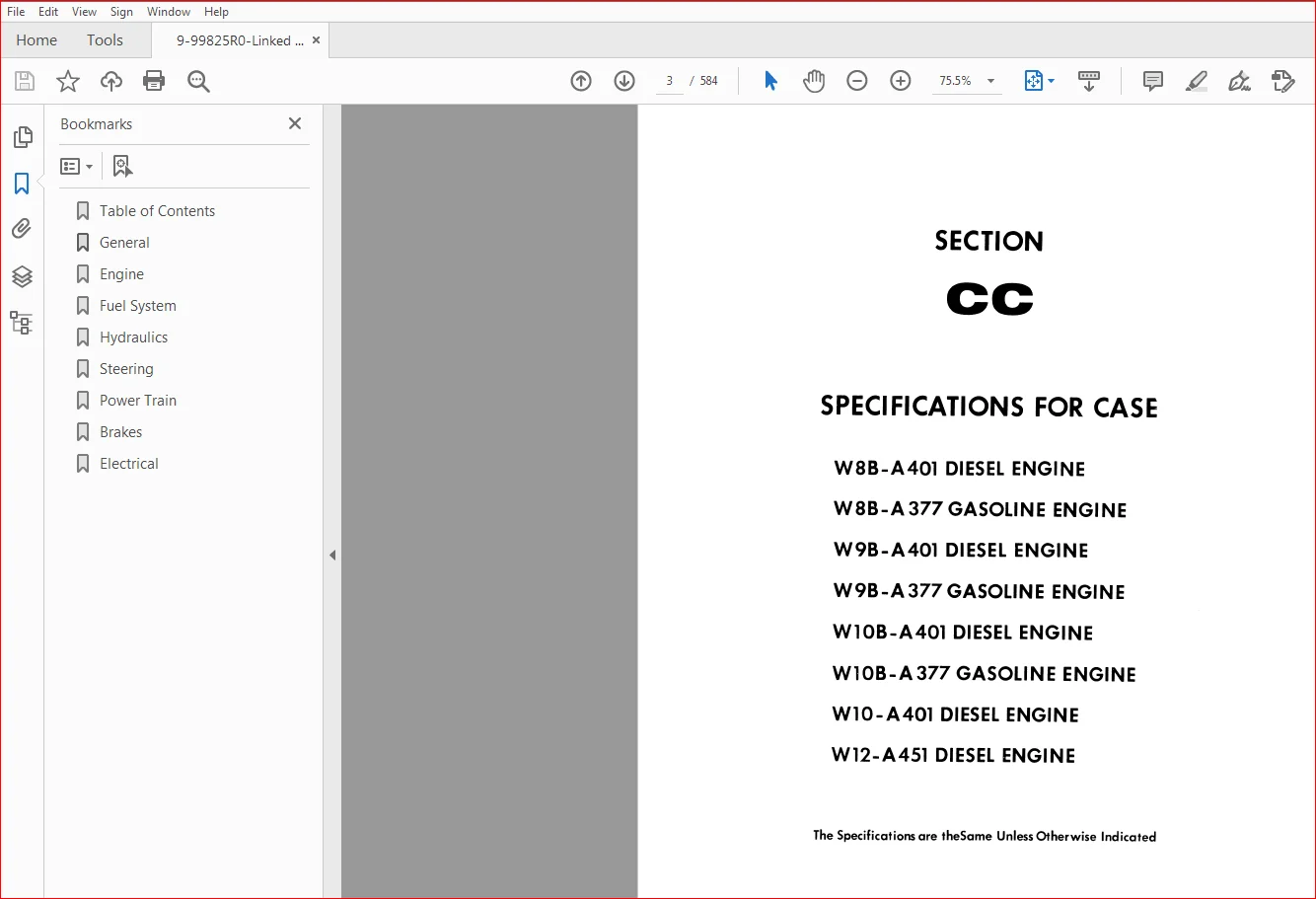

Specifications for Case Engines CC
20 SERIES — ENGINE
Cylinder Heads Valve Systems Rocker Arms
Decompressor on Diesel Engines K
Cylinder Heads Valve Systems Rocker Arms
onSparkIgnitionEngines L
Servicing Assemblies Contained in Engine Block M
WaterPump 3M
SparklgnitionGm-ernor ihl
GovernorLinkage —
30 SERIES – FUEL SYSTEM
Fuel Injectors Fuel Injection Pump
625eriesGasolineCarburetor NN
40 SERIES — HYDRAULICS
“25X” Series Gear Type Hydraulic Pump 38
maderHydrauIicSystem 4D
50 SERIES – STEERING
VTM Vane Type Power Steering Pump PP
Combined Unit Power Steering Cylinder and Valve
Steering Linkage Steering Gear Box Q
60 SERIES – POWER TRAIN
Single Reduction Differentials Universal Joints
Driveshafts T
Planetarles and Axles (PS and PR 100 150 and 200 Series) U
C-27OSeries’I‘orqueConverter X
20005uriesT‘ransmission Y
70 SERIES – BRAKES
H Series Brake Shoes Drums Wheel Cylinders W
“01” Brake Cylinder Brake Shoes Drums W
Transmissi0n Cut-Out (lever Operated) W
IIydrovach-akeSystem 3W
80 SERIES — ELECTRICAL
Electrical System (trunking Circuit Charging Circuit F
Electrical System Charging Circuit Cranking Circuit
lgnitionSystem 3F
Alternator and Wiring Diagrams with Motorola Alternator 4F
