Case W8,W9,W10 Loaders Service Manual (9-9996SRO) – PDF DOWNLOAD

Description

Case W8,W9,W10 Loaders Service Manual (9-9996SRO)

CASE W8,W9,W10 LOADERS SERVICE MANUAL (9-9996SRO) – PDF DOWNLOAD:

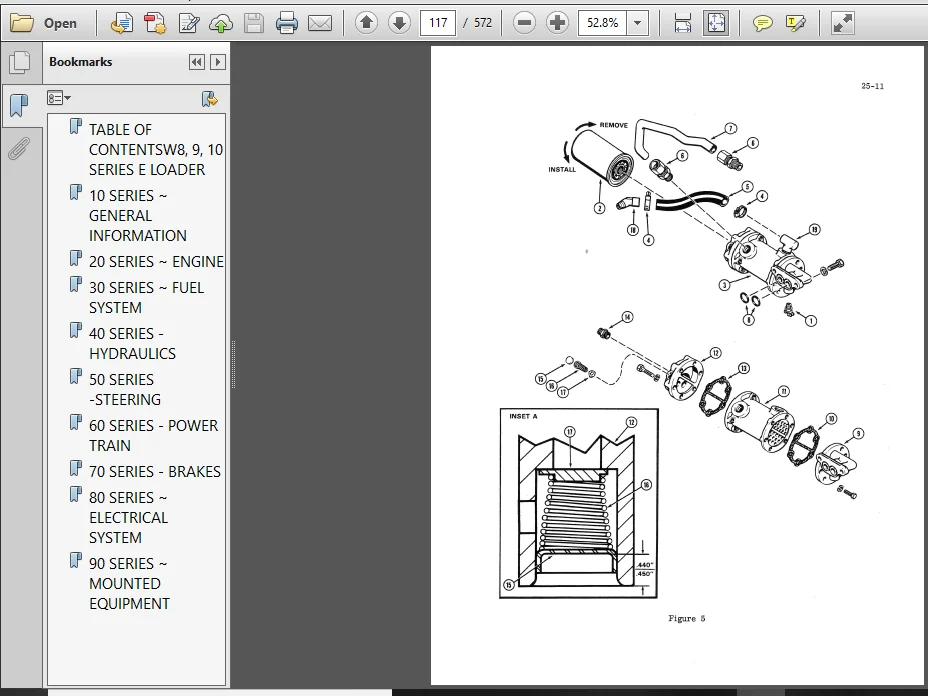

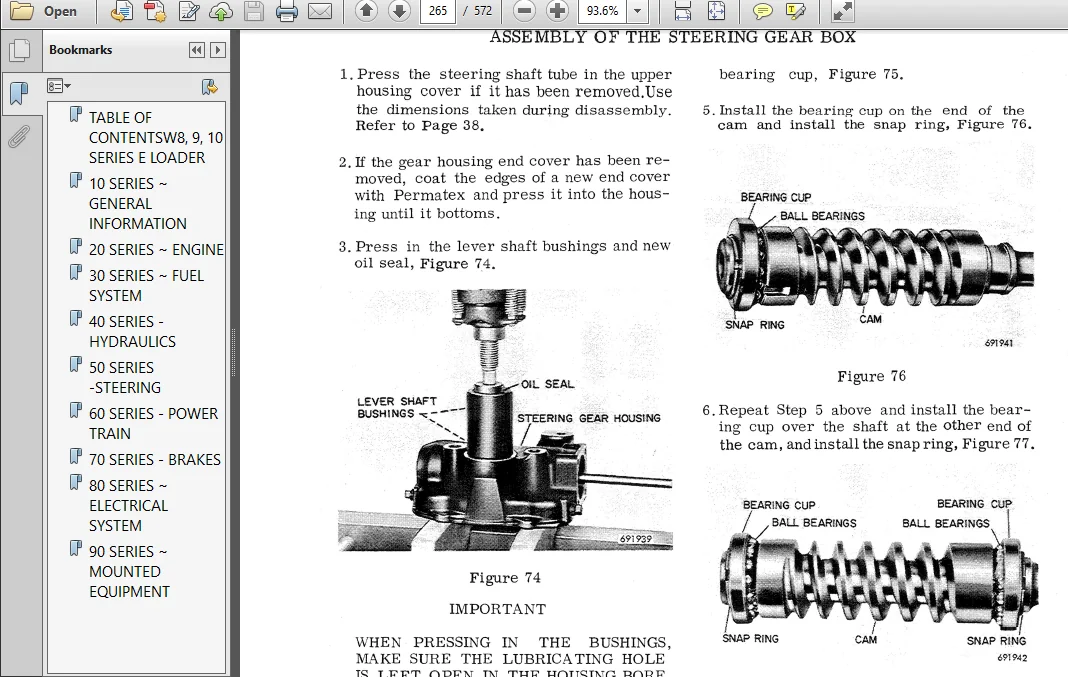

IMAGE PREVIEW:

DESCRIPTION:

Case W8,W9,W10 Loaders Service Manual (9-9996SRO)

SAFETY PRECAUTION
Care should be exercised to avoid expelled steam and coolant when servicing components of the cooling system or draining the system. The system is pressurized and there is a danger of being sprayed by hot coolant when opening drains or removing the radiator cap. Relieve the system pressure by turning the radiator cap counter-clockwise to the FIRST stop. This will allow a gradual reduction in pressure and minimize coolant loss. NEVER pour cold coolant into a hot engine. The engine block or cylinder heads might crack by the sudden contraction caused by the difference in temperature between the metal and the coolant.
CLEANING THE COOLING SYSTEM
It is recommended that the cooling system be cleaned at least once a year. In areas where water containing scale forming minerals is all that is available, clean the system more often.Add any nationally known commericial brand cleaner marketed by a reputable manufacturer. FOLLOW THE DIRECTIONS PROVIDED WITH THE CLEANER. Ifwater is used in the cooling system during the summer months, always add a reputable brand rust (or corrosion) inhibitor.

TABLE OF CONTENTS:

Case W8,W9,W10 Loaders Service Manual (9-9996SRO)

10 SERIES ~ GENERAL INFORMATION
Genera/Engine Specifications 11
Maintenance and Lubrication IX
20 SERIES ~ ENGINE
Cylinder Head and Valves (Diesel Engines) 22
Cylinder Head and Valves (Gasoline Engines) 22
EnginifBlock Assemblies 23
Water Pump, Pump Housing, Thermostats, Engine Oil Filter
and Heat Exchanger 25
Pierce GearDriven Governor • 26
30 SERIES ~ FUEL SYSTEM
Fuel System and Filter 31
Robert Bosch Fuel Injection Pump 32
Roosa Master Fuel Injectors 33
62 Series Carburetor , 35
40 SERIES – HYDRAULICS
Hydraulic System VI
Servicing the 25X Series Gear Type Hydraulic Pump 3B
50 SERIES -STEERING
Servicing the Combined Unit Power Steering Cylinder and Valve,
Steering Linkage and Gear Box : Q
Servicing the VTM Vane Type Power Steering Pump PP
60 SERIES – POWER TRAIN
Servicing the Single-Reduction Differentials Universal Joints
and Drive Shafts • T
Supplement No 1 Servicing the Single-Reduction Differentials T
Servicing the Planetaries and Axles U
Servicing the C-270 Series Torque Converter X
Servicing the 2000 Series Transmission Y
70 SERIES – BRAKES
Servicing the Series 01 Hydraulic Brake Cylinder,
Brake Shoes and Drums •• W
Supplement No 2 ServiCing the Transmission Cut-out Control Valve
(Lever Operated) W
Servicing the Hydrovac Brake System 3W
80 SERIES ~ ELECTRICAL SYSTEM
Electrical System 11
90 SERIES ~ MOUNTED EQUIPMENT
Loader VIII

PLEASE NOTE:

⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
