Cat 312C Track-Type Excavator Parts Manual – PDF DOWNLOAD

Description

Cat 312C Track-Type Excavator Parts Manual – PDF DOWNLOAD

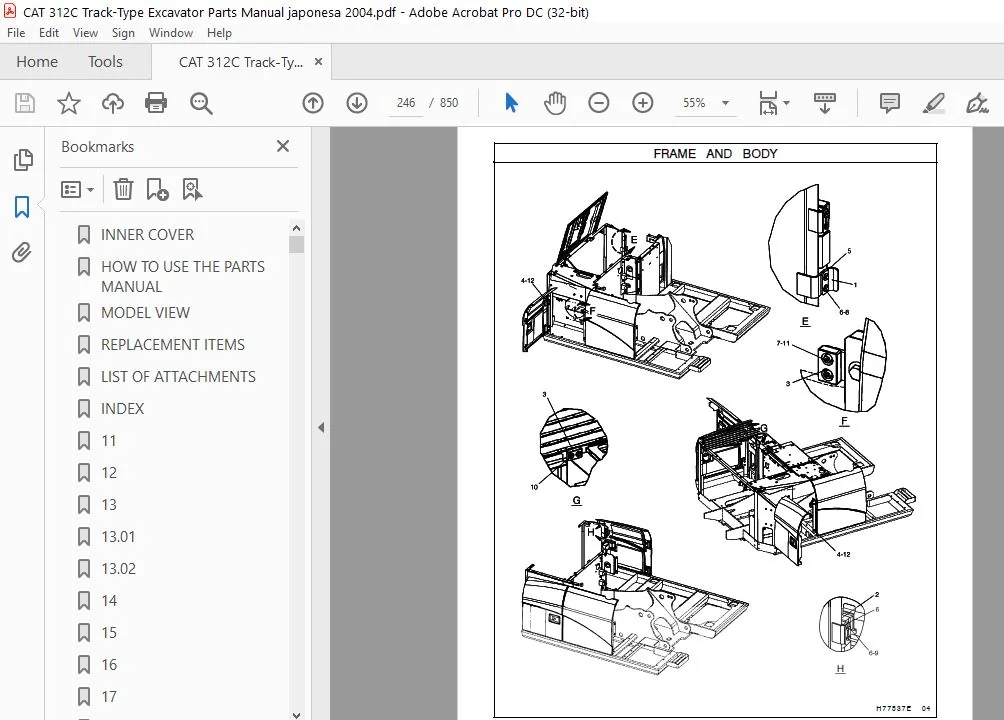

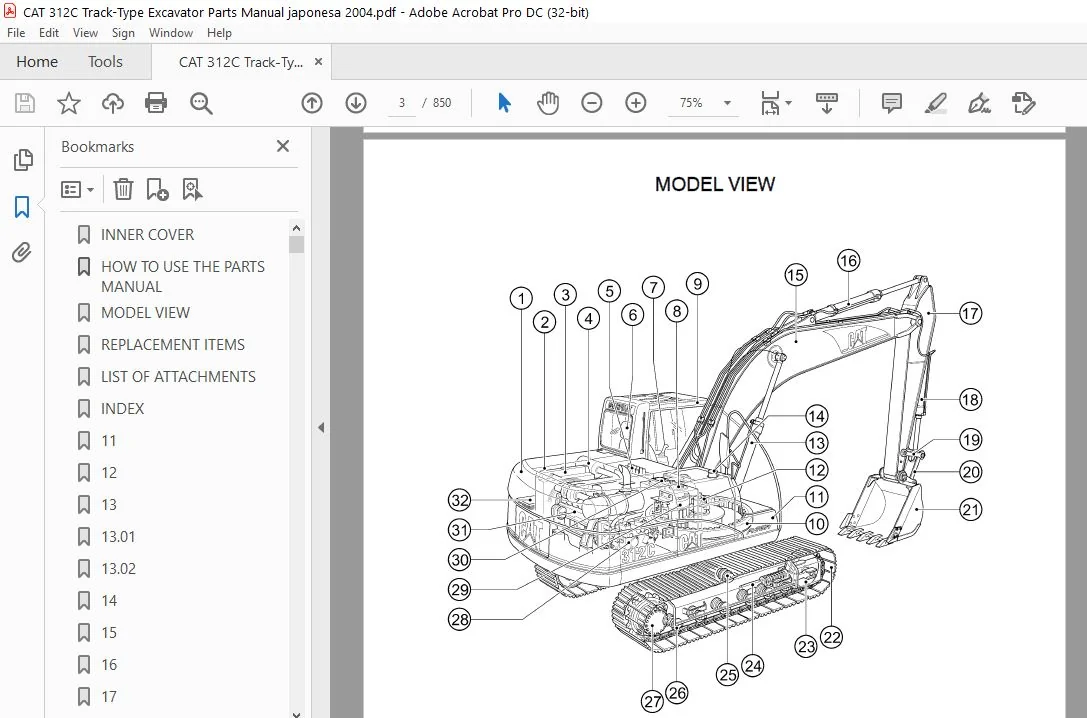

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat 312C Track-Type Excavator Parts Manual – PDF DOWNLOAD

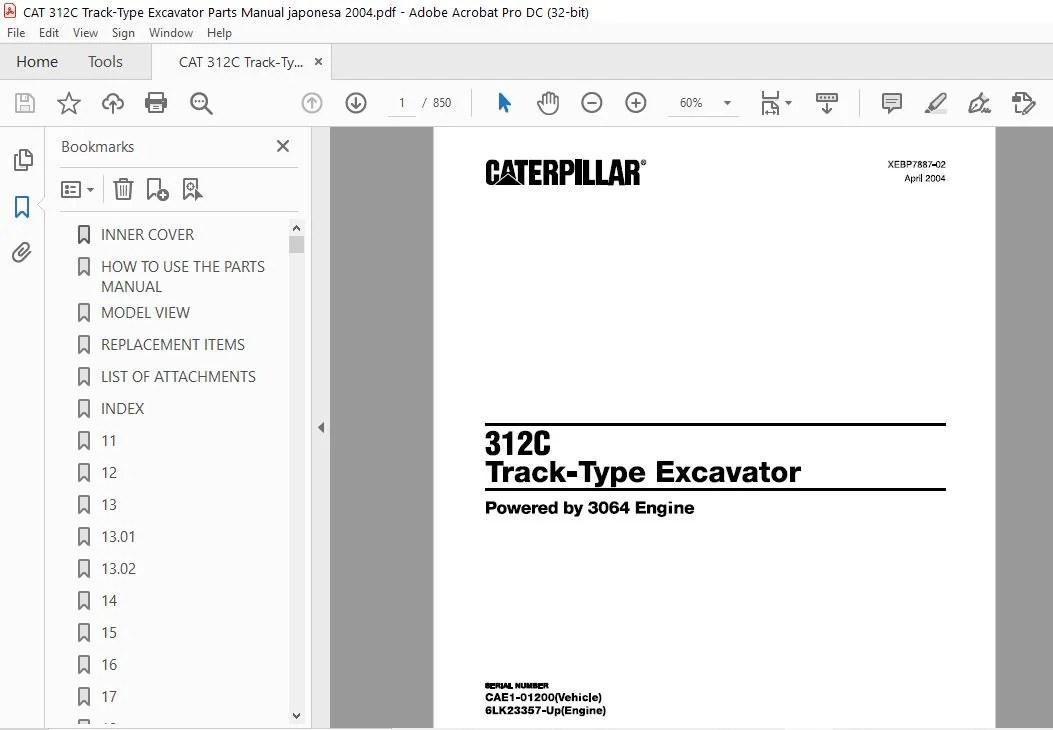

Powered by 3064 Engine
SERIAL NUMBER
CAE1201 To Last Built(Vehicle)
6LK26372 To Last lnstalled(Engine)

HOW TO USE THE PARTS MANUAL :

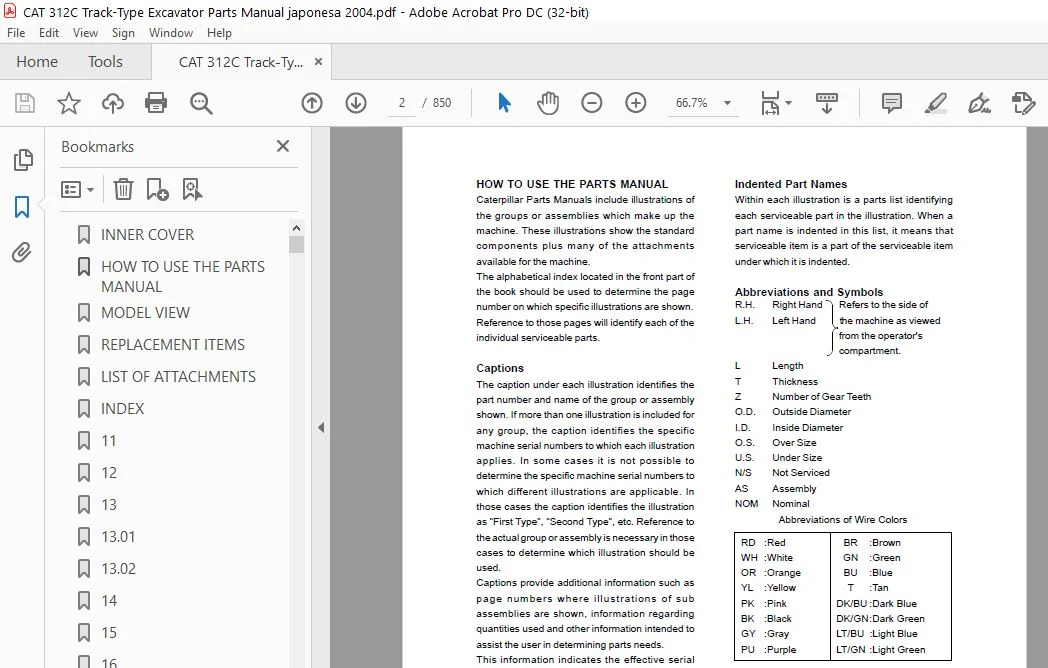

• Caterpillar Parts Manuals include illustrations of the groups or assemblies which make up the machine. These illustrations show the standard components plus many of the attachments available for the machine.
• The alphabetical index located in the front part of the book should be used to determine the page number on which specific illustrations are shown. Reference to those pages will identify each of the individual serviceable parts.

Captions :

The caption under each illustration identifies the part number and name of the group or assembly shown. If more than one illustration is included for any group, the caption identifies the specific machine serial numbers to which each illustration applies.

• In some cases it is not possible to determine the specific machine serial numbers to which different illustrations are applicable. In those cases the caption identifies the illustration as “First Type”, “Second Type”, etc. Reference to the actual group or assembly is necessary in those cases to determine which illustration should be used.
• Captions provide additional information such as page numbers where illustrations of sub assemblies are shown, information regarding quantities used and other information intended to assist the user in determining parts needs. This information indicates the effective serial number or effective date on which changes became effective.

Example :
D95.05- : Applicable on and after May 1995
D indicates the nineteen hundreds.
T00.05- : Applicable on and after May 2000
T indicates the two thousands.

TABLE OF CONTENTS:

Cat 312C Track-Type Excavator Parts Manual – PDF DOWNLOAD

A
ACCUMULATOR GP 294
ADJUSTER GP – BUCKET 684
ADJUSTMENT GP – HYDRAULIC TRACK 251
AIR CLEANER AR 55
AIR CLEANER GP 51
AIR CONDITIONER & MOUNTING GP 606
AIR CONDITIONER GP 605
ALARM GP 142
ALARM GP – TRAVEL 176
ALTERNATOR GP – CHARGING 174
ARM AS – WIPER 557
B
BATTERY & WIRING AR – COLD WEATH 92
BATTERY & WIRING GP 86
BATTERY & WIRING GP – COLD WEATH 93
BLADE & MOUNTING GP 651
BLADE AR 633
BLADE GP 654
BLOCK GP – HYDRAULIC 292
BOOM AR 628
BOOM AR – 1 PIECE LONG 628
BOOM GP 638
BOX & MTG GP – STORAGE 227
BOX GP – STORAGE 228
BREATHER GP 33
BUCKET & ADJUSTER GP 674
BUCKET AR 669
BUCKET AS 679
BUMPER SET 244
C
CAB GP 513
CAB GP (BASIC) 516
CAB GP – EXTERIOR 536
CAB GP – INTERIOR 524
CABLE AS 100
CAMSHAFT GP 22
CARTRIDGE AS – TURBOCHARGER 65
COMPRESSOR GP – REFRIGERANT 624
CONDENSER & MTG GP – REFRIGERANT 626
CONSOLE GP 590
592 01
CONSOLE GP – OPERATOR 589
CONTROL & MTG GP – ELECTRONIC 168
CONTROL AR 168 01
CONTROL AR – AUXILIARY 354
CONTROL AR – QUICK COUPLER 358
CONTROL GP – BLADE 442
CONTROL GP – ELECTRIC HAND 194 01
CONTROL GP – ELECTRONIC 170
CONTROL GP – GOVERNOR 84
CONTROL GP – HYDRAULIC 443
CONTROL GP – PILOT OPERATED HYD 436
440
COOLER AR 49
COOLER GP – ENGINE OIL 46
COUNTERWEIGHT GP 232
COUPLING GP – PUMP 275
COVER GP 219
559
COVER GP – STORAGE BOX 230
COVER GP – VALVE MECHANISM 20
CRANKSHAFT GP 21
CYLINDER & LINES GP – BLADE 297
CYLINDER & LINES GP – BOOM 295
CYLINDER & LINES GP – BUCKET 296
CYLINDER & LINES GP – STICK 296
CYLINDER & SEAL GP – BLADE 301
CYLINDER & SEAL GP – BOOM 298
CYLINDER & SEAL GP – BUCKET 300
CYLINDER & SEAL GP – STICK 299
CYLINDER BLOCK GP 18
CYLINDER GP – BLADE 307
CYLINDER GP – BOOM 303
CYLINDER GP – BUCKET 306
CYLINDER GP – STICK 304
CYLINDER HEAD GP 15
Name Page Name Page
INDEX
D
DOOR GP – CAB 539
DOOR GP – HOOD 217
DRIVE AS – WINDSHIELD – AUTO 550
DRIVE GP – SWING 424
DUCT AS 612
DUCT GP – AIR 610
E
ELECTRONICS GP 169
ENGINE AR 11 01
F
FAN GP – SUCTION 50
FASTENER GP – SWING & FINAL DR 202
FENDER & COVER GP 231
FILM GP 701
FILTER GP – ENGINE OIL 34
FILTER GP – FUEL 72
FILTER GP – HYDRAULIC 286
FINAL DRIVE GP 196
FLYWHEEL GP 27
FRAME AS – UNDERCARRIAGE 245
FRAME GP – UPPER 242
G
GEAR & BEARING GP – SWING 238
GEAR GP – FRONT 24
GUARD AR – OVERHEAD 574
GUARD GP – BLADE CYLINDER 320
GUARD GP – BOTTOM 221
GUARD GP – BUCKET CYLINDER 321
GUARD GP – FRONT WINDOW 576
GUARD GP – OVERHEAD 575
GUARD GP – SNOW 226
GUARD GP – SWIVEL 224
GUARD GP – TRACK GUIDE 255
GUARD GP – TRAVEL MOTOR 256
H
HANDHOLD GP 225
HARNESS AS 94
HARNESS AS – CONSOLE 129
HARNESS AS – WIRING 128 02
HATCH AS 544
HATCH GP 543
HEAD GP – PUMP CONTROL 284
HEADREST AS 604
HEATER & MTG GP – CAB 618
HEATER AR – CAB 617
HEATER GP – CAB 620
HOOD & GUARD GP 204
HOOD GP 216
HOOD GP – ENGINE 215
HORN GP – ELECTRIC 583
HOUSING GP – FILTER 293
HOUSING GP – FLYWHEEL 26
HOUSING GP – FRONT 25
I
IDLER GP – FRONT 247
K
KNOB AS 438
Name Page Name Page
INDEX
L
LAMP GP – FLOOD 187
LEVER GP 587
LIGHTING GP – BOOM 182
LIGHTING GP – CAB 178
LIGHTING GP – CHASSIS 177
LINES AR – AUXILIARY HYDRAULIC 328
LINES GP – AIR 59
LINES GP – AIR CONDITIONER 614
LINES GP – AUXILIARY HYDRAULIC 330
LINES GP – BLADE CYL & VALVE 410
LINES GP – BLADE CYLINDER 317
LINES GP – BOOM 322
LINES GP – BOOM CYLINDER 310
LINES GP – BUCKET CYLINDER 316
LINES GP – DRAIN 61
LINES GP – ENGINE OIL 32
LINES GP – FRONT 386
LINES GP – FUEL 70
LINES GP – GREASE 657
LINES GP – HEATER 622
LINES GP – OIL DRAIN 37
LINES GP – PILOT 360
LINES GP – PUMP 352
LINES GP – QUICK COUPLER 332
LINES GP – RETURN & FILTER 416
LINES GP – STICK 325
LINES GP – STICK CYLINDER 314
LINES GP – SWING MOTOR 422
LINES GP – TRAVEL MOTOR 350
LINES GP – TURBOCHARGER OIL 36
LINES GP – WATER 48
LINK AS 592
LINK AS – TRACK 261
LINKAGE AR – BUCKET 631
LINKAGE AR – FRONT 631 02
LINKAGE GP – BUCKET 660
LITERATURE GP 605
M
MANIFOLD GP – EXHAUST 63
MANIFOLD GP – INLET 62
MIRROR GP – REAR VIEW 584
MONITOR & MTG GP – OPERATOR 563
MONITOR GP – OPERATOR 564
MOTOR GP – TRAVEL 431 01
MOTOR AS – WINDOW WIPER 558
MOTOR GP – SWING 430
MOUNTING GP 170 02
MOUNTING GP – ALTERNATOR 29
MOUNTING GP – ENGINE 30
MOUNTING GP – GREASE GUN 220
MOUNTING GP – STARTING MOTOR 171
MOUNTING GP – VALVE 447
MUFFLER GP 58
N
NOZZLE GP – UNIT INJECTOR 82
P
PAN GP – OIL 28
PANEL GP – CIRCUIT BREAKER 104
PISTON & ROD GP 23
PLATE & FILM GP 694
PLATFORM GP – OPERATOR 585
PULLEY GP 31
PUMP & MOUNTING GP 273
PUMP AS – WATER 47
PUMP GP – FUEL INJECTION 76
PUMP GP – MAIN HYDRAULIC 276
R
RADIATOR & HYD OIL COOLER GP 38
RADIO GP – AM 571
RADIO GP – AM/FM 572
ROLLER AR – TRACK & CARRIER 252
Name Page Name Page
INDEX
ROLLER GP – TRACK CARRIER 254
ROLLER GP – TRACK – SINGLE FLANGE 253
S
SCREEN GP 272
SEAT BELT GP 602
SEAT GP 594
SEPARATOR – WATER 71 01
SIDECUTTER GP 685
SPECIAL AR 11
SPRING GP – RECOIL 250
SPROCKET GP – NONSEGMENTED 195
STARTING MOTOR GP – ELECTRIC 172
STICK AR – COUPLER 630
STICK AR – HOE 629
STICK GP 645
STICK GP – COUPLER 650
STICK GP – HOE 644
SUPPORT GP – SEAT 593
SUSPENSION GP – SEAT 599
SWITCH AS 123 01
SWITCH AS – DISCONNECT 120
SWITCH AS – MAGNETIC 121
SWITCH AS – ROLLER 191
SWITCH AS – ROTARY 138
SWITCH GP – START 137
SWIVEL GP 432
T
TANK & FILTER GP – HYDRAULIC 264
TANK & MTG GP – FUEL 67
TANK & MTG GP – HYDRAULIC 262
TANK AS – WINDOW WASHER 570
TANK GP – FUEL 68
TIMER AS 124
TIP GP 689
TIP GP – ABRASION 688
TIP GP – LONG 686
TIP GP – PENETRATION 689
TIP GP – SHORT 687
TIP GP – WIDE 686
TOOL AR 692
TOOL GP 693
TRACK GP 258
TURBOCHARGER GP 64
V
VALVE & MOUNTING GP 448
VALVE AR 358
VALVE AR – BOOM LOWERING CONTROL 359
VALVE AR – STICK LOWERING CONT 359
VALVE AS – BALL 512
VALVE GP – CHECK 489
VALVE GP – CONTROL 460
VALVE GP – MAIN CONTROL 450
VALVE GP – PILOT 434
VALVE GP – PRESS REDUCING SOL 485
VALVE GP – PRESSURE REDUCING 484
VALVE GP – RELIEF 470
VALVE GP – SELECTOR 492
VALVE GP – SHUTTLE 510
VALVE GP – SOLENOID 486
VALVE MECHANISM GP 16
VISOR GP – PROTECTION – RAIN 581
VISOR GP – SUN 582
Name Page Name Page
INDEX
W
WASHER GP – WINDOW 568
WINDOW AS 555
WINDOW GP 546
WINDOW GP – DOOR 542
WIPER & WASHER GP – WINDOW 566
WIPER AR – WINDOW 565
WIPER GP – WINDOW 556
WIRING GP 151
WIRING GP – CAB 140
WIRING GP – CONSOLE 125
WIRING GP – LOWER WIPER 154
WIRING GP – QUICK COUPLER 128
