Caterpillar 416C 426C 428C & 438C Backhoe Loaders Operation & Maintenance Manual – PDF DOWNLOAD

Description

Caterpillar 416C 426C 428C & 438C Backhoe Loaders Operation & Maintenance Manual

FILE DETAILS:

Caterpillar 416C 426C 428C & 438C Backhoe Loaders Operation & Maintenance Manual

Language: English
Size: 13.3  MB
Pages:  49
Format: PDF
Downloadable: YES

DESCRIPTION:

Caterpillar 416C 426C 428C & 438C Backhoe Loaders Operation & Maintenance Manual

Maintenance Interval Schedule:

All safety information, warnings, and instructions must be read and understood before you perform any operation or any maintenance procedure. Before each consecutive interval is performed, all of the maintenance requirements from the previous interval must also be performed.

• The normal oil change interval is Every 500 Service Hours or Three Months. If the engine is operated under severe conditions or if the oil is not Caterpillar oil, change the oil after Every 250 Service Hours or after One Month. Severe conditions include the following factors: high temperatures, continuous high loads, and extremely dusty conditions.
• Refer to the results of the S·O·S oil analysis in order to determine if the oil change interval should be decreased to 250 hours. Consult your Caterpillar Dealer for detailed information regarding the optimum oil change interval. Note: Certain machines are equipped with engines that require the engine valve lash to be checked every 1000 service hours or 6 months. Refer to the Operation and Maintenance Manual, “Engine Valve Lash – Check” for further information.

TABLE OF CONTENTS:

Caterpillar 416C 426C 428C & 438C Backhoe Loaders Operation & Maintenance Manual

Air Conditioner Test
Battery Recycle
Battery Electrolyte Level Check
Battery or Battery Cable Replace
Bucket Cutting Edges Inspect/Replace
Bucket Tips Inspect/Replace
Engine Air Filter Primary Element
Clean/Replace
Engine Air Filter Secondary Element Replace
Fuel System Prime
Fuses Replace
Oil Filter Inspect
Radiator Core Clean
Window Wipers Inspect/Replace
Every Service Hours or Daily
Backhoe Boom, Stick, Bucket, and Cylinder Bearings
Lubricate
Backup Alarm Test
Brake Reservoir Oil Level Check
Braking System Test
Cooling System Level Check
Engine Air Filter Service Indicator Inspect
Engine Oil Level Check
Extendable Stick Pads Inspect/Replace
Fuel System Water Separator Drain
Hydraulic System Oil Level Check
Kingpin Bearings (Front) Lubricate
Loader Bucket, Cylinder, and Linkage Bearings
Lubricate
Seat Belt Inspect
Secondary Steering Test
Stabilizer and Cylinder Bearings Lubricate
Swing Frame and Cylinder Bearings Lubricate
Tire Inflation Check
Transmission Oil Level Check
WalkAround Inspection
Wheel Nut Torque Check
Windows Clean
Every Service Hours or Weekly
Axle Universal Joint (Front) Lubricate
Cab Air Filter Clean/Replace
Fuel Tank Water and Sediment Drain
Parking Brake Check/Adjust
Every Service Hours or Monthly
Axle Universal Joint (Rear) Lubricate
Cooling System Coolant Additive (DEAC) Add
Differential Oil Level (Front) Check
Differential Oil Level (Rear) Check
Engine Oil and Filter Change
Final Drive Oil Level (Front) Check
Final Drive Oil Level (Rear) Check
Kingpin Bearings (Rear) Lubricate
Sideshift Stabilizer Wear Pads Inspect
VBelts Inspect/Adjust/Replace
Every Service Hours or Months
Drive Shaft Spline Lubricate
Engine Oil and Filter Change
Fuel System Filter Replace
Fuel System Water Separator Element
Replace
Hydraulic System Oil Filter Replace
Transmission Oil Filter Replace
Every Service Hours or Months for
Machines Used in Severe (% or more of
loader work) Applications
Differential Oil (Rear) Change
Every Service Hours or Months
Differential Oil (Front) Change
Differential Oil (Rear) Change
Engine Valve Lash Check
Final Drive Oil (Front) Change
Final Drive Oil (Rear) Change
Rollover Protective Structure (ROPS) Inspect
Maintenance Section
Maintenance Interval Schedule
Transmission Magnetic Screen Clean
Transmission Oil Change
Wheel Bearings (Front) Lubricate
Every Service Hours or Year
Engine Valve Lash Check
Hydraulic System Oil Change
Every Service Hours or Years
Cooling System Coolant (DEAC) Change
Cooling System Coolant Extender (ELC) Add
Cooling System Water Temperature Regulator
Clean/Replace
Every Service Hours or Years
Cooling System Coolant (ELC) Change

CATERPILLAR 416C 426C 428C & 438C BACKHOE LOADERS OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD:

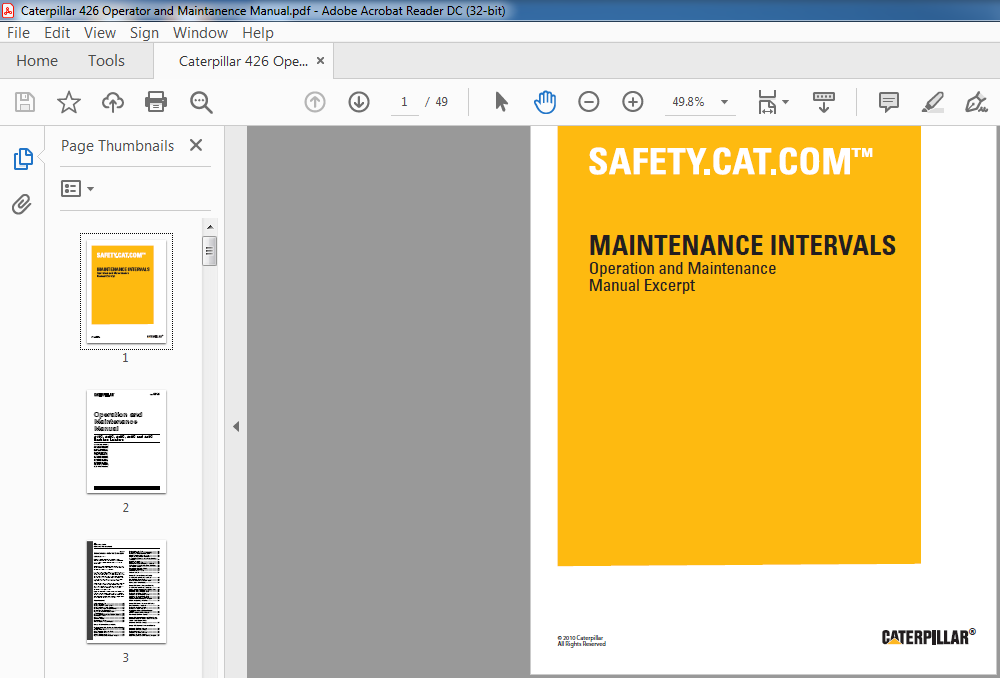

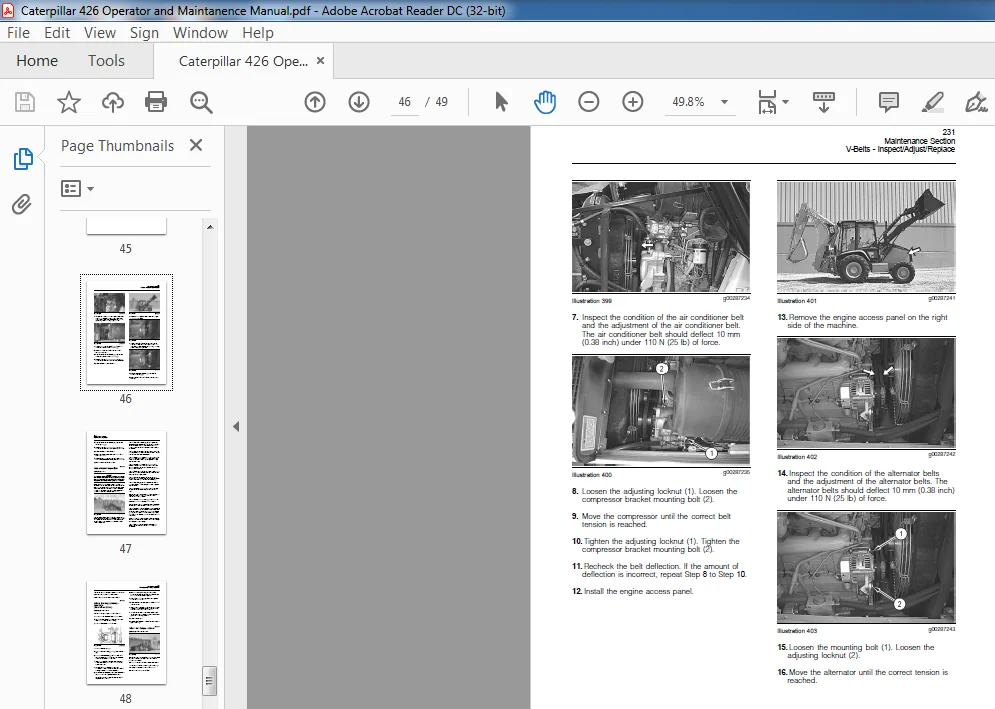

IMAGES PREVIEW OF THE MANUAL:
