Cat 320C U 320C LU Track-Type Excavators (3066 Engine) Parts Manual – PDF DOWNLOAD

Description

Caterpillar 320C U 320C LU Track-Type Excavators (3066 Engine) Parts Manual – PDF DOWNLOAD

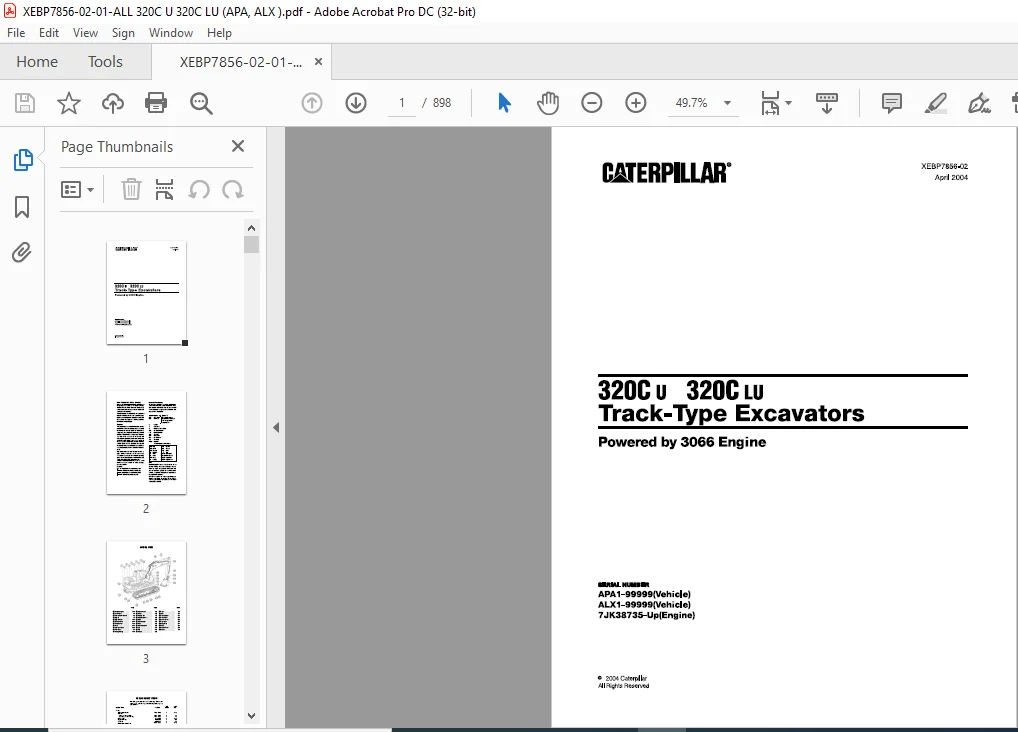

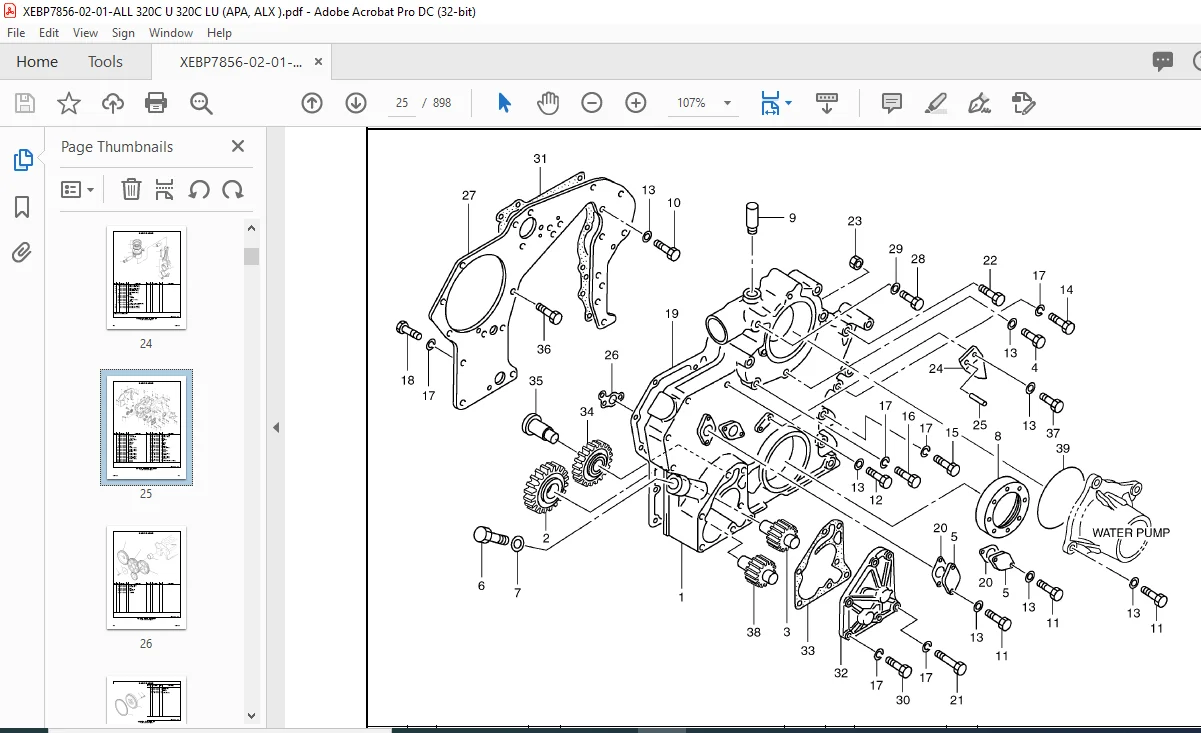

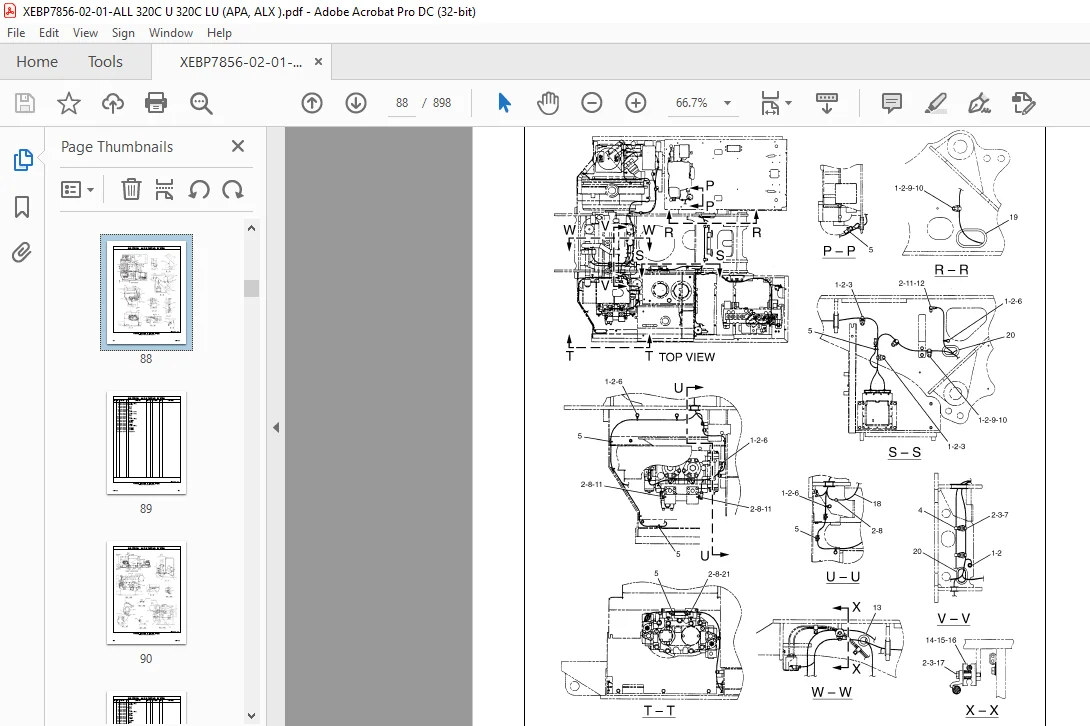

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Caterpillar 320C U 320C LU Track-Type Excavators (3066 Engine) Parts Manual – PDF DOWNLOAD

SERIAL NUMBER
АРА 1-99999(Vehicle)
ALX1-99999(Vehicle)
7 JK38735-Up(Engine)

HOW TO USE THE PARTS MANUAL:

Caterpillar Parts Manuals include illustrations of the groups or assemblies which make up the machine. These illustrations show the standard components plus many of the attachments available for the machine. The alphabetical index located in the front part of the book should be used to determine the page number on which specific illustrations are shown. Reference to those pages will identify each of the individual serviceable parts.

Captions :

• The caption under each illustration identifies the part number and name of the group or assembly shown. If more than one illustration is included for any group, the caption identifies the specific machine serial numbers to which each illustration applies. In some cases it is not possible to determine the specific machine serial numbers to which different illustrations are applicable. In those cases the caption identifies the illustration as “First Type”, “Second Type”, etc. Reference to the actual group or assembly is necessary in those cases to determine which illustration should be used.
• Captions provide additional information such as page numbers where illustrations of sub assemblies are shown, information regarding quantities used and other information intended to assist the user in determining parts needs. This information indicates the effective serial number or effective date on which changes became effective.

Example :

Indented Part Names :

Within each illustration is a parts list identifying each serviceable part in the illustration. When a part name is indented in this list, it means that serviceable item is a part of the serviceable item under which it is indented.

TABLE OF CONTENTS:
