Cat 320D RR 320D LRR Track-Type Excavator (3066 Engine) Parts Manual – PDF DOWNLOAD

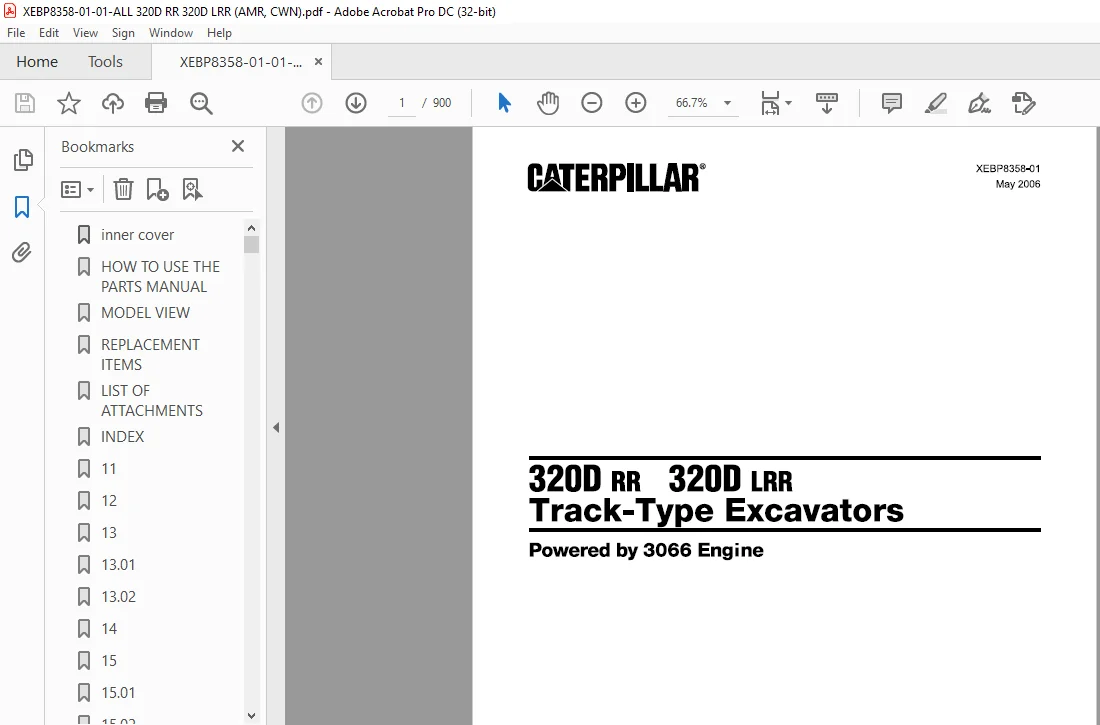

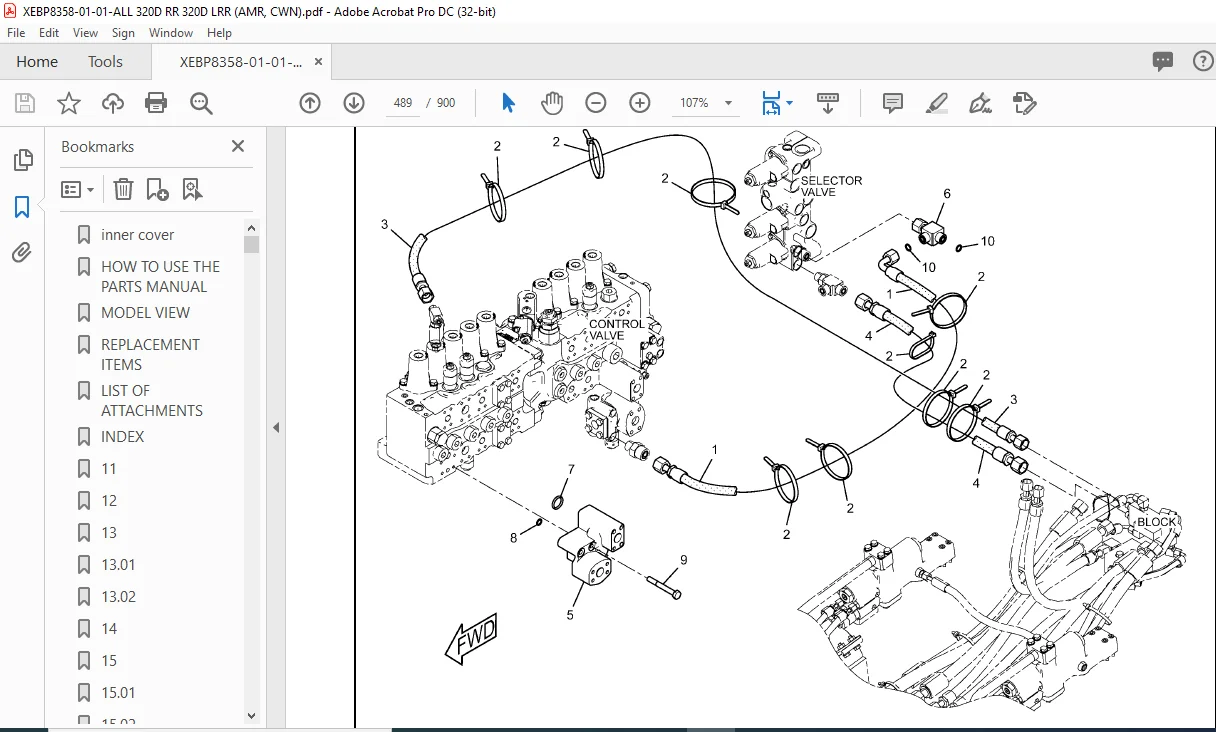

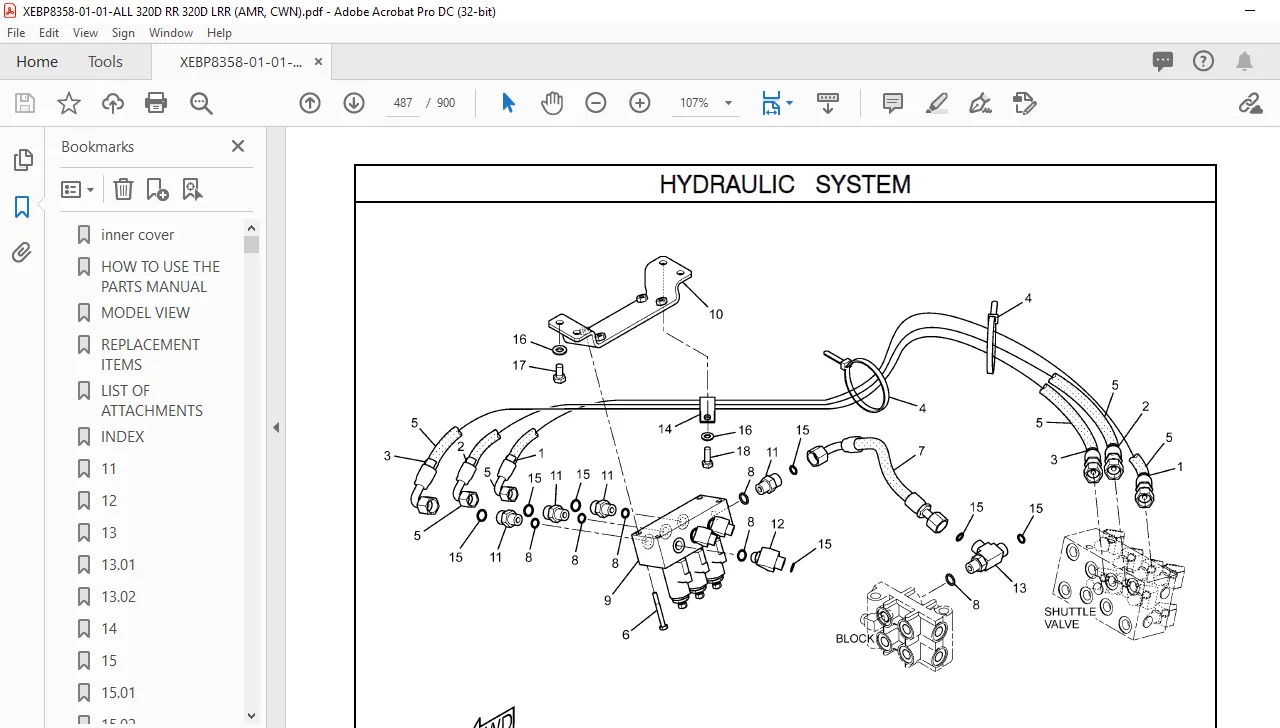

IMAGES PREVIEW OF THE MANUAL:
Cat 320D RR 320D LRR Track-Type Excavator (3066 Engine) Parts Manual – PDF DOWNLOADCat 320D RR 320D LRR Track-Type Excavator (3066 Engine) Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Cat 320D RR 320D LRR Track-Type Excavator (3066 Engine) Parts Manual – PDF DOWNLOAD
SERIAL NUMBER
AMR1-Up(Vehicle)
CWN1-Up(Vehicle)
7 JK89999-Up(Engine
HOW TO USE THE PARTS MANUAL:
Caterpillar Parts Manuals include illustrations of the groups or assemblies which make up the machine. These illustrations show the standard components plus many of the attachments available for the machine. The alphabetical index located in the front part of the book should be used to determine the page number on which specific illustrations are shown. Reference to those pages will identify each of the individual serviceable parts.
Captions :
The caption under each illustration identifies the part number and name of the group or assembly shown. If more than one illustration is included for any group, the caption identifies the specific machine serial numbers to which each illustration applies. In some cases it is not possible to determine the specific machine serial numbers to which different illustrations are applicable. In those cases the caption identifies the illustration as “First Type”, “Second Type”, etc. Reference to the actual group or assembly is necessary in those cases to determine which illustration should be used.
Captions provide additional information such as page numbers where illustrations of sub assemblies are shown, information regarding quantities used and other information intended to assist the user in determining parts needs. This information indicates the effective serial number or effective date on which changes became effective.
Example:
D95.05- : Applicable on and after May 1995
D indicates the nineteen hundreds.
T00.05- : Applicable on and after May 2000
T indicates the two thousands.
Indented Part Names :
Within each illustration is a parts list identifying each serviceable part in the illustration. When a part name is indented in this list, it means that serviceable item is a part of the serviceable item under which it is indented.
TABLE OF CONTENTS:
Cat 320D RR 320D LRR Track-Type Excavator (3066 Engine) Parts Manual – PDF DOWNLOAD
A
ACCUMULATOR GP 348
ADJUSTER GP – BUCKET 750
ADJUSTER KIT – LOWER SLIDE 669
ADJUSTER KIT – UPPER SLIDE 666
AIR CLEANER GP 57
AIR CONDITIONER & MOUNTING GP 682
AIR CONDITIONER AR 680
AIR CONDITIONER GP 684
ALARM GP 116
ALARM GP – TRAVEL 213
ALTERNATOR GP – CHARGING 208
ARM AS – WIPER 609
ARMREST GP 646
B
BATTERY & WIRING GP 86
BATTERY & WIRING GP – COLD WEATH 152
BLOCK GP – HYDRAULIC 329
BODY GP 268
BOOM AR – 1 PIECE LONG 701
BOOM GP 708
BOX & MTG GP – STORAGE 258
BOX GP – STORAGE 260
BRACKET KIT – CONSOLE 667
BREATHER GP 43
BUCKET & ADJUSTER GP 738
BUCKET AR 732
BUCKET AS – EXCAVATION 744
BUMPER GP – SIDE 288
C
CAB GP 582
CAB GP (BASIC) 586
CAB GP – EXTERIOR 594
CAB GP – INTERIOR 590
CABLE AS 102
CAMSHAFT GP 19
CARTRIDGE AS – TURBOCHARGER 63
COMPRESSOR GP – REFRIGERANT 696
CONDENSER & MTG GP – REFRIGERANT 699
CONDENSER GP – REFRIGERANT700
CONSOLE GP 644
648
CONSOLE GP – OPERATOR 643
CONTROL & MTG GP – ELECTRONIC196
CONTROL & MTG GP – JOYSTICK493
CONTROL AR197
CONTROL AR – AUXILIARY420
CONTROL GP 622
CONTROL GP – ELECTRONIC 201
203
CONTROL GP – GOVERNOR72
CONTROL GP – HYDRAULIC502
CONTROL GP – PILOT OPERATED HYD496
500
COOLER GP – ENGINE OIL 44
COUNTERWEIGHT GP274
COUPLING GP – FLEXIBLE335
COUPLING GP – PUMP334
COVER AS255
COVER GP 256
612
COVER GP – HOOD 254
COVER GP – VALVE MECHANISM 26
CRANKSHAFT GP18
CYLINDER & LINES GP – BOOM349
CYLINDER & LINES GP – BUCKET351
CYLINDER & LINES GP – STICK350
CYLINDER & SEAL GP – BOOM352
CYLINDER & SEAL GP – BUCKET358
CYLINDER & SEAL GP – STICK 354
CYLINDER BLOCK GP16
CYLINDER HEAD GP 22
D
DOOR GP252
DOOR GP – CAB 598
DRIVE GP – PUMP346
DRIVE GP – SWING478
DUCT GP – AIR686
Name Page Name Page
INDEX
E
ELECTRONICS GP 200
202
ENGINE AR 13
14
ENGINE AR – COMPLETE 13
EXTENSION GP – EXHAUST 60
F
FAN GP – SUCTION 50
FASTENER GP – SWING & FINAL DR 240
FENDER & COVER GP 264
FILM GP 790
FILTER AR 424
42401
FILTER AS 332
FILTER GP – ENGINE OIL 38
FILTER GP – FUEL 78
FILTER GP – HYDRAULIC 326
330
FINAL DRIVE GP 236
FLOORMAT 640
FLYWHEEL GP 31
FRAME AS – UNDERCARRIAGE 289
FRAME GP – UPPER 284
G
GAUGE AS 325
GEAR & BEARING GP – SWING 280
GEAR GP – FRONT 30
GUARD AR – OVERHEAD 628
GUARD GP – BOTTOM 271
GUARD GP – CYLINDER 373
GUARD GP – FRONT 305
GUARD GP – FRONT WINDOW 630
GUARD GP – OVERHEAD 629
GUARD GP – SWIVEL 273
GUARD GP – TRACK GUIDE 300
GUARD GP – TRAVEL MOTOR 313
H
HANDHOLD GP 269
HARNESS AS98
HATCH AS606
HATCH GP 605
607
HEAD GP – PUMP CONTROL342
HEADREST AS678
HEATER & MTG GP – CAB692
HEATER AR – CAB 690
HOOD & GUARD GP242
HOOD GP – ENGINE250
HORN GP – ELECTRIC635
HOUSING GP – FILTER328
HOUSING GP – FLYWHEEL 32
HOUSING GP – FRONT28
I
IDLER GP – FRONT 292
INSULATION GP 85
K
KNOB AS497
Name Page Name Page
INDEX
L
LAMP GP – FLOOD 215
223
228
LEVER AS 596
647
LIGHTING GP – BOOM 226
LIGHTING GP – CAB 218
LIGHTING GP – CHASSIS 214
LIGHTING GP – WARNING 230
LINES & CONTROL GP – FRONT 460
LINES & CONTROL GP – REAR 464
LINES GP – AIR 56
LINES GP – AIR CONDITIONER 688
LINES GP – AUXILIARY HYDRAULIC 382
LINES GP – BOOM 374
LINES GP – BOOM CYLINDER 362
458
LINES GP – BUCKET CYLINDER 370
LINES GP – COOLING 48
LINES GP – DRAIN 61
402
LINES GP – ENGINE OIL 40
LINES GP – FRONT 466
LINES GP – FUEL 74
LINES GP – GREASE 722
LINES GP – HEATER 694
LINES GP – HYDRAULIC OIL COOLER 418
LINES GP – OIL DRAIN 42
LINES GP – PILOT 426
LINES GP – PUMP 416
LINES GP – RETURN 476
LINES GP – SENSOR 372
LINES GP – STICK 378
LINES GP – STICK CYLINDER 368
LINES GP – TRAVEL MOTOR 410
LINES GP – TURBOCHARGER OIL 41
LINES GP – WATER 47
LINK AS – TRACK 319
LINKAGE AR 707
LINKAGE AR – BUCKET 706
LINKAGE GP – BUCKET 724
LITERATURE GP 679
M
MANIFOLD GP – EXHAUST55
MANIFOLD GP – INLET 54
MIRROR GP – REAR VIEW 637
MONITOR & MTG GP – OPERATOR619
MONITOR GP – OPERATOR 620
MOTOR & MTG GP – SWING482
MOTOR & MTG GP – TRAVEL487
MOTOR AS – WINDOW WIPER610
MOTOR GP – SWING 483
MOTOR GP – TRAVEL488
MOUNTING GP198
597
MOUNTING GP – ALTERNATOR35
MOUNTING GP – ENGINE 36
MOUNTING GP – GREASE GUN 257
MOUNTING GP – PLATFORM638
MOUNTING GP – STARTING MOTOR 204
MOUNTING GP – VALVE 507
MUFFLER GP59
N
NOZZLE GP – UNIT INJECTOR 84
P
PAN GP – OIL34
PANEL GP – CIRCUIT BREAKER 124
PANEL GP – SWITCH 134
PISTON & ROD GP 20
PLATE & FILM GP 778
PLATFORM GP – OPERATOR639
PLUG GP522
536
PULLEY AS698
PULLEY GP 33
PUMP & MOUNTING GP 333
PUMP AS – WATER 46
PUMP GP – FUEL INJECTION 64
PUMP GP – GEAR 340
PUMP GP – MAIN HYDRAULIC 336
PUMP GP – WATER45
Name Page Name Page
INDEX
R
RADIATOR & HYD OIL COOLER GP 52
RADIO GP – AM 626
RADIO GP – AM/FM 627
ROLLER AR – TRACK & CARRIER 306
ROLLER GP – TRACK CARRIER 310
ROLLER GP – TRACK – DOUBLE FLANGE 312
ROLLER GP – TRACK – SINGLE FLANGE 311
S
SCREEN GP 324
SEAT AS 25101
SEAT BELT GP 676
SEAT GP 652
SEAT KIT 655
SENSOR & MOUNTING GP 211
SENSOR GP – LEVEL 210
SENSOR GP – TEMPERATURE 209
SIDECUTTER GP 752
SPECIAL AR 11
SPROCKET GP – NONSEGMENTED 235
STARTING MOTOR GP – ELECTRIC 206
STEP GP 291
STICK AR 702
STICK AR – HOE 703
STICK GP – HOE 714
SUPPORT GP – SEAT 651
657
SUPPORT KIT – SEAT 658
SUPPORT KIT – TILT 656
SUSPENSION GP – SEAT 665
674
SUSPENSION KIT – SEAT 668
675
SWITCH AS 127
232
SWITCH AS – DISCONNECT 126
SWITCH AS – ROLLER 231
SWITCH AS – ROTARY139
SWITCH GP – START 138
SWIVEL GP 492
T
TANK & FILTER GP – HYDRAULIC322
TANK & LINES GP – HYDRAULIC 414
TANK & MTG GP – FUEL80
TANK & MTG GP – HYDRAULIC321
TANK AS – WINDOW WASHER614
TANK GP – FUEL 82
TIMER AS 116
TIP GP 757
TIP GP – ABRASION756
TIP GP – LONG754
TIP GP – PENETRATION 756
TIP GP – SHORT755
TIP GP – WIDE 755
TOOL AR 774
TOOL GP775
TRACK ADJUSTER & RECOIL GP296
TRACK GP314
TURBOCHARGER GP62
Name Page Name Page
INDEX
V
VALVE & MOUNTING GP 508
VALVE AR – 4 WAY 424
VALVE AR – CHECK & RELIEF 425
VALVE AS – BALL 578
VALVE GP 531
VALVE GP – CHECK 574
VALVE GP – CHECK & RELIEF 568
VALVE GP – CONTROL 514
VALVE GP – FLOW CONTROL & RELIEF 537
VALVE GP – MAIN CONTROL 510
VALVE GP – PILOT 494
VALVE GP – PILOT RELIEF 521
VALVE GP – PRESS REDUCING SOL 551
VALVE GP – PRESSURE REDUCING 566
VALVE GP – RELIEF 486
VALVE GP – SELECTOR 554
VALVE GP – SHUTTLE 576
VALVE GP – SOLENOID 530
560
VALVE GP – TRACTION CONTROL 490
VALVE MECHANISM GP 24
VISOR GP – PROTECTION – RAIN 625
VISOR GP – SUN 624
W
WASHER GP – WINDOW613
618
WINDOW GP602
WINDOW GP – CAB 601
WINDOW GP – DOOR 600
WIPER & WASHER GP – WINDOW616
WIPER AR – WINDOW615
WIPER GP – WINDOW608
WIRING GP123
WIRING GP – BOOM 191
WIRING GP – CAB 104
WIRING GP – CONSOLE128
WIRING GP – FINE SWING 142
WIRING GP – LOWER WIPER 153
WIRING GP – PLATFORM 118
WRENCH776
