DESCRIPTION:

Cat 3406E C-10 C-12 C-15 & C-16 On-Highway Engine Maintenance Manual – PDF DOWNLOAD

Maintenance Interval Schedule :

(3406E , C-15 , and C-16 Truck Engines)

• Ensure that all safety information, warnings, and instructions are read and understood before any operation or any maintenance procedures are performed. The user is responsible for the performance of maintenance, including all adjustments, the use of proper lubricants, fluids, filters, and the replacement of components due to normal wear and aging.
• Failure to adhere to proper maintenance intervals and procedures may result in diminished performance of the product and/or accelerated wear of components. Use mileage, fuel consumption, service hours, or calendar time, WHICH EVER OCCURS FIRST, in order to determine the maintenance intervals. Products that operate in severe operating conditions may require more frequent maintenance.

Note: Before each consecutive interval is performed, all maintenance from the previous interval must be performed.

TABLE OF CONTENTS:

Cat 3406E C-10 C-12 C-15 & C-16 On-Highway Engine Maintenance Manual – PDF DOWNLOAD

When Required
Battery – Replace 139
Battery or Battery Cable – Disconnect 142
Engine Air Cleaner Element – Clean/Replace 173
Engine Oil Level Gauge – Calibrate 180
Engine Oil Level Gauge – Calibrate 183
Fuel System – Prime 196
Severe Service Application – Check 217
Daily
Cooling System Coolant Level – Check 159
Engine Air Cleaner Service Indicator – Inspect 173

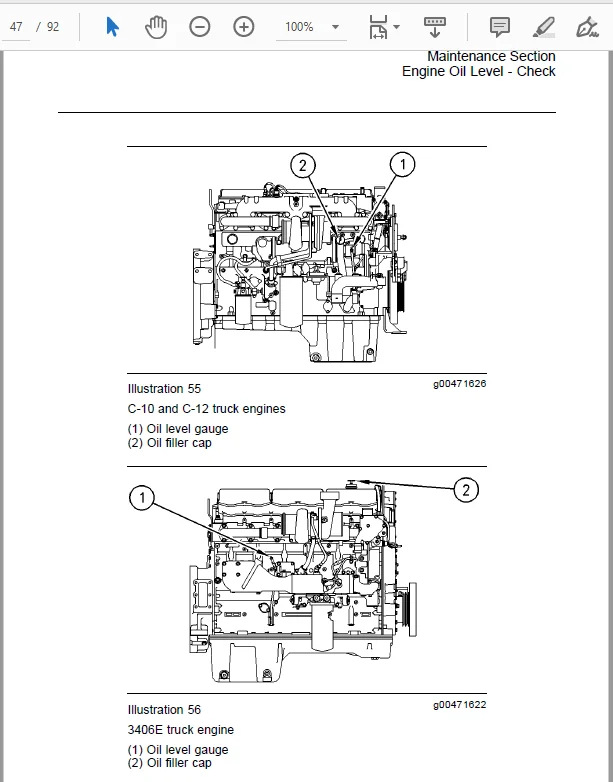

Engine Oil Level – Check 176
Fuel System Primary Filter/Water Separator – Drain 206
Fuel System Water Separator – Drain 210
Walk-Around Inspection 220
SEBU7186-08 133
Maintenance Section
Maintenance Interval Schedule
PM Level 1 – Every 24 000 km (15 000 miles) or 9500 L
(2500 US gal) of Fuel or 300 Service Hours
Air Compressor Filter – Clean/Replace 138
Alternator – Inspect 138
Battery Electrolyte Level – Check 141
Belt – Inspect 142
Belt Tensioner – Inspect 145
Cooling System Supplemental Coolant Additive (SCA) – Test/Add 163

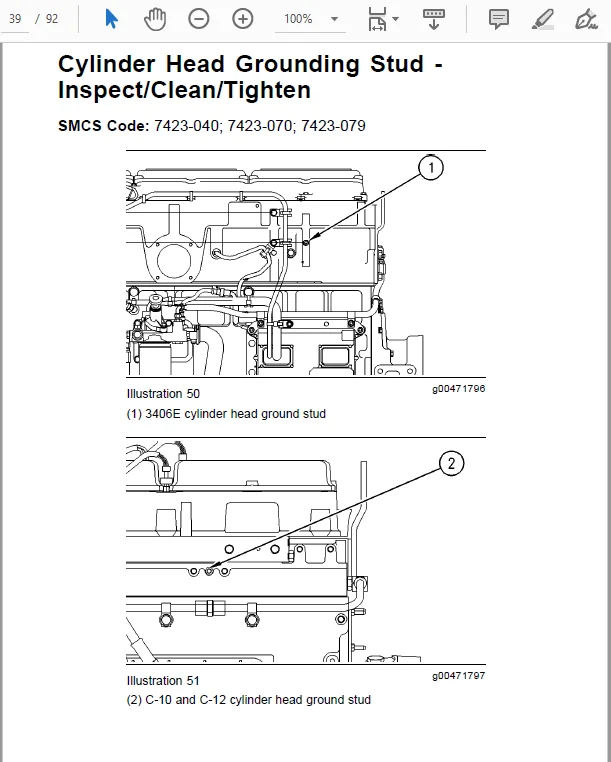

Cylinder Head Grounding Stud – Inspect/Clean/Tighten 169
Engine Crankcase Breather – Clean 175
Engine Oil Sample – Obtain 185
Engine Oil and Filter – Change 186
Fuel System Primary Filter – Clean/Replace 204
Fuel System Secondary Filter – Replace 208
Fuel Tank Water and Sediment – Drain 211
Hoses and Clamps – Inspect/Replace 213
Every 250 Service Hours
Cooling System Coolant Sample (Level 1) – Obtain 160
Between 24 000 and 96 000 km (15 000 and 60 000 miles)
(Between the First and Fourth Oil Change)
Compression Brake – Inspect/Adjust 146
Electronic Unit Injector – Inspect/Adjust 171
Engine Valve Lash – Inspect/Adjust 194
PM Level 2 – Every 320 000 km (200 000 miles) or 125 000 L
(33 000 US gal) of Fuel or 4000 Service Hours or 2 Years
Aftercooler Core – Clean/Test 135
Cooling System Coolant (DEAC) – Change 150
Cooling System Water Temperature Regulator – Replace 166
Fan Drive Bearing – Lubricate 195
Radiator – Clean 215
PM Level 3 – Every 483 000 km (300 000 miles) or 190 000 L
(50 000 US gal) of Fuel or 6000 Service Hours or 3 Years
Air Compressor – Inspect 136
Compression Brake – Inspect/Adjust/Replace 148
Crankshaft Vibration Damper – Inspect 168
Electronic Unit Injector – Inspect/Adjust 171
Engine – Clean 172
134 SEBU7186-08
Maintenance Section
Maintenance Interval Schedule
Engine Valve Lash – Inspect/Adjust 194
Turbocharger – Inspect 218
Every Year
Cooling System Coolant Sample (Level 2) – Obtain 163
Every 483 000 km (300 000 miles) or 3 Years
Cooling System Coolant Extender (ELC) – Add 157
Every 966 000 km (600 000 miles) or 6 Years
Cooling System Coolant (ELC) – Change 154
PM Level 4 – Every 966 000 km (600 000 miles) or 380 000 L
(100 000 US gal) of Fuel or 12 000 Service Hours or 6 Years
Compression Brake – Inspect/Adjust/Replace 148
