Cat 345B 345BL Series II Track-Type Excavator (3176C Engine) Parts Manual – PDF DOWNLOAD

Description

Caterpillar 345B 345BL Series II Track-Type Excavator (3176C Engine) Parts Manual – PDF DOWNLOAD

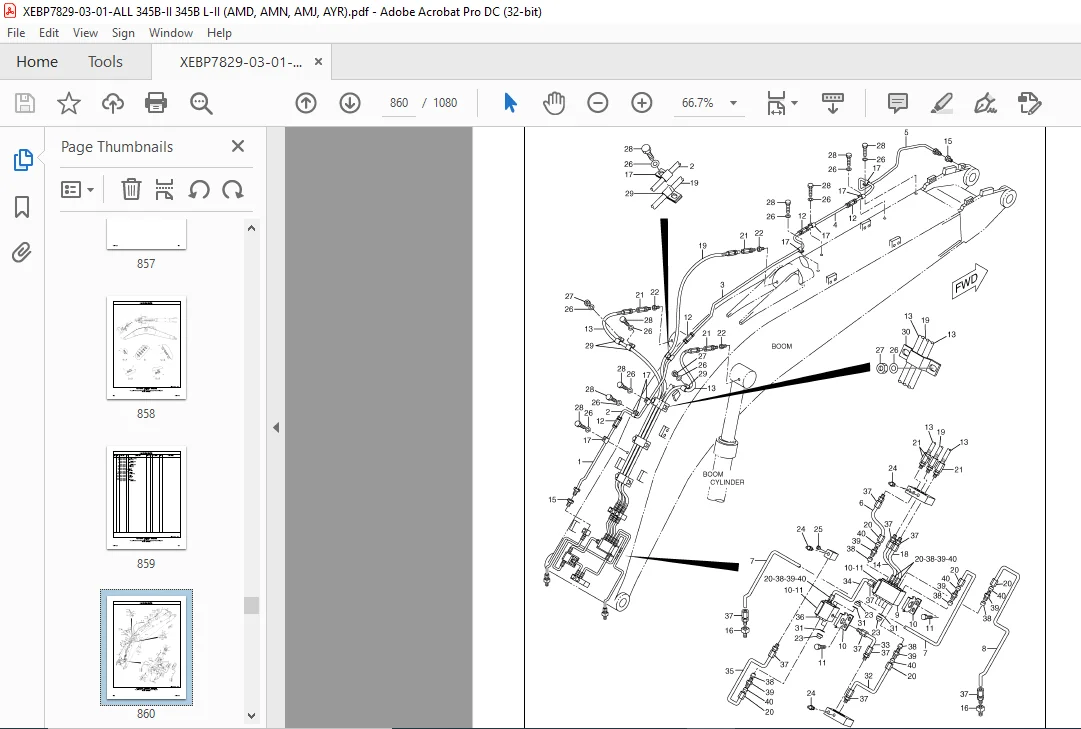

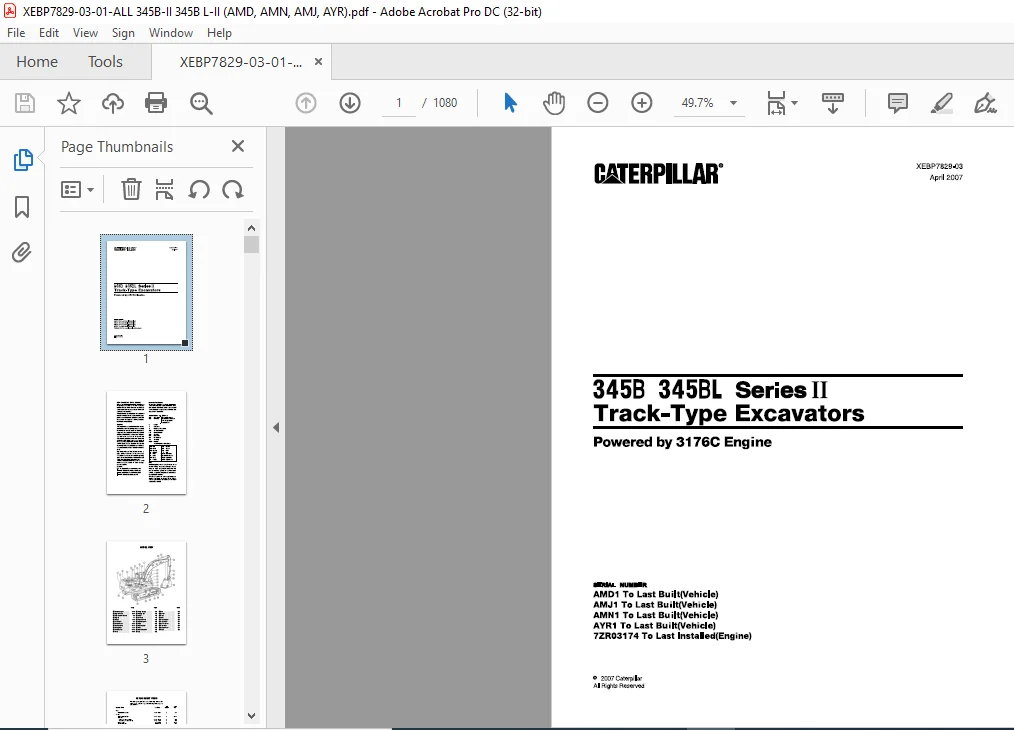

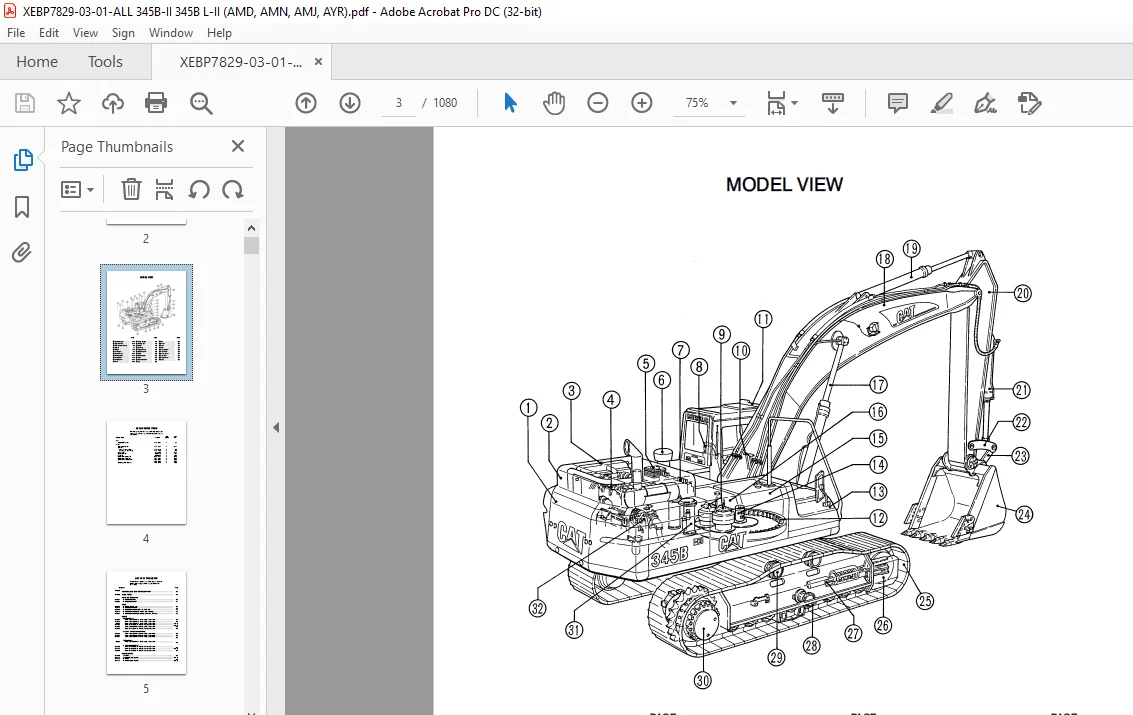

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat 345B 345BL Series II Track-Type Excavator (3176C Engine) Parts Manual – PDF DOWNLOAD

SERIAL NUMBER
AMD1 То Last Built(Vehicle)
AMJ1 То Last Built(Vehicle)
AMN1 То Last Built(Vehicle)
AYR1 То Last Built(Vehicle)
7ZR03174 То Last lnstalled(Engine)

HOW TO USE THE PARTS MANUAL:

Caterpillar Parts Manuals include illustrations of the groups or assemblies which make up the machine. These illustrations show the standard components plus many of the attachments available for the machine. The alphabetical index located in the front part of the book should be used to determine the page number on which specific illustrations are shown. Reference to those pages will identify each of the individual serviceable parts.

Captions :

• The caption under each illustration identifies the part number and name of the group or assembly shown. If more than one illustration is included for any group, the caption identifies the specific machine serial numbers to which each illustration applies. In some cases it is not possible to determine the specific machine serial numbers to which different illustrations are applicable. In those cases the caption identifies the illustration as “First Type”, “Second Type”, etc. Reference to the actual group or assembly is necessary in those cases to determine which illustration should be used.
• Captions provide additional information such as page numbers where illustrations of sub assemblies are shown, information regarding quantities used and other information intended to assist the user in determining parts needs. This information indicates the effective serial number or effective date on which changes became effective.

Example :

Indented Part Names :

Within each illustration is a parts list identifying each serviceable part in the illustration. When a part name is indented in this list, it means that serviceable item is a part of the serviceable item under which it is indented.

TABLE OF CONTENTS:

Cat 345B 345BL Series II Track-Type Excavator (3176C Engine) Parts Manual – PDF DOWNLOAD

A
ACCUMULATOR AS 39201
ACTUATOR GP 38101
ADJUSTER GP – BUCKET 699
ADJUSTMENT GP – HYDRAULIC TRACK 325
AIR CLEANER GP 98
AIR CONDITIONER & MOUNTING GP 630
AIR CONDITIONER GP 629
634
ALARM GP – TRAVEL 245
ALTERNATOR GP – CHARGING 233
ARM AS – WIPER 585
B
BASE GP – OIL FILTER 75
BATTERY & WIRING GP 134
BATTERY & WIRING GP – COLD WEATH 146
BLOCK GP – HYDRAULIC 390
BLOWER GP 646
BOOM AR 652
BOOM GP 660
BOTTLE GP – WINDSHIELD WASHER 594
BOX & MTG GP – STORAGE 300
BOX GP – STORAGE 302
572
BUCKET & ADJUSTER GP 689
BUCKET AR 684
BUCKET AS – EXCAVATION 694
BUCKET AS – TRENCHING 695
BUMPER GP – SIDE 336
C
CAB GP 560
CAB GP (BASIC) 562
CABLE AS 165
166
CAMSHAFT GP 36
CHAIN GP – COUNTERWEIGHT LIFTING 288
COMPRESSOR GP – REFRIGERANT 597
CONDENSER & MTG GP – AIR COND 596
CONNECTION GP – ELECTRICAL244
CONSOLE GP 609
CONSOLE GP – OPERATOR 608
CONTROL & MTG GP – ELECTRONIC185
CONTROL & MTG GP – ENGINE ELEK 224
CONTROL & MTG GP – WINDSHIELD 186
CONTROL AR – AUXILIARY437
CONTROL GP – HYDRAULIC506
CONTROL GP – PILOT OPERATED HYD499
504
COOLER GP – ENGINE OIL 87
COUNTERWEIGHT AR 28401
307
COUNTERWEIGHT GP306
309
COUPLING GP – FLEXIBLE365
COUPLING GP – PUMP364
COVER AS374
COVER GP 278
COVER GP – AIR COMPRESSOR33
COVER GP – CYLINDER BLOCK 31
COVER GP – FLYWHEEL HOUSING31
COVER GP – FRONT HOUSING 48
COVER GP – HOOD 276
COVER GP – OIL FILTER BASE 77
COVER GP – STORAGE573
COVER GP – TRACK FRAME 32201
CRANKSHAFT GP34
CYLINDER & LINES GP – BOOM393
CYLINDER & LINES GP – BUCKET395
CYLINDER & LINES GP – STICK394
CYLINDER & SEAL GP – BOOM396
CYLINDER & SEAL GP – BUCKET398
CYLINDER & SEAL GP – CTWT 39202
CYLINDER & SEAL GP – STICK 397
CYLINDER BLOCK AS 29
CYLINDER BLOCK GP28
CYLINDER GP – BOOM400
CYLINDER GP – BUCKET 402
Name Page Name Page
INDEX
CYLINDER GP – COUNTERWEIGHT 404
CYLINDER GP – STICK 401
CYLINDER HEAD AS 40
CYLINDER HEAD GP 38
D
DAMPER GP 46
DISTRIBUTOR AS 645
DOOR GP 280
DOOR GP – CAB 566
DOOR GP – HOOD 281
286
DRIVE AS – WINDSHIELD – AUTO 590
DRIVE GP – ACCESSORY 362
DRIVE GP – FAN 53
DRIVE GP – PUMP 360
DRIVE GP – SWING 479
DRIVE GP – WINDSHIELD – AUTO 588
DUCT AS 644
DUCT GP – AIR 641
DUCT GP – DEFROST 640
E
ELBOW GP – AIR INLET 111
ENGINE AR 11
ENGINE AR – CORE 24
EXTENSION GP – EXHAUST 111
F
FASTENER GP – CYLINDER HEAD 61
FASTENER GP – DAMPER 41
FASTENER GP – FLYWHEEL 41
FASTENER GP – OIL COOLER 88
FASTENER GP – SWING & FINAL DR 260
FENDER & COVER GP 305
FILLER GP – ENGINE OIL 71
FILM GP 738
FILTER AR 38102
FILTER GP – ENGINE OIL 67
FILTER GP – FUEL 123
FILTER GP – HYDRAULIC 382
FINAL DRIVE GP 265
FITTING GP – FUEL LINES131
FITTING GP – FUEL RETURN 132
FITTING GP – FUEL SUPPLY 131
FLYWHEEL GP 50
FRAME GP – UNDERCARRIAGE 320
FRAME GP – UPPER 316
FUMES DISPOSAL GP 80
G
GAUGE GP – OIL LEVEL (DIPSTICK)70
GEAR & BEARING GP 312
GEAR GP – FRONT 49
GUARD AR – BOTTOM29301
GUARD AR – OVERHEAD 599
GUARD GP – BOTTOM 290
GUARD GP – CYLINDER 405
GUARD GP – OVERHEAD 600
GUARD GP – SWIVEL295
GUARD GP – TRACK GUIDE333
GUARD GP – TRAVEL MOTOR 331
GUARD GP – WINDOW 569
H
HANDHOLD GP 297
HANDLE GP – STORAGE DOOR 304
HARNESS AS148
HARNESS AS – CONSOLE 194
204
HARNESS AS – ENGINE 229
HARNESS AS – WIRING218
HATCH GP 570
HEAD GP – PUMP CONTROL373
375
Name Page Name Page
INDEX
HEADREST AS 626
HOOD & GUARD GP 269
28402
HOOD AS 277
HOOD AS – ENGINE 279
HOOD GP 283
HORN GP – ELECTRIC 598
HOUSING & REGULATOR GP 94
HOUSING GP – FILTER 391
HOUSING GP – FLYWHEEL 52
HOUSING GP – FRONT 47
I
IDLER GP – FRONT 323
INDICATOR AS 392
INJECTOR GP – FUEL 113
K
KNOB AS 500
L
LAMP GP – FLOOD 253
LEVER AS 611
LIFTER GP – VALVE 44
LIFTING GP – ENGINE 46
LIGHTING GP – BOOM 248
LIGHTING GP – CAB 250
LIGHTING GP – CHASSIS 252
LINES GP – AIR 99
LINES GP – AIR CONDITIONER 648
LINES GP – AUXILIARY HYDRAULIC 420
LINES GP – BOOM 412
LINES GP – BOOM CYLINDER 406
LINES GP – BUCKET CYLINDER 409
LINES GP – COUNTERWEIGHT 46101
LINES GP – DRAIN 110
LINES GP – FAN DRIVE PUMP PILOT 475
LINES GP – FRONT 462
LINES GP – FUEL 121
LINES GP – FUEL INJECTION 116
LINES GP – GREASE 670
LINES GP – HYDRAULIC OIL COOLER 438
LINES GP – OIL DRAIN81
LINES GP – PILOT 446
LINES GP – PUMP 434
LINES GP – RETURN & FILTER470
LINES GP – STICK416
LINES GP – STICK CYLINDER 408
LINES GP – SWING MOTOR474
LINES GP – TRAVEL MOTOR426
LINES GP – TURBOCHARGER OIL73
LINES GP – WATER90
LINK AS – TRACK 346
LINKAGE AR – BUCKET 659
LINKAGE GP – BUCKET65901
682
LITERATURE GP 628
LUBRICATION AR – AUTOMATIC655
M
MANIFOLD GP – EXHAUST105
MANIFOLD GP – INLET 104
MIRROR GP – REAR VIEW 606
MONITOR GP – OPERATOR 576
MOTOR & MTG GP – SWING485
MOTOR & MTG GP – TRAVEL491
MOTOR AS – WINDOW WIPER586
MOTOR GP – FAN DRIVE494
MOTOR GP – SWING 486
MOTOR GP – TRAVEL492
MOUNTING GP – AIR CLEANER97
MOUNTING GP – COUNTERWEIGHT CYL40401
MOUNTING GP – ENGINE 59
MOUNTING GP – ENGINE OIL FILTER78
MOUNTING GP – FAN DRIVE 63
MOUNTING GP – GREASE GUN 284
MOUNTING GP – REFRIGERANT COMPR59701
MOUNTING GP – VALVE 507
MOUNTING GP – VALVE MECHANISM 60
MUFFLER GP108
P
PAN GP – OIL54
Name Page Name Page
INDEX
PANEL GP – CIRCUIT BREAKER 168
PISTON & ROD GP 37
PLATE & FILM GP 714
PLATFORM GP – OPERATOR 607
PLUG GP 524
PLUG GP – CYLINDER BLOCK 55
58
PLUG GP – FRONT HOUSING 57
PLUG GP – WATER LINES 96
PROTECTOR GP 711
PULLEY GP – CRANKSHAFT 50
PULLEY GP – REF COMPRESSOR & ALT 51
PUMP & MOUNTING GP 363
PUMP & MTG GP – FAN 377
PUMP & MTG GP – FUEL TRANSFER 115
PUMP GP – ENGINE OIL 65
PUMP GP – FUEL INJECTION 112
PUMP GP – FUEL PRIMING 114
PUMP GP – GEAR 371
PUMP GP – HYDRAULIC 367
380
PUMP GP – LUBRICATION 350
PUMP GP – PISTON 366
379
PUMP GP – WATER 88
R
RADIATOR & FAN GP 82
RADIATOR & HYD OIL COOLER GP 86
RADIO GP – AM/FM 595
ROCKER ARM GP 45
ROLLER AR – TRACK & CARRIER 326
ROLLER GP – TRACK CARRIER 330
ROLLER GP – TRACK – DOUBLE FLANGE 329
ROLLER GP – TRACK – SINGLE FLANGE 329
ROTATING GP – MOTOR 497
ROTATING GP – PUMP 368
381
ROTOR GP – SWIVEL 496
S
SCREEN GP358
436
SEAL GP337
SEAL GP – CRANKSHAFT35
SEAT AS 626
SEAT BELT GP 627
SEAT GP613
SENSOR GP – ELEK23101
SENSOR GP – SPEED232
SIDECUTTER GP 701
SPACER GP – UNDERCARRIAGE349
SPRING GP – RECOIL324
SPROCKET GP – NONSEGMENTED264
STARTING AID GP – ETHER 236
STARTING AR – COLD WEATHER133
STARTING MOTOR GP – ELECTRIC 241
STEP GP 348
STICK AR657
STICK GP – HOE 665
SUPPORT GP – ENGINE48
SUPPORT GP – SEAT612
SUSPENSION AS – SEAT624
SUSPENSION GP – SEAT 620
SWITCH AS 210
SWITCH AS – DISCONNECT 178
SWITCH AS – MAGNETIC 180
SWITCH AS – ROLLER 214
SWITCH AS – ROTARY212
SWITCH AS – TOGGLE 213
SWITCH GP184
SWITCH GP – START 211
SWIVEL GP 495
T
TANK & FILTER GP – HYDRAULIC354
TANK & MTG GP – FUEL124
TANK & MTG GP – HYDRAULIC352
TANK GP – FUEL 125
TIMER AS 183
TIP GP 705
709
Name Page Name Page
INDEX
TIP GP – ABRASION 704
708
TIP GP – LONG 703
707
TIP GP – PENETRATION 705
709
TIP GP – SHORT 704
708
TIP GP – WIDE 706
710
TOOL AR 712
TOOL GP 713
TRACK GP 339
TURBOCHARGER GP 106
V
VALVE AR – 4 WAY 539
VALVE AS – BALL 536
VALVE GP 529
VALVE GP – CHECK 120
VALVE GP – CONTROL 514
VALVE GP – CUSHION CROSSOVER RLF 478
VALVE GP – FLOW CONTROL 554
VALVE GP – MAIN CONTROL 508
VALVE GP – MANIFOLD & REDUCING 544
VALVE GP – PILOT 498
501
530
VALVE GP – PRESS REDUCING SOL 545
VALVE GP – PRESSURE CONTROL 512
VALVE GP – RELIEF490
VALVE GP – SELECTOR540
VALVE GP – SHUTTLE535
VALVE GP – SOLENOID 546
VALVE GP – TRACTION CONTROL 556
VALVE MECHANISM GP42
VISOR GP – PROTECTION – RAIN 605
VISOR GP – SUN604
W
WASHER GP – WINDOW593
WINDOW AS – DOOR568
WINDOW GP578
WINDSHIELD AR – AUTO577
WIPER & WASHER GP 582
WIPER GP – WINDOW584
WIRING GP187
WIRING GP – CAB 216
WIRING GP – CONSOLE190
WIRING GP – ELECTRONIC CONTROL 225
WIRING GP – LOWER WIPER 198
WIRING GP – RADIO 189
WIRING GP – UNIT INJECTOR 228
