Cat 432E Backhoe Loader Parts Manual – PDF DOWNLOAD

Description

Cat 432E Backhoe Loader Parts Manual – PDF DOWNLOAD

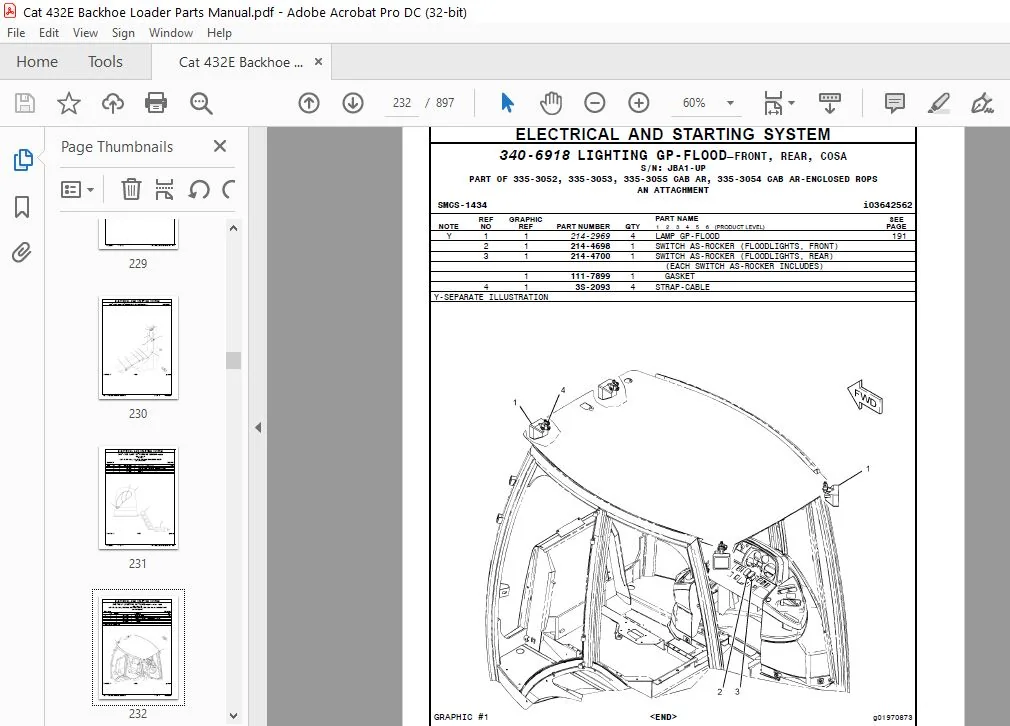

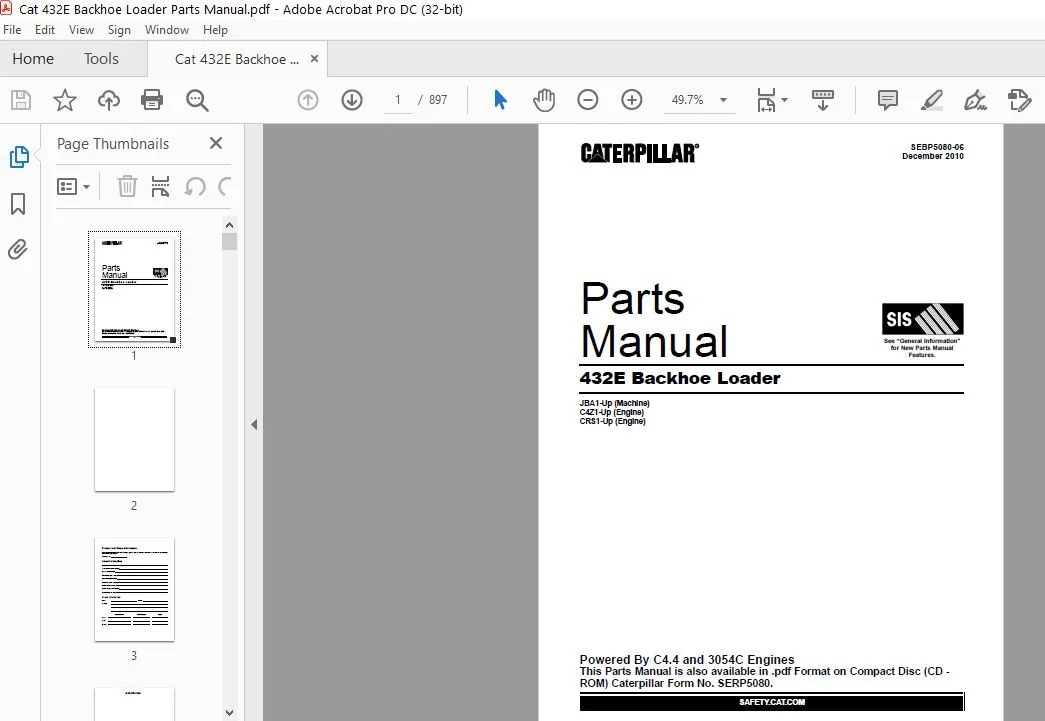

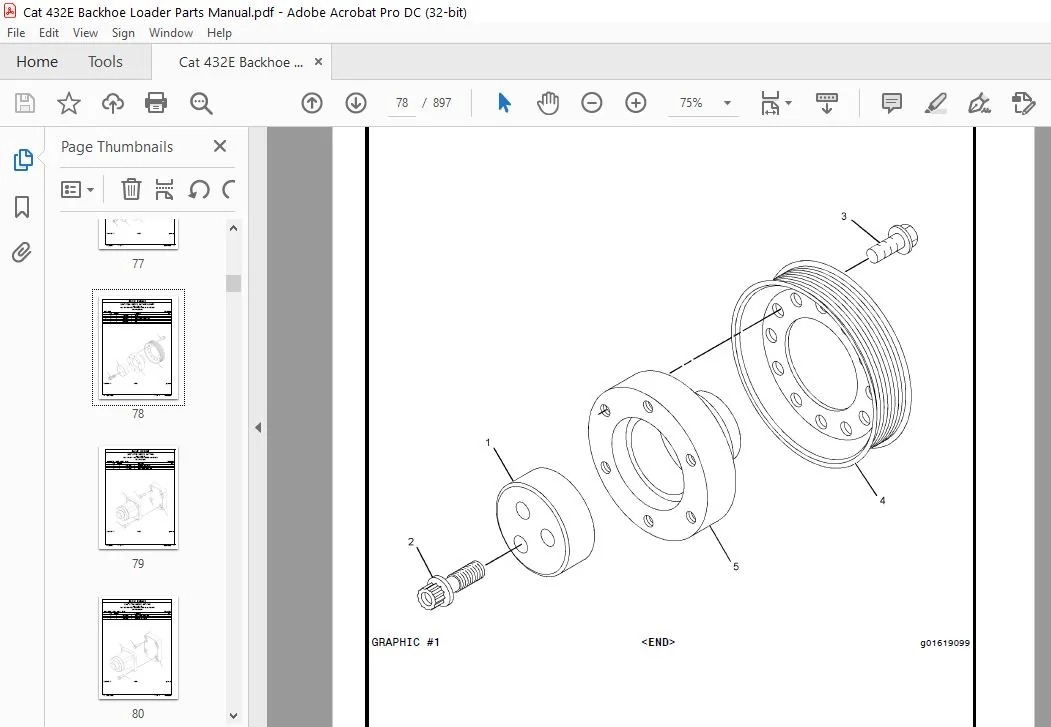

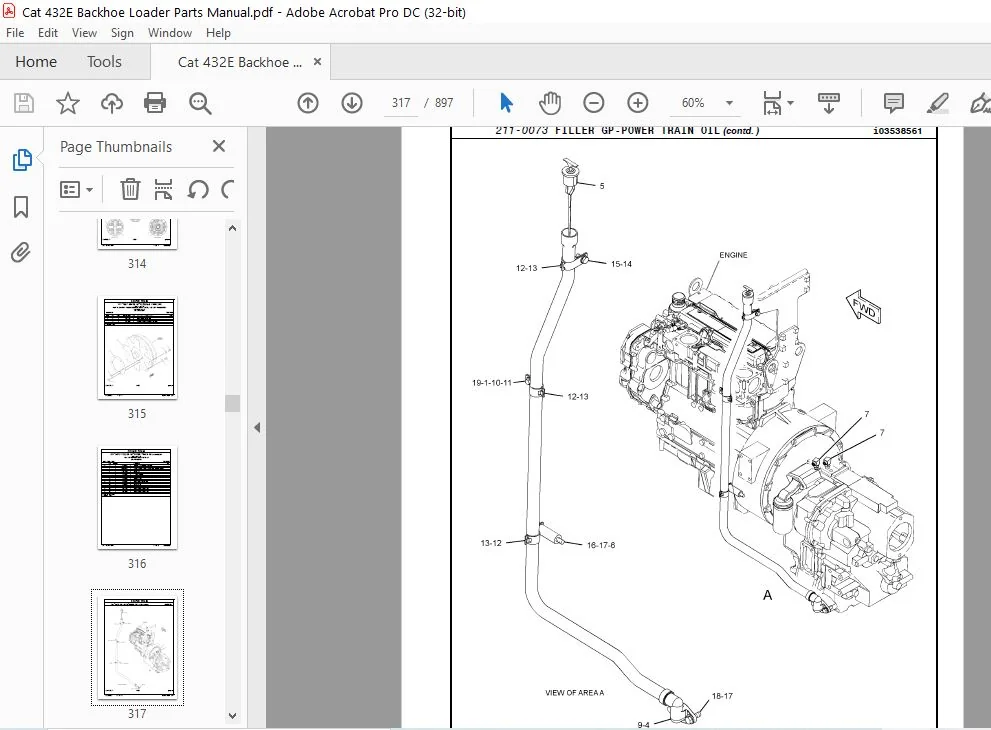

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat 432E Backhoe Loader Parts Manual – PDF DOWNLOAD

JBA1-Up (Machine)
C4Z1-Up (Engine)
CRS1-Up (Engine)

Powered By C4.4 and 3054C Engines
Caterpillar Form No. SERP5080.

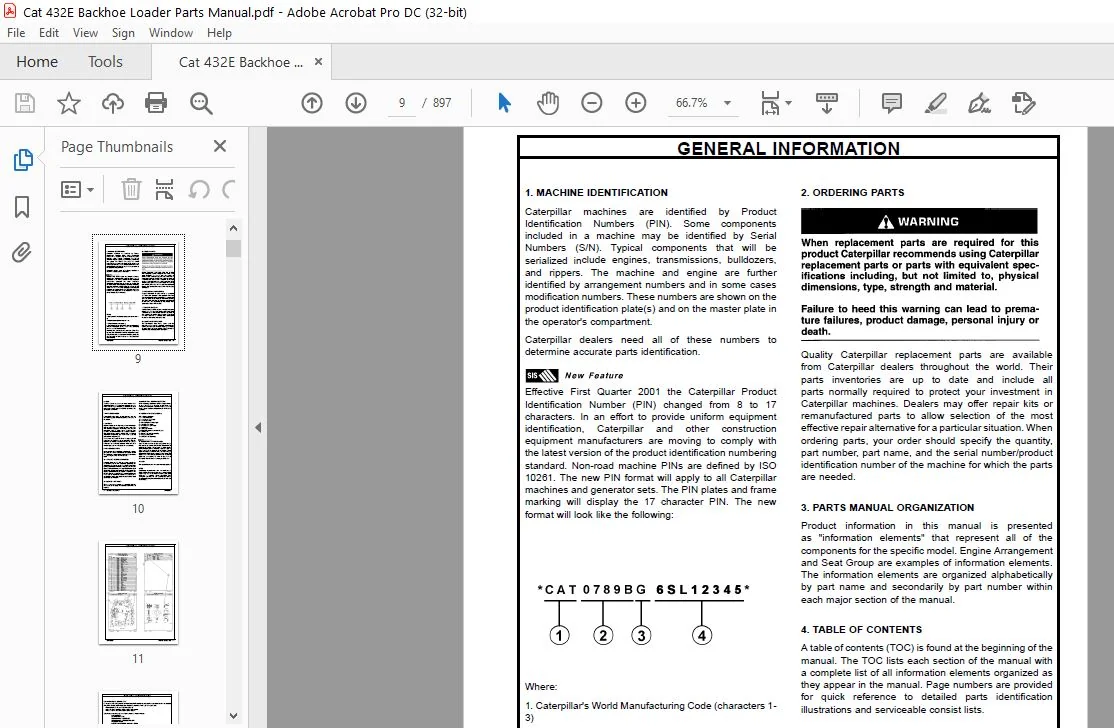

GENERAL INFORMATION
1. MACHINE IDENTIFICATION :

Caterpillar machines are identified by Product Identification Numbers (PIN). Some components included in a machine may be identified by Serial Numbers (S/N). Typical components that will be serialized include engines, transmissions, bulldozers, and rippers.

• The machine and engine are further identified by arrangement numbers and in some cases modification numbers. These numbers are shown on the product identification plate(s) and on the master plate in the operator’s compartment. Caterpillar dealers need all of these numbers to determine accurate parts identification.
• Effective First Quarter 2001 the Caterpillar Product Identification Number (PIN) will change from 8 to 17 characters. In an effort to provide uniform equipment identification, Caterpillar and other construction equipment manufacturers are moving to comply with the latest version of the product identification numbering standard.

2. ORDERING PARTS :

• Quality Caterpillar replacement parts are available from Caterpillar dealers throughout the world. Their parts inventories are up to date and include all parts normally required to protect your investment in Caterpillar machines.
• Dealers may offer repair kits or remanufactured parts to allow selection of the most effective repair alternative for a particular situation. When ordering parts, your order should specify the quantity, part number, part name, and the serial number/product identification number of the machine for which the parts are needed.

3. PARTS MANUAL ORGANIZATION :

Product information in this manual is presented as “information elements” that represent all of the components for the specific model. Engine Arrangement and Seat Group are examples of information elements. The information elements are organized alphabetically by part name and secondarily by part number within each major section of the manual.

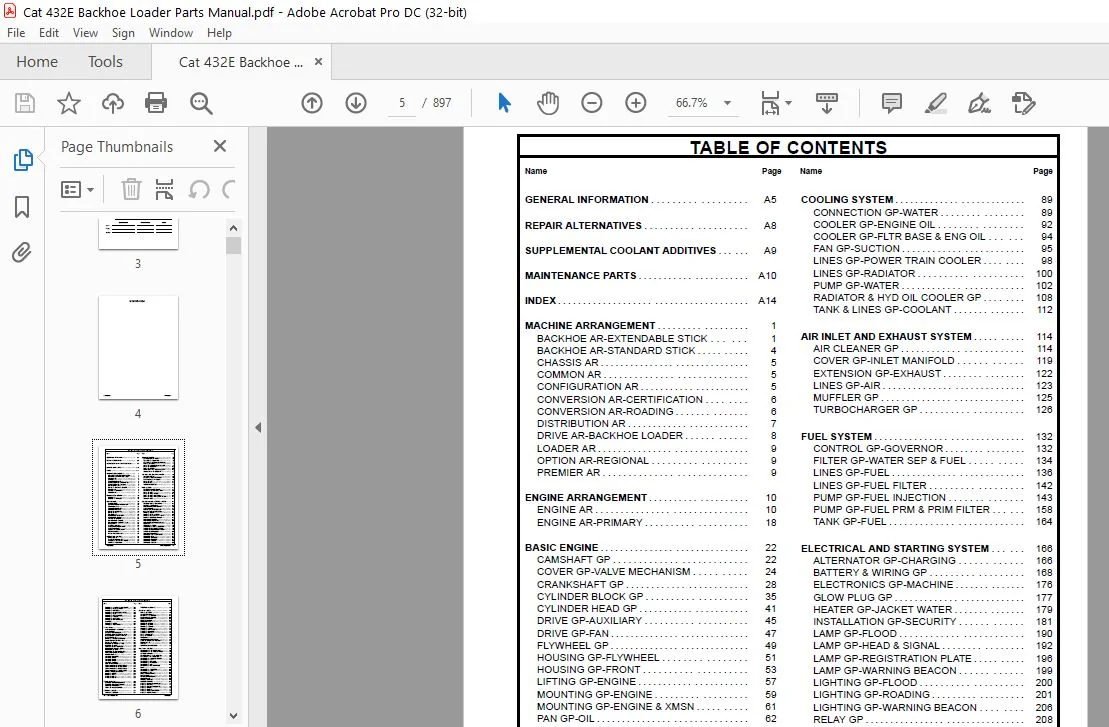

TABLE OF CONTENTS:

Cat 432E Backhoe Loader Parts Manual – PDF DOWNLOAD

GENERAL INFORMATION A5
REPAIR ALTERNATIVES A8
SUPPLEMENTAL COOLANT ADDITIVES A9
MAINTENANCE PARTS A10
INDEX A14
MACHINE ARRANGEMENT 1
BACKHOE AR-EXTENDABLE STICK 1
BACKHOE AR-STANDARD STICK 4
CHASSIS AR 5
COMMON AR 5
CONFIGURATION AR 5
CONVERSION AR-CERTIFICATION 6
CONVERSION AR-ROADING 6
DISTRIBUTION AR 7
DRIVE AR-BACKHOE LOADER 8
LOADER AR 9
OPTION AR-REGIONAL 9
PREMIER AR 9
ENGINE ARRANGEMENT 10
ENGINE AR 10
ENGINE AR-PRIMARY 18
BASIC ENGINE 22
CAMSHAFT GP 22
COVER GP-VALVE MECHANISM 24
CRANKSHAFT GP 28
CYLINDER BLOCK GP 35
CYLINDER HEAD GP 41
DRIVE GP-AUXILIARY 45
DRIVE GP-FAN 47
FLYWHEEL GP 49
HOUSING GP-FLYWHEEL 51
HOUSING GP-FRONT 53
LIFTING GP-ENGINE 57
MOUNTING GP-ENGINE 59
MOUNTING GP-ENGINE & XMSN 61
PAN GP-OIL 62
PISTON & ROD GP 66
PLUG GP-CYLINDER HEAD 73
PLUG GP-ENGINE 74
PULLEY GP-CRANKSHAFT 79
ROCKER ARM GP 80
VALVE MECHANISM GP 82
LUBRICATION SYSTEM 84
BREATHER GP 84
FILLER GP-ENGINE OIL 85
GAUGE GP-OIL LEVEL & FILLER 86
PUMP GP-ENGINE OIL 87
COOLING SYSTEM 89
CONNECTION GP-WATER 89
COOLER GP-ENGINE OIL 92
COOLER GP-FLTR BASE & ENG OIL 94
FAN GP-SUCTION 95
LINES GP-POWER TRAIN COOLER 98
LINES GP-RADIATOR 100
PUMP GP-WATER 102
RADIATOR & HYD OIL COOLER GP 108
TANK & LINES GP-COOLANT 112
AIR INLET AND EXHAUST SYSTEM 114
AIR CLEANER GP 114
COVER GP-INLET MANIFOLD 119
EXTENSION GP-EXHAUST 122
LINES GP-AIR 123
MUFFLER GP 125
TURBOCHARGER GP 126
FUEL SYSTEM 132
CONTROL GP-GOVERNOR 132
FILTER GP-WATER SEP & FUEL 134
LINES GP-FUEL 136
LINES GP-FUEL FILTER 142
PUMP GP-FUEL INJECTION 143
PUMP GP-FUEL PRM & PRIM FILTER 158
TANK GP-FUEL 164
ELECTRICAL AND STARTING SYSTEM 166
ALTERNATOR GP-CHARGING 166
BATTERY &WIRING GP 168
ELECTRONICS GP-MACHINE 176
GLOWPLUG GP 177
HEATER GP-JACKET WATER 179
INSTALLATION GP-SECURITY 181
LAMP GP-FLOOD 190
LAMP GP-HEAD & SIGNAL 192
LAMP GP-REGISTRATION PLATE 196
LAMP GP-WARNING BEACON 199
LIGHTING GP-FLOOD 200
LIGHTING GP-ROADING 201
LIGHTING GP-WARNING BEACON 206
RELAY GP 208
SENSOR GP-SPEED 213
STARTING MOTOR GP-ELECTRIC 214
SWITCH GP-ALLWHEEL DRIVE 218
SWITCH GP-DIFFERENTIAL LOCK 219
SWITCH GP-PRESSURE 221
WARNING GP-BACKUP 224
WIRING GP-AIR CONDITIONER 225
WIRING GP-CAB 228
WIRING GP-CONSOLE 230
WIRING GP-CONTROL 232
WIRING GP-ENGINE 233
WIRING GP-HEATER 236
SEBP5080-06 TABLE OF CONTENTS A1
TABLE OF CONTENTS
Name Page Name Page
WIRING GP-KICKOUT & POSITIONER 238
WIRING GP-LOAD CONTROL 240
WIRING GP-PLATFORM 244
WIRING GP-POWER RECEPTACLE 249
WIRING GP-REAR 250
WIRING GP-RIDE CONTROL 252
WIRING GP-SENSOR 254
WIRING GP-SIDESHIFT 258
WIRING GP-TRANSMISSION
CONTROL 260
WIRING GP-WIPER 262
WIRING GP-WORK TOOL 264
POWER TRAIN 268
AXLE GP-DRIVE & STEERING 268
AXLE GP-REAR 270
CASE AS-TRANSMISSION 273
CONTROL GP-DIFFERENTIAL LOCK 276
DIFFERENTIAL & BEVEL GEAR GP 277
DIFFERENTIAL GP 281
DRIVE GP-FLEXIBLE COUPLING 283
FILLER GP-POWER TRAIN OIL 284
FLANGE GP-WHEEL 287
HOUSING & FLANGE GP-AXLE 288
HOUSING GP-AXLE 290
LINES GP-POWER TRAIN OIL 292
LOCKOUT GP-FOURTH GEAR 293
MOUNTING GP-AXLE 294
MOUNTING GP-TRANSMISSION 295
PLANETARY GP-FINAL DRIVE 297
POWER TRAIN AR 299
SHAFT GP-COUNTER 301
SHAFT GP-DRIVE 303
SHAFT GP-IDLER 304
SHAFT GP-INPUT 306
SHAFT GP-OUTPUT 310
STOP GP-STEERING 316
TRANSMISSION AR-DIRECT DRIVE 317
TRANSMISSION AR-POWER SHIFT 317
TRANSMISSION GP-DIRECT DRIVE 318
TRANSMISSION GP-POWER SHIFT 323
VALVE & MTG GP-SOLENOID 329
VALVE GP-RELIEF 330
VALVE GP-TIRE 331
WHEEL & TIRE AR 332
WHEEL & TIRE GP 335
BRAKING SYSTEM 356
CONTROL GP-PARKING BRAKE 356
CONTROL GP-SERVICE BRAKE 358
CYLINDER GP-BRAKE 361
LEVER GP-HAND CONTROL 363
STEERING SYSTEM 364
LINES GP-STEERING 364
STEERING COLUMN GP 366
FRAME AND BODY 367
BOX GP-BATTERY 367
COUNTERWEIGHT GP 369
COVER GP-PROTECTION 373
EXTENSION GP-FENDER 374
FENDER GP-FRONT 376
FENDER GP-REAR 378
FLOORPLATE GP 380
FRAME AR-LOADER 381
FRAME GP-LOADER 382
FRAME GP-SLIDING 386
FRAME GP-SWING 388
GUARD GP-DRIVE SHAFT 389
GUARD GP-LIGHTING 390
GUARD GP-RADIATOR 391
HOOD & GUARD GP 392
HOOD GP-ENGINE 394
KIT-GUARD 397
KIT-ROADING CONVERSION 397
LINER GP-SOUND SUPPRESSION 398
REFLECTOR GP 399
STEP GP 400
SUPPRESSION AR-SOUND 401
HYDRAULIC SYSTEM 402
ACCUMULATOR GP-HYDRAULIC 402
ACCUMULATOR GP-RIDE CONTROL 404
CONTROL AR-RIDE 406
CONVERSION GP-LOAD CONTROL 406
COOLER GP-HYD & XMSN OIL 407
CYLINDER GP-BACKHOE BUCKET 409
CYLINDER GP-BOOM 411
CYLINDER GP-COUPLER 412
CYLINDER GP-HYDRAULIC 413
CYLINDER GP-LIFT 416
CYLINDER GP-MULTIPURPOSE
BUKT 418
CYLINDER GP-STABILIZER 419
CYLINDER GP-STICK 420
CYLINDER GP-TILT 423
DRIVE & MTG GP-PUMP 424
FILTER GP-OIL 425
FITTING GP-HYDRAULIC 426
HYDRAULIC AR 428
KIT-LOAD CONTROL 428
KIT-RIDE CONTROL 429
LINES GP-AUXILIARY HYDRAULIC 433
LINES GP-BACKHOE 441
LINES GP-BACKHOE AUXILIARY 443
LINES GP-BOOM 446
LINES GP-BUCKET 447
LINES GP-BUCKET CYLINDER 451
LINES GP-CONNECTING 453
A2 TABLE OF CONTENTS SEBP5080-06
TABLE OF CONTENTS
Name Page Name Page
LINES GP-DRAIN 454
LINES GP-HYDRAULIC 455
LINES GP-LIFT & TILT 459
LINES GP-LIFT CYLINDER 463
LINES GP-LOAD CONTROL VALVE 467
LINES GP-MULTIPURPOSE BUCKET 470
LINES GP-PILOT 474
LINES GP-PUMP 485
LINES GP-RETURN 488
LINES GP-RIDE CONTROL 490
LINES GP-SIDESHIFT LOCK 492
LINES GP-STABILIZER 493
LINES GP-STICK 495
LINES GP-SWING 496
MANIFOLD & SOLENOID GPCONTROL
498
MANIFOLD GP-CONTROL 499
MANIFOLD GP-RIDE CONTROL 505
MOUNTING GP-CYLINDER 506
MOUNTING GP-LINES 508
PUMP GP-PISTON 509
ROTATING GP-PUMP 511
SHAFT GP-PUMP DRIVE 512
TANK & MTG GP-HYDRAULIC 513
TANK GP-HYDRAULIC 515
VALVE & LINES GP-CONTROL 516
VALVE & MTG GP-BANK 525
VALVE AR-BANK 2 527
VALVE AR-BANK 3 527
VALVE GP-BANK 3 529
VALVE GP-BANK 7 530
VALVE GP-CONTROL 531
VALVE GP-MAIN CONTROL 540
VALVE GP-PILOT 541
VALVE GP-PUMP CONTROL 545
VALVE GP-SOLENOID 546
IMPLEMENTS 548
ARM GP-LIFT 548
BOOM GP 551
BRACE GP-LIFT CYLINDER 553
LINKAGE GP-BACKHOE BUCKET 554
LINKAGE GP-BUCKET 563
LOCK GP-STABILIZER LEG 564
LOCK GP-TRANSPORT 565
PAD GP-STABILIZER 572
SIDESHIFT AR 573
SIDESHIFT GP 578
STABILIZER GP-BACKHOE 586
STICK GP 587
STICK GP-EXTENDABLE 589
WORK TOOLS 593
BOOM GP-TRUSS 593
BUCKET AR-MULTIPURPOSE 594
BUCKET AS-GENERAL PURPOSE 603
BUCKET AS-HOE 607
BUCKET GP-HOE 633
BUCKET GP-MULTIPURPOSE 662
BULLDOZER AS 666
CARRIAGE AS-FORK 672
CLAM AS-MULTIPURPOSE BUCKET 673
CONVERSION AR-QUICK COUPLER 675
COUPLER GP-QUICK 676
EDGE GP-CUTTING 682
FORK GP 684
FORK GP-PALLET 687
GUARD GP-BUCKET 688
HOOK GP-LIFTING 690
KIT-QUICK COUPLER 691
MOUNTING GP-BUCKET 696
MOUNTING GP-FORK 701
TOOTH GP-UNI 703
OPERATOR STATION 704
CAB AR 704
CAB AR-ENCLOSED ROPS 707
CAB GP 708
COMPRESSOR GP-REFRIGERANT 712
CONDENSER & MTG GPREFRIGERANT
714
CONSOLE GP-OPERATOR 715
CONTROL & MTG GP-JOYSTICK 721
CONTROL GP-HANDLE 722
CONTROL GP-HYDRAULIC
LOCKOUT 724
CONTROL GP-HYDRAULIC PEDAL 726
CONTROL GP-JOYSTICK 727
CONTROL GP-STEERING 729
CONTROL GP-TRANSMISSION 731
DOOR GP-CAB 733
FLOOR MAT GP 737
HEATER & AIR CONDITIONER GP 738
HEATER & MTG GP-CAB 742
HEATER GP-CAB 751
HORN GP-ELECTRIC 755
INSTALLATION GP-RADIO 756
KIT-RADIO 757
KIT-SEAT FRAME 758
KIT-SEAT PAN 759
KIT-SEAT SUSPENSION 761
LATCH GP-CAB DOOR &WINDOW 763
LATCH GP-CONSOLE 765
LEVER GP-GOVERNOR 767
LINER GP-CAB 768
LINES GP-HEATER 770
LINES GP-HEATER & AIR COND 771
MIRROR GP-REAR VIEW 773
MOTOR GP-WINDOWWIPER 776
MOUNTING GP-BACKHOE CONTROL 778
SEBP5080-06 TABLE OF CONTENTS A3
TABLE OF CONTENTS
Name Page Name Page
MOUNTING GP-CAB 784
MOUNTING GP-HYDRAULIC
LOCKOUT 785
PEDAL GP-GOVERNOR 786
ROOF GP-CAB 787
SEAT GP 788
SEAT GP-SUSPENSION 792
SUSPENSION GP-SEAT 797
SWIVEL GP-SEAT 799
VISOR GP-CAB 801
WASHER GP-WINDOW 802
WINDOWGP-CAB 804
WINDOWGP-DOOR 810
WIPER GP-WINDOW 812
SERVICE EQUIPMENT AND SUPPLIES 813
FILM GP 813
GREASE GUN GP 815
INSTALLATION AR-WHEEL CHOCK 816
LINK GP-SHIPPING 817
LOCK GP-VANDALISM 818
PLATE & FILM GP 819
PLATE AS-SIDE REFLECTIVE 822
PROTECTION GP-VANDALISM 823
SERVICE GP-FILTER 824
TRANSPORT GP-MACHINE 825
PART NUMBER INDEX B1

CAT 432E BACKHOE LOADER PARTS MANUAL – PDF DOWNLOAD:
