Cat 950F Series II Wheel Loader Operation & Maintenance Manual – PDF DOWNLOAD

Description

Cat 950F Series II Wheel Loader Operation & Maintenance Manual – PDF DOWNLOAD

DESCRIPTION:

Cat 950F Series II Wheel Loader Operation & Maintenance Manual – PDF DOWNLOAD

If the machine begins to move during test, reduce the engine speed immediately and engage the parking brake.

1. Start the engine. Raise the implement slightly. Apply the service brake. Release the parking brake.

2. Move the transmission control to SECOND SPEED REVERSE while the service brakes are applied. Make sure that the autoshift control is in the OFF position. 3. Gradually increase the engine speed to high idle. The machine should not move.

4. Reduce the engine speed to low idle. Move the transmission direction control to the NEUTRAL position. Engage the parking brake. Lower the implement to the ground. Stop the engine. If the machine moved during the test, consult your Caterpillar dealer for a brake inspection. Make any necessary repairs before the machine is returned to operation.

TABLE OF CONTENTS:

Cat 950F Series II Wheel Loader Operation & Maintenance Manual – PDF DOWNLOAD

Battery – Recycle 93
Battery, Battery Cable or Battery Disconnect Switch –
Replace 93
Bucket Wear Plates – Inspect/Replace 99
Circuit Breakers – Reset 100
Engine Air Filter Primary Element –
Clean/Replace 107
Engine Air Filter Secondary Element – Replace 108
Ether Starting Aid Cylinder – Replace 115
Fuel System – Prime 115
Fuses – Replace 122
Oil Filter – Inspect 127
Radiator Core – Clean 127
Ride Control Accumulator – Check 127
Window Washer Reservoir – Fill 134
Window Wiper – Inspect/Replace 134
Every 10 Service Hours or Daily
Backup Alarm – Test 92
Brake Air Tank Moisture and Sediment – Drain 96
Bucket Cutting Edges – Inspect/Replace 97
Bucket Tips – Inspect/Replace 98
Cooling System Level – Check 103
Engine Air Filter Service Indicator – Inspect 109
Engine Air Precleaner – Clean 110
Engine Oil Level – Check 112
Fuel System Primary Filter (Water Separator) –
Drain 116
Hydraulic System Oil Level – Check 125
Transmission Oil Level – Check 132
Walk-Around Inspection 133
Windows – Clean 134
Every 50 Service Hours or Weekly
Bucket Pivot Bearings – Lubricate 98
Cab Air Filter – Clean/Replace 99
Fuel Tank Water and Sediment – Drain 122
Tire Inflation – Check 130
Every 100 Service Hours or 2 Weeks
Axle Oscillation Bearings – Lubricate 91
Lift Arm and Cylinder Linkage – Lubricate 126
Logging Fork Clamp – Lubricate 126
Steering Cylinder Bearings – Lubricate 129
Tilt Cylinder Bearings and Bucket Linkage Bearings –
Lubricate 129
Every 250 Service Hours or Monthly
Air Conditioner – Test 91
Battery – Clean 92
Battery Electrolyte Level – Check 93
Belts – Inspect/Adjust/Replace 94
Brake Accumulator – Check 95
Brake Oil Reservoir – Clean/Refill 96
Braking System – Test 96
Cooling System Coolant Additive (DEAC) – Add 102
Differential and Final Drive Oil Level – Check 105
Drive Shaft Spline (Center) – Lubricate 106
Engine Air Filter Service Indicator –
Inspect/Replace 110
Engine Oil and Filter – Change 113
Every 500 Service Hours or 3 Months
Engine Crankcase Breather – Clean 110
Fuel System Primary Filter (Water Separator)
Element – Replace 117
Fuel System Primary Filter – Clean/Replace 118
Fuel System Secondary Filter – Replace 119
Fuel System Secondary Filter Number One –
Replace 119
Fuel Tank Cap and Strainer – Clean 122
Hydraulic System Oil Filter – Replace 125
Transmission Oil Filter – Replace 132
Every 1000 Service Hours or 6 Months
Articulation Bearings – Lubricate 91
Battery Hold-Down – Tighten 93
Drive Shaft Support Bearing – Lubricate 106
Drive Shaft Universal Joints – Lubricate 106
Fuel System Secondary Filter Number Two –
Replace 121
Roading Fender Hinges – Lubricate 128
Rollover Protective Structure (ROPS) – Inspect 128
Transmission Oil – Change 130
Every 2000 Service Hours or 1 Year
Differential and Final Drive Oil – Change 104
Engine Governor Oil Supply Screen –
Clean/Inspect/Replace 111
Engine Valve Lash – Check 114
Fuel Injection Timing – Check 115
Hydraulic System Oil – Change 124
Hydraulic Tank Breaker Relief Valve – Clean 126
Service Brake Disc Wear – Check 129
Every 3000 Service Hours or 2 Years
Cooling System Coolant (DEAC) – Change 100
Cooling System Coolant Extender (ELC) – Add 102
Every 5000 Service Hours or 3 Years
Seat Belt – Replace 129
Every 6000 Service Hours or 4 Years
Cooling System Coolant (ELC) – Change 101
Cooling System Water Temperature Regulator –
Replace 104

CAT 950F SERIES II WHEEL LOADER OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD:

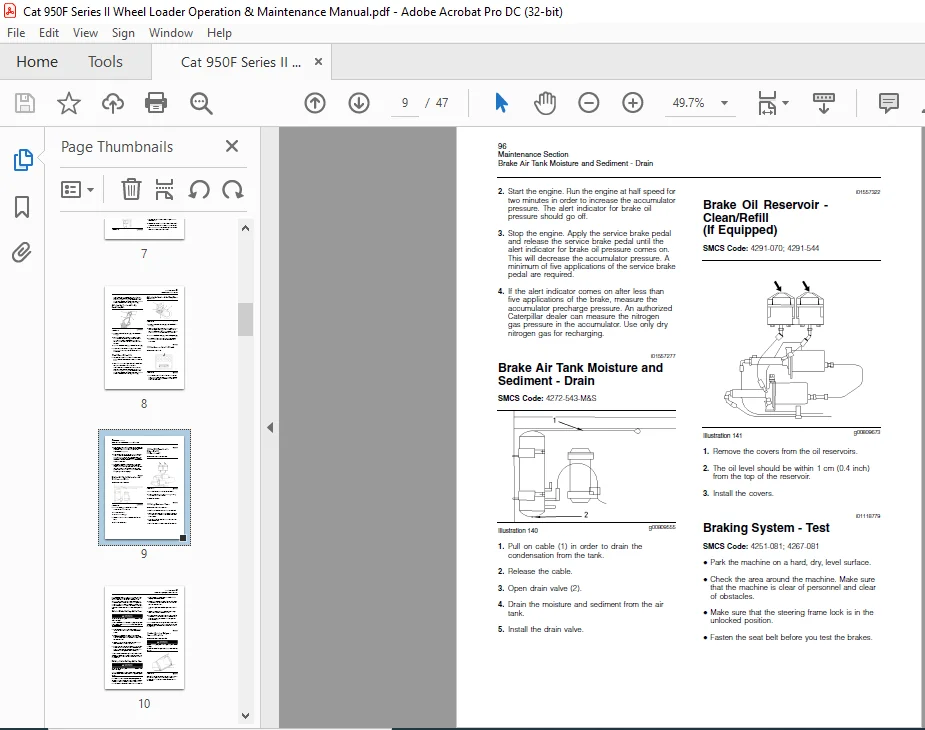

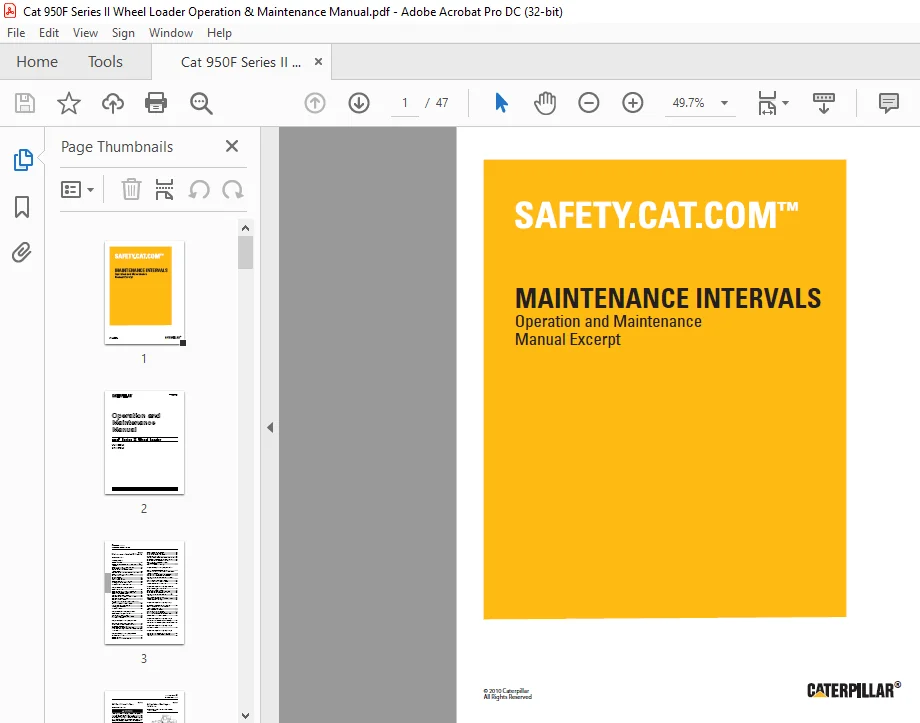

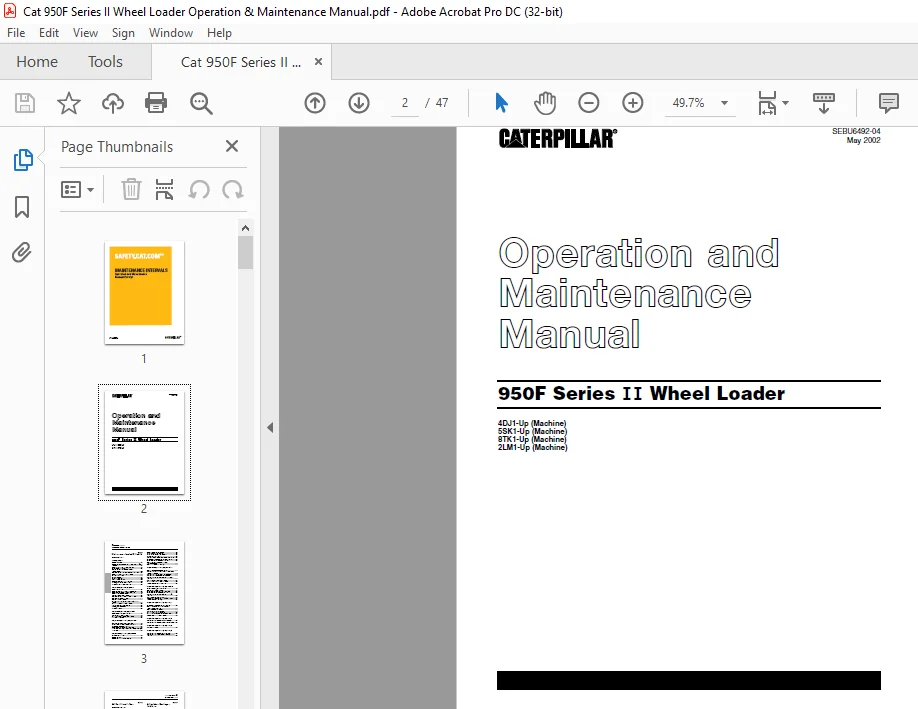

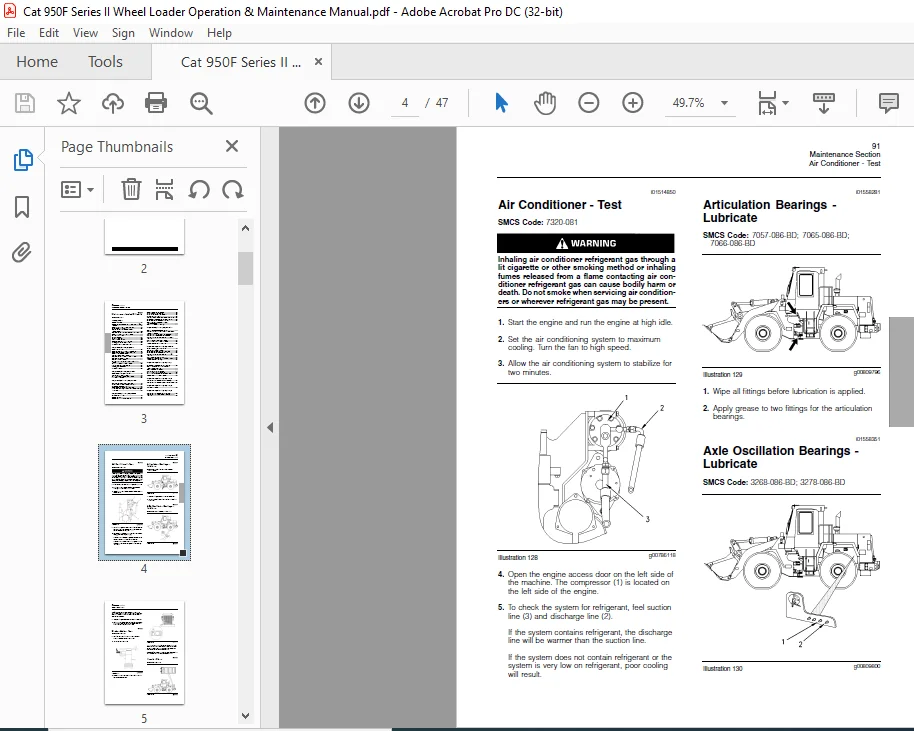

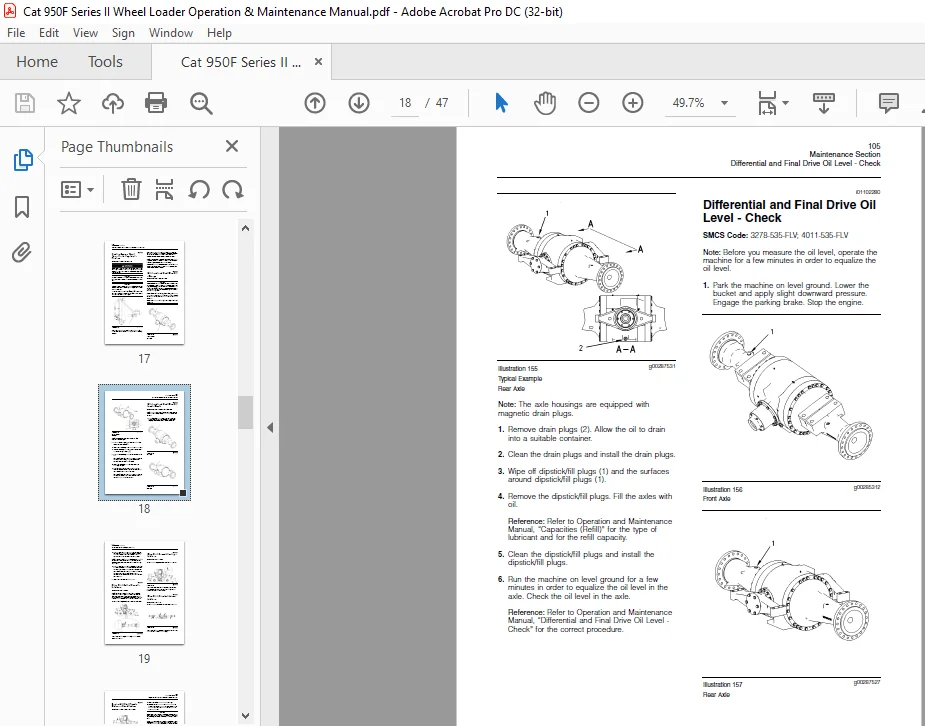

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
