Cat Bucyrus 150-B Shovel & Dragline Instruction Manual BI05554 – PDF DOWNLOAD

Description

Cat Bucyrus 150-B Shovel & Dragline Instruction Manual BI05554 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus 150-B Shovel & Dragline Instruction Manual BI05554 – PDF DOWNLOAD

Language : English
Pages : 154
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus 150-B Shovel & Dragline Instruction Manual BI05554 – PDF DOWNLOAD

INTRODUCTION:
1. Read Instruction Manual Carefully.

• This manual has been compiled to give the owner and operator information
  as to the care, operation and maintenance of the machine.
• For convenience this manual has been written in sections. Familiarize
  yourself with the various sections so that you can easily locate the
  particular information you may need.
• Every effort has been made to have this manual as complete as pos sible
  at the time of printing. However, since the Bucyrus -Erie Company
  reserves the right to improve its products continually, changes may be
  made that are not covered in this manual.

II. General Maintenance.

• A regular planned inspection of all moving machinery parts should be
  made at least once each shift.
• Structural parts, castings and all non-moving connections should be
  inspected once a week.
• Keep all bolts tight and free from oil or grease.
• Keep the machine clean and painted.
• Motors, generators and other electrical equipment should be cleaned
  frequently.
• It is best to dig with crawler belts tight on the bottom.
• Check grounding of machine frequently.
• ground should never exceed 25 ohms.
• Contact resistance of each
• Never attempt to inspect the collector rings unless the trail cable is
  disconnected from the power line. An open switch may not be sufficient
  protection since there is the possibility that dirt or water in
  the oil might cause sufficient leakage to result in a dangerously high
  voltage.

GENERAL OPERATING INSTRUCTIONS:

• How to operate a power excavator effictently must be learned in much the same way
  as any skilled trade. No one is a “born” operator. Regardless of previous
  experience, the new operator must use care to operate the machine safely so as not
  to endanger men or equipment.
• At first glance the large number of levers and switches looks as though operating
  the machine might be complicated, but most of them control some auxiliary function
  of the machine such as steering, etc., and are not used in the regular operating
  cycle. The two levers and the two pedals in front of the operator are the
  principal controls used in the regular operating cycle and their use will be
  described in detail further on in these instructions. The first thing the new
  operator must do is to familiarize himself with the purpose of each of these levers
  and operating switches.
• When learning to operate the machine it is a good plan to study each separate
  function until fully familiar with the control of all the auxiliary functions of
  the machine such as propelling, steering, etc., then tryout the main controls
  which are used in actual digging operations. The main functions can be tried
  separately until the operator becomes accustomed to the response of the machine to
  the controls.
• When learning to handle the controls be sure there is plenty of clearance and no
  danger spots around the machine such as overhead wires, culverts, ditches or
  embankments.

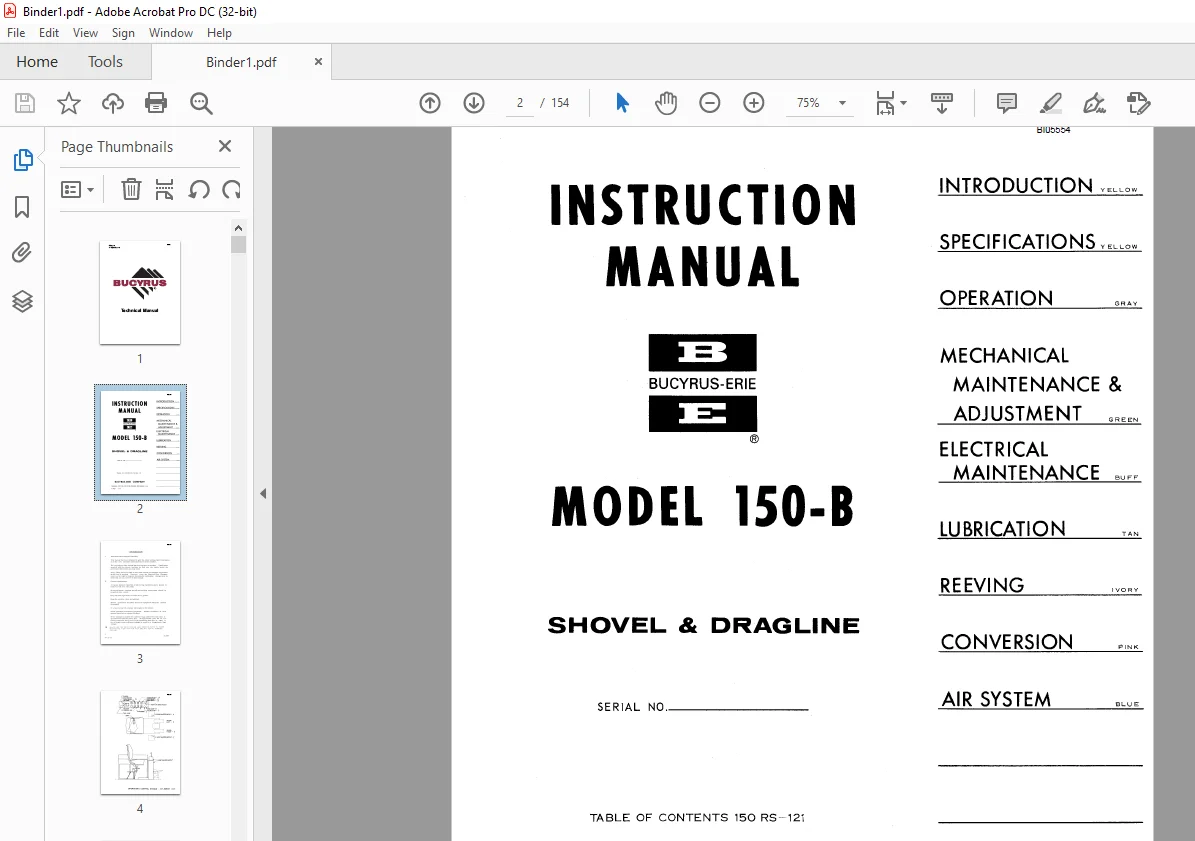

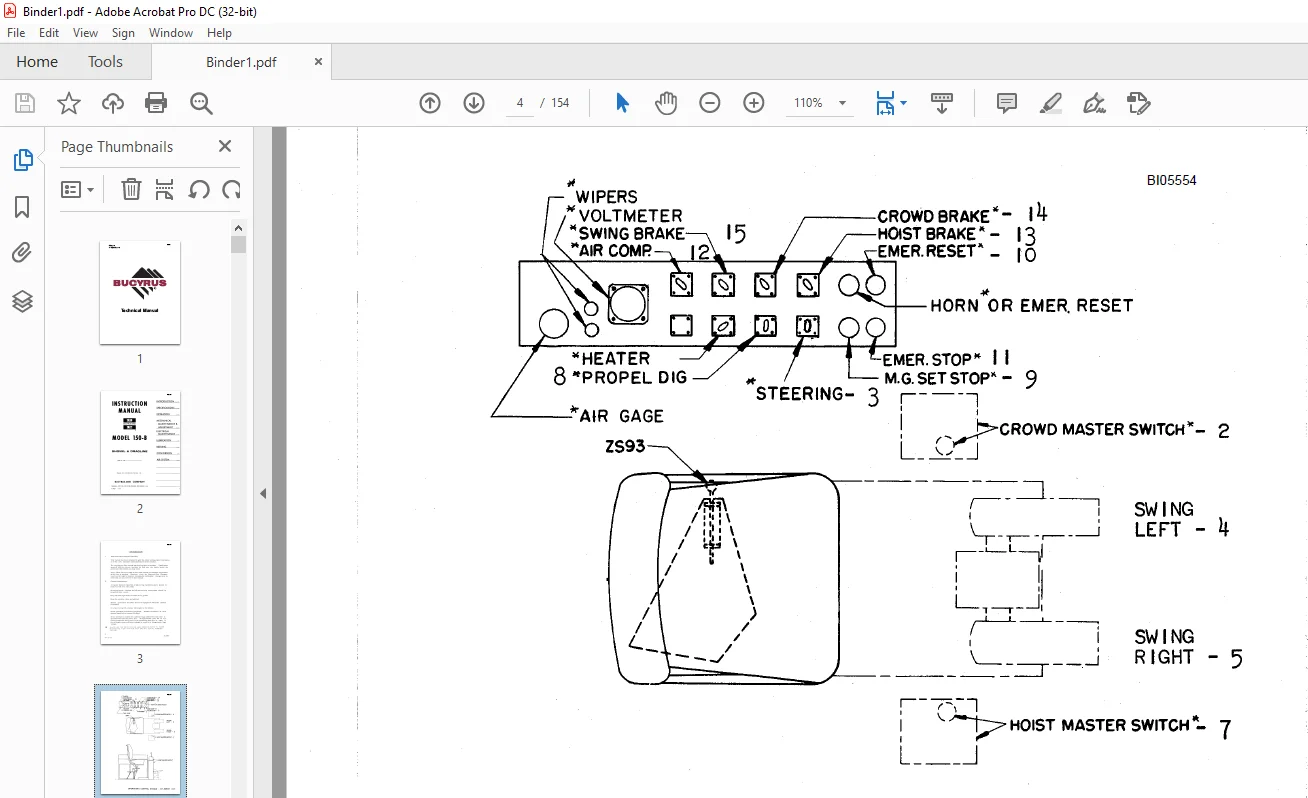

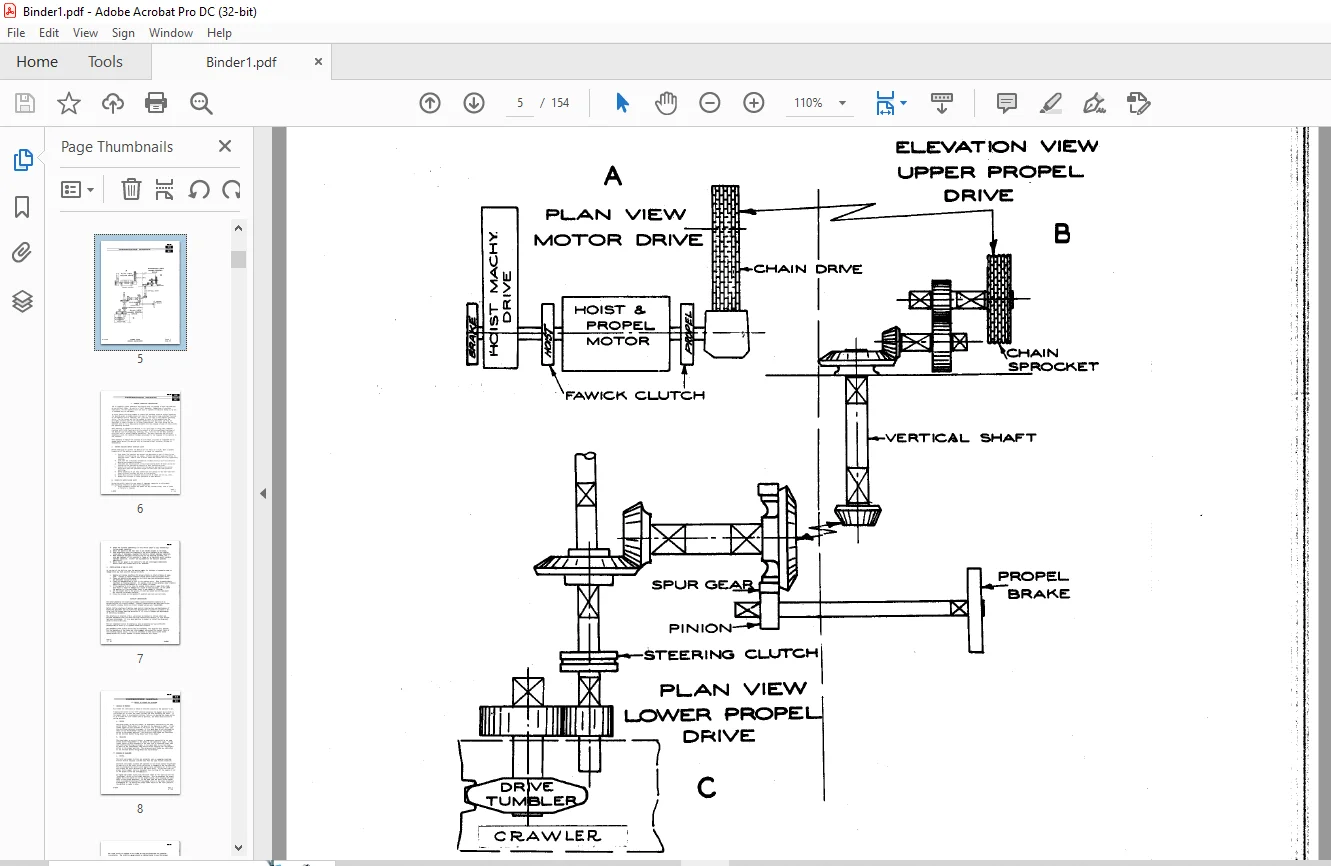

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Cat Bucyrus 150-B Shovel & Dragline Instruction Manual BI05554 – PDF DOWNLOAD

INTRODUCTION
SPECIFICATIONS
OPERATION
MECHANICAL MAINTENANCE & ADJUSTMENT
ELECTRICAL MAINTENANCE
LUBRICATION
REEVING
CONVERSION
AIR SYSTEM
