CAT Bucyrus 30MB3 OPERATOR’S MANUAL BI643654 – PDF DOWNLOAD

Description

CAT Bucyrus 30MB3 OPERATOR’S MANUAL BI643654 – PDF DOWNLOAD

Questions? Email us: [email protected]

https://vimeo.com/890218759?share=copy

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

CAT Bucyrus 30MB3 OPERATOR’S MANUAL BI643654 – PDF DOWNLOAD

Language : English
Pages : 122
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus 30MB3 OPERATOR’S MANUAL BI643654 – PDF DOWNLOAD

General
The 30MB3 miner is a radio-controlled drum-type continuous miner with appropriate weight, balance, cutting and loading power to enable the productive mining of coal and other soft mineral in seams ranging from 1900 mm up to 4000 mm thick.
The machine is mounted on crawler tracks that provide full mobility and sharp turning radius in both board and pillar and long wall development mining plans. The ranging cutting head mines material from the solid face using a chainless rotating drum, and a CLA-type or an East/West type gathering head with high speed conveyor efficiently moves mined material to a haulage system behind the miner.
The machine’s weight and balance is designed to mine most efficiently by either sumping into the face at the top or bottom of the seam, and ripping material to the bottom or top of the seam.

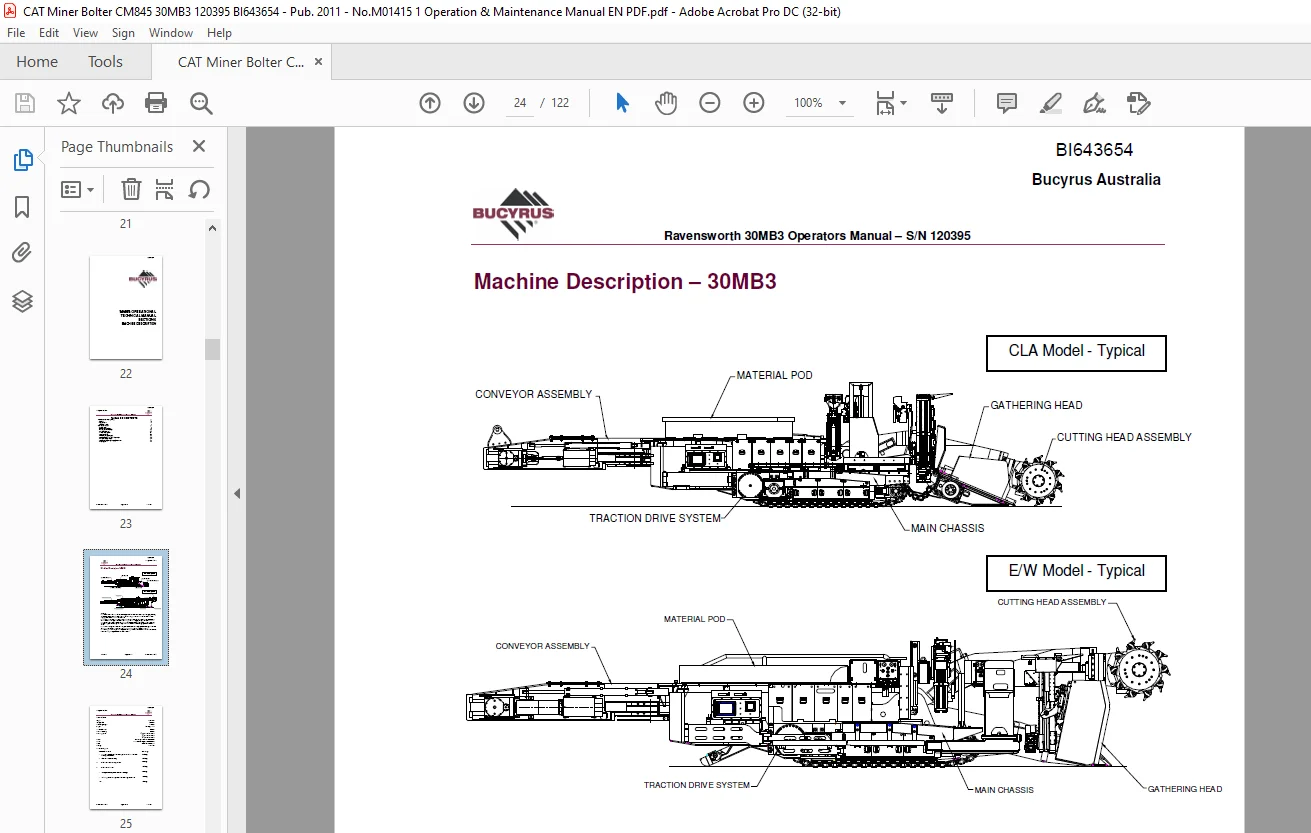

The above figure shows a general arrangement of major mechanical components. A full description of the various major sub-systems of the 30MB3 follows.

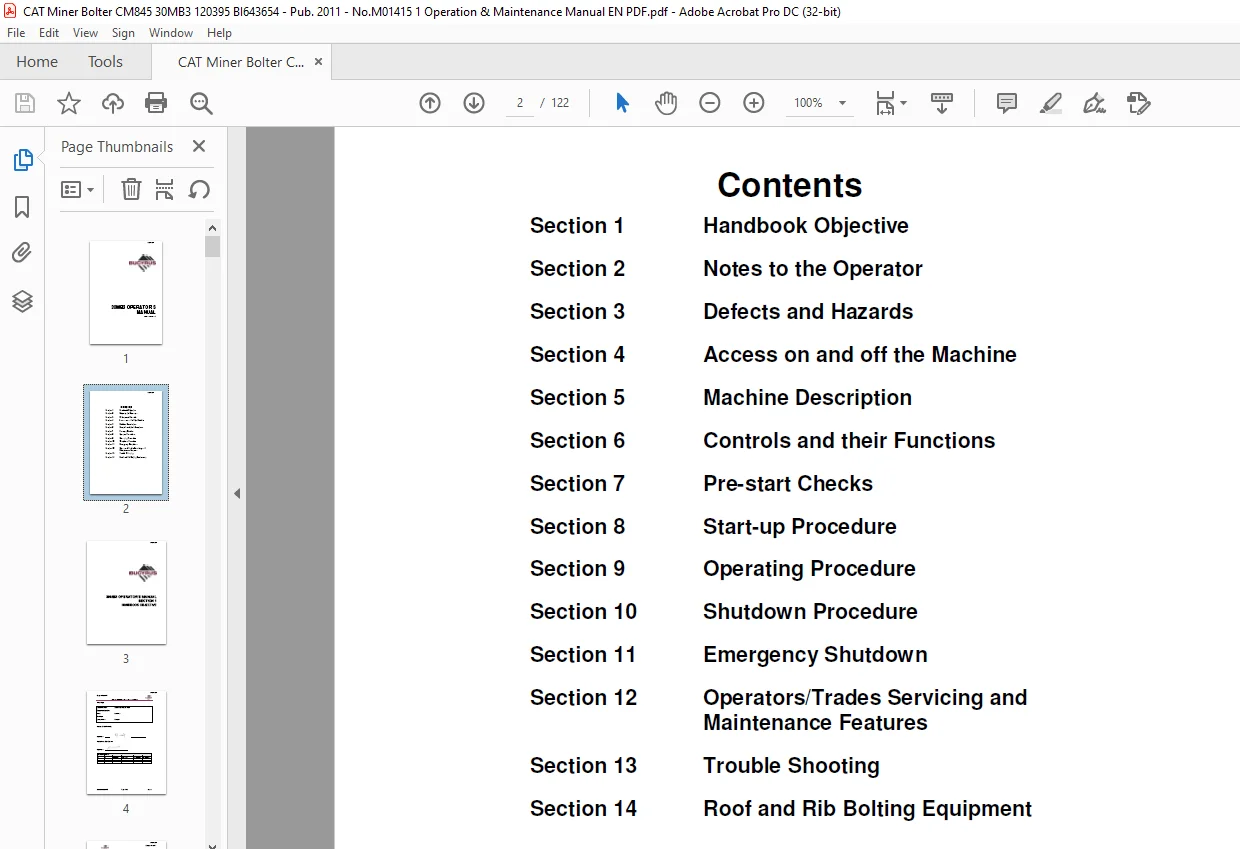

TABLE OF CONTENTS:

CAT Bucyrus 30MB3 OPERATOR’S MANUAL BI643654 – PDF DOWNLOAD

Section 1 Handbook Objective
Section 2 Notes to the Operator
Section 3 Defects and Hazards
Section 4 Access on and off the Machine
Section 5 Machine Description
Section 6 Controls and their Functions
Section 7 Pre-start Checks
Section 8 Start-up Procedure
Section 9 Operating Procedure
Section 10 Shutdown Procedure
Section 11 Emergency Shutdown
Section 12 Operators/Trades Servicing and Maintenance Features
Section 13 Trouble Shooting
Section 14 Roof and Rib Bolting Equipment
