Cat Bucyrus 7820 Dragline Programmable System Manual SN 23343 – PDF DOWNLOAD

Description

Cat Bucyrus 7820 Dragline Programmable System Manual SN 23343 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus 7820 Dragline Programmable System Manual SN 23343 – PDF DOWNLOAD

Language : English
Pages : 827
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus 7820 Dragline Programmable System Manual SN 23343 – PDF DOWNLOAD

Introduction:
GENERAL INFORMATION:

• This manual is designed to assist the owner in the operation and preventive
  maintenance of this machine. Following easy to understand step-by-step procedures,
  maintenance personnel can perform these tasks in a safe manner. When a systematic
  and thorough maintenance/service procedure (a responsibility of the maintenance
  superintendent) is used for this machine, minimum unplanned downtime and reliable
  operation will result.
• THIS MANUAL IS NOT THE PARTS BOOK, and cannot be used to order parts. A
  separate, detailed parts book has been supplied. Please carefully read the instructions
  in it. All parts are listed by group and/or product code numbers with item/part numbers
  for THIS SPECIFIC MACHINE. Order parts in exact quantity. Parts ordered by mistake
  and returned, are subject to a rehandling charge. RIGHT and LEFT HAND PARTS on
  the upper frame correspond to the operator’s hands at the controls; as seated when
  operating the machine. Please state the correct machine SERIAL NUMBER (located on
  a plate in the operator’s cab) when corresponding or contacting factory service or parts
  departments. Records on each machine are filed by serial number and when given this
  number, your machine’s specific design and original equipment is accessed quickly by
  the Marion parts representative.

SAFETY PRECAUTIONS:

• The owner and/or operator must replace any and all safety and warning product
  graphics if they are defaced or removed from the machine.
• Before doing any work on the machine, a qualified electrician must lock out or remove
  the electric power supply from the machine and tag it so personnel are aware that
  someone is working on the machine.
• Do not start an engine indoors unless adequate exhaust ventilators are provided. Once
  an engine is running, move the machine outdoors as soon as possible.
• Keep hands, feet, and clothing away from rotating parts.
• Do not move or operate the machine without knowing the location and purpose of all
  personnel, plus test or support equipment, in or near the machine.
• Think before you act. Carelessness is one luxury the service man cannot afford.
• Do not wear rings, wrist watches or loose fitting clothing when working on machinery.
• They could catch on moving parts causing serious injury. Never adjust and/or service
  a machine in bare feet, sandals or sneakers.
• Always wear safety glasses when using a hammer, chisel or other tools that may
  cause chips to fly.
• Excessive or repeated skin contact with sealants or solvents may cause skin irritation.
• In case of skin contact, remove sealant or solvent promptly by washing with soap and
  water.
• Never utilize the machine air or hydraulic systems for support when working on the
  machine. Deactivate and isolate the system prior to performing maintenance.
• Equipment should be parked on level ground at all times during machine servicing and
  periods of idleness.
• Cranes and hoists must be of sufficient capacity to lift the heavier components (gear
  cases, dipper/bucket, boom, etc.) and have an ample safety margin.
• Be sure heavy items are properly supported from cranes or hoists before removing
  supporting members from machine.
• Have sufficient service personnel available when removing or installing large heavy
  items to maintain control at all times.
• Always use safety stands in conjunction with hydraulic jacks or hoists. Do not rely on
  the jack or hoist to carry the load, they could fail.
• Use safety catch on all hoist hooks. Do not take a chance, the load could slip off of
  the hook.

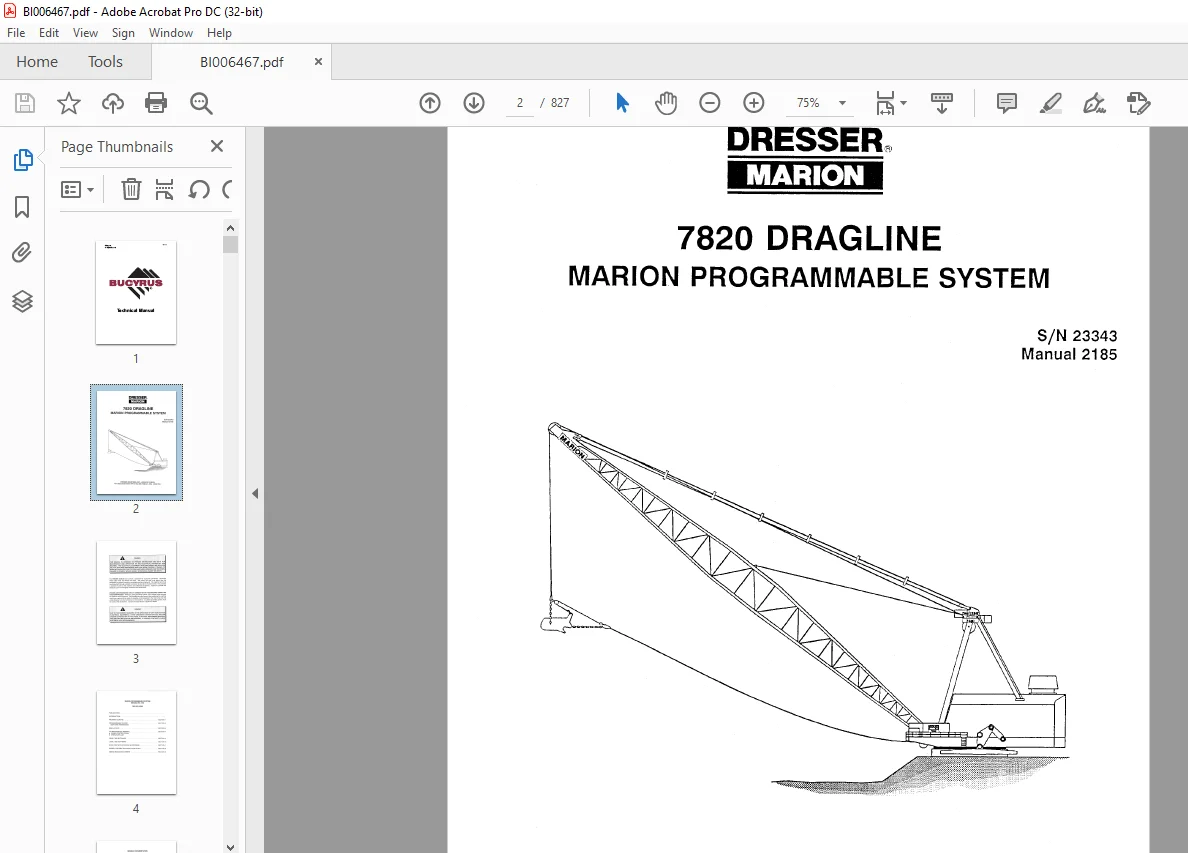

IMAGES PREVIEW OF THE MANUAL:

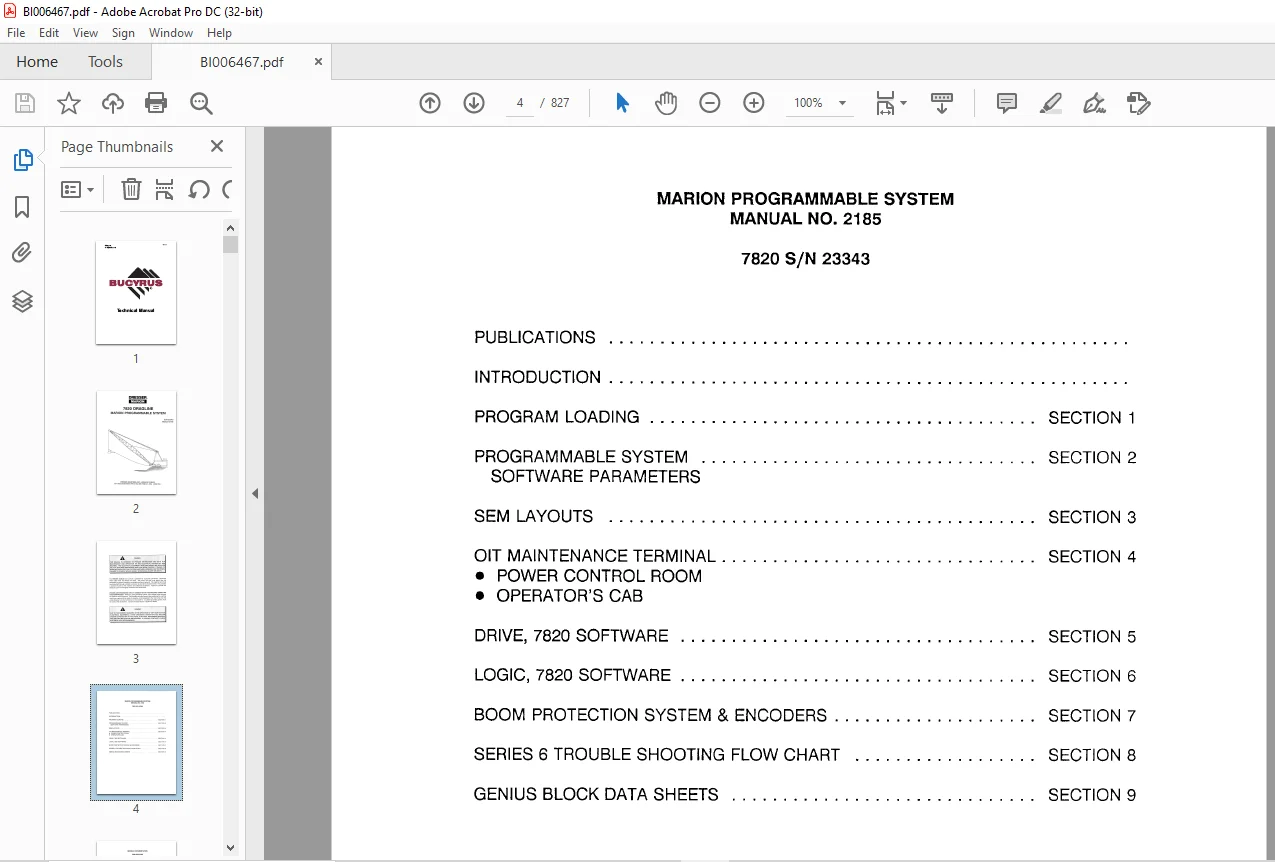

TABLE OF CONTENTS:

Cat Bucyrus 7820 Dragline Programmable System Manual SN 23343 – PDF DOWNLOAD

PUBLICATIONS
INTRODUCTION
PROGRAM LOADING SECTION 1
PROGRAMMABLE SYSTEM SECTION 2
SOFTWARE PARAMETERS
SEM LAYOUTS SECTION 3
OIT MAINTENANCE TERMINAL SECTION 4
• POWER CONTROL ROOM
• OPERATOR’S CAB
DRIVE, 7820 SOFTWARE SECTION 5
LOGIC, 7820 SOFTWARE SECTION 6
BOOM PROTECTION SYSTEM & ENCODERS SECTION 7
SERIES 6 TROUBLE SHOOTING FLOW CHART SECTION 8
GENIUS BLOCK DATA SHEETS SECTION 9
