CAT Bucyrus Continuous Haulage System MC 02 Machine Handbook 1 Operation Manual BI618950 – PDF DOWNLOAD

Description

CAT Bucyrus Continuous Haulage System MC 02 Machine Handbook 1 Operation Manual BI618950 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus Continuous Haulage System MC 02 Machine Handbook 1 Operation Manual BI618950 – PDF DOWNLOAD

Language : English
Pages : 250
Downloadable : Yes
File Type : PDF

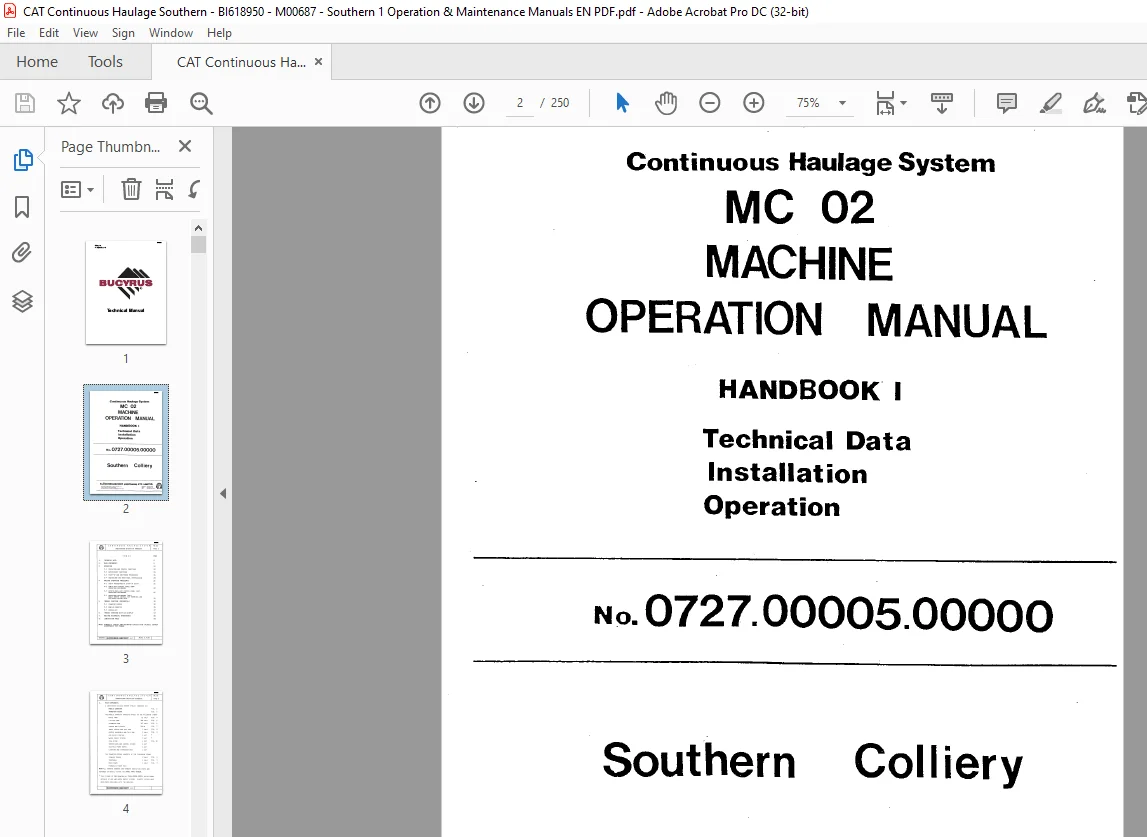

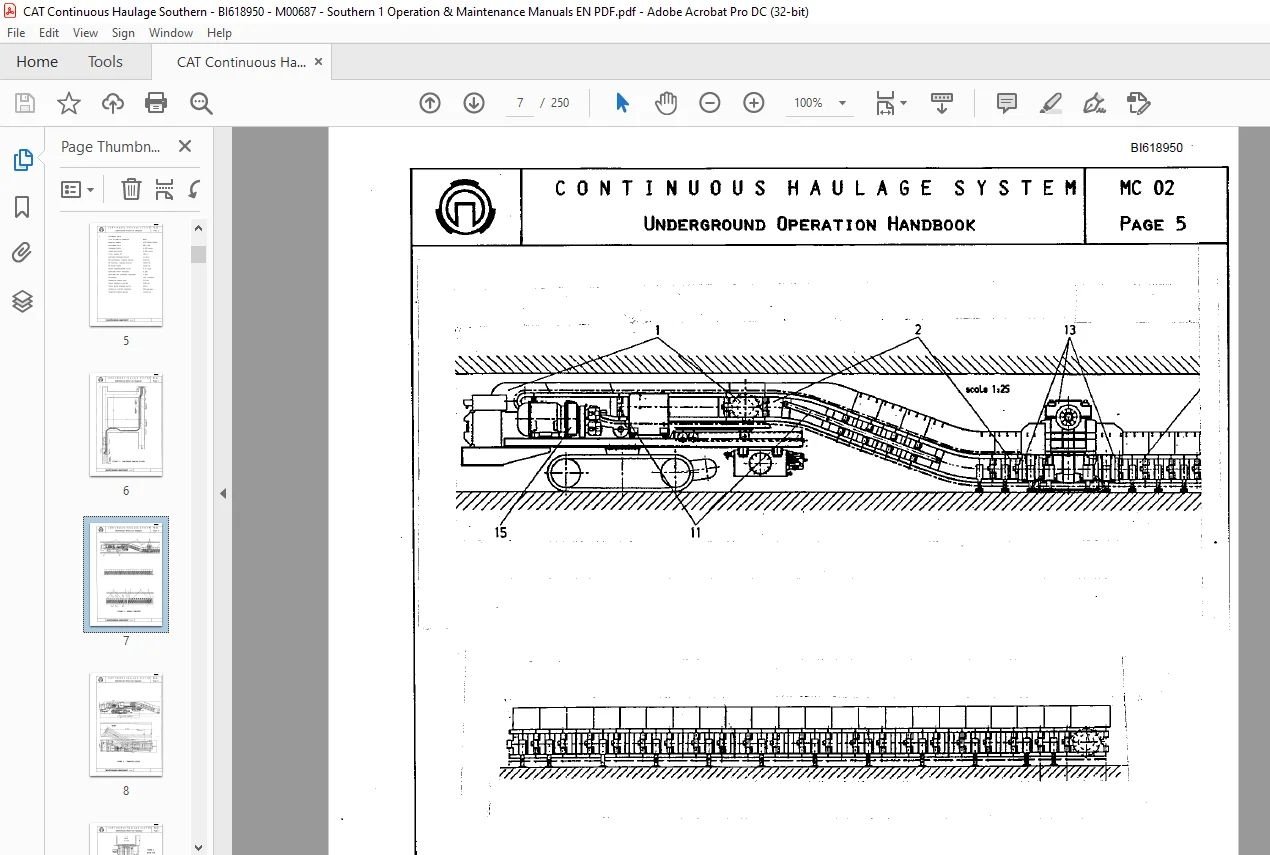

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CAT Bucyrus Continuous Haulage System MC 02 Machine Handbook 1 Operation Manual BI618950 – PDF DOWNLOAD

OPERATION AND CONTROL FUNCTIONS:

THE MOBILE CONVEYOR IS REQUIRED TO FULFIL THE FOLLOWING FUNCTIONS: –
A) RAISE AND LOWER BY MEANS OF PNEUMATIC CYLINDERS
B) MOVE INBYE AND OUTBYE FOR TRAMMING AND CONVEYING
C) CHANGE GEAR FOR SLOW TRAMMING AS WELL AS FOR FAST OR
SLOW CONVEYING (THESE FUNCTIONS ARE INTERLOCKED)
D) STEERING LEFT, CENTRE, AND RIGHT BY MEANS OF FOUR (4)
PNEUMATIC CYLINDERS AT THE INBYE END OF THE MC.

• THERE ARE TWO LOCATIONS FROM WHICH THE CONVEYOR CAN BE OPERATED. THE MAIN CONTROL PANEL (MCP) MOUNTED ON THE INBYE END OF THE MC OR THE OUTBYE CONTROL PANEL (ACP) WHICH IS MOUNTED ON THE TRANSFER FEEDER.
• OPERATION OF THE MC CAN ONLY BE FROM ONE OF THESE PANELS AT ANY ONE TIME.

THE FOLLOWING MODES OF OPERATION ARE PROVIDED: –
1. REPAIR MODE (MAIN CONTROL PANEL ONLY). THIS IS IN TWO
FORMS: RESTRICTED AND NORMAL.
2. MANUAL MODE (WHICH PROVIDES CONTINUOUS OPERATION FROM
ONLY THE MAIN CONTROL PANEL).
3. RADIO REMOTE CONTROL (FROM EITHER END OF MC).
4. PENDANT CONTROL (FROM EITHER END OF MC).
THIS MODE SELECTION CAN BE MADE AT THE MICROPROCESSOR
CONTROL CUBICLE BY MEANS OF A 4-POSITION SELECTOR SWITCH•

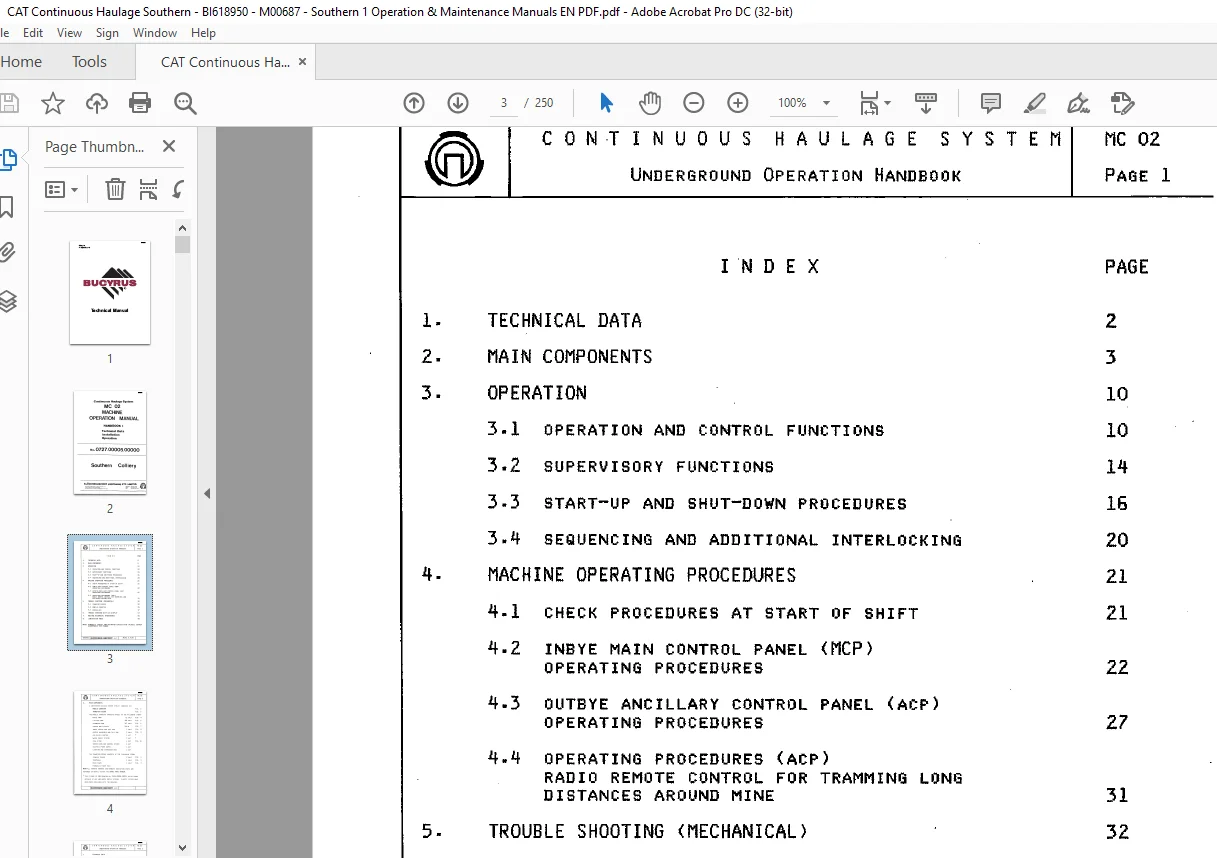

TABLE OF CONTENTS:

CAT Bucyrus Continuous Haulage System MC 02 Machine Handbook 1 Operation Manual BI618950 – PDF DOWNLOAD

1.TECHNICAL DATA
2.MAIN COMPONENTS
3.OPERATION
3.1 OPERATION AND CONTROL FUNCTIONS
3.2 SUPERVISORY FUNCTIONS
3.3 START-UP AND SHUT-DOWN PROCEDURES
3.4 SEQUENCING AND ADDITIONAL INTERLOCKING
4.MACHINE OPERATING PROCEDURES
4.1 CHECK PROCEDURES AT START OF SHIFT
4-2 INBYE MAIN CONTROL PANEL (MCP)
OPERATING PROCEDURES
4.3 OUTBYE ANCILLARY CONTROL PANEL (ACP) OPERATING PROCEDURES
4.4 OPERATING PROCEDURES (ACP) RADIO REMOTE CONTROL FOR TRAMMING LONG DISTANCES AROUND MINE
5.TROUBLE SHOOTING <MECHANICAL>
5.1 TRA~SFER FEEDER
5.2 MOBILE CONVEYOR
5.3 HYDRAULICS
6.TROUBLE SHOOTING WITH LED DISPLAY
7.ROUTINE MECHANICAL MAINTENANCE
8.LUBRICATION TABLE
