Cat Bucyrus Continuous Miner 935M, 935-2NL, 936M Diesel Scoop Parts Manual – PDF DOWNLOAD

Description

Cat Bucyrus Continuous Miner 935M, 935-2NL, 936M Diesel Scoop Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus Continuous Miner 935M, 935-2NL, 936M Diesel Scoop Parts Manual – PDF DOWNLOAD

Language :English
Pages :13
Downloadable : Yes
File Type : PDF

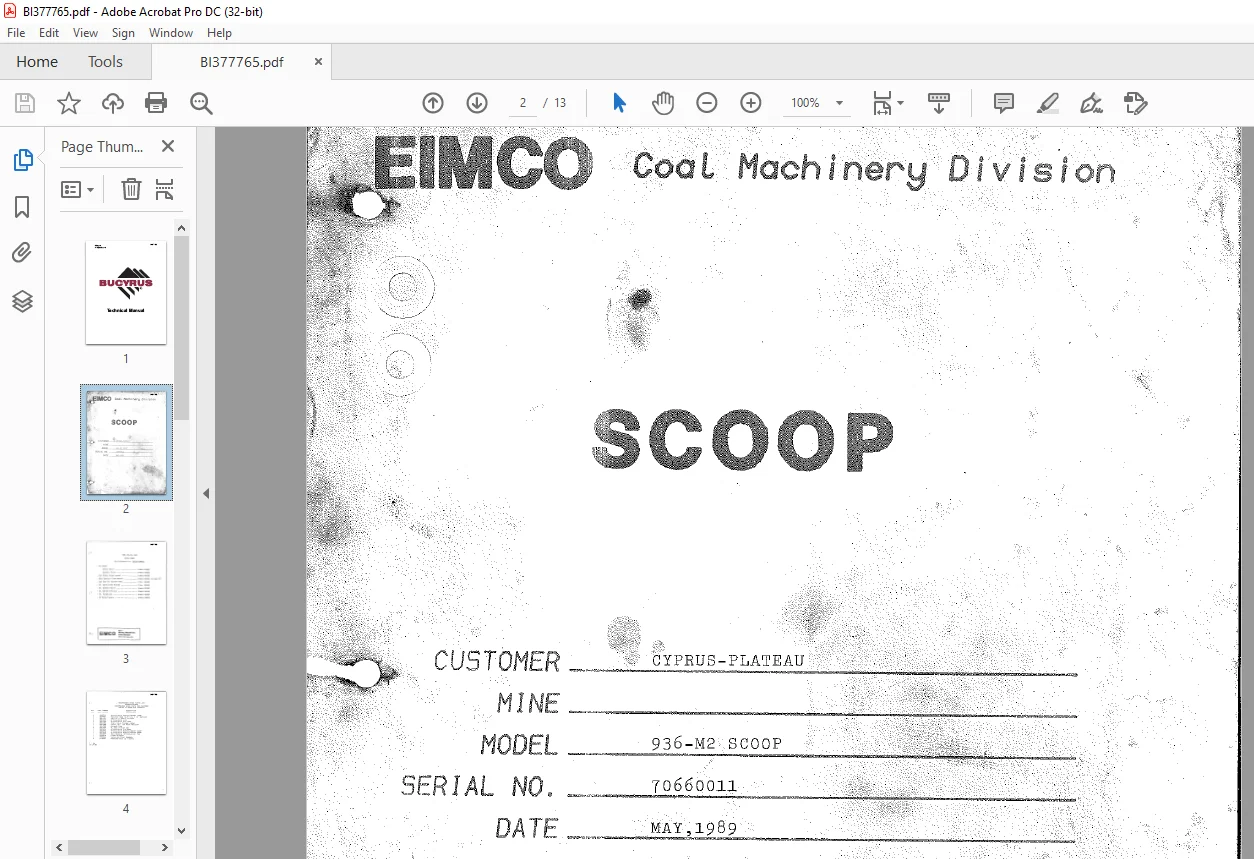

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Cat Bucyrus Continuous Miner 935M, 935-2NL, 936M Diesel Scoop Parts Manual – PDF DOWNLOAD

– Air Cleaner
Primary (Outer) Element 0700629
Secondary (Inner)  Element 0700628
– Fuel Primary (Frame Located) Element 0601000
– Water Separator (Frame Mounted) .. Element 0202030 (6Z…O\~ z. s)
– Fuel Final (On Injection Pump) , Filter 0201822
– Oil, Engine (Frame Mounted)  Filter 0201823
– Oil, Hydraulic-Return Element 0201863
– Oil, Hydraulic-Pressure ‘Element 0201392
– Air System Pressure  Element 0700676
RECOMMENDED SPARE PARTS LIST
CYPRUS-PLATEAU
RECOMMENDED SPARE PARTS FOR CUSTOMER
936-M2 VL SCOOP S/N 70660010
DESCRIPTION
Articulation Bushing Spacer Lower
Radiator Hose 12.5” I.D. X 10’ Section)
Fork 8 X 4 Basic w/o Ears
Articulation Link
Articulation Pin Lower
Disc:, Valve Pl Ltnger, Water
Valve, Air. Low Water Shutdown
Exhaust Pipe
VL Jac:k Trunion Cap
Articulation Pin Upper
Articulation Bushing Spacer Upper
Articulation Bushing Bottom Upper
Ball Bushing (Articulation) Top
Flame Arrestor
Valve and Float Assembly
Headlamp Bulb 12 V Quartz
RECOMMENDED SPARE PARTS LIST
CYPRUS-PLATEAU
RECOMMENDED SPARE PARTS FOR CUSTOMER
936-M2 VL SCOOP SIN 70660010
DESCRIPTION
Alternator
VL Jack Ball Bushing
Steering Accumulator (Big)
Brake Accumulator (Smalll
Filter Element !Hydraulic) Press~1re
H 2 0 Temperature Gauge
Steering Cylinder
Ball Bushing <Steering Cylinder)
Hydraulic Pressure Gauge
Strainer Hydraulic Tank Suction
Fuel Filter Element
Engine Filter (Oil)
Transmission Filter Element
Water Separator Element (Same as 0202030)
Filter Element Hydraulic Oil !Return)
Pump Piston
Vertical Lift Cylinder
Fork Tilt Cylinder VL
Fan Motor !Gear) Hi Alt
Pump, Gear – Fan
U-Joint SC
U-Joint 8 1/2 C
Nut Special
Brake, Emergency (Repair f<it) Lining I!< Seals
Fuel Filter (Remote)
Hose Clamp
Bolt, Wheel 3/4-10
Hose Clamp
Cable-Shut Off
Ball Bushing <Articulation) Lower
Radiator Cap 15 psi
View Gauge
Strainer Hydaulic Tank Fill
FLtel Cap
TemperatLtre Control Shutdown
Slave Cylinder !Injection)
Air Pressure Gauge
3 1/2″ 90 deg. Rubber Elbow
Air Safety Element
Air Primary Element
Neutral Start Valve
Alternator Belts <3 belts/machine)
Bushing 1″ Bore Fan
Radiator Cap 6 psi
VL Jack Trunion Cap Bt.tshing
Pin <Steering Cylinder)
Articulation Bushing Lower
U-Joint 6C
