CAT BUCYRUS MARION 5561 OPERATION AND MAINTENANCE INSTRUCTON MANUAL BI005686 – PDF DOWNLOAD

Description

CAT BUCYRUS MARION 5561 OPERATION AND MAINTENANCE INSTRUCTON MANUAL BI005686 – PDF DOWNLOAD

FILE DETAILS:

CAT BUCYRUS MARION 5561 OPERATION AND MAINTENANCE INSTRUCTON MANUAL BI005686 – PDF DOWNLOAD

Language : English
Pages :215
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT BUCYRUS MARION 5561 OPERATION AND MAINTENANCE INSTRUCTON MANUAL BI005686 – PDF DOWNLOAD

GENERAL

• These instructions have been prepared to aid in erecting a MARION 5563 vel, and as a guide for the operator, the groundman, and the eller in their operation, lubrication and maintenance. The engineering drawings which ac- company the machiné give the exact location of all parts, all necessary di- mensions, etc. It is very important that extreme care be taken in assembly because improper erection may cause unnecessary wear and faulty operation of the machine.
• When the machine is shipped from the factory, the parts are match marked throughout. Care should be taken to follow these match marks when the ma- chine is assembled. All finished surfaces and bearings are protected against corrosion, and should be thoroughly cleaned just before assembly. When assembling, all bearings should be lubricated.
• Ball and roller bearings are to be filled only 1/2 full of the proper grease. Also lubricate all gears, and put the proper oil in gear cases up to the correct level before the machine is run. All air and electri- cal equipment, bearings and finished surfaces should be protected from the weather until the machine is fully assembled.
• Select a level assembling area adjacent to the unloading point approximately 300 x 300′ preferably made up of solid material and with good drainage. It may be advisable to place gravel or cinders in the immediate erection area. It is important that the derrick be placed so that the greatest loads can be lifted without interfering with the erection of the machine.
• The recommended position of this derrick is indicated on drawing CR-4563. If the ground is not level, place the dead men out further than the 425′ indicated for boom clear- ance.

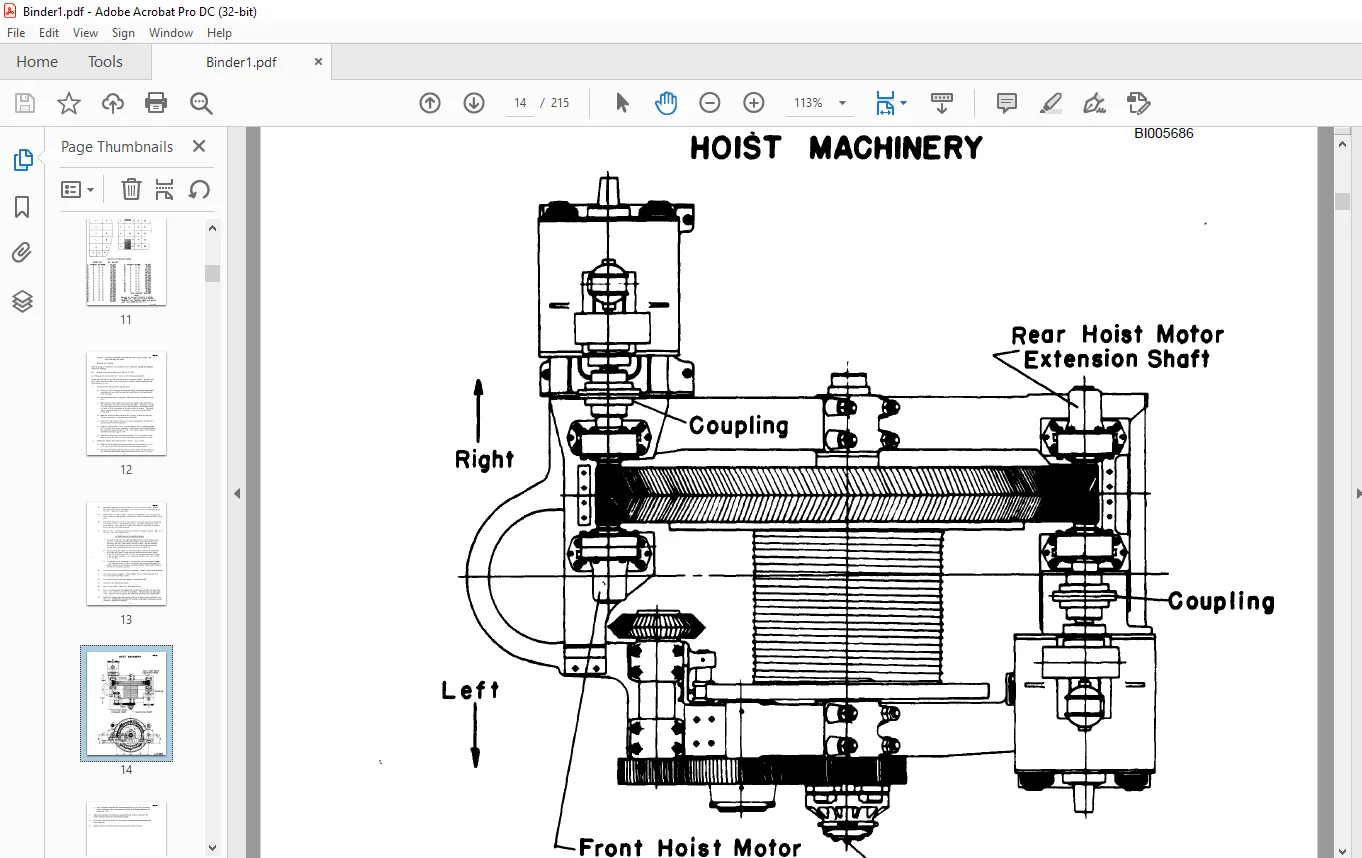

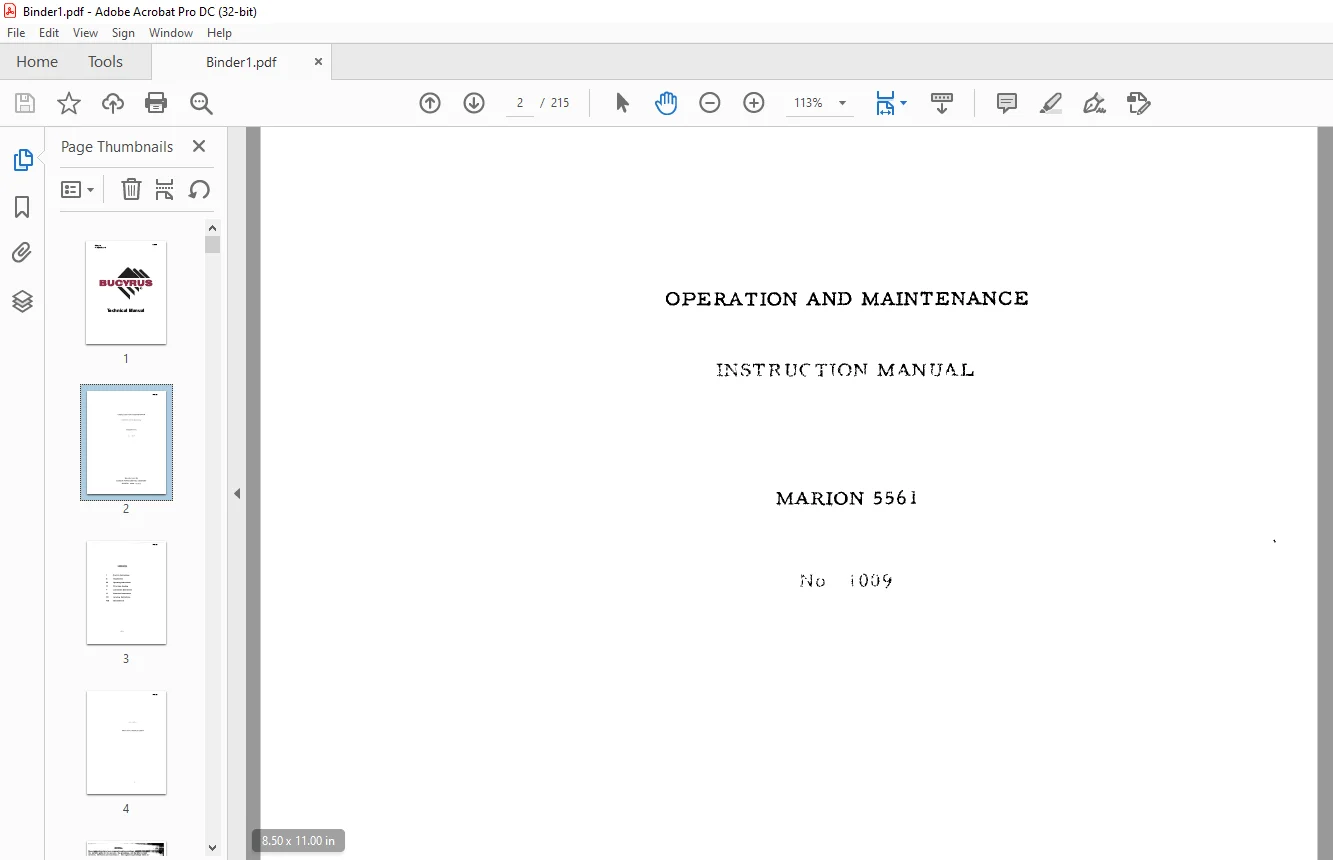

IMAGES PREVIEW OF THE MANUAL:

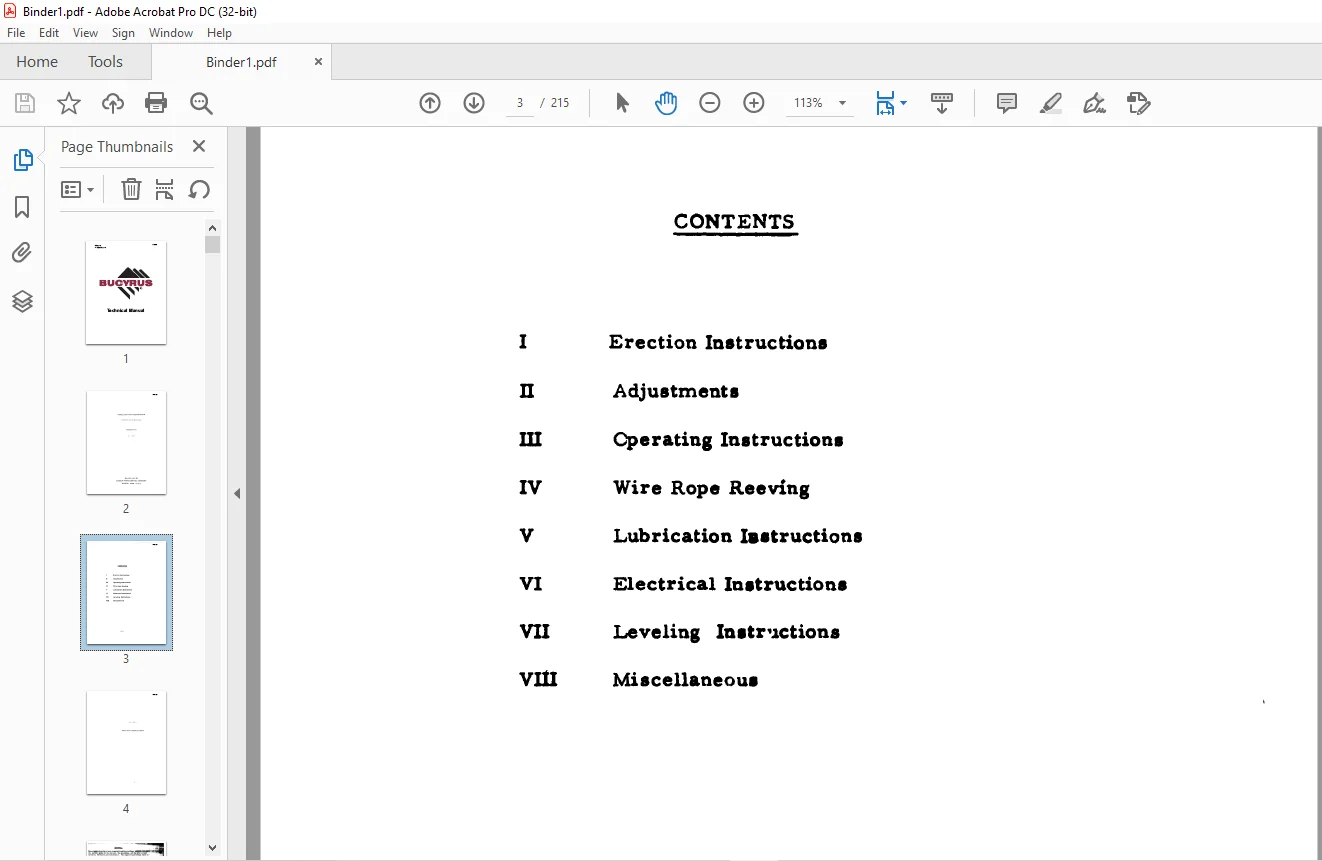

TABLE OF CONTENTS:

CAT BUCYRUS MARION 5561 OPERATION AND MAINTENANCE INSTRUCTON MANUAL BI005686 – PDF DOWNLOAD

I Erection Instructions
II Adjustments
III Operating Instructions
IV Wire Rope Reeving
V Lubrication Iastructions
VI Electrical Instructions
VII Leveling lnstr•Jctions
VIII  Miscellaneous
