Cat Bucyrus Marion 7400 Electric Walking Dragline Operation & Maintenance Manual BI005692 – PDF DOWNLOAD

Description

Cat Bucyrus Marion 7400 Electric Walking Dragline Operation & Maintenance Manual BI005692 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus Marion 7400 Electric Walking Dragline Operation & Maintenance Manual BI005692 – PDF DOWNLOAD

Language : English
Pages : 106
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus Marion 7400 Electric Walking Dragline Operation & Maintenance Manual BI005692 – PDF DOWNLOAD

GENERAL:

• The instruction. have been prepared to aid in erecting a Marion 7400 Electric
  Walking Dragline, a. a guide for the operator, the groundman, and the oller in
  their operation, maintenance and lubrication. The engineering drawinl. whick
  accompany the machine, give the exact location of all part., all neccesary dimen.
  ion., etc. It ia Tery important that extreme care b. taken in a ssembly becalise
  improper erection may cause unnecessary wear and faulty operation of
  the machine.
• When the machine is shipped from the factory. the parts are match marked
  throughout. Care ahould be taken to follow these match marks when the machine
  ia assembled.
• All finished surface. and bearings are protected against corrosion and ahould be
  thoroughly cleaned just before assembly. When a.sembling, all bearings should
  be lubricated. Ball and roller bearing. are to be filled only 1/1. full of the proper
  grease. Alao lubricate all gears and put the proper oU in gear cases up to
  the correct leTel before the machine ia run. All air and electrical equipment,
  bearings and fini.hed surfaces should be protected from the weather until the
  machine ia fully as sembled.
• Select a level assembling area adjacent to the unloading point approxbnately 300′
  x 300 ‘ preferably made up of solid material and with good drainage. It may be
  adYisable to place gravel or cinders in the immediate erection area.
• It is important that the derrick be placed so that the greatest loads can be lUted
  without interferring with the erection of the machine. The recommended podtion
  of this derrick ia indicated on drawing CR-4585. U the ground ia not level,
  place the dead men out further than the 300′ indicated for boom clearance.

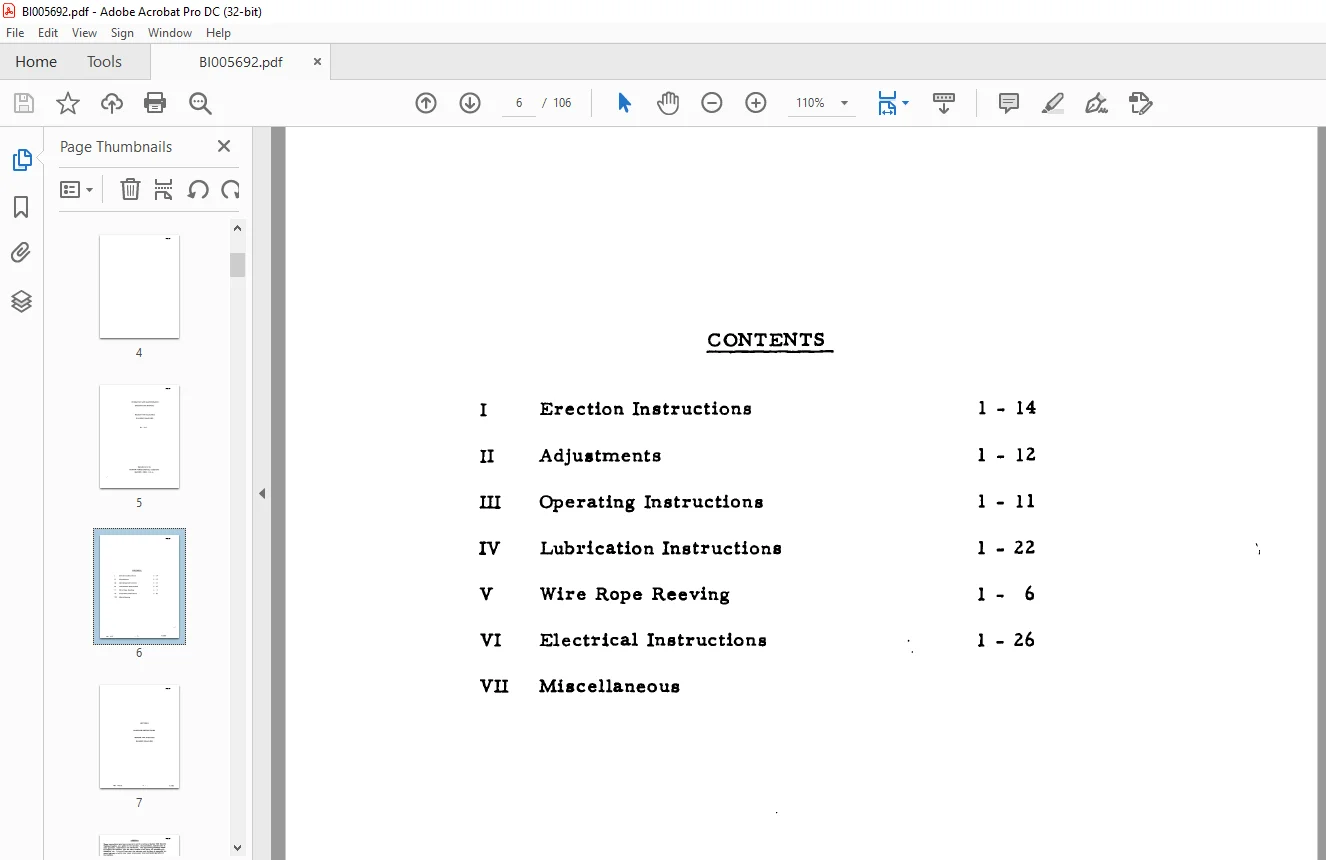

TABLE OF CONTENTS:

Cat Bucyrus Marion 7400 Electric Walking Dragline Operation & Maintenance Manual BI005692 – PDF DOWNLOAD

I Erection Instructions
II Adjustments
III Operating Instructions
IV Lubdcation Instructions
V Wire Rope Reeving
VI Electrical Instructions
VII Miscellaneous

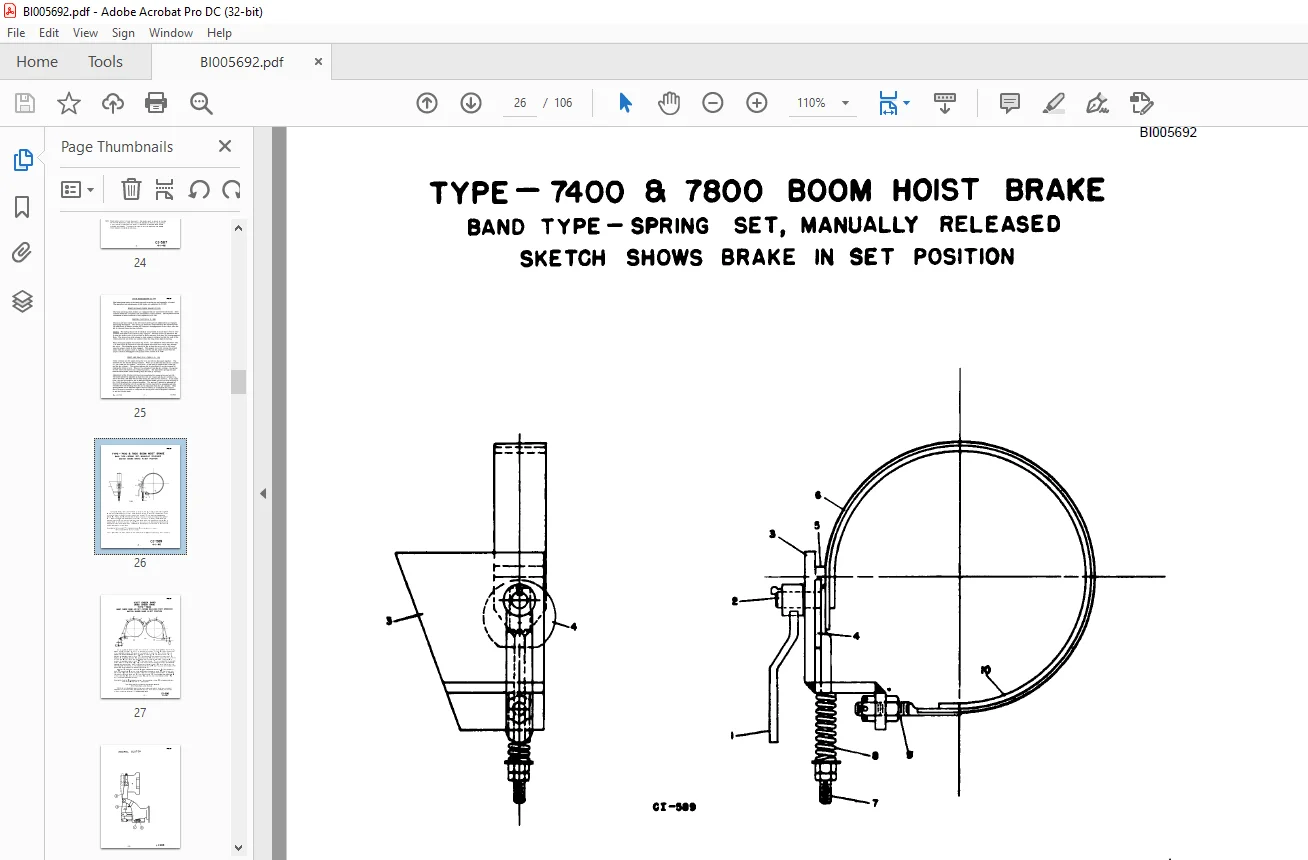

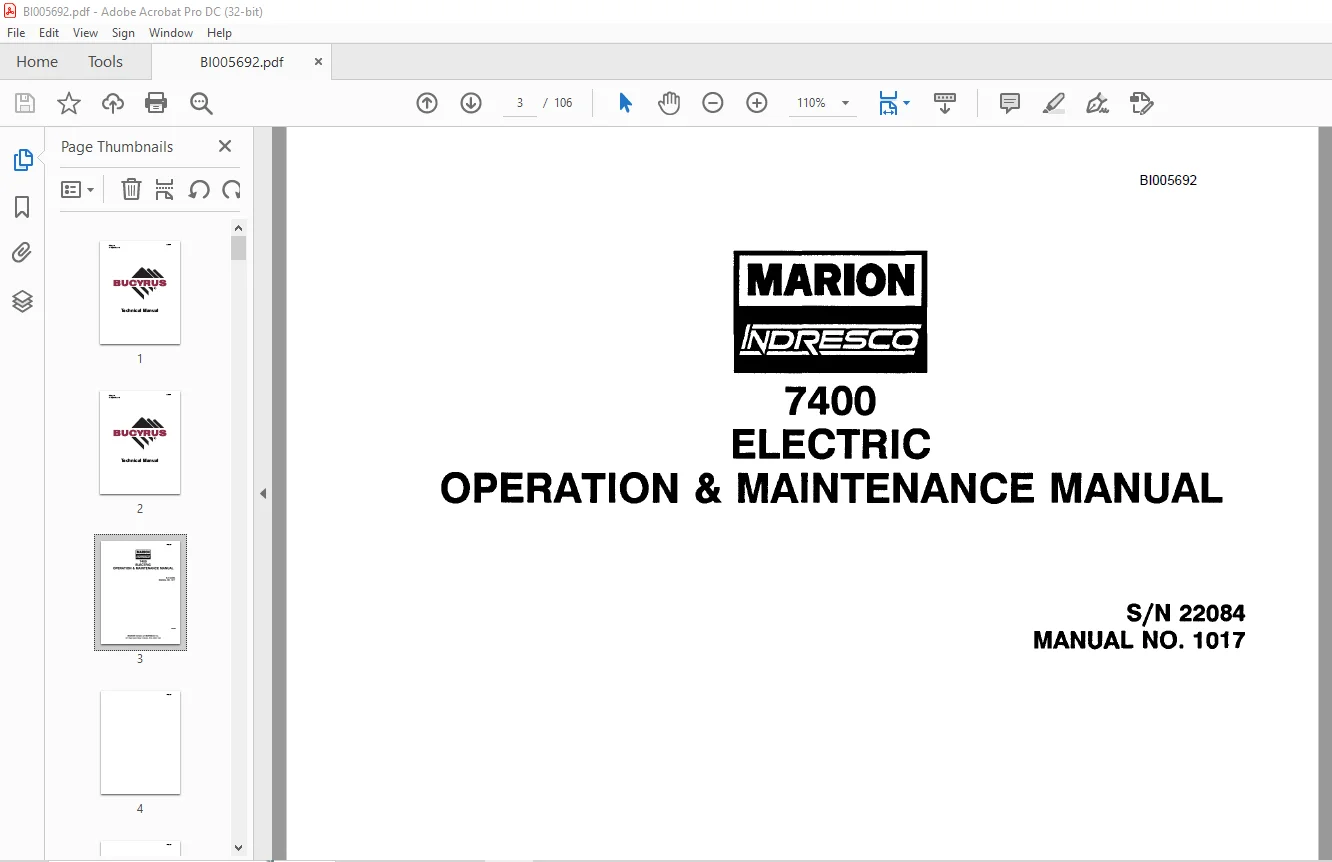

IMAGES PREVIEW OF THE MANUAL:
