Cat Bucyrus Marion 8200 Walking Dragline Operator’s Manual SN 23369 – PDF DOWNLOAD

Description

Cat Bucyrus Marion 8200 Walking Dragline Operator’s Manual SN 23369 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus Marion 8200 Walking Dragline Operator’s Manual SN 23369 – PDF DOWNLOAD

Language : English
Pages : 60
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus Marion 8200 Walking Dragline Operator’s Manual SN 23369 – PDF DOWNLOAD

GENERAL INFORMATION:

• This manual is designed to assist the owner in the operation and preventive maintenance of this
  machine. Following easy to understand step-by-step procedures, maintenance personnel can
  perform these tasks in a safe manner. When a systematic and thorough maintenance/service procedure
  (a responsibility of the maintenance superintendent) is used for this machine, minimum unplanned
  downtime and reliable operation will result.
• THIS MANUAL IS NOT THE PARTS BOOK, and cannot be used to order parts. A separate, detailed parts
  book has been supplied. Please carefully read the instructions in it. All parts are listed by
  group and/or product code numbers with item/part numbers for THIS SPECIFIC MACHINE. Order
  parts in exact quantity. Parts ordered by mistake and returned, are subject to a rehandling charge.
  RIGHT HAND and LEFT HAND parts on the upper frame correspond to the operator’s hands at the
  controls; as seated when operating the machine. Please state the correct machine SERIAL NUMBER
  (located on a plate in the operator’s cab) when corresponding or contacting factory service or
  parts departments. Records on each machine are filed by serial number and when given this number,
  your machine’s specific design and original equipment is accessed quickly by the Marion parts
  representative.

SAFETY PRECAUTIONS:
– The owner and/or operator must replace any and all safety and warning product graphics
if they are defaced or removed from the machine.
– Before doing any work on the machine, a qualified electrician must lock out or remove the
electric power supply from the machine and tag it so personnel are aware that someone
is working on the machine.
Do not start an engine indoors unless adequate exhaust ventilators are provided. Once
an engine is running, move the machine outdoors as soon as possible.
– Keep hands, feet, and clothing away from rotating parts.
– Do not move or operate the machine without knowing the location and purpose of all
personnel, plus test or support equipment, in or near the machine.
– Think before you act. Carelessness is one luxury the service man cannot afford.
– Do not wear rings, wrist watches or loose fitting clothing when working on machinery.
They could catch on moving parts causing serious injury. Never adjust and/or service a
machine in bare feet, sandals or sneakers.
– Always wear safety glasses when using a hammer, chisel or other tools that may cause
chips to fly.
– Excessive or repeated skin contact with sealants or solvents may cause skin irritation. In
case of skin contact, remove sealant or solvent promptly by washing with soap and water.
– Never utilize the machine air or hydraulic systems for support when working on the
machine. Deactivate and isolate the system prior to performing maintenance.
– Equipment should be parked on level ground at all times during _machine servicing and
periods of idleness.
– Cranes and hoists must be of sufficient capacity to lift the heavier components (gearcases,
dipper/bucket, boom, etc.) and have an ample safety margin.
– Be sure heavy items are properly supported from cranes or hoists before removing
supporting members from machine.
– Have sufficient service personnel available when removing or installing large heavy items
to maintain control at all times.
– Always use safety stands in conjunction with hydraulic jacks or hoists. Do not rely on the
jack or hoist to carry the load, they could fail.
– Use safety catch on all hoist hooks. Do not take a chance, the load could slip off of the
hook.

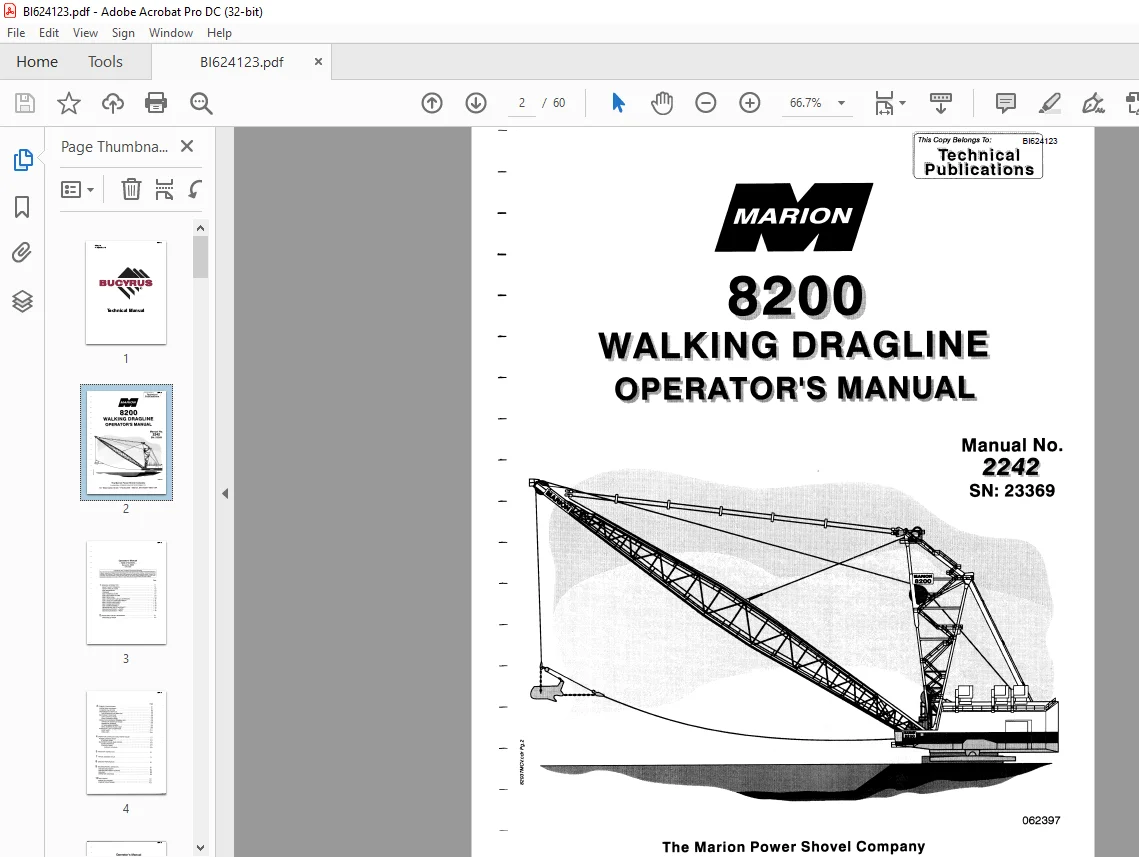

IMAGES PREVIEW OF THE MANUAL:

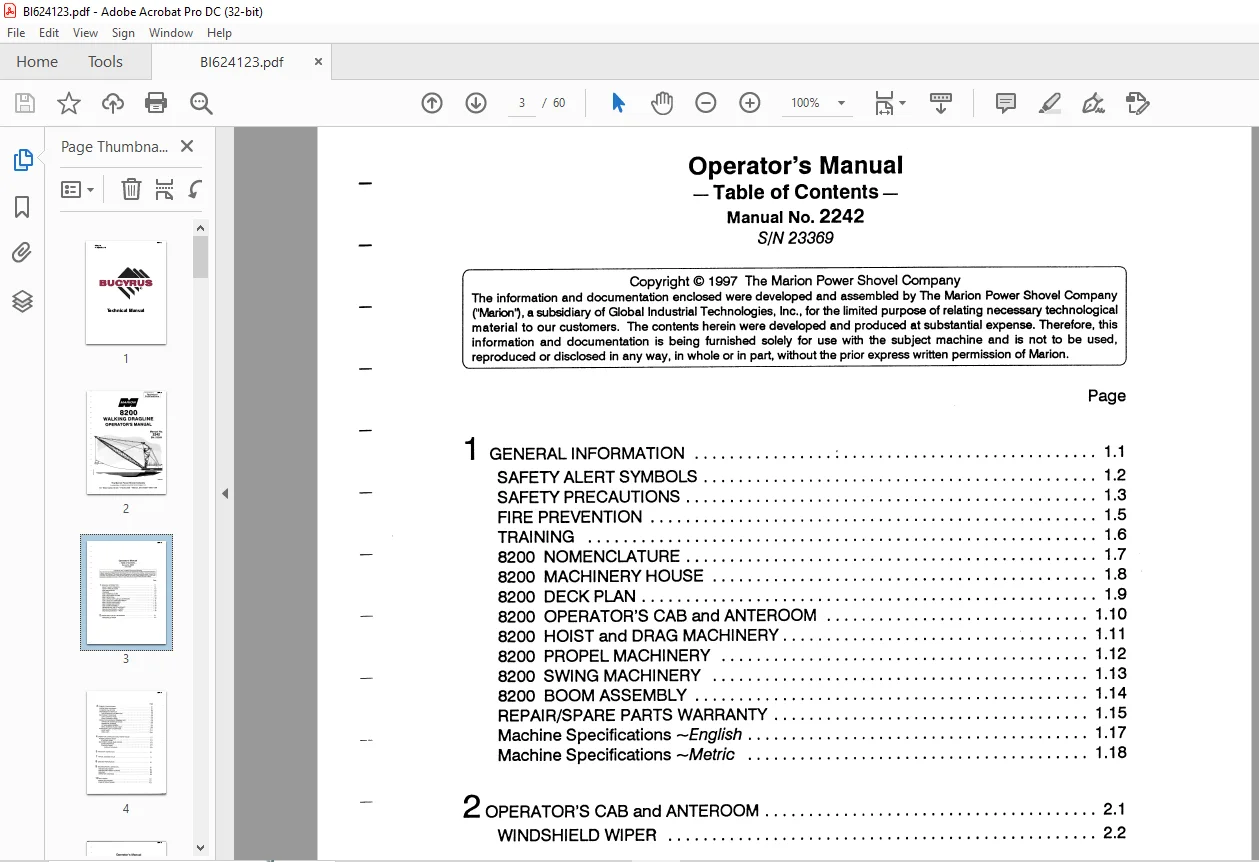

TABLE OF CONTENTS:

Cat Bucyrus Marion 8200 Walking Dragline Operator’s Manual SN 23369 – PDF DOWNLOAD

1 GENERAL INFORMATION 1 1
SAFETY ALERT SYMBOLS 1 2
SAFETY PRECAUTIONS 1 3
FIRE PREVENTION 1 5
TRAINING 1 6
8200 NOMENCLATURE 1 7
8200 MACHINERY HOUSE 1 8
8200 DECK PLAN 1 9
8200 OPERATOR’S CAB and ANTEROOM 1 10
8200 HOIST and DRAG MACHINERY 1 11
8200 PROPEL MACHINERY 1 12
8200 SWING MACHINERY 1 13
8200 BOOM ASSEMBLY 1 14
REPAIR/SPARE PARTS WARRANTY 1 15
Machine Specifications ~English 1 17
Machine Specifications ~Metric 1 18
2 OPERATOR’S CAB and ANTEROOM 2 1
WINDSHIELD WIPER 2 2
3 PRIMARY CONTROLLERS 3 1
OPERATOR’S CONTROLS 3 1
PLUGGING the MOTION 3 2
MASTERSWITCH SERVICE 3 3
MASTERSWITCH CALIBRATION 3 3
SECONDARY CONTROLS 3 3
LEFT CONTROL PANEL 3 4
RIGHT CONTROL PANEL 3 5
OPERATOR INTERFACE TERMINAL (OIT) 3 6
OPERATOR INTERFACE STAND 3 6
INTERFACE TERMINAL 3 7
OIT MAIN MENU SCREEN 3 8
MENU SCREENS FLOW CHART 3 9
HOIST/DRAG LIMIT CALIBRATION 3 11
HOIST LIMIT 3 11
DRAG LIMIT 3 12
4 OPERATOR CONTROLS IN MACHINERY HOUSE 4 1
POWER CONTROL ROOM 4 1
STARTING PANEL 4 2
MACHINERY HOUSE REAR DOORS 4 4
DOOR OPERATION 4 6
CONTROL PANEL 4 7
Hydraulic Schematic 4 8
5 PRE-START INSPECTION 5 1
7 TYPICAL DIGGING CYCLE 7 1
8 GROUND PREPARATION 8 1
9 WALKING/PROPEL OPERATION 9 1
WALKING MACHINERY 9 1
WALKING MACHINERY CONTROL 9 2
WALKING 9 3
OPERATOR CONTROLS 9 4
1 Q SHUTDOWN 10 1
PARTIAL SHUTDOWN 10 1
COMPLETE SHUTDOWN 10 1
