Cat Electric Rope Shovel MPV9MX1CT - HA M9 Mining Drills Shovels Draglines Service Manual

Cat Electric Rope Shovel MPV9MX1CT – HA M9 Mining Drills Shovels Draglines Service Manual

Name: Cat Electric Rope Shovel MPV9MX1CT - HA M9 Mining Drills Shovels Draglines Service Manual
SKU: 190992
Availability: InStock

Original price was: $89.95.Current price is: $19.95.

Cat Electric Rope Shovel MPV9MX1CT – HA M9 Mining Drills Shovels Draglines Service Manual – PDF DOWNLOAD

SIGMA Manual Number : MPV9MX1CT-HA

MANUAL : M9
MODEL : MPV9MX1CT – HA
TYPE : Package
APPLICATION : Mining Drills,
Shovels, Draglines
JOB NUMBER : 9071

Category: CATERPILLAR Tags: Cat Electric Rope Shovel MPV9MX1CT - HA M9 Mining Drills Shovels Draglines, Cat Electric Rope Shovel MPV9MX1CT - HA M9 Mining Drills Shovels Draglines Service Manual, Cat Electric Rope Shovel MPV9MX1CT - HA M9 Mining Drills Shovels Draglines Service Manual - PDF DOWNLOAD Vendor: Grader Docs

⚡

Instant PDF Download

Available immediately

💾

Save to Your Device

Download & keep forever

🛡️

Antivirus Scanned

100% virus-free

🌍

Trusted Worldwide

175,000+ customers

Description

Description

Cat Electric Rope Shovel MPV9MX1CT – HA M9 Mining Drills Shovels Draglines Service Manual – PDF DOWNLOAD

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat Electric Rope Shovel MPV9MX1CT – HA M9 Mining Drills Shovels Draglines Service Manual – PDF DOWNLOAD

SIGMA Manual Number : MPV9MX1CT-HA

MANUAL : M9
MODEL : MPV9MX1CT – HA
TYPE : Package
APPLICATION : Mining Drills,
Shovels, Draglines
JOB NUMBER : 9071

DESCRIPTION OF UNIT :

The MPV9 is a heavy duty system suitable for walkway mounting on the cabs and electrical enclosures of mining and industrial equipment. This includes shovels, draglines, drills, shiploaders, track maintenance, crane cabs and control rooms.

Evaporator:

Air is drawn from return air spiggots, passes over the heat exchange coil and heating elements into the double inlet wheel fan deck and is discharged through the supply air spigots. Refrigerant flow is metered by an externally equalized TX valve, and is cut off by a liquid line solenoid valve. Heat exchange coil is large, with heavy gauge tubing and coarse fin pitch to reduce clogging. Fan motor is single shaft and of totally enclosed, fan cooled construction. Drain pan is large and of “V” design for ease of cleaning and to facilitate draining. All pressure controls are in the evaporator section and are fully sealed, preset and ‘O’ ring connected.

Condenser:

The compressor is a heavy duty, fully sealed scroll device. The assembly is mounted to heavy flexible mounts to reduce noise transmission to the structure and provide some damping of shock. Connections are either soldered, ‘O’ ring or rotalock. A large filter drier is mounted in the liquid line to filter and remove moisture from the refrigerant. Isolation valves are installed on either side to enable refrigerant to be “pumped down” and thus enabling core to be replaced without total loss of refrigerant. Condenser fan is single speed.

TABLE OF CONTENTS:

Cat Electric Rope Shovel MPV9MX1CT – HA M9 Mining Drills Shovels Draglines Service Manual – PDF DOWNLOAD

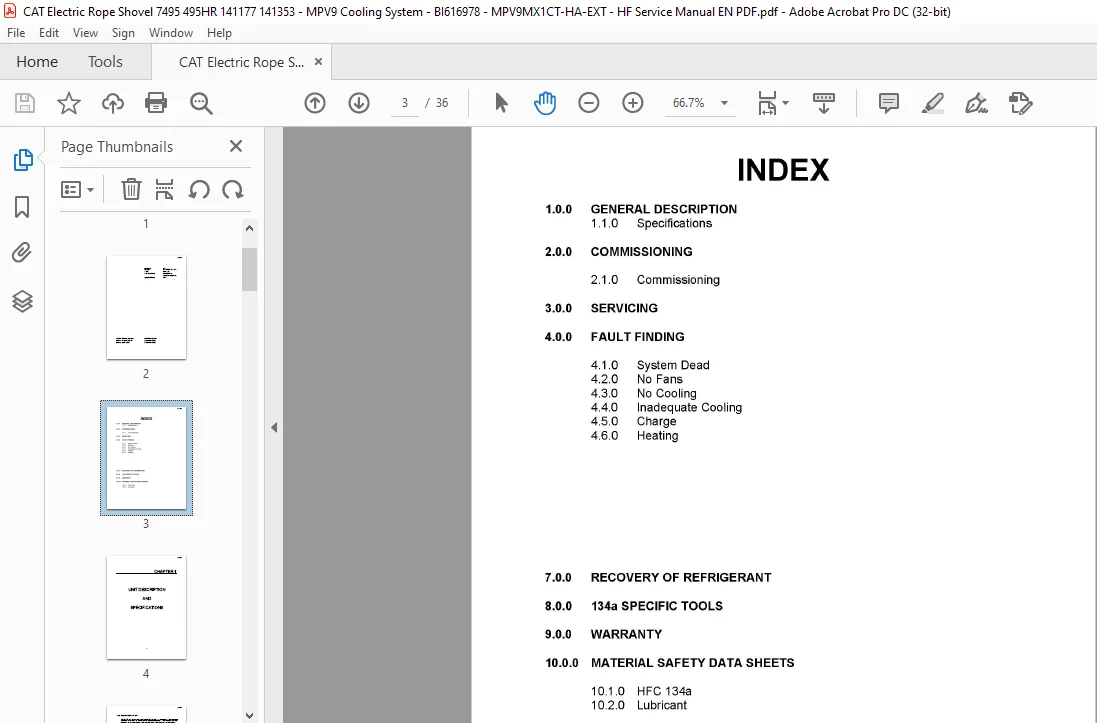

1.0.0 GENERAL DESCRIPTION
1 .1.0 Specifications
2.0.0 COMMISSIONING
2.1.0 Commissioning
3.0.0 SERVICING
4.0.0 FAUL Т FINDING
4.1.0 System Dead
4.2.0 No Fans
4.3.О No Cooling
4.4.0 lnadequate Cooling
4.5.0 Charge
4.6.0 Heating
7 .О.О RECOVERY OF REFRIGERANT
8.0.0 134а SPECIFIC TOOLS
9.0.0 WARRANTY
10.0.0 MATERIAL SAFETY DATA SHEETS
10.1.0 HFC 134a
10.2.0 Lubricant

CAT ELECTRIC ROPE SHOVEL MPV9MX1CT – HA M9 MINING DRILLS SHOVELS DRAGLINES SERVICE MANUAL:
